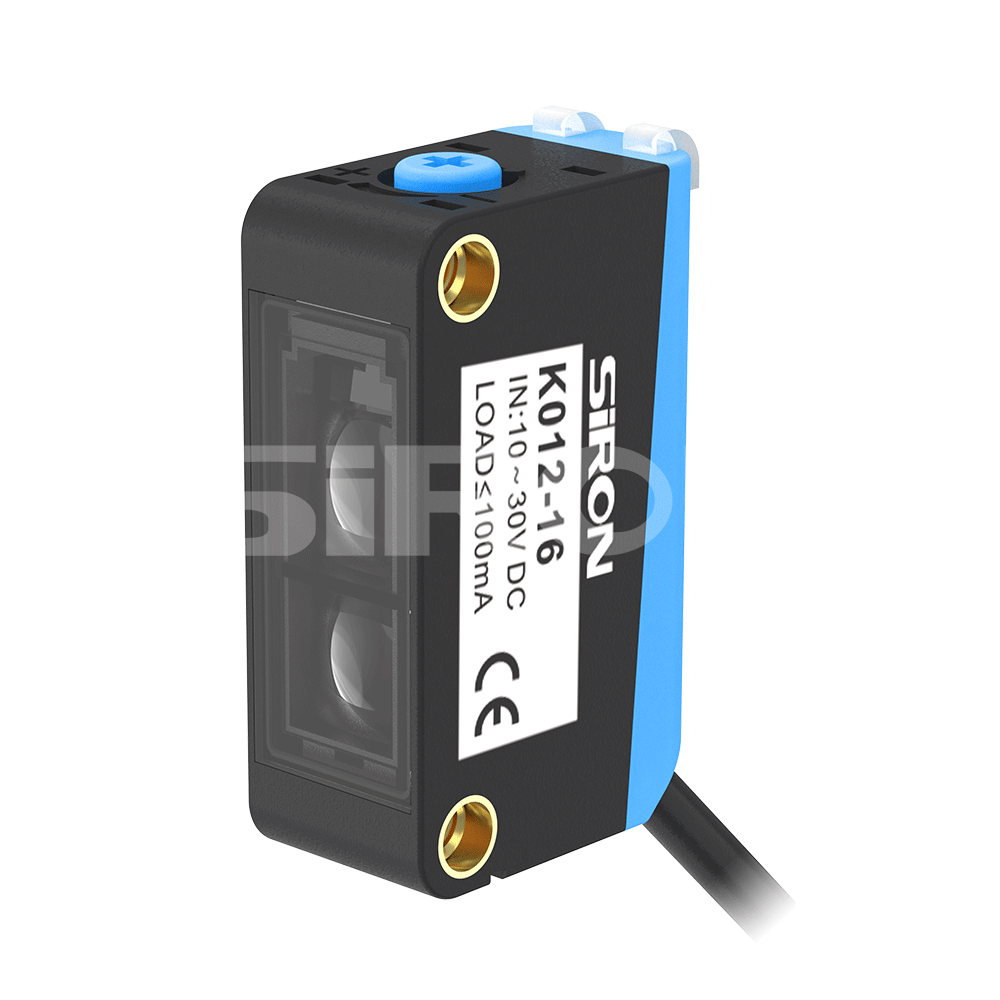

SiRON K012-16 Series Photoelectric Sensor Blue Light

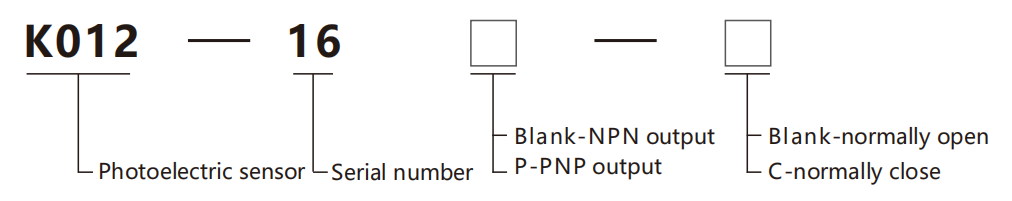

About selection

 Selection example: K012-16 indicates the K012 series, serial number 16, with NPN output，normally open;

                                         K012-16P-C indicates the K012 series, serial number 16, with PNP output，normally close.

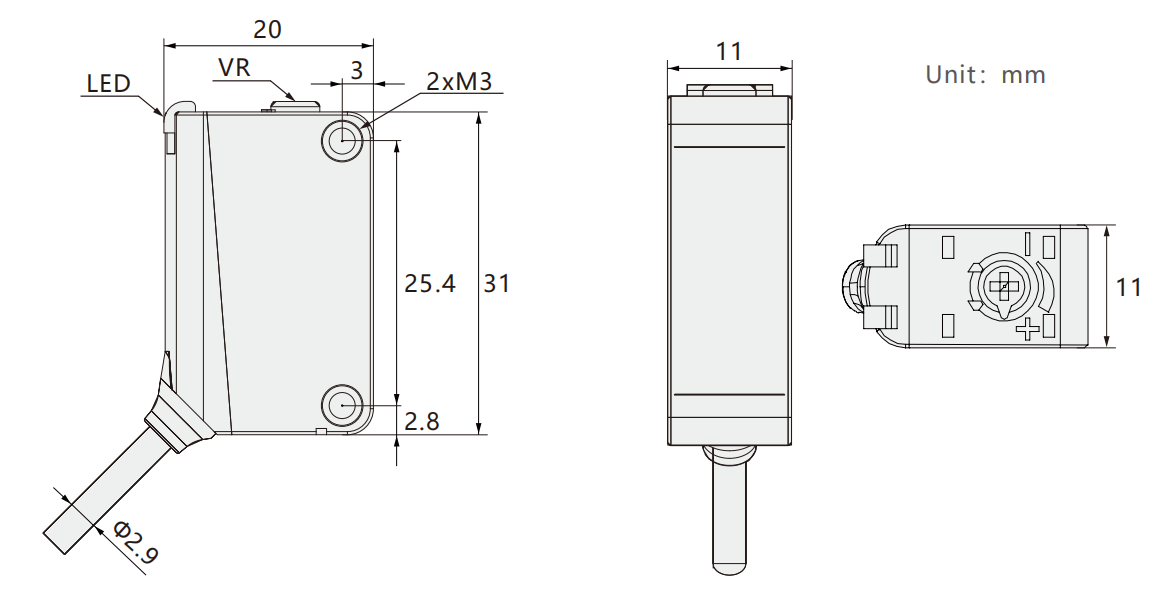

Note: National standard installation hole positions.

Specifications

Name	Photoelectric sensor
Model	K012-16	K012-16C	K012-16P	K012-16P-C

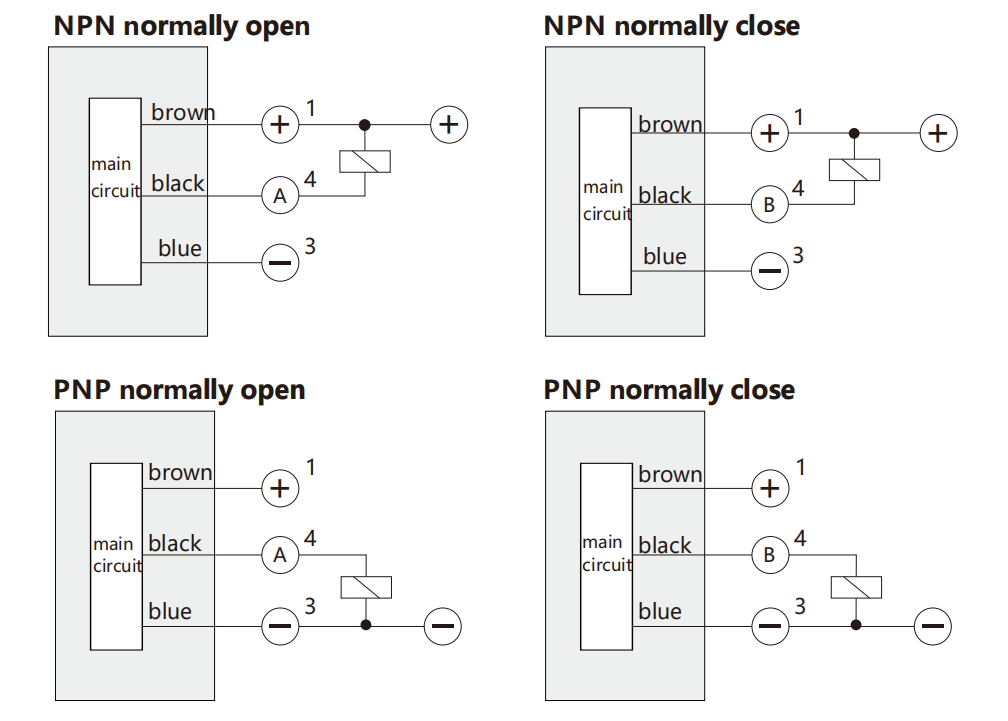

Mode of output	NPN    N.O	NPN    N.C	PNPN.O	PNP   N.C
Type	Background suppression type
Appearance
Detection distance	10～250mm
Operating vottage	10~30V     DC
Switching frequency	1000Hz
Type oflight	Visible blue light
Reaction time	<1ms
Load current	100mA
Power-on delay	<300ms
Sensitive regulation	Visible blue light
Blind zone distance	<1cm
Anti-optical interference	<5000Lux.
Ambient temperature	-25~55℃
Ambient humidity	35~85%
Protection class	Ip65
Shell material	ABS
Lens material	PC
LED indication	Yellow: Output; Green: Power Supply
Cable length	2m
Port	PVC cable 3x0.18mm²
