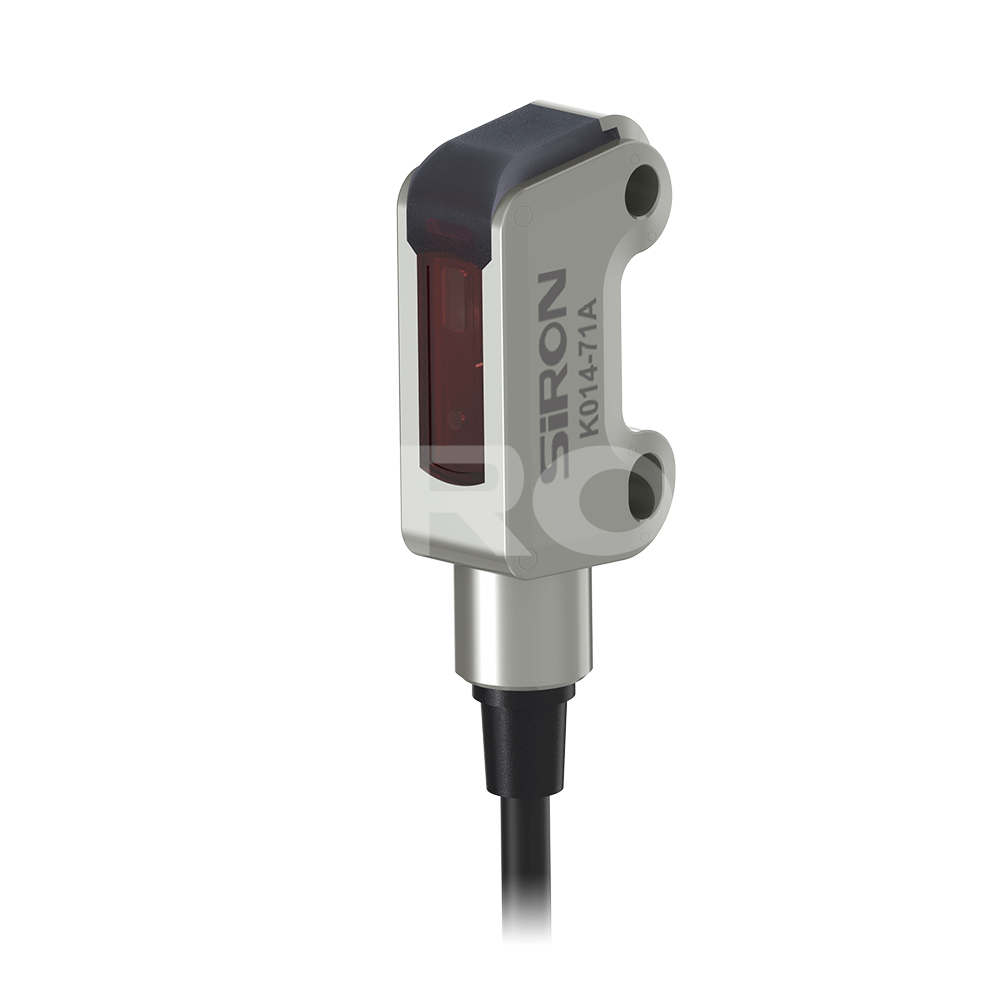

SiRON K014-71A Series Ultra-small Photoelectric Sensor Limited reflection

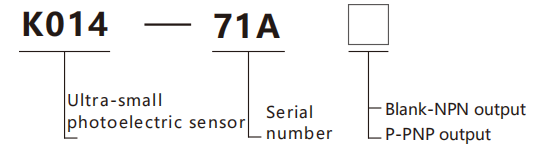

About selection

 Selection example: K014-71A  indicates the K014 series, serial number 71A, with NPN output;

                                         K014-71AP indicates the K014 series, serial number 71A, with PNP outpute.

Specifications

Name	Ultra-small  photoe  lectric  sensor
Model	K014-71A	K014-71AP

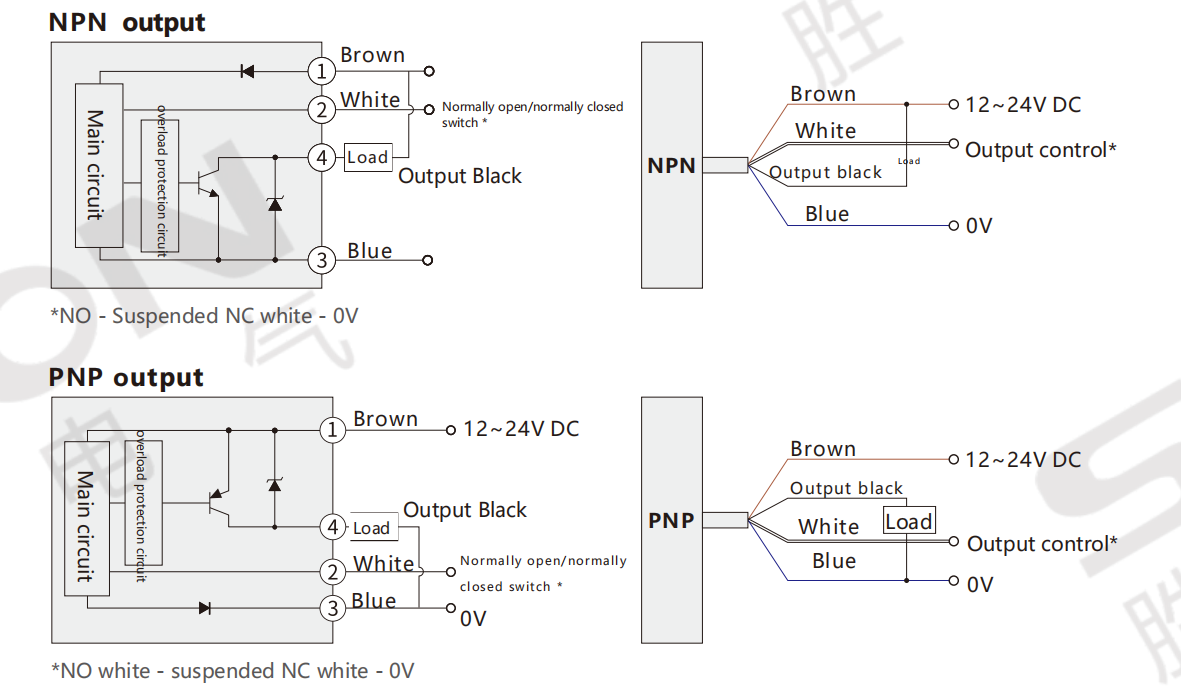

Ouput mode	NPN	PNP

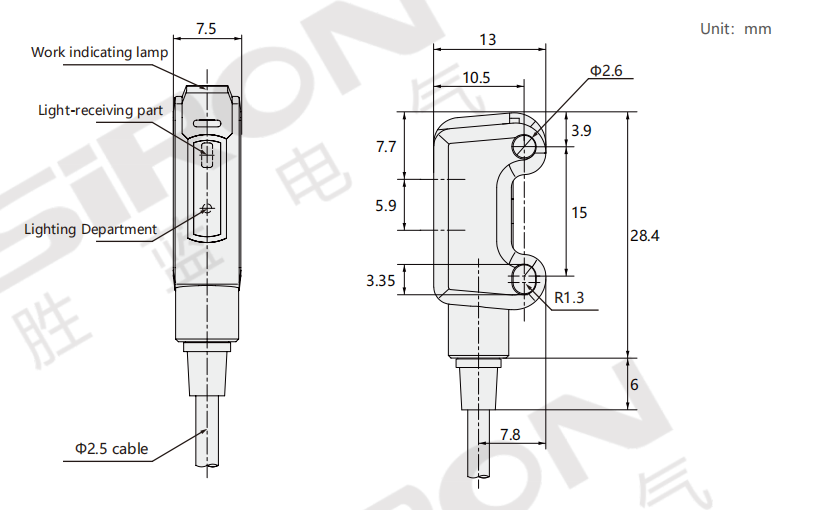

Appearance
Typesof	Limited reflection
Detection distance	White paper 100*100 Detection distance: 2~50mm Matte black paper 2~35mm
Curent consumption	≤15mA
Spot size	φ4mm
ACCept an assignment	Less than 20% of the detection distance
Lght source (wavelength)	Red light LED(650nm)
Supply voltage	DC12~24V
Response time	1ms
Ambient temperature	-10~+50℃
Ambient humidity	35~85%
Store temperature/humidity	-20~+60℃/35%~95%
Vibration resistance	10 to 55Hz, dual amplitude 1.5mm, 1 hour each in the X/Y/Z directions
Impact resistance	Double amplitude of 500m/S⊃2;, 3 times each in the X/Y/Z directions
Class of protaction	IP65
Protection circuit	Positive and negative pole reverse connection protection, load short-circuit protection
Output ight	Red L E D
Power indicator light	Green L E D
Sensitivity regulation	Single-turn potentiometer
N.O/N.C mode	The normally open (light-entering action) and normally closed (light-blocking action) modes are optional
Connection mode	Wire lead-out type (standard wire length 2m)
Shell material	SUS316L
