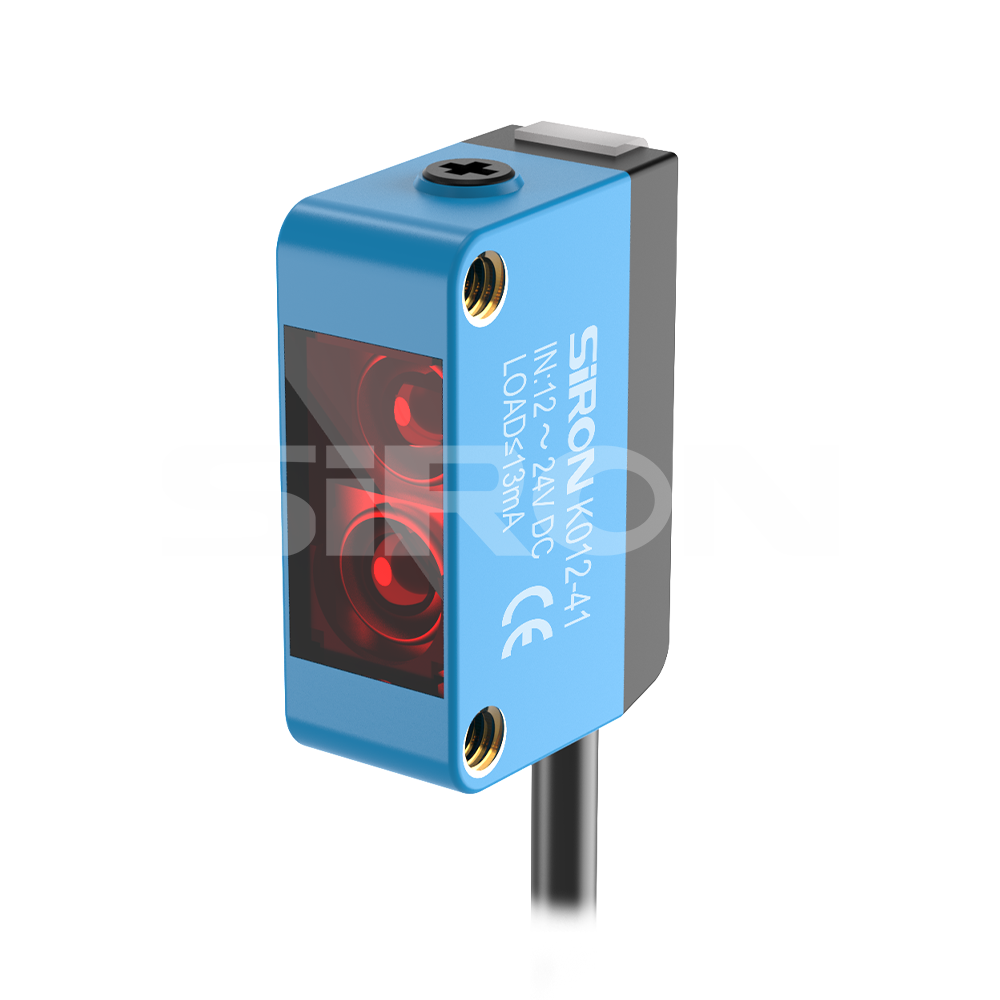

SiRON K012-40~K012-41 Series Photoelectric Sensor Strip light

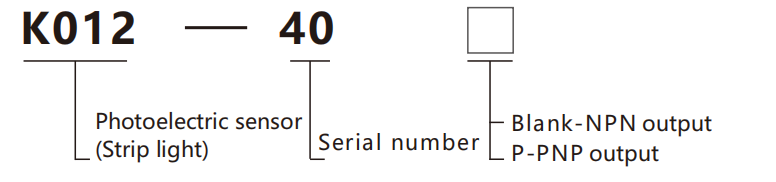

About selection

 Selection example: K012-40 indicates the K012 series, serial number 40, with NPN output;

                                         K012-40P indicates the K012 series, serial number 40, with PNP outpute.

Specifications

Name			Photoelectric sensor(Strp light)
Model		NPN	K012-40	K012-41
		PNP	K012-40P	K012-41P
Type			Diffuse reflection strip light

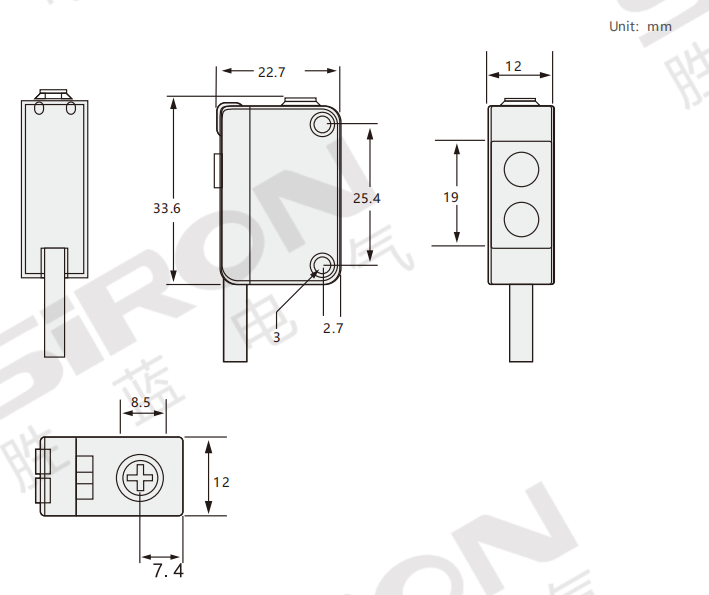

Appearance
Distance of detection			5 m m ~ 2 0 0 m m , light spot 4 m m	5 m m ~ 1 0 0 m m , light spot 1 m m
iluminant			640nm red light	640nm laser
Minimum detection object			φ2mm copper wire (set distance 100mm), capable of filtering up to 5mm gaps or perforations
repeatability			Below 1mm
Supply volage			12~24VDc±10%
pulse			P-P10%
Cument consumption			Below 13mA

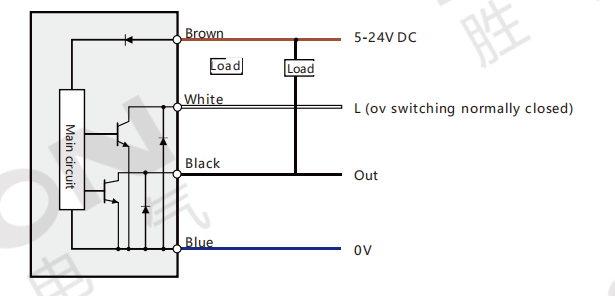

excportation			Default NPN signal, maximum incoming charge: 50mA
			Applied voltage: below 30V DC (between output and OV)
			Residual voltage: below 2V (inflow current 50mA)
Short circuit protection			Equip
Reaction time			Below 0.5ms
Operating status light			Green LED when powered ON, orange LED when sensing (lights up when output ON)
Environmental performance	Piotective construction		IP67(IEC)
	Operating ambient temperature		25℃~+55℃ (Note: No frost or ice formation allowed) When stored: -30℃~+70℃
	Amblent humidity		35%~+85%RH when stored at 35%~+85%RH
	Use amblentigit		Incandescent lamp: The illuminance of the light-receiving surface is below 3000R
Beamelement			640nm red LED
material			Shell: PC
cable			Outer diameter 2.8mm, rubber cable length 2m, customizable extension available
weight			Body weight: Approximately 50g
