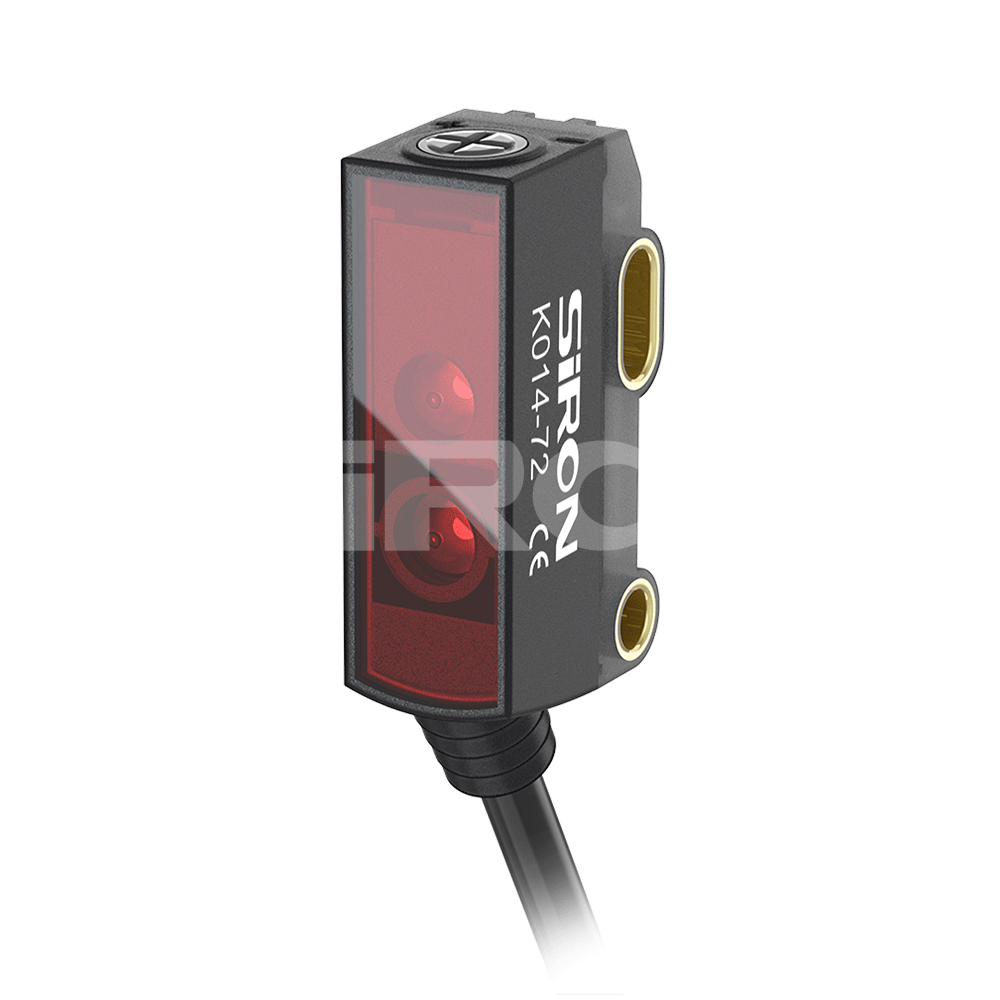

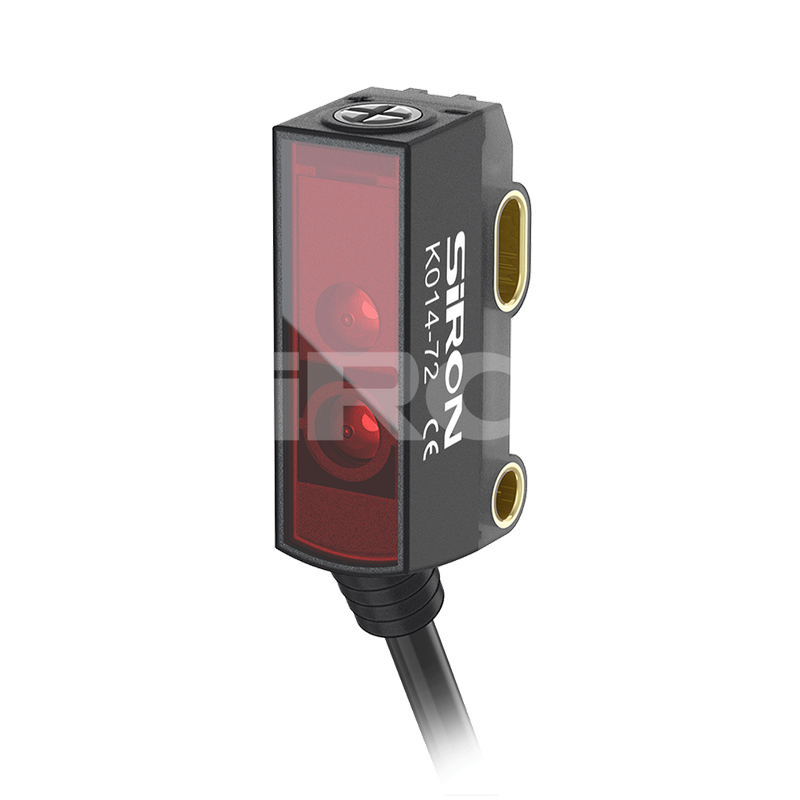

SiRON K014-72 Series Photoelectric Sensor Background Suppression Type

About selection

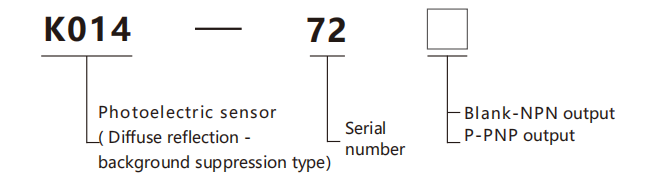

 Selection example: K014-72  indicates the K014 series, serial number 72, with NPN output;

                                         K014-72P indicates the K014 series, serial number 72, with PNP outpute.

Specifications

Name	Photoelectric sensor
Model	K014-72	K014-72P
Outputway	N P N output	P N P output

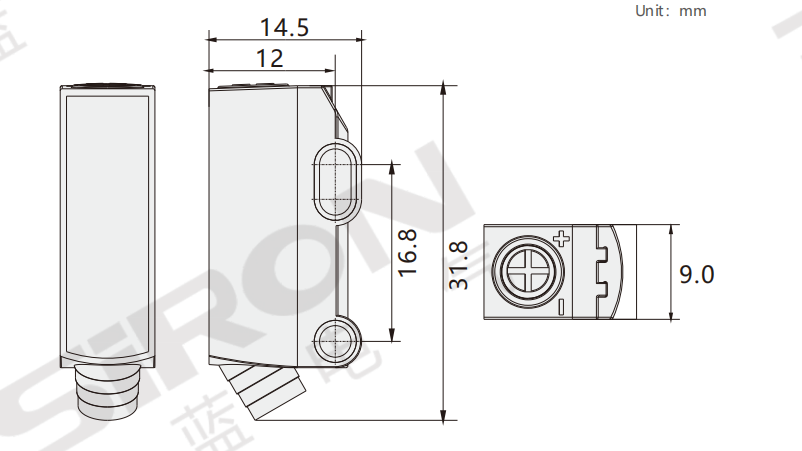

Appearance
TYpe	Diffuse reflection (background suppression type)
Detection distance	0 ~ 1 2 0 mm (adjustable)
Control output	NP N/PNP open collector 24V, maximum 70mA (only for main components)
illuminant	Red light 635nm, 4-element light-emitting diode body
Response time	<1MS
Output selection	Black wire: normally open output, white wire: normally closed output	Black wire normally open output
Display indicator	Operation indicator lights: The green LED indicator light represents the power indicator, and the red LED represents the output.
Protection circuit	Power distribution short-circuit protection, equipped with an automatic function to prevent any interference
Power source	12～24V±10%, floating rate (P-P): maximum 10%
Residual voltage	1V
Class	2
Ambient brightness	Incandescent lamp: maximum 20000lux, daylight: maximum 30000lux
Power consumption	Standard mode: maximum 300mW, maximum voltage: 24V
Vibration resistance	10～55Hz, double amplitude: 1 . 5mm, X, Y, Z axes are 2 hours respectively
Ambient temperature	- 10～+55℃, No freezing
Class of protection	IP65
Cable	4-core cable	3-core cable
Cable length	2M
