SiRON K012-42~K012-43 Series Photoelectric Sensor Laser Type

About selection

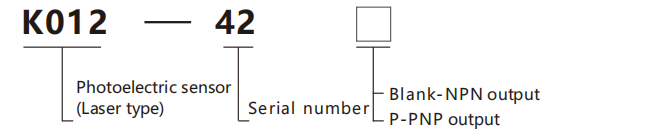

 Selection example: K012-42 indicates the K012 series, serial number 42, with NPN output;

                                         K012-42P indicates the K012 series, serial number 42, with PNP outpute.

Specifications

Name		Photoelectric senso (Laser type)
Model	NPN	K012-42	K012-43
Type	PNP	K012-42P	K012-43P
		Specular reflection type	Opposite emission

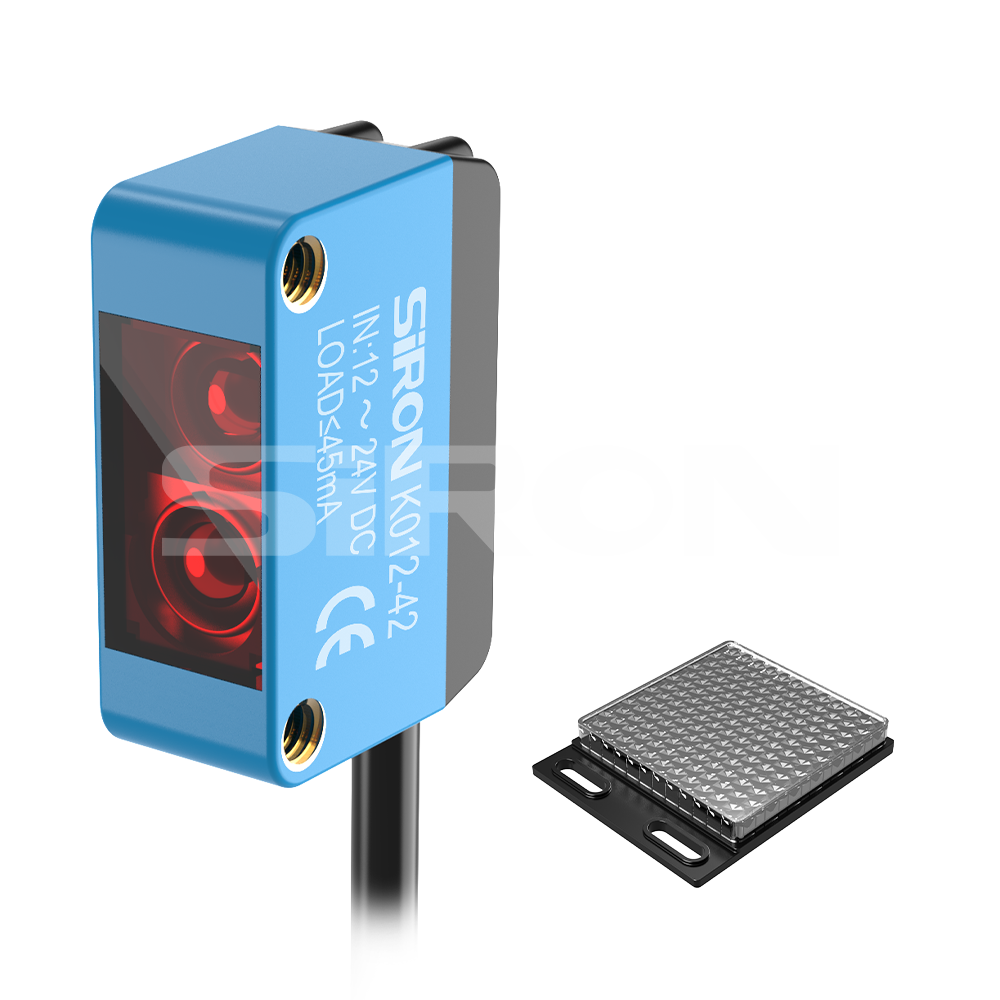

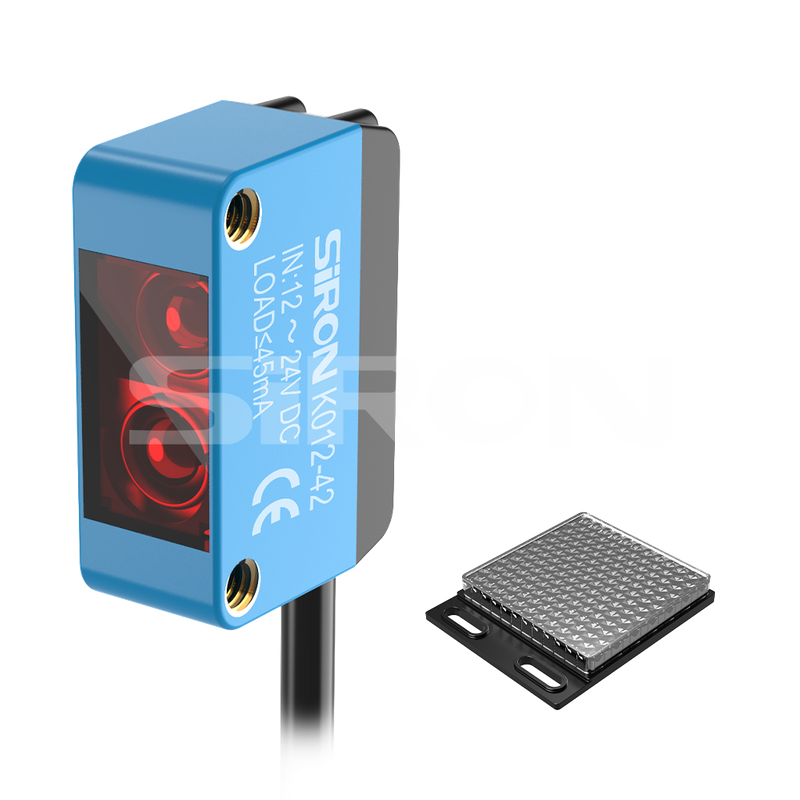

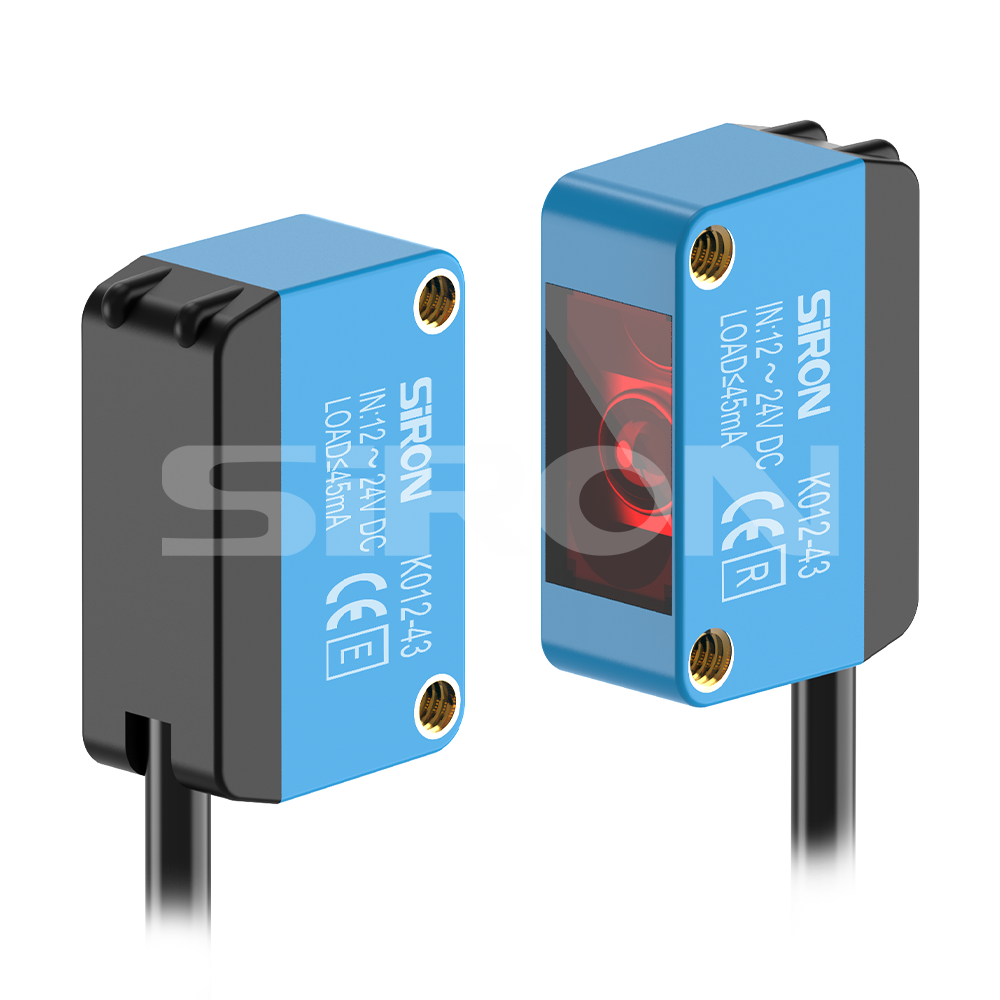

Appearance
Detecliondistance		5m	50m
Detecing object		10*10 White drawing paper
igit source (wavelengh)		650nm Red laser
Supply voltage		DC12-24V pulsation (p-p) below 10% (DC10-30)
Curent consumplon		≤45mA
Control output		The load power supply current is below 150mA (residual voltage below 1V)
Loopproteclion		Surge protection, short-circuit protection, reverse polarity connection protection
Response time		Action/response each under 1.0ms
Display lamp		Action indicator light (red)
Ambient temperature		-25℃~+55℃
Ervironmentalilumination efect		Incandescent lamp: below 3000Lx
Ambienthumidity		When in operation: -45% to +85%(non-freezing)RH; when stored: 35% to +85%(non-freezing)RH
Vbltage effect		When the rated power supply voltage fluctuates within ±15%, the detection distance changes within ±1%
Insulabonresistance		Between the charging section and the casing of a 20MΩ or above (DC500 megohmmeter)
Dielectric strength		Between the charging section and the casing of a 20MΩ or above (DC500 megohmmeter)
Vibra ton (durability		10~50Hz,1.5mm dual amplitude, reaching 1 hour in the X, Y, and Z directions
Impact  (durability)		Double amplitude of 500m/s⊃2;, three times in each of the X, Y and Z directions
Protectivestructure		Ip65
Connectionmode		Wire lead-out type (standard 2m)
Shellmaterial		ABS
