K014-A81~K014-A83 Series
SiRON
8479909090

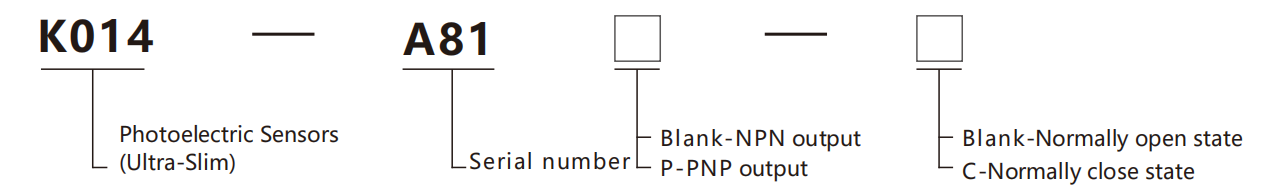

About selection

Selection example: K014-A81 indicates the K014 series, serial number A81, with NPN output, Normally open state;
K014-A81-C indicates the K014 series, serial number A81, with PNP outpute,Normally close state.
Specifications
Name | Photoelectric Sensors (Ultra-Sim) | |||

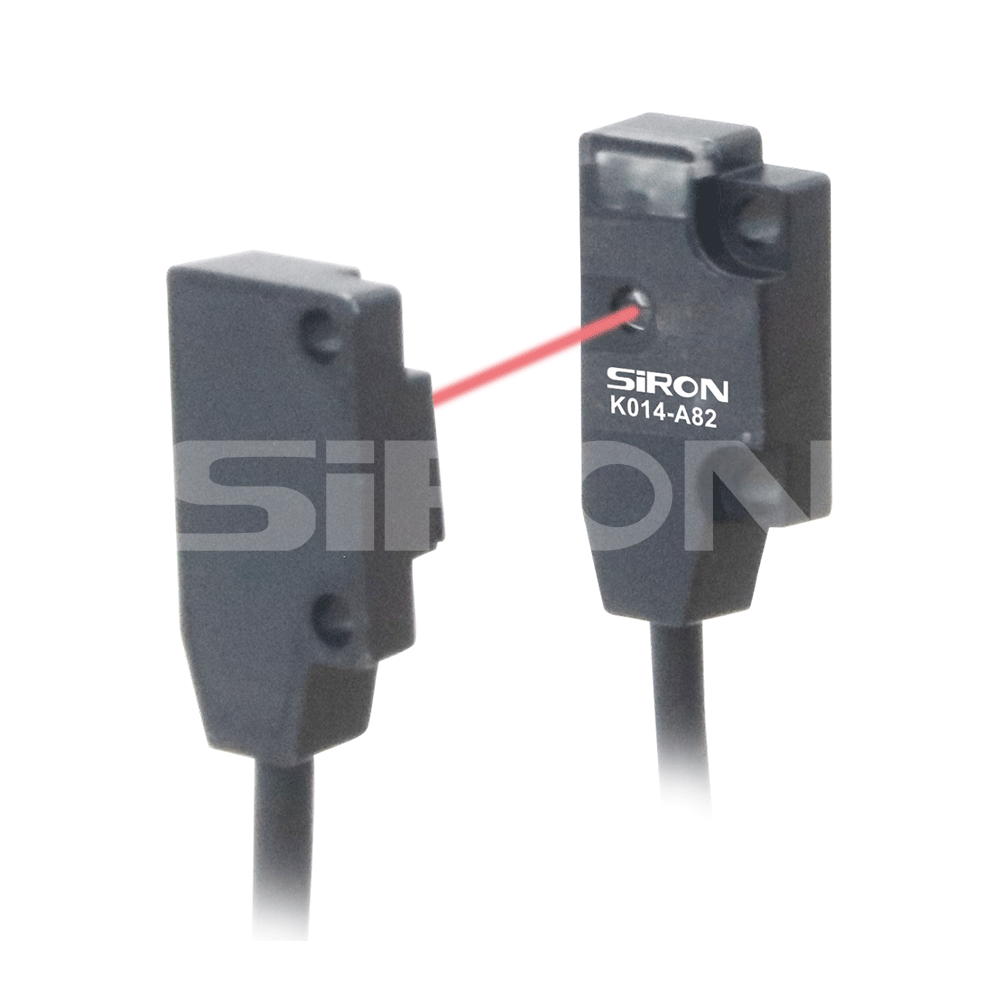

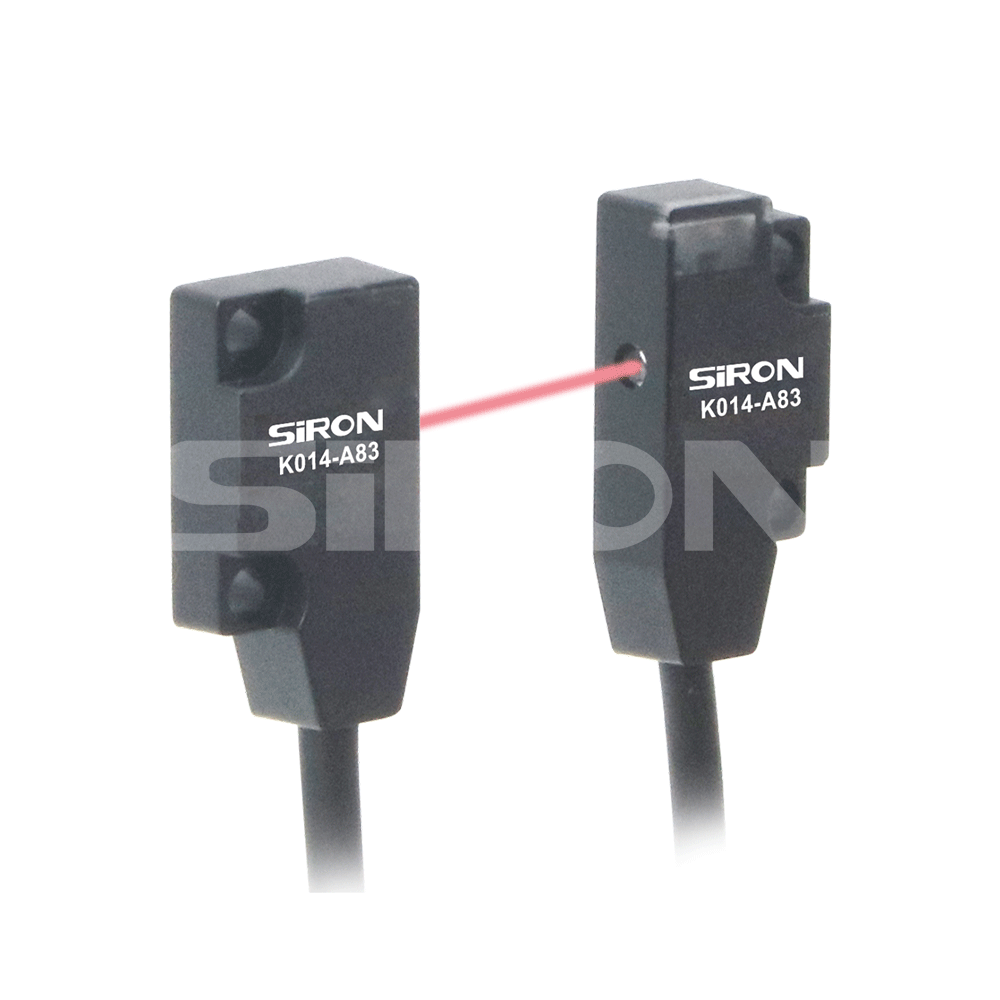

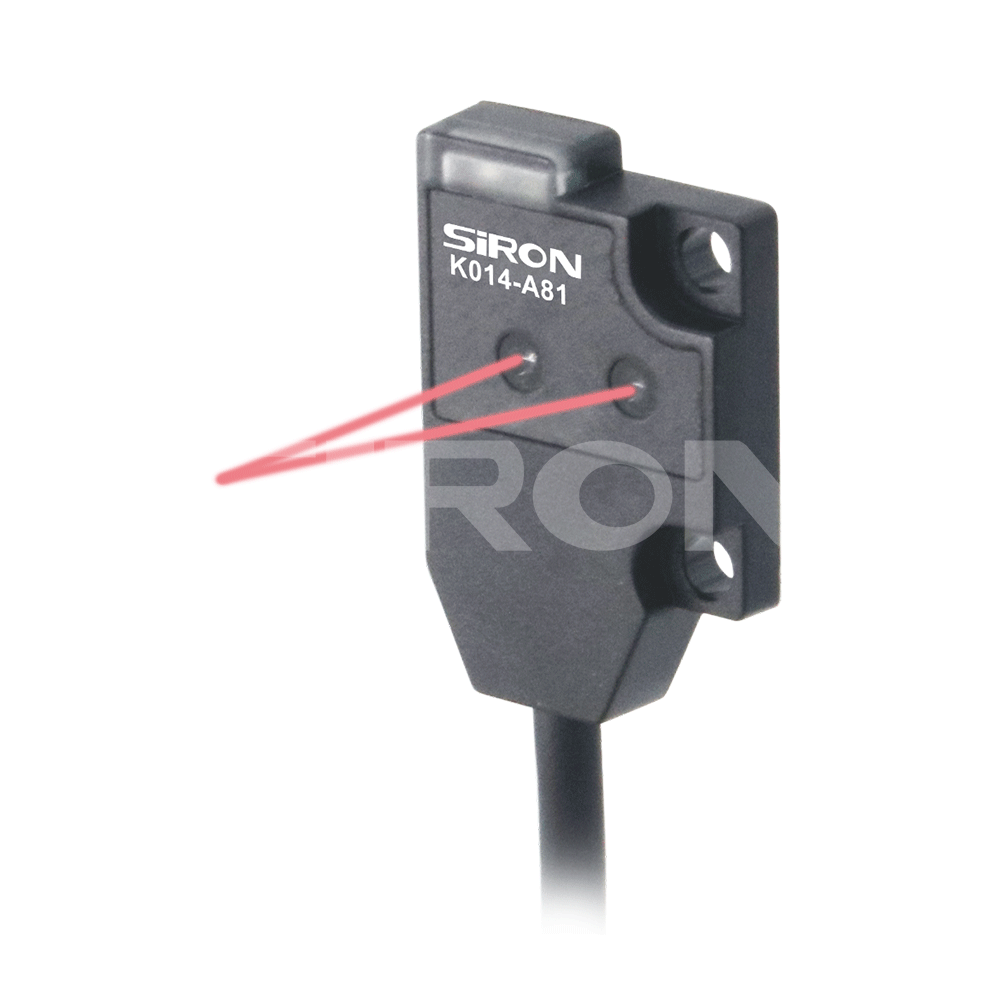

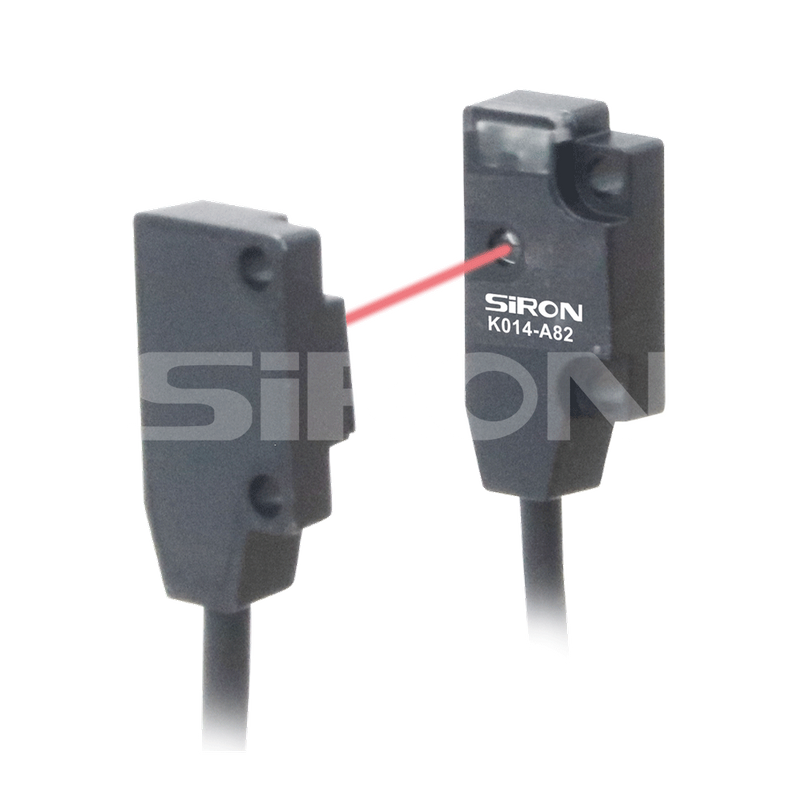

Model | NPN N.O | K014-A81 | K014-A82 | K014-A83 |
| NPN N.C | K014-A81C | K014-A82C | K014-A83C | |
| PNPN.O | K014-A81P | K014-A82P | K014-A83P | |
| PNPN.C | K014-A81P-C | K014-A82P-C | K014-A83P-C | |
| Appearance | ![]() | ![]() | ![]() | |
Type | Diffuse reflection | Through-beam | ||
Detection surfaces | front | front | Side | |
Detection distance | 30mm | 500mm | ||
| Spot size | 2.5X3mm/3cm | ①5cm/50cm | ||
Variance range | <5% | / | ||
Minimal test substance | 5mm:φ0.6mm | φ2mm opaque object | ||
| 10mm:φ1.5mm | ||||
Repeatability | Below < 5 % | |||

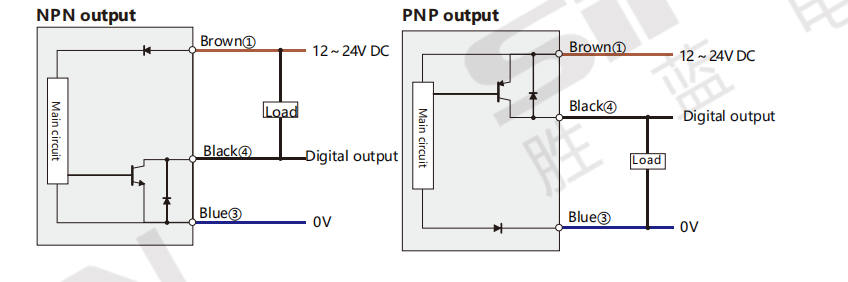

Output mode | NPN open collector | |||
Switch mode | Light.on(light entry action); Dark.on(light blocking action) | |||
Response time | <500μS | <1ms | ||
Frequancy of response | 700HZ | 300HZ | ||
Light source | Red light 700nm | Red light 660nm | ||
Operating voltage | DC12~24V±10% | |||
Residual volage (voitage drop) | <1.5V (when the load current is 100mA and the wire is 2m) | |||
Maximum load current | 100mA | |||
Consumption (no-oad)current | <10mA | Receiver: <10mA; Transmitter: <15mA | ||
Ambient temperature | During operation: -10℃~55℃; During storage: -25℃~70℃, no freezing | |||
| Ambient humidity | During operation: 35%~85% RH; During storage: 35%~95% RH, no condensation | |||
| Protection circuits | Polarity reversal protection / Surge protection / Short circuit protection | |||
| Degree of protection | IP64 | |||
| Light | Orange | |||
| Connection | Wire lead-out type (3-core, standard wire length 2 meters) | |||
| Enclosure | ABS | |||
| Vibration resistant | 10~55Hz, double amplitude 1.0mm, 30 minutes each in X/Y/Z directions | |||
| Lmpact-resistant | 300m/S⊃2;, 3 times each in X/Y/Z directions | |||
