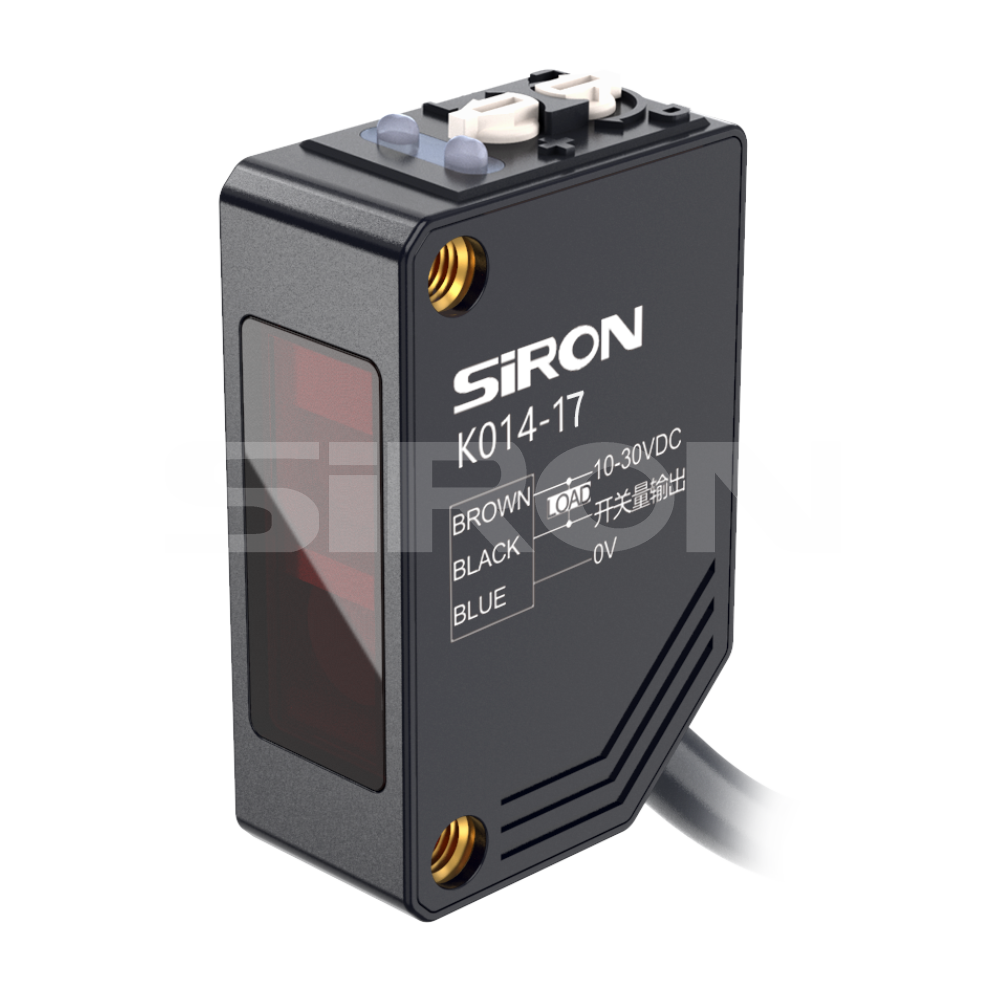

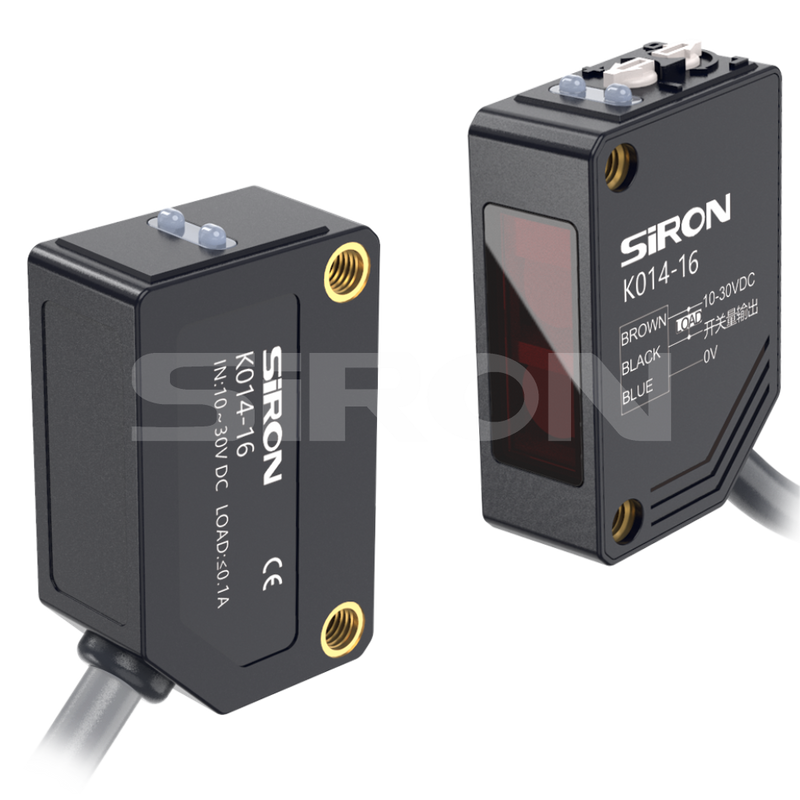

SiRON C K014-16～K014-17 Series Photoelectric Sensor Red Light IP65

About selection

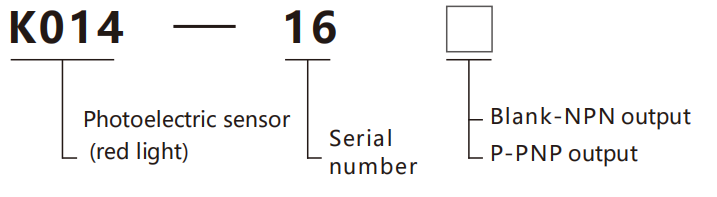

 Selection example: K014-16  indicates the K014 series, Serial number 16,with NPN output;

                                         K014-16P  indicates the K014 series, Serial number 16,with PNP output.

Specifications

Name		Photoelectric  sensor  (red  light)
Model	NPN	K014-16	K014-17
	PNP	K014-16P	K014-17P
Type		Correlation	Diffuse reflection (wide spot)
Appearance
Distance of detection		10m	5~200mm
Detecting an objed		Opaque objects with a diameter of Φ12mm or more	/
Detecting an objed		/	130×130mm/20cm
Light souroe		Red LED 623nm(modulated)
ndicator ight		Transmitter: Power indicator light: green/Receiver: Working indicator light: green; Action indicator light: Red	Work indicator light: Green; Action indicator light: Red
Adjustment ofsensiltvity		single-turn potentiometer
Operating voltage		10～30V   DC
Current ofconsumption		Transmitting end < 20mA; Receiving end < 20mA	<25mA
Current ofload		<100mA
Output mode		NPN/PNP open collector
Onoff mode		Lon(light entry action)/D.on(light blocking action) can be switched
Response time		33ms	1ms
Ambient uminosty		Sunlight exposure ≤ 10,000 lux; The illumination of incandescent lamps is ≤3000Lux
Ambient temperature		- 25℃~+55℃,No freezing
Ambient humidity		3 5 % ~ + 8 5 % , No coagulation
Resistance to vibration		10 to 50Hz,0.5mm amplitude, 2 hours each in the X, Y, and Z directions
Prolechioncircuit		Reverse polarity protection, short-circuit protection	Power reverse polarity protection, output reverse polarity protection, surge protection, short-circuit protection
Class ofprotecion		IP65
Materal		PBT+ glass fiber (housing),PMMA(lens)
Accessories		Screwdriver
Cable		3-core cable
Cablelength		2M

Example

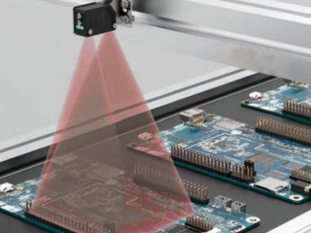

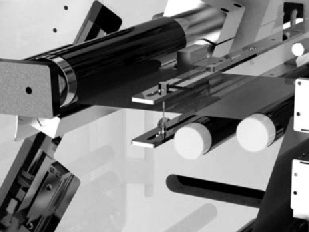

 Detection of the presence or absence                                              Inspection of PCB board in place

 of lithium batteries during loading

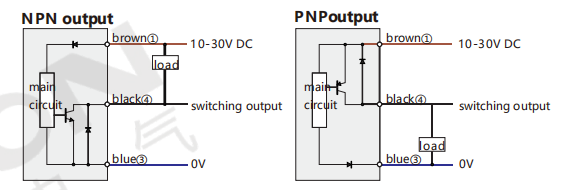

Wiring diagram

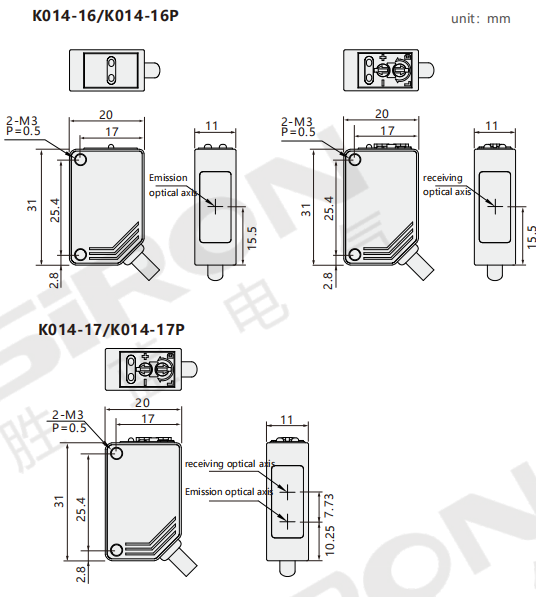

Dimension
