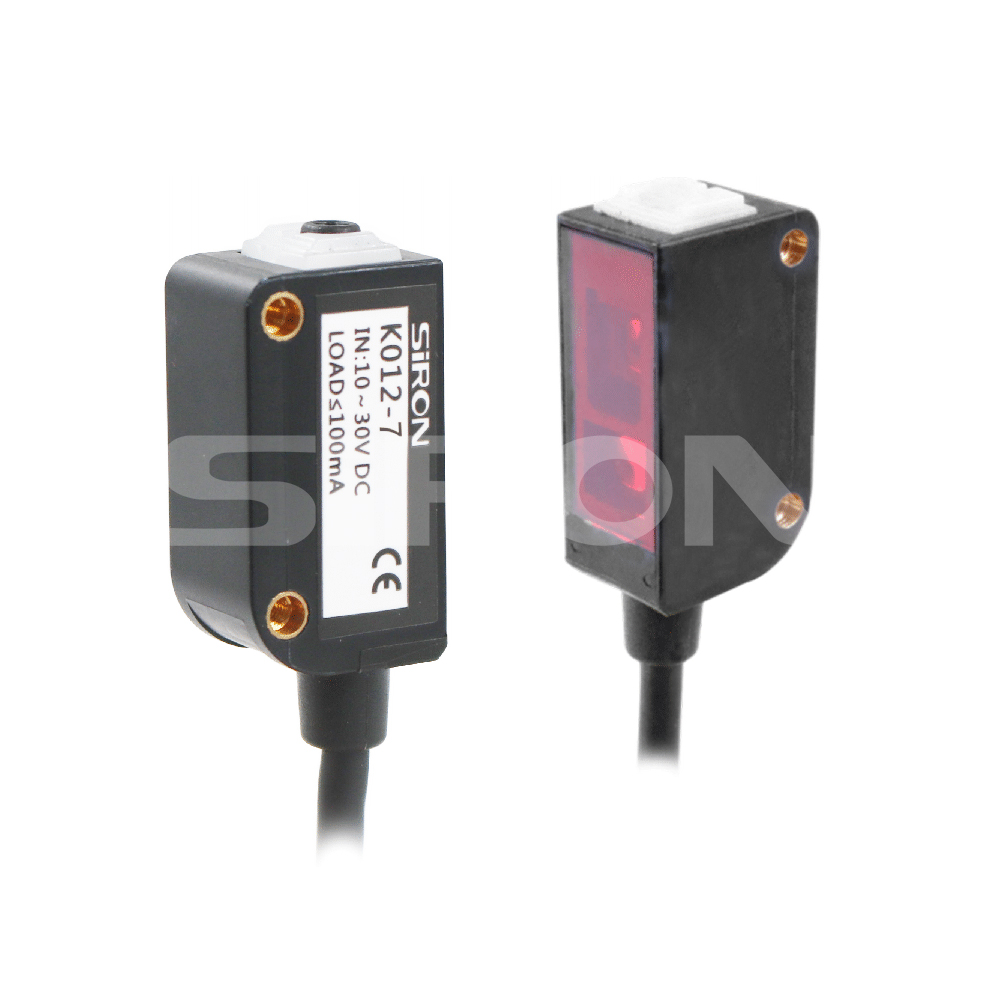

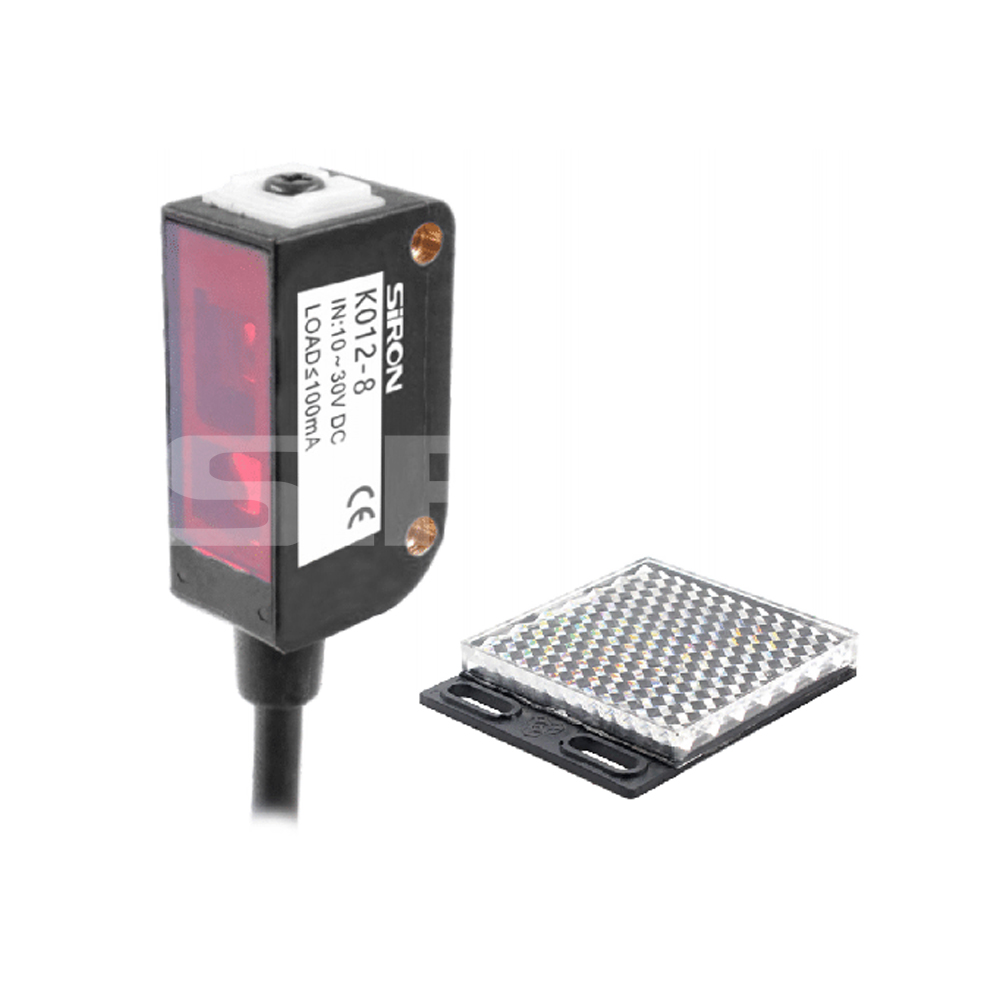

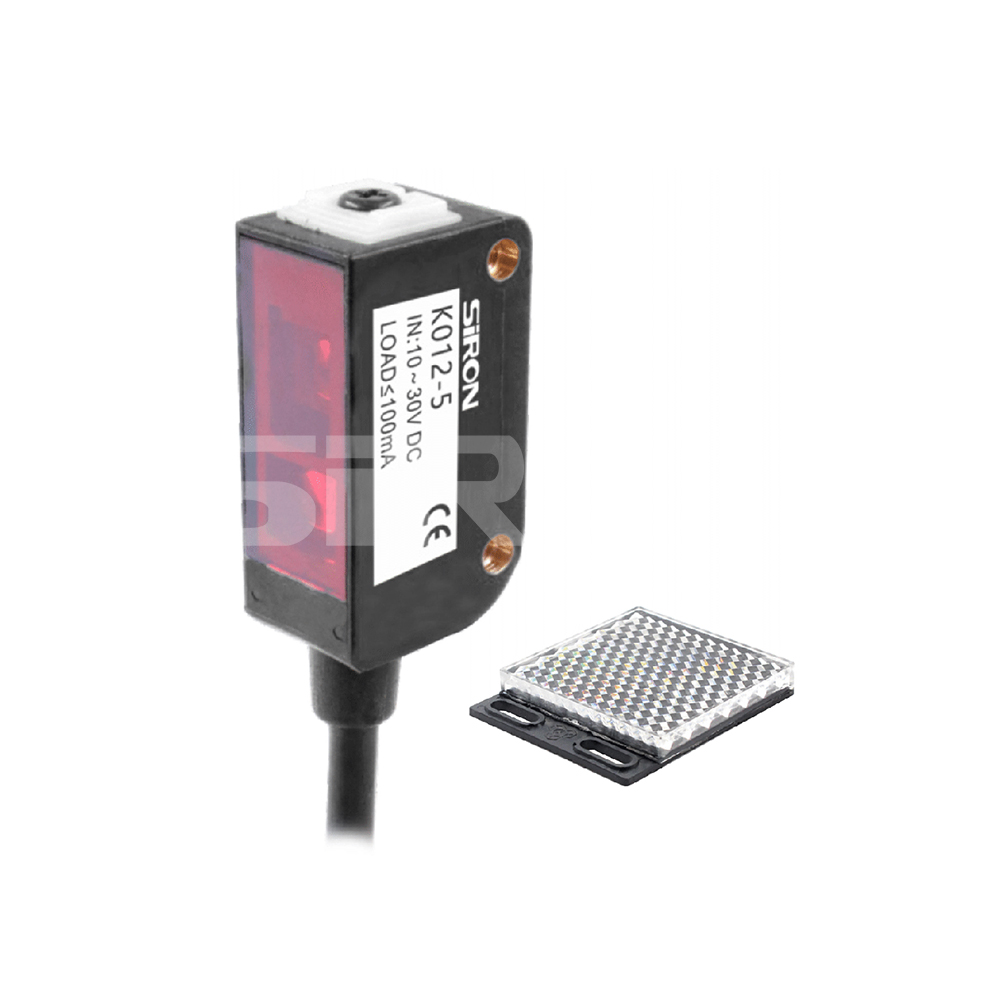

SiRON K012-5～K012-8 Series Photoelectric Sensor IP65

About selection

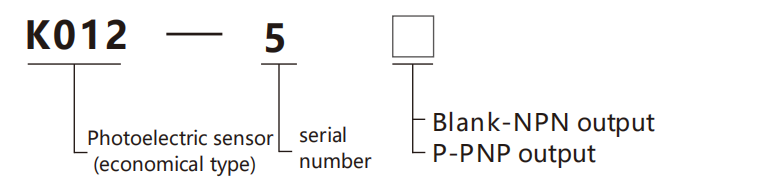

Selection example:  K012-5 indicates the K012 series, serial number 5, with NPN output.

                                          K012-5P indicates the K012 series, serial number 5, with PNP output.

Note:
1. Regression reflection: If it is for full-scale distance detection, it is recommended to purchase a high-quality reflector separately.
2. The standard detection distance of K012-7 is 5 meters. If the required detection distance is 15 meters, the ordered model is: K012-7(D15)/K012-7P(D15).
3. K012-8 automatically recognizes NPN normally open and PNP normally closed.
4. K012-8 can detect relatively transparent objects, such as transparent films (it is recommended to install at an Angle of 25 degrees), and it should be installed at an Angle to the object being detected as much as possible.

Specifications

Name		Photoelectric sensor(economical type)
Model	NPN	K012-5	K012-6	K012-7	K012-8
	PNP	K012-5P	K012-6P	K012-7P
Type		Regression reflection		opposition	Regression reflection (transparent object detection)
Appearance
Detection distance		2m	4m	5m(There are 15m options available)	2m
Operating Voltage		<25cm		/	/
On-off level		infrared ray 8 8 0 n m		infrared ray 8 8 0 n m	infrared ray 6 5 0 n m
Type of light		500Hz
Reaction time		10～30V    DC
Load current		<2ms			1ms
Power-on delay		100mA
Sensitive regulation		<300ms
Blind spot distance		Single-turn potentiometer			Double-click the button on the lens
Anti-light interference		<5000Lux
Protection level		IP65
Ambient temperature		-25～55℃
Environment humidity		35～85%
shell material		ABS
Lens material		PMMA
LED indication		Output: Red; Power supply: Yellow
Cable length		2M

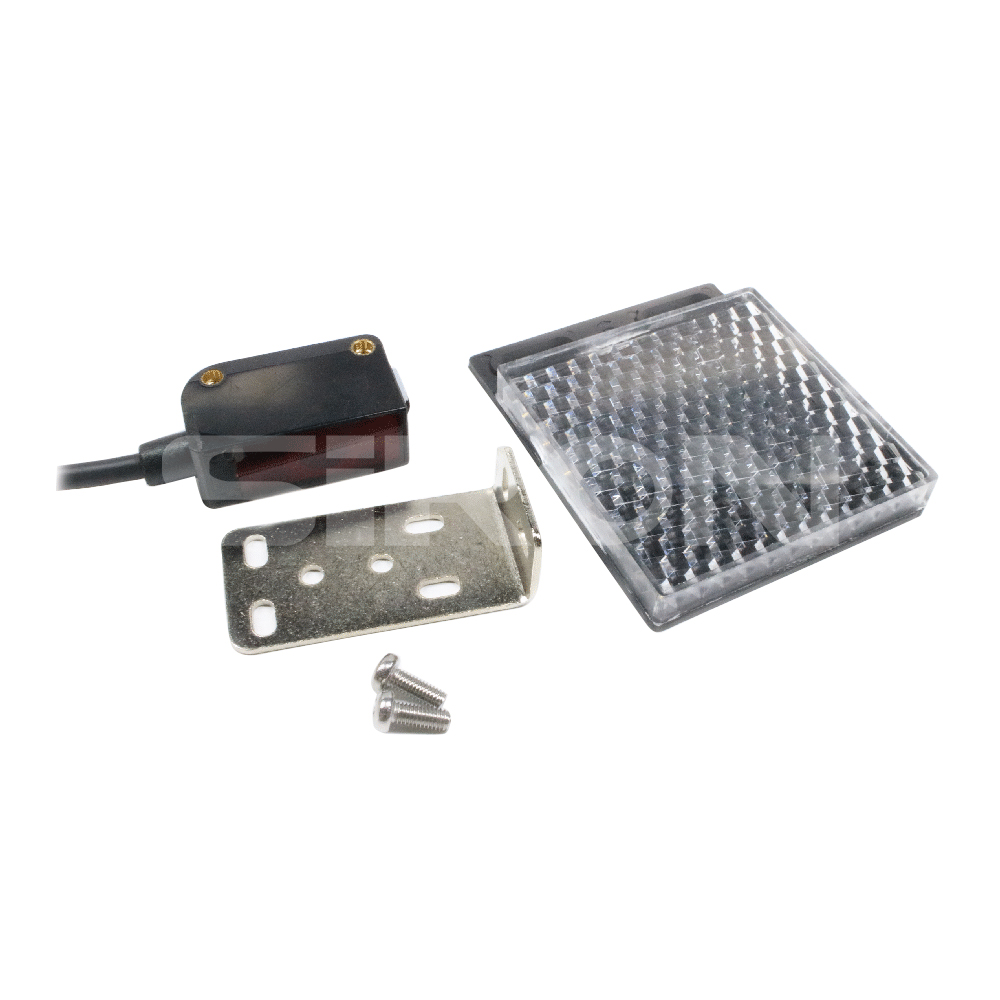

Appendix		reflector		/	reflector
interface		PVC cable; 4×0 . 1 8 m m ⊃2;		PVC cable; 4×0.18mm²/2×0.25mm²	PVC cable；3×0.35mm²

Example

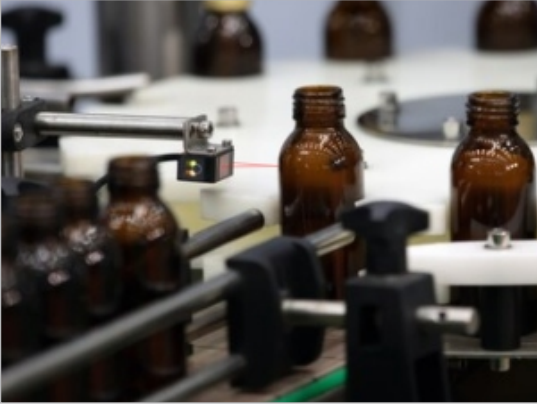

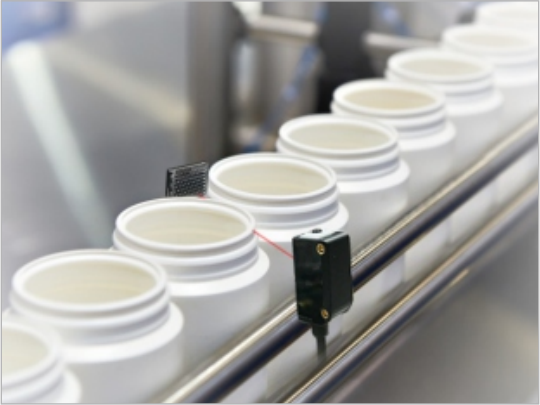

Inspection of item packaging on conveyor belts                            Inspection of item packaging on conveyor belts

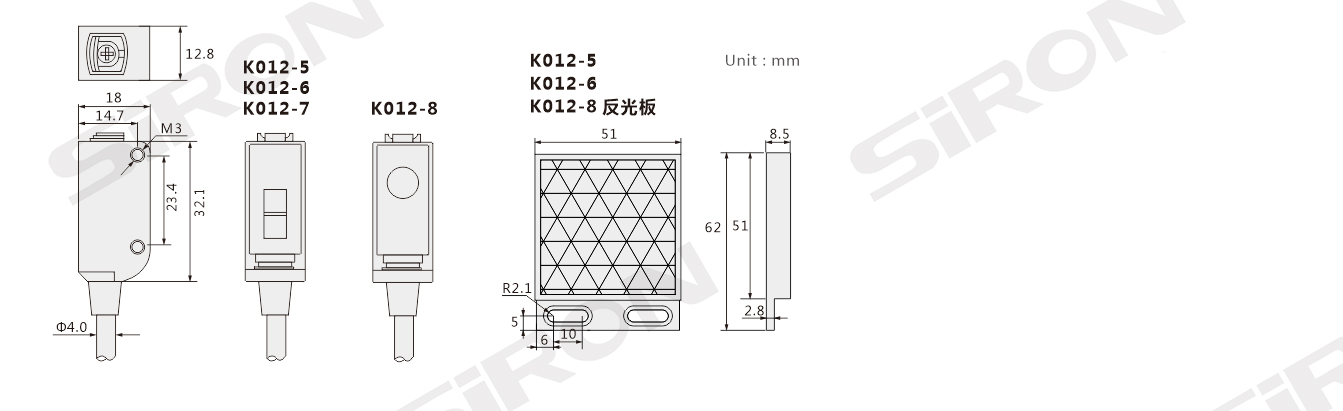

Dimension

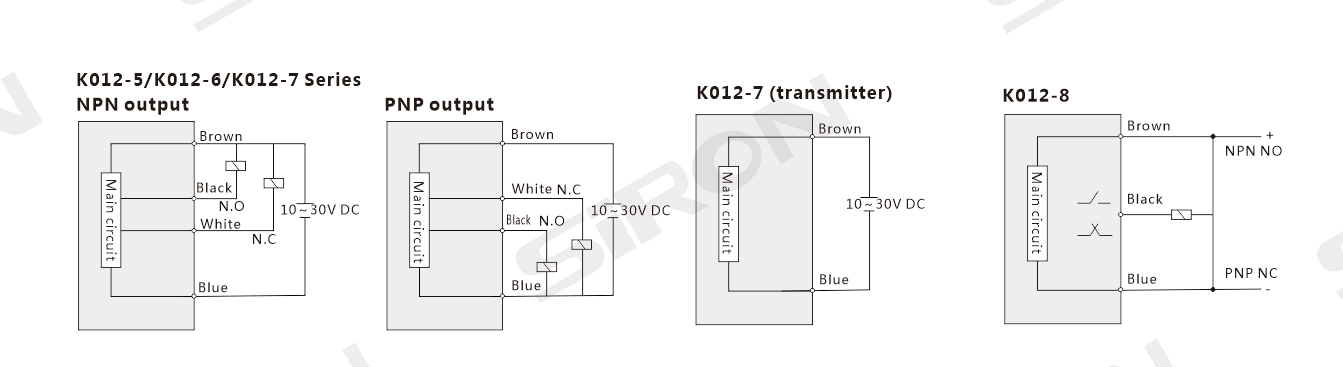

Wiring diagram
