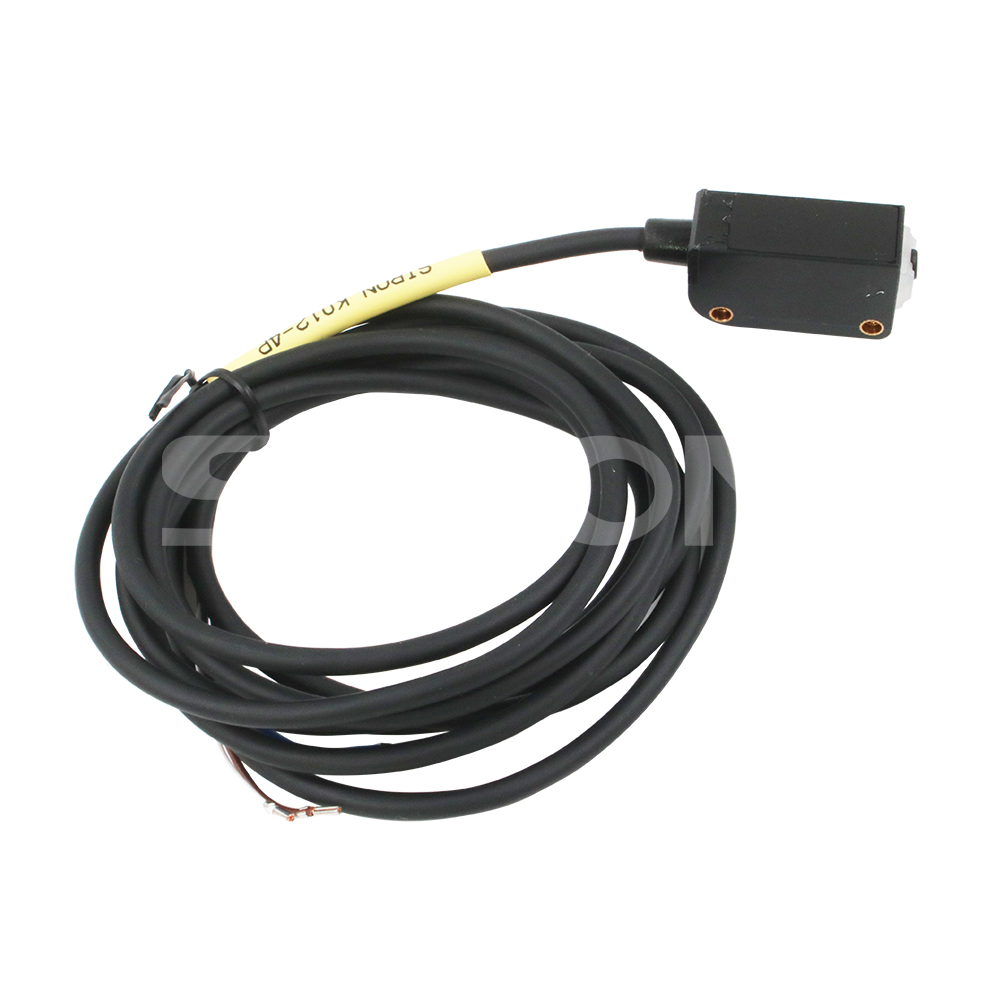

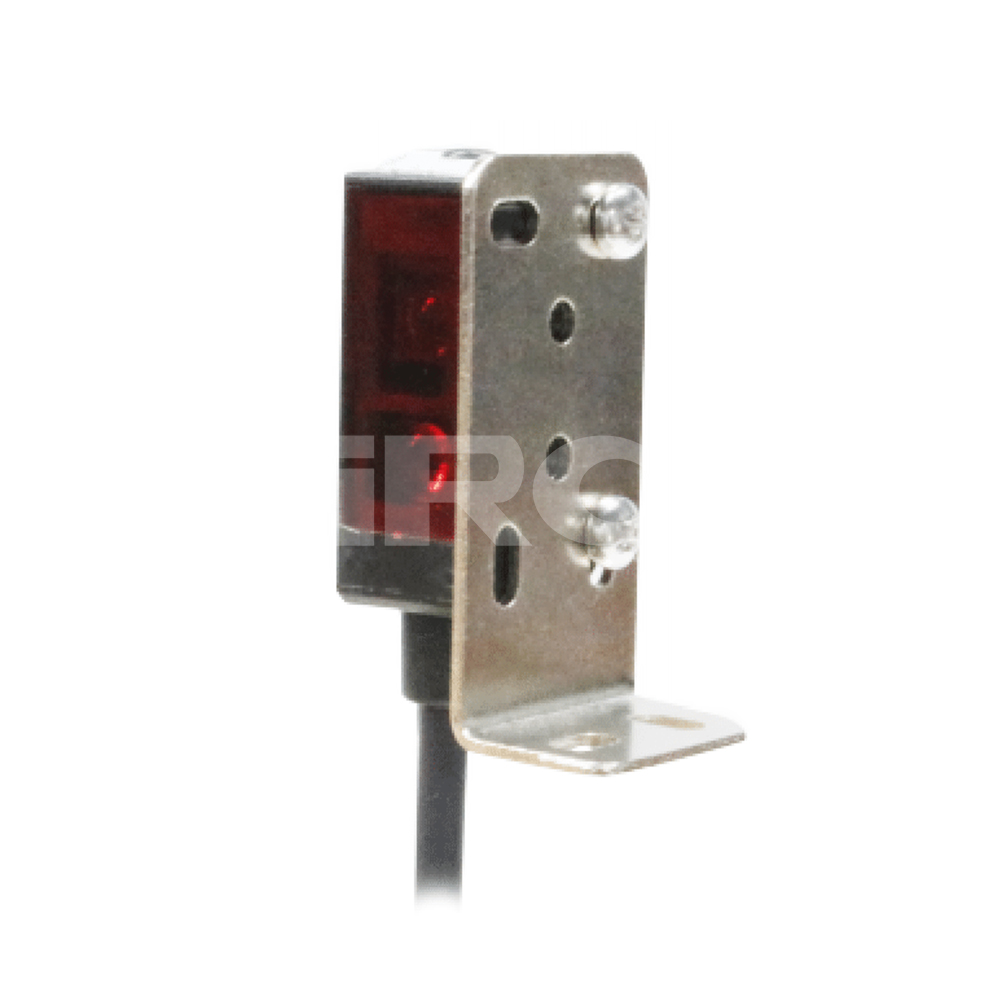

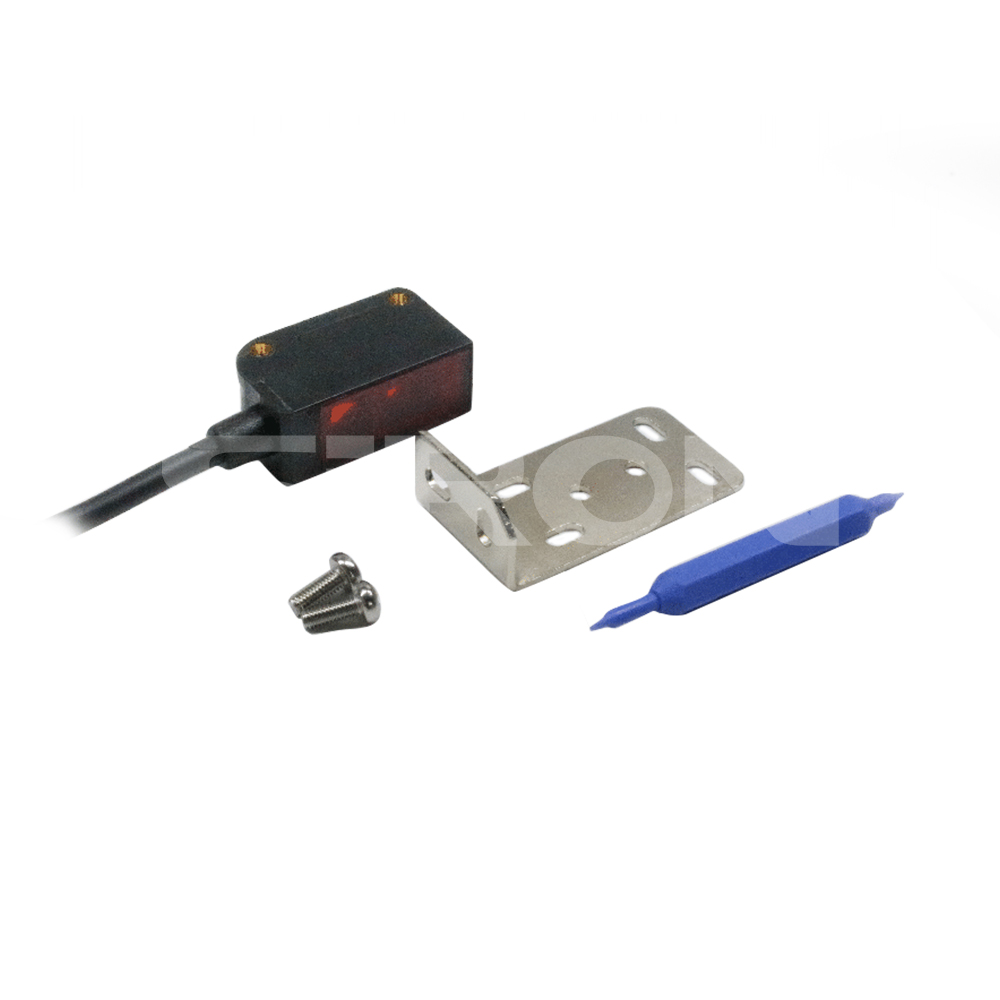

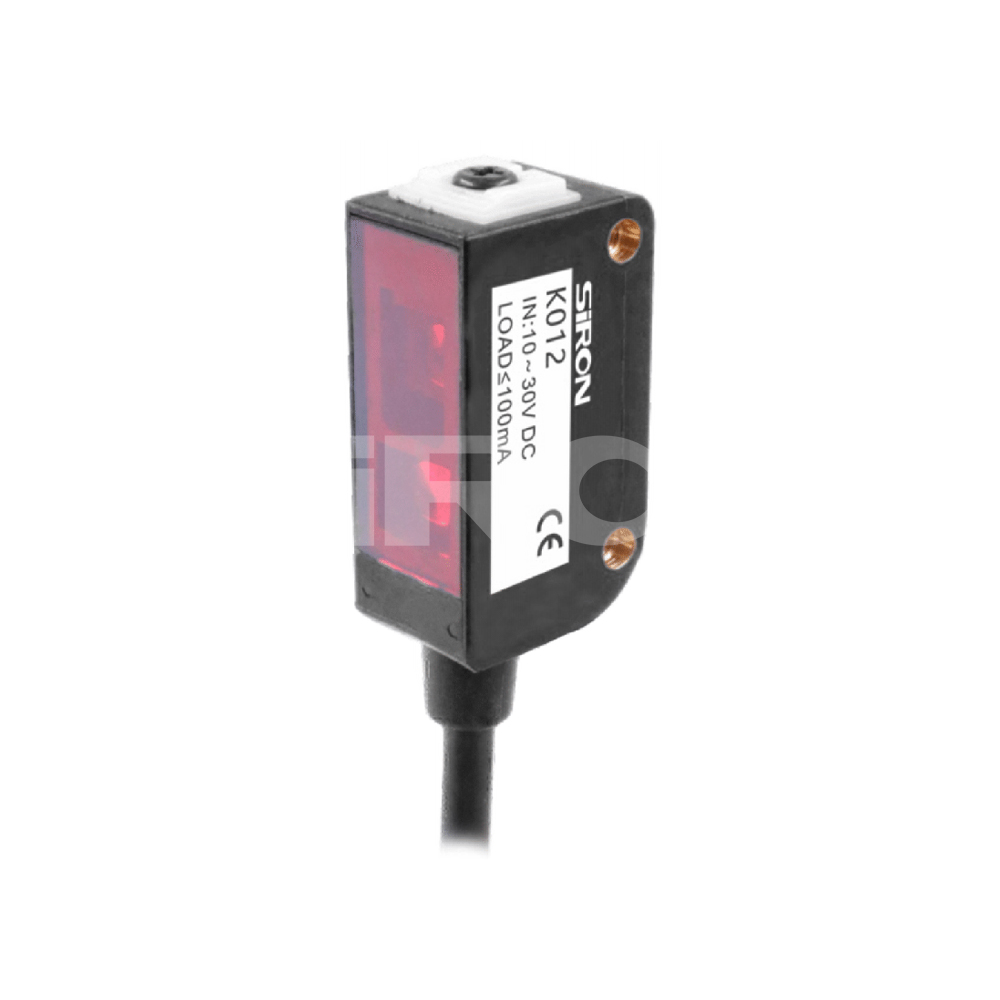

SiRON K012～K012-4 Series Photoelectric Sensor IP65

About selection

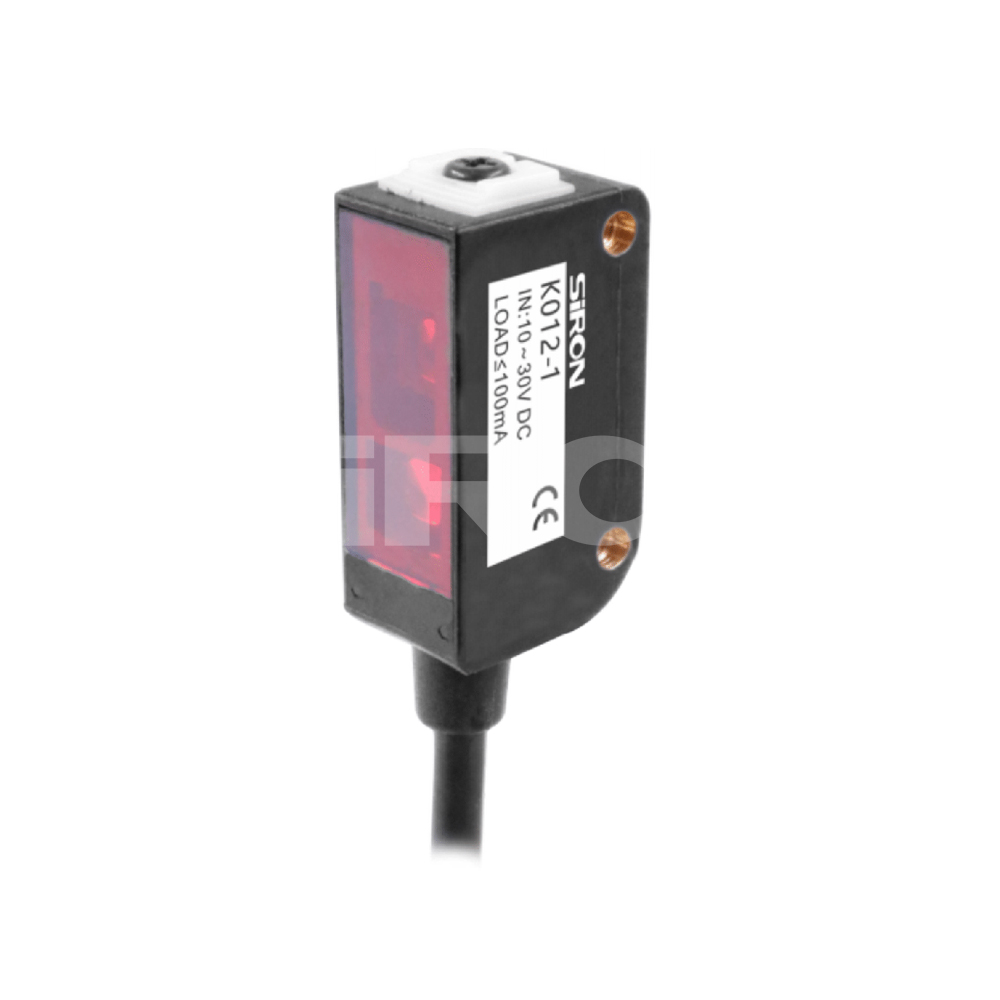

Selection example：K012-1,  indicates the K012 series, Serial number 1, with NPN output;

                                           K012-1P indicates the K012 series, serial number 1, with PNP output.

Specifications

Name		Photoelectric sensor(economical type)
Model	NPN	K012	K012-1	K012-2	K012-3	K012-4
	PNP	K012-P	K012-1P	K012-2P	K012-3P	K012-4P
Type		Background suppression type	Diffuse reflection  (for detecting semi- transparent objects)	Diffuse reflection	Diffuse reflection	Diffuse reflection
Appearance
Detection distance		10～200mm	200mm(adjustable)	110mm	350mm	800mm
Spot size		/	The diameter at approximately 200mm is 200mm	/
Blind distance		<1cm	/	/
Switching frequency		1000Hz	500Hz	500Hz
Short circuit protection		/	NPN Yes , PNP No	/
Polarity protection		/	Yes	/
Operating voltage		10～30V       DC
Type of light		red light (650nm)		infrared ray 8 8 0 n m
Reaction time		≤2ms
Load current		100mA
Power-on delay		<300ms
Sensitive regulation		Single-turn potentiometer
Light interference resistance		<5000Lux
Protection class		IP65
Ambient temperature		-25~55℃
Ambient humidity		35～85%
Shell material		ABS
Lens material		PMMA
LED indication		Output: Red; Power supply: Yellow
Cable length		2M
Interface		P V C  cable 4×0.25mm²	P V C cable 4×0.18mm²	PVC cable ；4×0 . 18mm²

Example

  Detection of transparent objects                                                        Inspection of ics on the production line

Dimension

Wiring diagram
