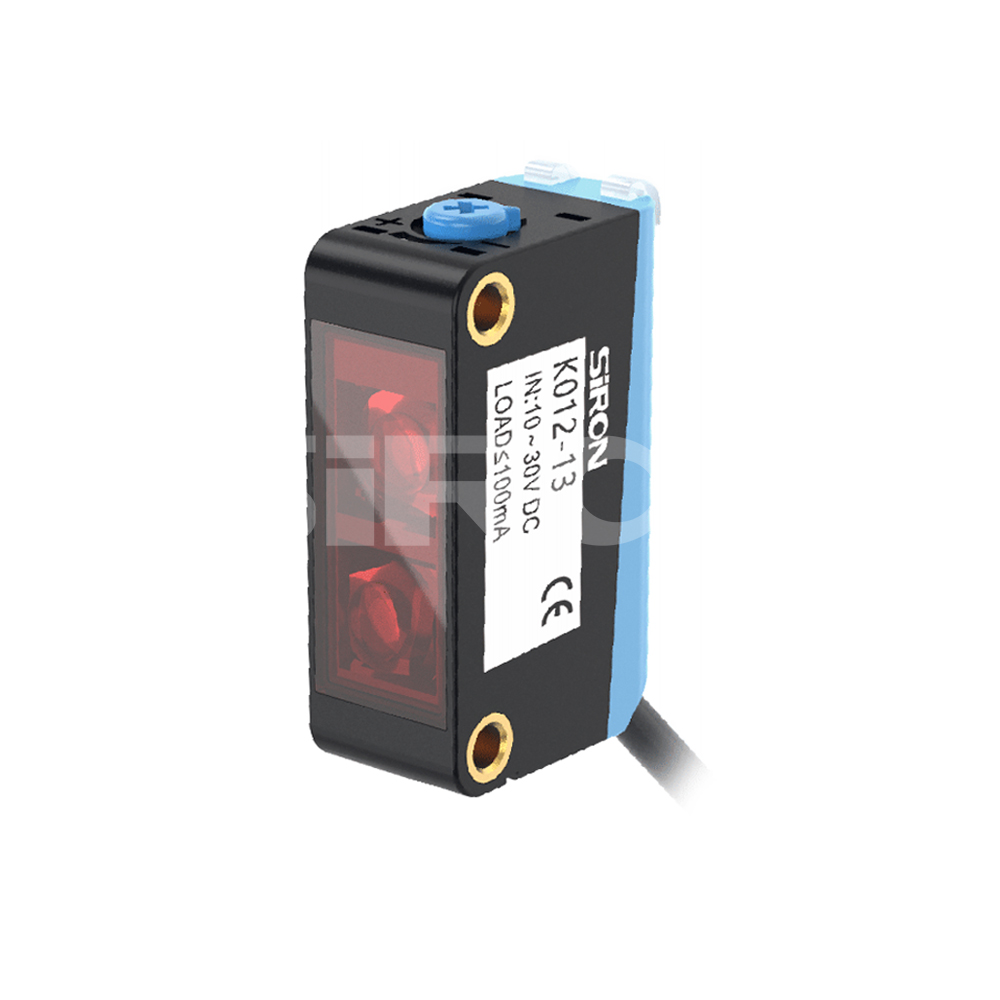

SiRON K012-13 Series Photoelectric Sensor Background Suppression IP65

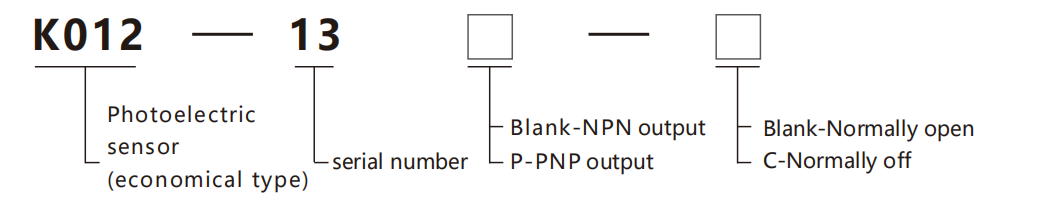

About selection

 Selection example: K012-13 indicates the K012 series, serial number 13, with NPN output，normally open;

                                         K012-13P-C indicates the K012 series, serial number 13, with PNP output，normally off.

Note: National standard installation hole positions.

Specifications

Name	Photoelectric sensor(economical type)
Model	K012-13	K012-13C	K012-13P	K012-13P-C
Mode of output	NPN    N.O	NPN   N.C	PNPN.O	PNPN.C
Type	Background Suppression(Long strip of light)
Appearance
Detection distance	10~100mm
Blind distance	<1cm
Spot size	Approximately 6×60mm(when the distance is 100mm)
Switching frequency	1000Hz
Operating voltage	10～30V    DC
Type of light	Red light 6 5 0 n m
Reaction time	<1ms
Load current	100mA
Power-on delay	<300ms
Sensitive regulation	Multi-turn potentiometer
Light interference resistance	<5000lux
Protection class	IP65
Ambient temperature	-25～55℃
Ambient humidity	35～85%
Shell material	ABS
Lens material	PC
LED indication	Input: Yellow; Power source: Green
Cable length	2M
Interface	P V C cable 3 × 0 . 1 8 m m ²

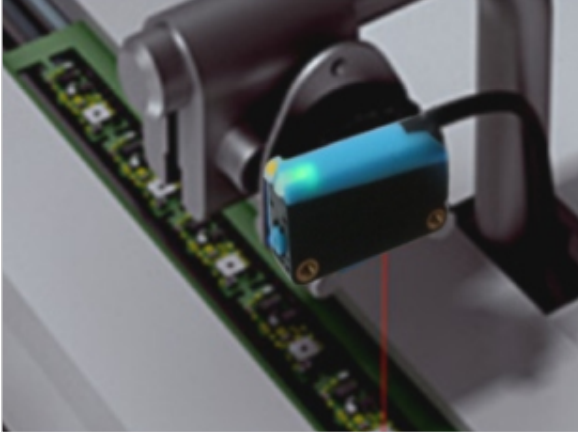

Example

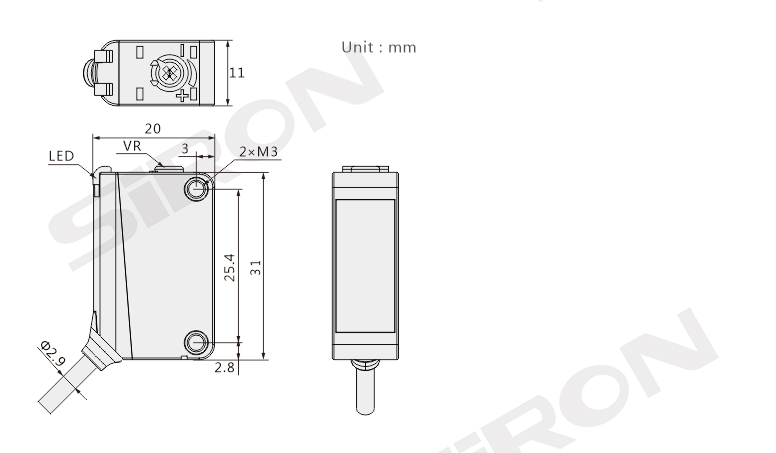

Dimension

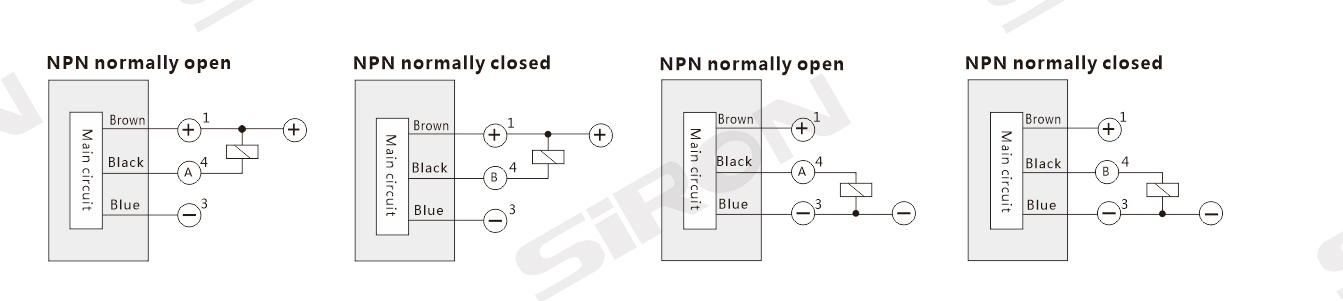

Wiring diagram
