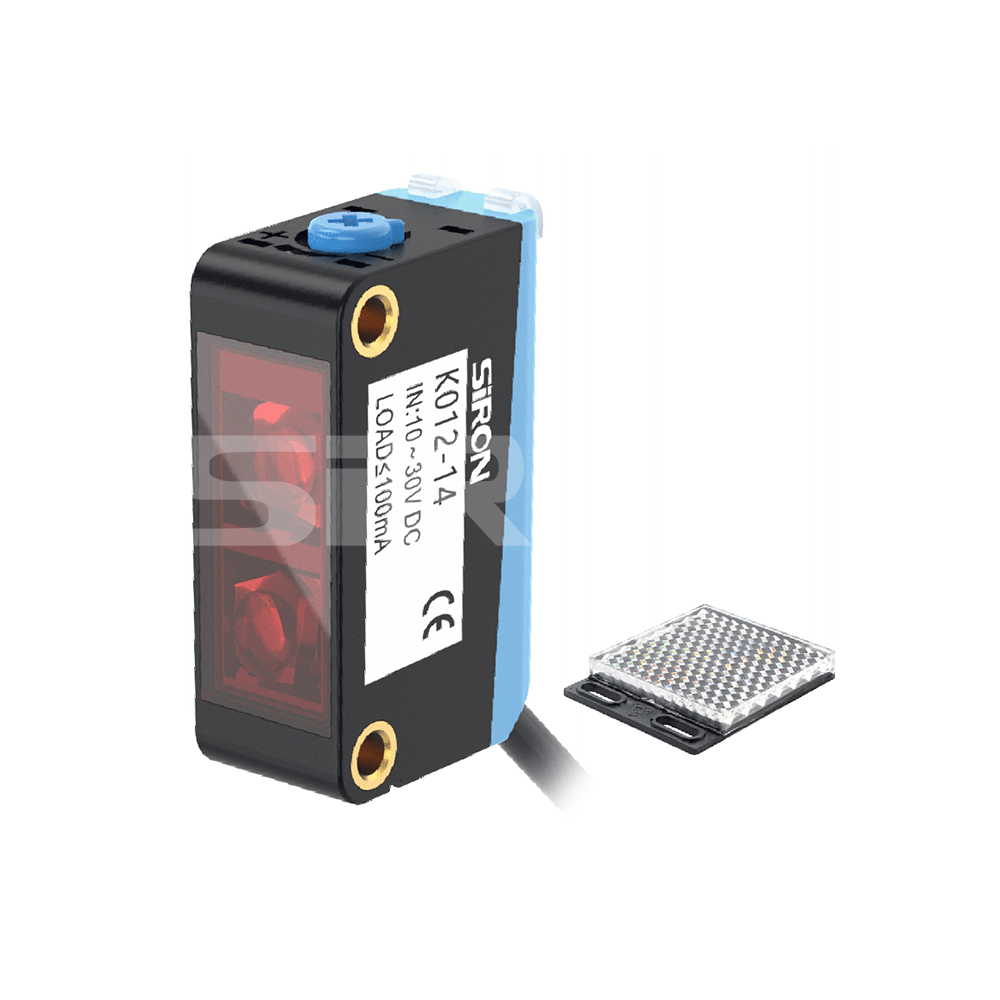

SiRON K012-14 Series Photoelectric Sensor Regressive Reflex IP65

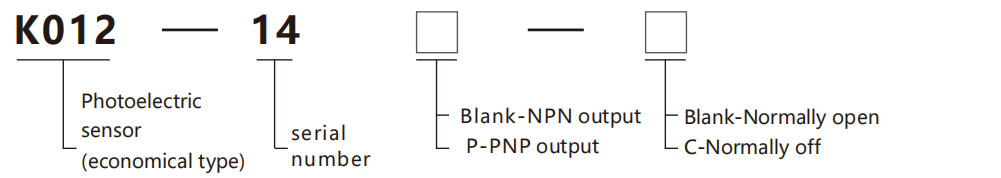

About selection

 Selection example: K012-14 indicates the K012 series, serial number 14, with NPN output，normally open;

                                         K012-14P-C indicates the K012 series, serial number 14, with PNP output，normally off.

Note: National standard installation hole positions.

Specifications

Name	Photoelectric sensor(economical type)
Model	K012-14	K012-14C	K012-14P	K012-14P-C
Mode of output	NPN    N.O	NPN   N.C	PNP   N.O	PNP   N.C
Type	Regressive reflex type
Appearance
Detection distance	2m
Switching frequency	500Hz
Operating voltage	10～30V    DC
Type of light	Red light 6 5 0 n m
Reaction time	<2ms
Load current	100mA
Power-on delay	<300ms
Sensitive regulation	Single-turn potentiometer
Light interference resistance	<5000lux
Protection class	IP65
Ambient temperature	-25～55℃
Ambient humidity	35～85%
Shell material	ABS
Lens material	PC
LED indication	Input: Yellow; Power source: Green
Cable length	2M
Interface	P V C cable 3 × 0 . 1 8 m m ⊃2;

Example

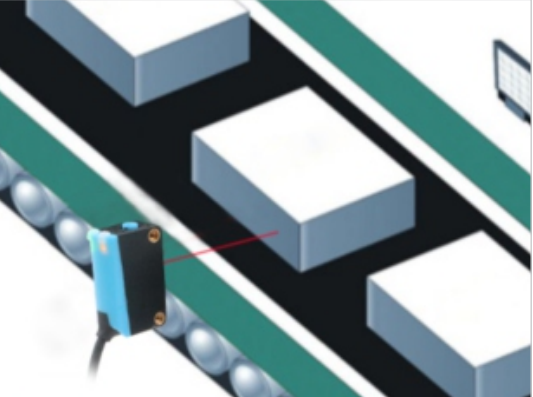

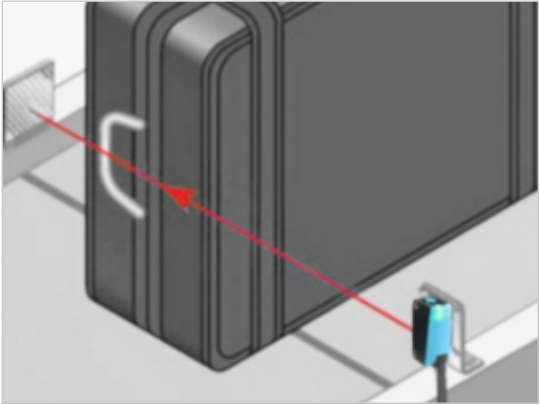

    Inspection of goods on the conveyor belt                                          Inspection of goods on the conveyor belt

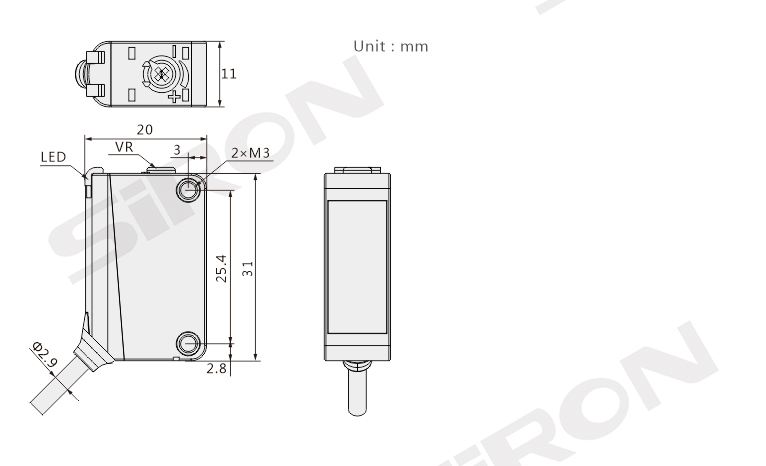

Dimension

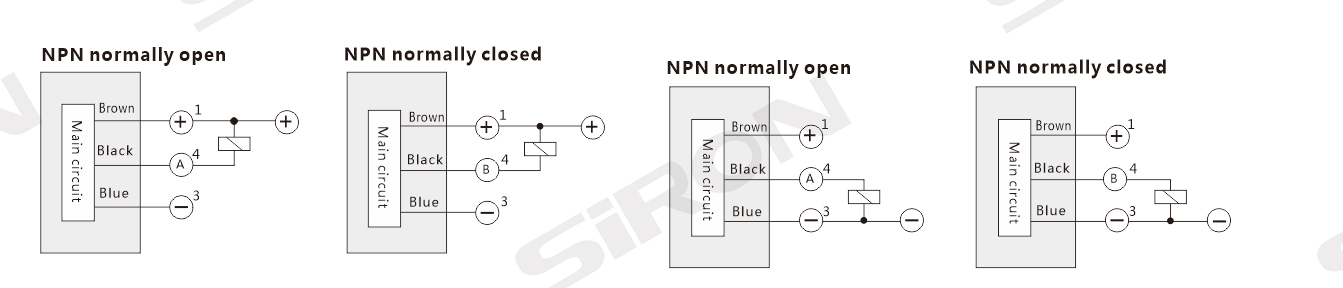

Wiring diagram
