SiRON K012-11 Series Photoelectric Sensor Background Suppression IP65

About selection

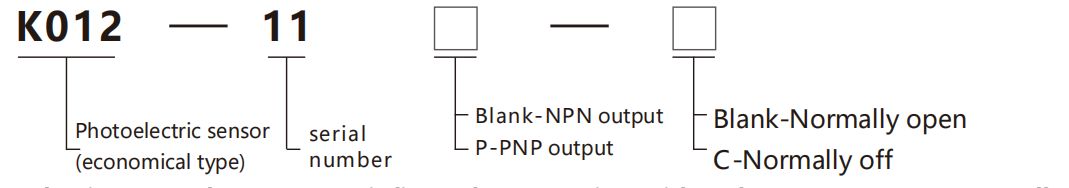

Selection example：K012-11 indicates the K012 series, serial number 11, NPN output，normally open；

                                           K012-11P-C indicates the K012 series, serial number 11, PNP output, normally off.

Note: National standard installation hole positions.

Specifications

Name	Photoelectric sensor(economical type)
Model	K012-11	K012-11C	K012-11P	K012-11P-C
Mode of output	NPN    N.O	NPN    N.C	PNPN.O	PNP    N.C
Type	Background Suppression

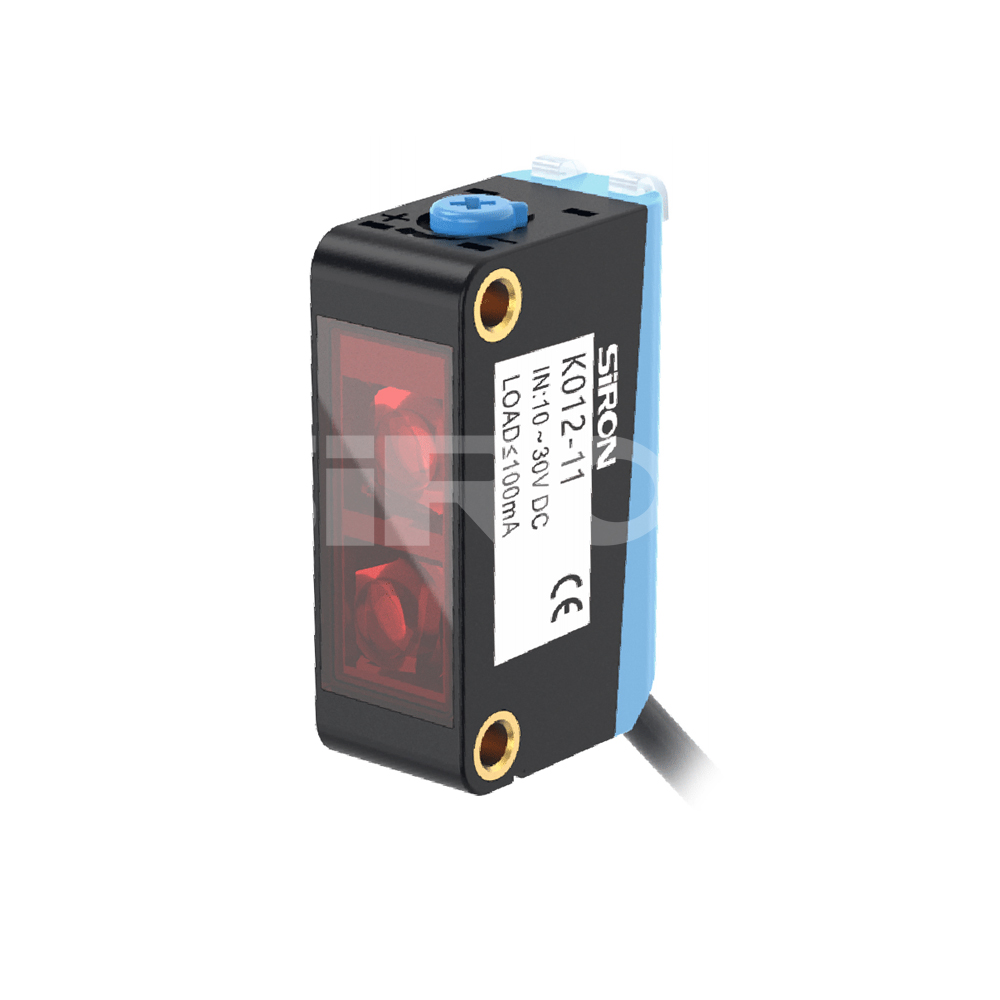

Appearance
Distance of detection	10～250mm
Blind zone distance	<1cm
Frequency of switching	1000Hz
Operating voltage	10～30V    DC
Type of light	red light 6 5 0 n m
Reaction time	<1ms
Current of load	100mA
Power-on delay	<300ms
Sensitive adjustment	Multi-turn potentiometer
Resistance to light interference	<5000lux
Class of protection	IP65
Ambient temperature	-25～55℃
Ambient humidity	35～85%
Material of case	ABS
Lens material	PC
LED indicator	Input: Yellow; Power source: Green
Cable length	2M
Interface	P V C cable  3 × 0 . 1 8 m m ⊃2;

Example

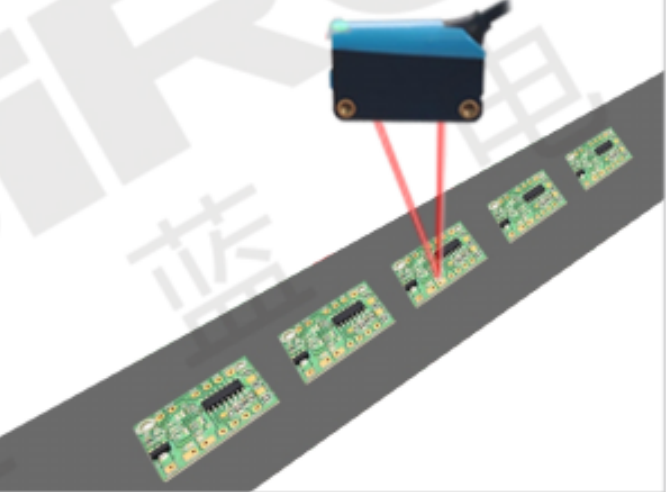

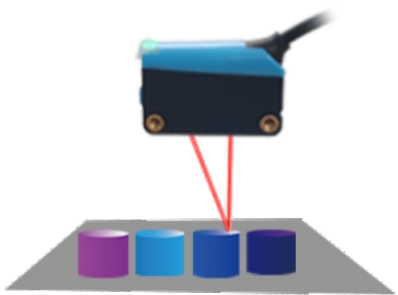

                          Product inspection on the production line                                Inspection of IC on the production line

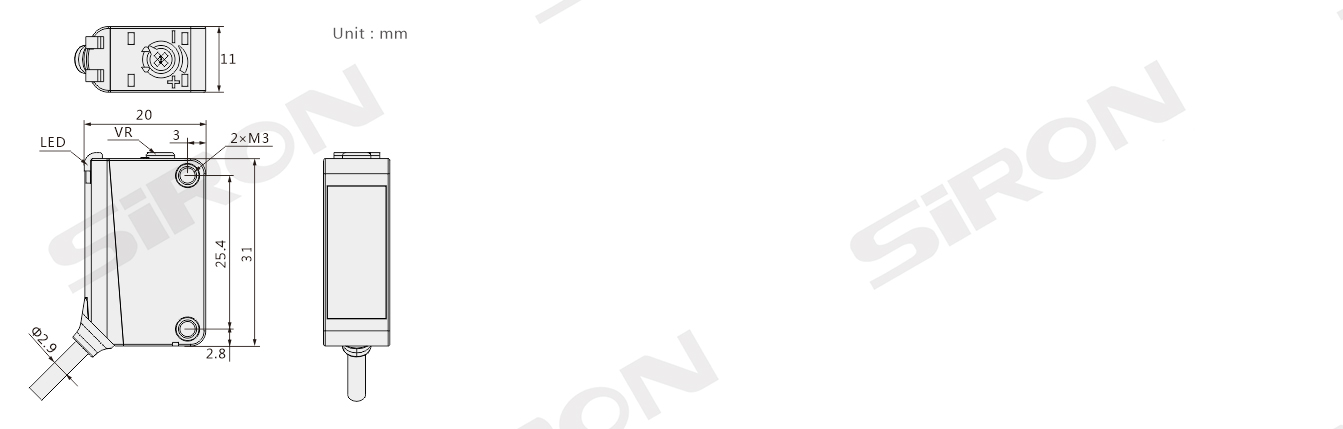

Dimension

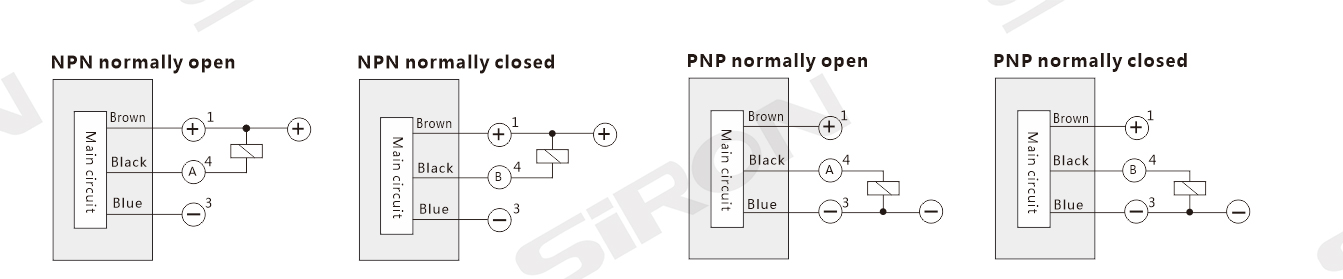

Wiring diagram
