SiRON T072 Series Power Supply Terminal Block with Filter

Name: SiRON T072 Series Power Supply Terminal Block with Filter
Brand: SiRON
Rating: 5.0 (49 reviews)

Features
● This terminal block is specially designed for Ac control circuit.
● There are two fuses in the terminal block for short-circuit protection.
● With power display LED and fuse disconnecting Warning LED.
● With 3 functions in one module, other modules for redistribution or filters need not be used.

Quantity:
Availability:





Inquire Add to Basket

Model:
T072/T072-10/T072-20/T072-20S
Brand:
SiRON
Code:
8504401400

T072 Filter Power Supply Terminal Block High-efficiency T072 Terminal Block with Filter redistribution filters Terminal Block With Filter power display LED terminal block

Product Description

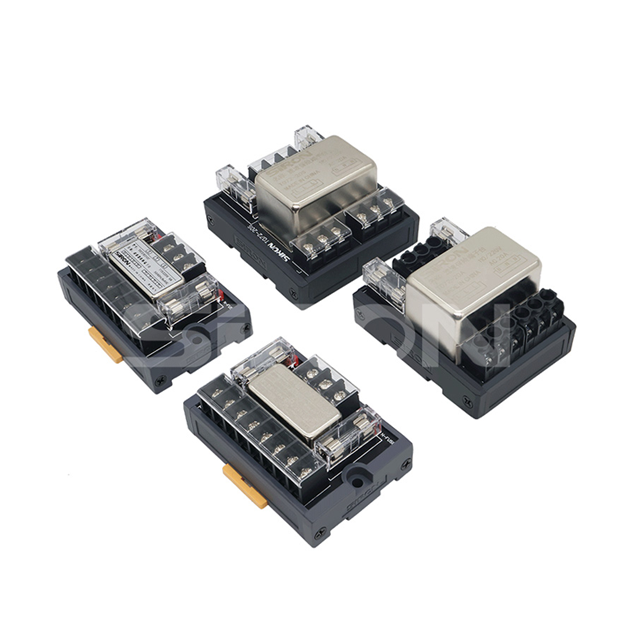

Various models available

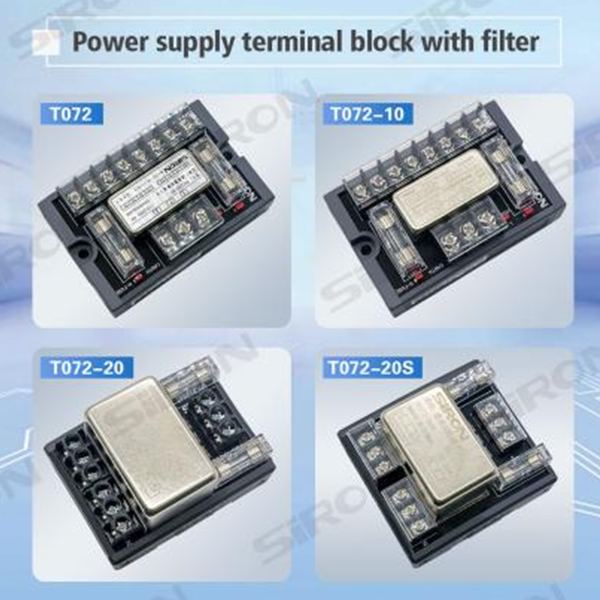

Power supply terminal block with filter

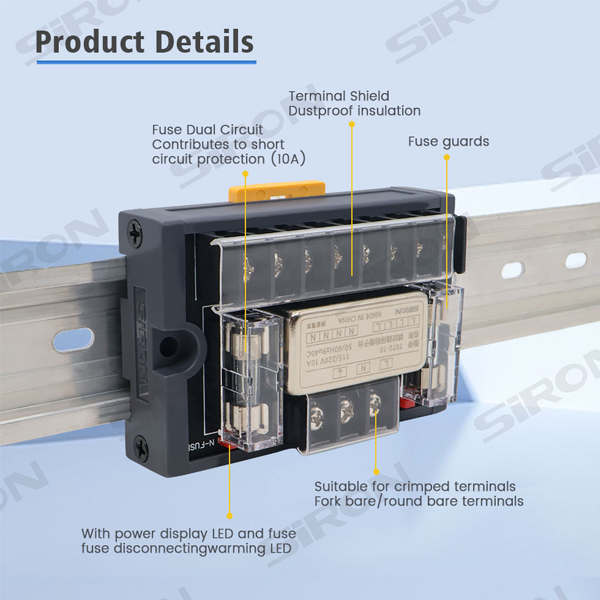

Product detail

Fuse Dual Circuit Contribute to Short circuit protection(10A)

Terminal Shield Dust-proof insulation

Fuse guards

With power display LED and fuse disconnecting

warning LED

Suitable for crimped terminals fork bare/round bare terminals

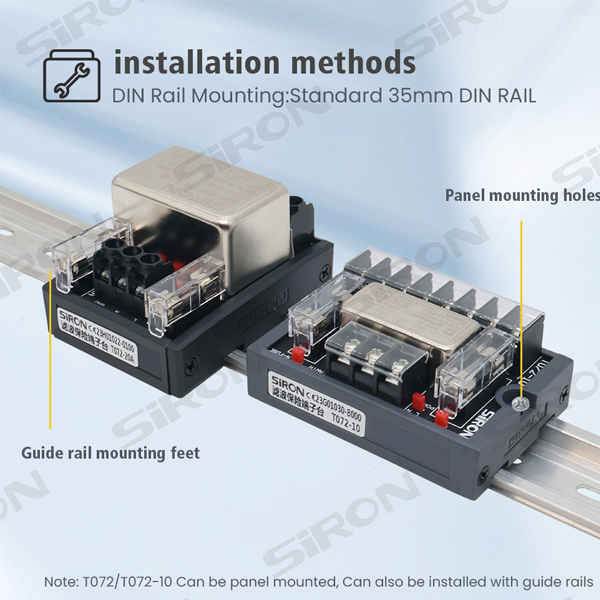

Installation methods

DIN rail mounting: standard 35mm DIN Rail

Guide rail mounting feet

Panel mounting holes

Note: T072/T072-10 Can be panel mounted can also be installed with guide rails

Specifications

Model		T072	T072-10	T072-20/T072-20S
Input	Nominal operating current	6A	10A	20A
	Nominal coil voltage	AC 220V
	Corresponding input Devices	Into the line side AC power supply
Corresponding output Devices		Load-side AC power supply
For wire		2.5mm²Following/AWG13	4mm²Following/AWG13
