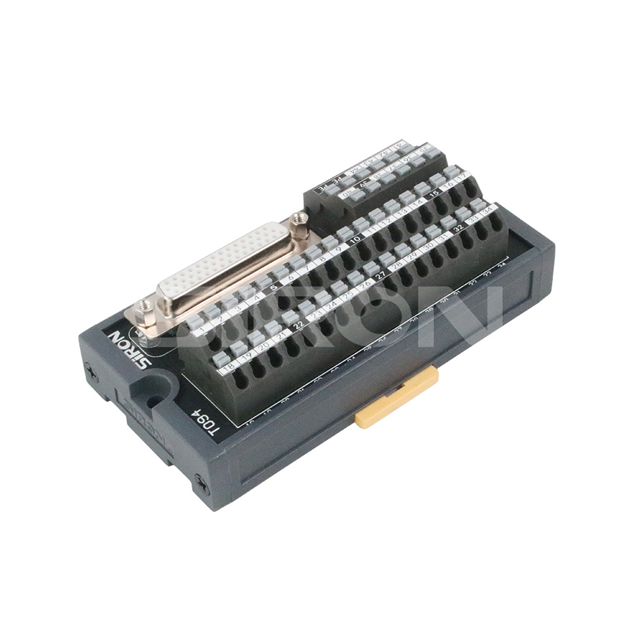

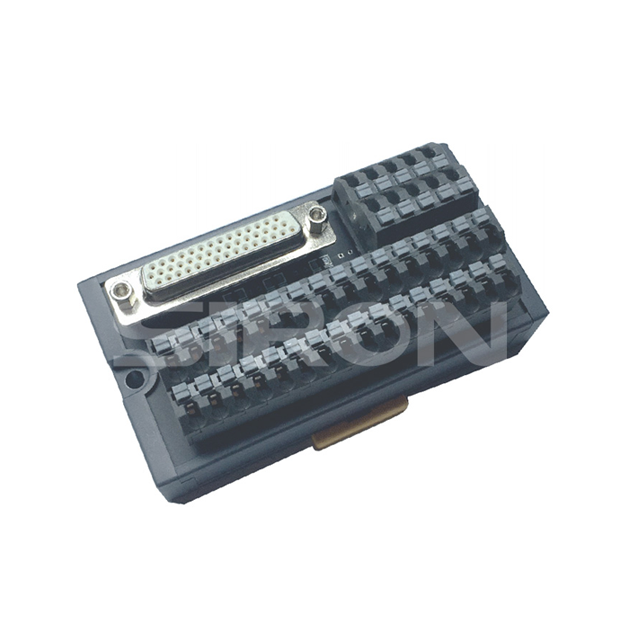

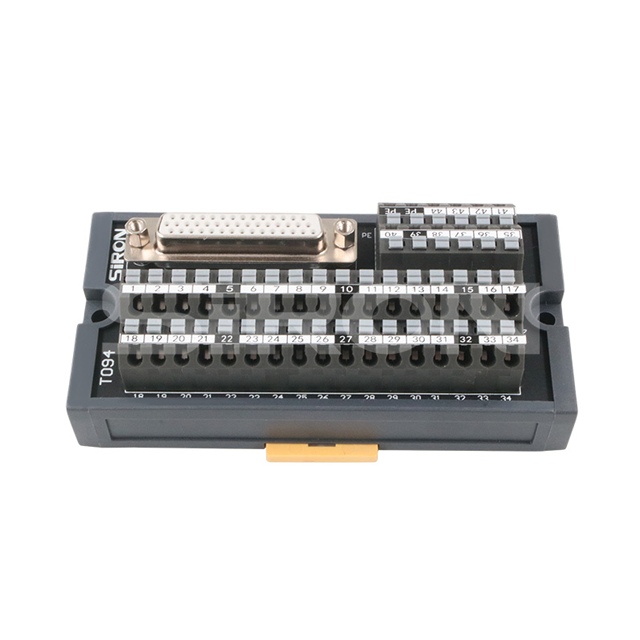

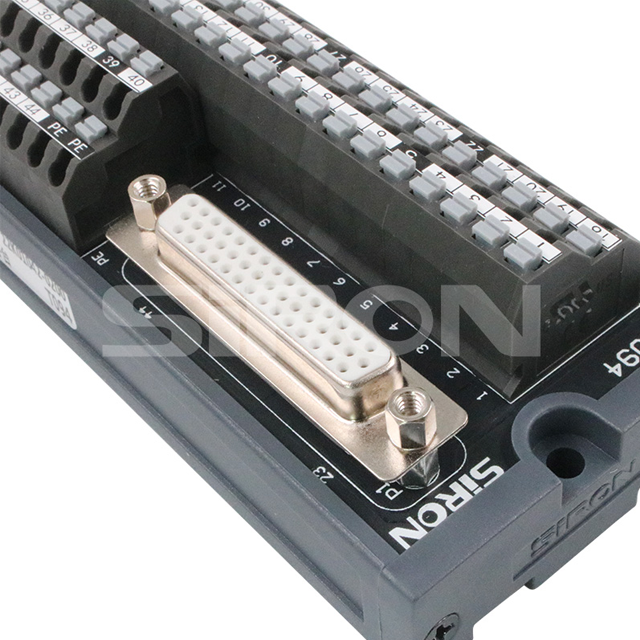

SiRON T094 D-SUB Female Head Terminal Block

Name: SiRON T094 D-SUB Female Head Terminal Block
Brand: SiRON
Rating: 5.0 (80 reviews)

Features
● The T090 terminal block corresponds to the 9P D-SUB connector; the T091 terminal block corresponds to the 15P D-SUB connector; the T092 terminal block corresponds to the 25P D-SUB connector; the T093 terminal block corresponds to the 37P D-SUB connector; the T094 terminal block corresponds to the 44P D-SUB connector; all of them can be directly applied to the board and servo drive signal line interface; no need to solder wires, just align the one-to-one pins for wiring; save time and avoid wrong wiring; the output interface is a spring-type terminal, which is convenient and quick to wire; PE is the grounding of the plug shell and has been led to the terminal for easy grounding.
● T096 This terminal block corresponds to 50P D-SUB connector; it can be directly applied to Yaskawa, board, and servo drive signal line interface; no need to solder wires, just align one-to-one pin wiring to save time and avoid wrong wiring; the output interface is a spring-type terminal, which is convenient and quick to wire; PE is the grounding of the plug shell and has been led to the terminal for easy grounding.

Note
● Before ordering，please confirm the PLC pin definition,choose the suitable terminal.
● When PLC connection,Please be sure to use the corresponding special cable developed by our company.

Quantity:
Availability:





Inquire Add to Basket

Model:
T094
Brand:
SiRON
Code:
8536901100

T094 Terminal Block 9bit T094 Terminal Block Spring piece type Terminal Block Reliable T094 Terminal Block Cost-effective T094 Terminal Block Easy-to-install T094 Terminal Block Waterproof T094 Terminal Block

Product Description

Suitable wire

1.5mm² Following/AWG16; Stripping Length:6mm

Type selection reference

Model	T090 T090-B	T091 T091-A/B	T092 T092-B	T093 T093-B	T094 T094-B	T096 T096-B	T097
Name	9-terminal block	15-terminal block	25-terminal block	37-terminal block	44-terminal block	50-terminal block	26-terminal block
Input	9P D-SUB Socket head	15P D-SUB Socket head	25P D-SUB Socket head	37P D-SUB Socket head	44P D-SUB Socket head	50P D-SUB Socket head	26P D-SUB Socket head
Output	Double-layer spring type terminal block
Note:The"-B"model is for the insertion needle(male tip).
