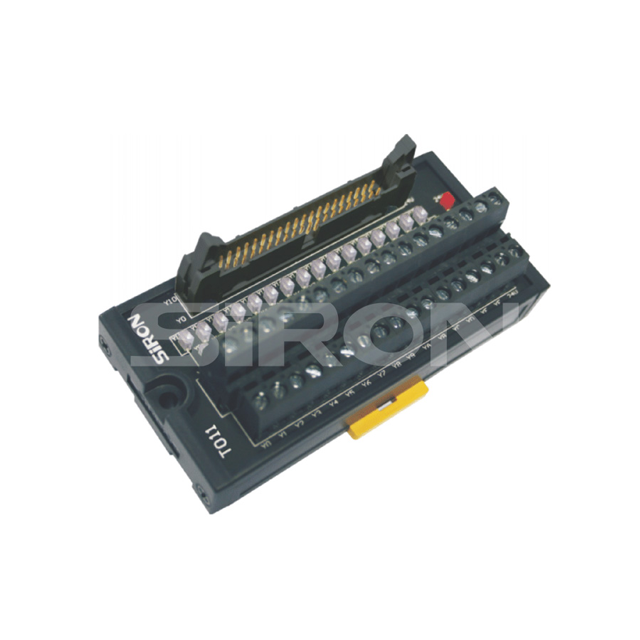

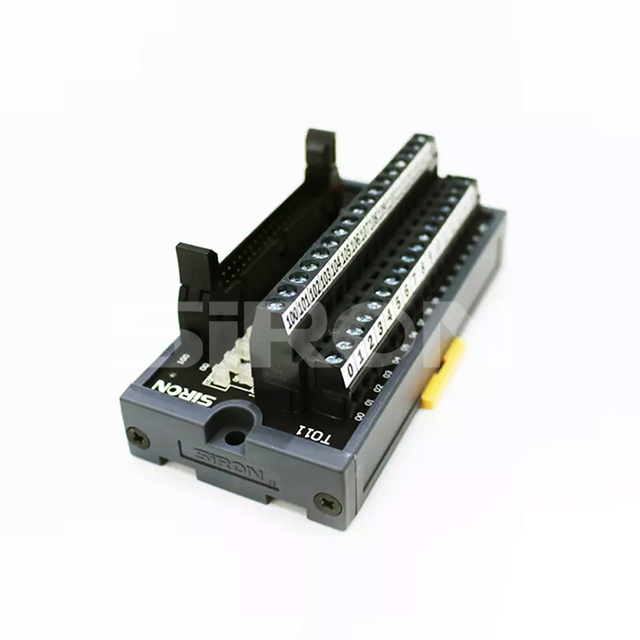

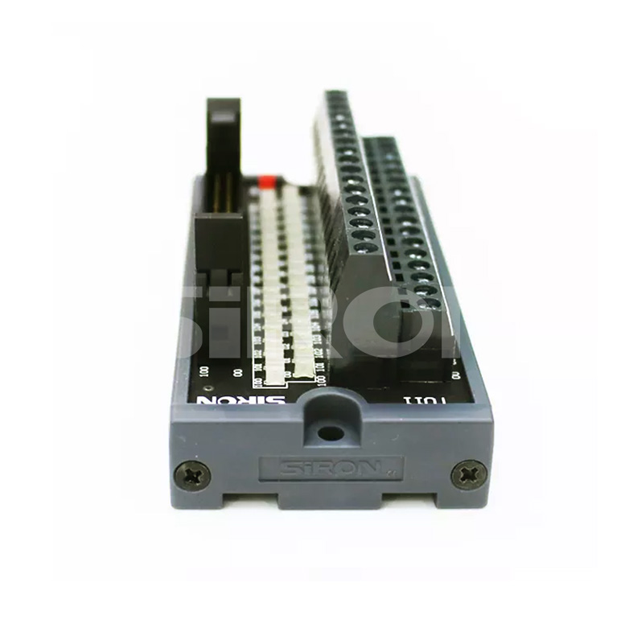

SiRON T011 32 Bit Input/output MIL Terminal Block

Name: SiRON T011 32 Bit Input/output MIL Terminal Block
Brand: SiRON
Rating: 5.0 (11 reviews)

Features
● The 40P MIL connector is adopted as the input terminal, and in combination with the corresponding X series cable of our company, it can directly correspond to any PLC module with 32-bit input/output on the market, and is organized into 2 groups of 16-bit terminals.

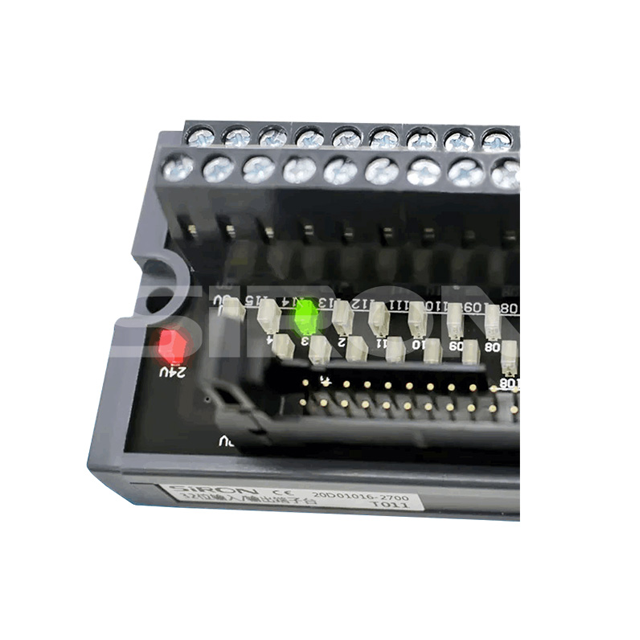

● The NPN/PNP bipolar input corresponds, and the indicator light will also light up in different colors according to the different input signals. Green - NPN; Red - PNP.

Note
● Before ordering，please confirm the PLC pin definition,choose the suitable terminal.
● When PLC connection,Please be sure to use the corresponding special cable developed by our company.

Quantity:
Availability:





Inquire Add to Basket

Model:
T011
Brand:
SiRON
Code:
8536901100

DC24 T011 Terminal Block 40PIN MIL T011 Terminal Block 32input T011 Terminal Block 32output T011 Terminal Block

Product Description

Specifications

Input

Nomina loperaing current

1A

Nominal coil voltage

DC24V

Corresponding output Devices

The input side or output side load

switches.Input side of the switching elements.The output side of the load.

Suitable PLC

KEYENCE	KV-C32XA/C KV-C32TA/C KV-C64XA/C KV-C64TA/C
OMRON	CJ1W-ID231/CJ1W-ID261 CJ1W-MD261(IN) CJ1W-ID232/CIiW-ID262 CJ1W-MD263(IN) CJ1W-MD563(IN) CJ1W-OD231/CJ1W-OD261 CJ1W-MD261(Out) CJ1W-OD232/CJiW-OD233 CI1W-OD262/Ci1W-OD263 CJ1W-MD263(Out) CJ1W-MD563(Out)
SIEMENS	6ES7321-1BL00-0AA0 6ES7321-1EL00-0AA0	6ES7321-1BH50-0AA0 6ES7321-1CH20-0AA0
	SM322/6ES7322-1BL00-0AA0	6ES7322-1FL00-0AA0
	SM323/6ES7322-1BL00-0AA0 6ES7321-1BH00-0AA0 6ES7321-1BH02-0AA0	6ES7322-1BH00-0AA0 6ES7322-1BH10-0AA0 6ES7322-1FH10-0AA0
	6ES7321-1BH01-0ABO	6ES7322-1BH01-0AA0
Yokogawa	F3WD64-3N(IN) F3WD64-3N(OTU) F3WD64-3F(IN) F3WD64-3F(OTU)
MITSUBISHI		QH42P QX81 QY81P
Panasonic	FPG-XY64D2T/P FP2-C1D(IN)
	FP2-X32D2
	FP2-X64D2 FP2-C1D(OUT) FP2-XY64D2T/XY64D7T(IN) FP2-XY64D2P/XY64D7P(IN) FPG-XY64D2T/P FP2-C1D(OUT) FP2-32T/P FP2-Y64T/P
	FP2-XY64D2T/XY64D7T(OUT) FP2-XY64D2P/XY64D7P(OUT)

Related products

Suitable cable	X211-1 X211-2 X212-1X215-4 X217-1X217-2 X218-6 X218-7 X219-1 X219-2 X215-8
	For detals,please reler to the drectory cable senies

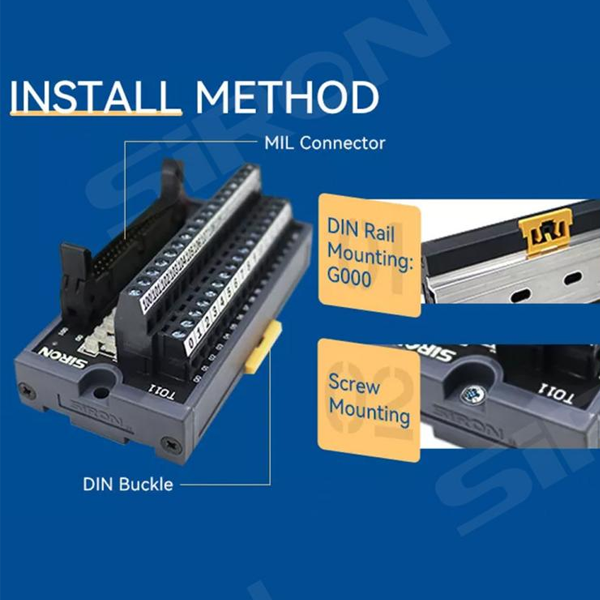

Install method MIL Connector DIN Buckle DIN rail mounting G000 Screw mounting

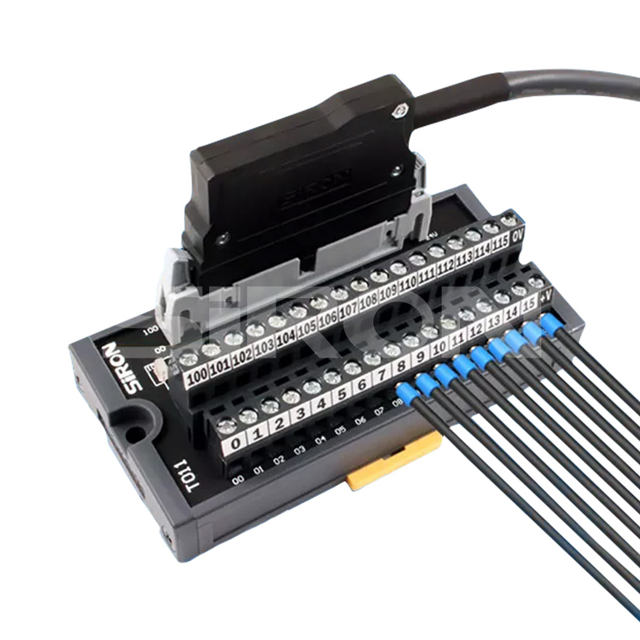

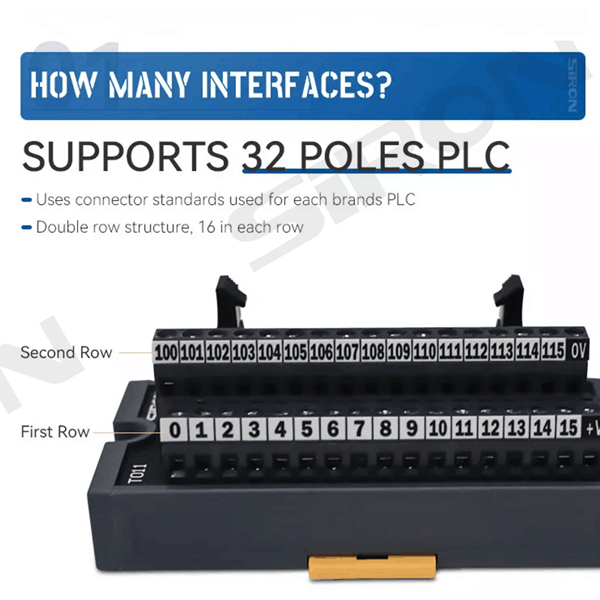

How many interface?

Supports 32 poles PLC

-Uses connector standards used for each brands PLC

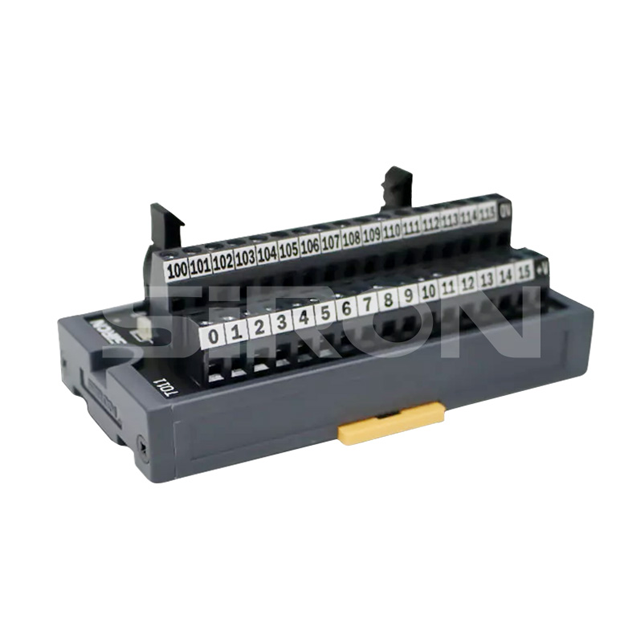

-Double row structure, 16 in each row

Suitable wire

1.5mm² Following/AWG16; Stripping Length:6mm

Specifications

Input	Nominal operating current	1A
	Nominal coil voltage	DC24V
Corresponding output Devices		The input side or output side load switches.Input side of the switching elements The output side of the load.

Suitable PLC

KEYENCE	KV-C32XA/C KV-C32TA/C KV-C64XA/C KV-C64TA/C
OMRON	CJ1W-ID231/CJ1W-ID261 CJ1W-MD261(IN) CJ1W-ID232/CI1W-ID262 CJ1W-MD263(IN) CJ1W-MD563(IN) CJ1W-OD231/C1W-OD261 CJ1W-MD261(Out) CJ1W-OD2327CJ1W-OD233 CI1W-OD262/CI1W-OD263 CJ1W-MD263(Out) CJ1W-MD563(Out)
SIEMENS	6ES7321-1BL00-0AA0 6ES7321-1EL00-0AA0 SM322/6ES7322-1BL00-0AA0 SM323/6ES7322-1BL00-0AA0 6ES7321-1BH00-0AA0 6ES7321-1BH02-0AA0 6ES7321-1BH01-0AB0	6ES7321-1BH50-0AA0 6ES7321-1CH20-0AA0 6ES7322-1FL00-0AA0 6ES7322-1BH00-0AA0 6ES7322-1BH10-0AA0 6ES7322-1FH10-0AA0 6ES7322-1BH01-0AA0
Yokogawa	F3WD64-3N(IN) F3WD64-3N(OTU) F3WD64-3F(IN) F3WD64-3F(OTU)
MITSUBISHI	QX41-S1 QX42-81 QY41P QX41 QX71 QY42P QX42 QX72 QY71	QH42P QX81 QY81P
Panasonic	FPG-XY64D2T/P FP2-C1D(IN) FP2-X32D2 FP2-X64D2 FP2-C1D(OUT) FP2-XY64D2T/XY64D7T(IN) FP2-XY64D2P/XY64D7P(IN) FPG-XY64D2T/P FP2-C1D(OUT) FP2-32T/P FP2-Y64T/P FP2-XY64D2T/XY64D7T(OUT) FP2-XY64D2P/XY64D7P(OUT)
