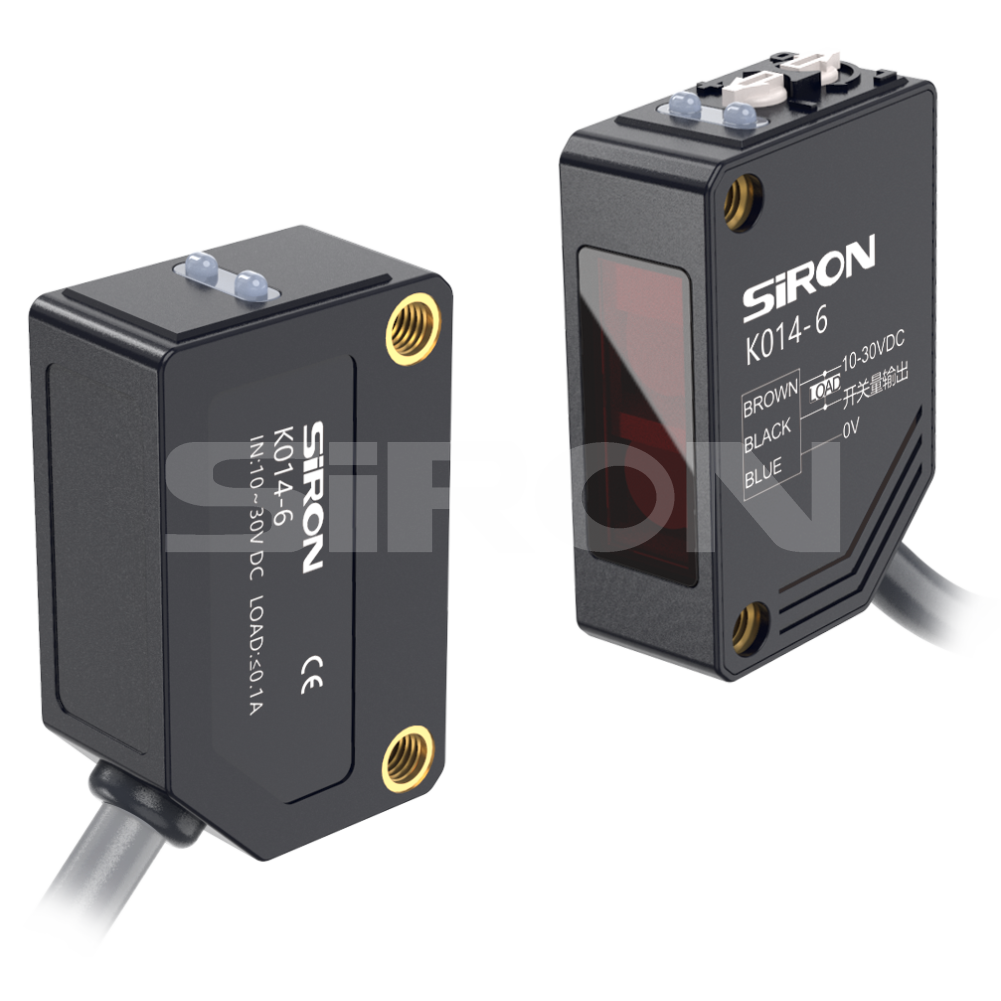

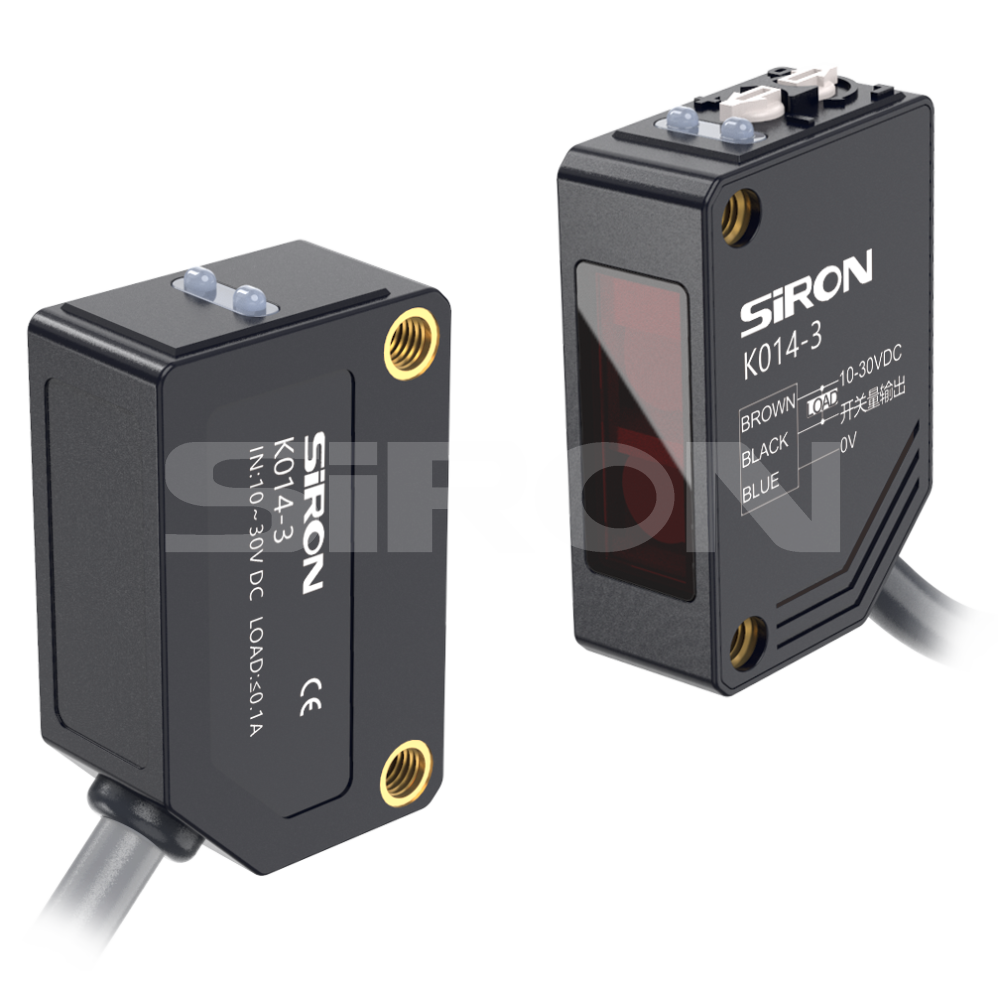

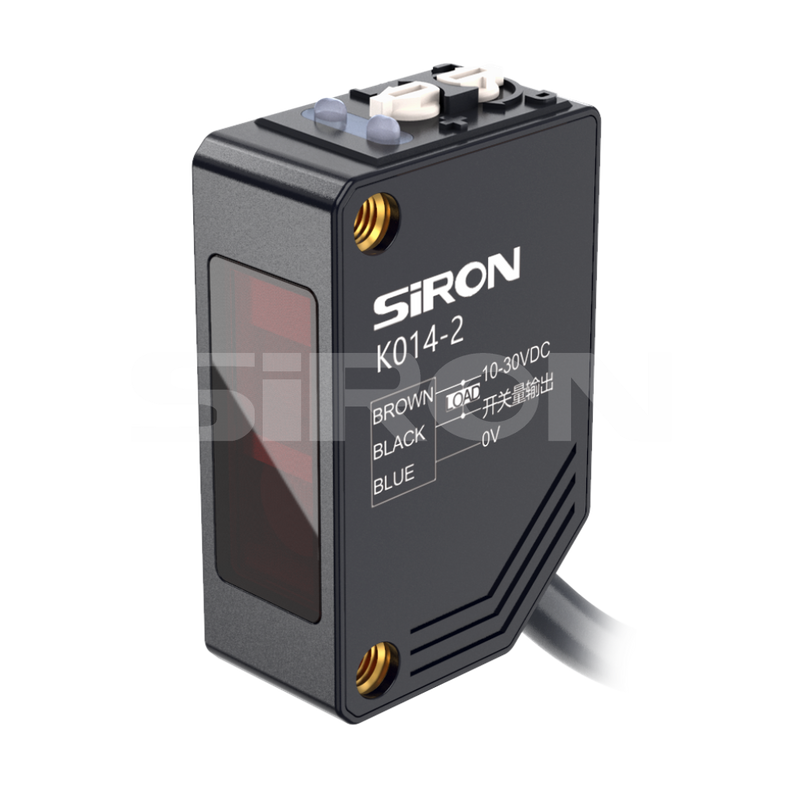

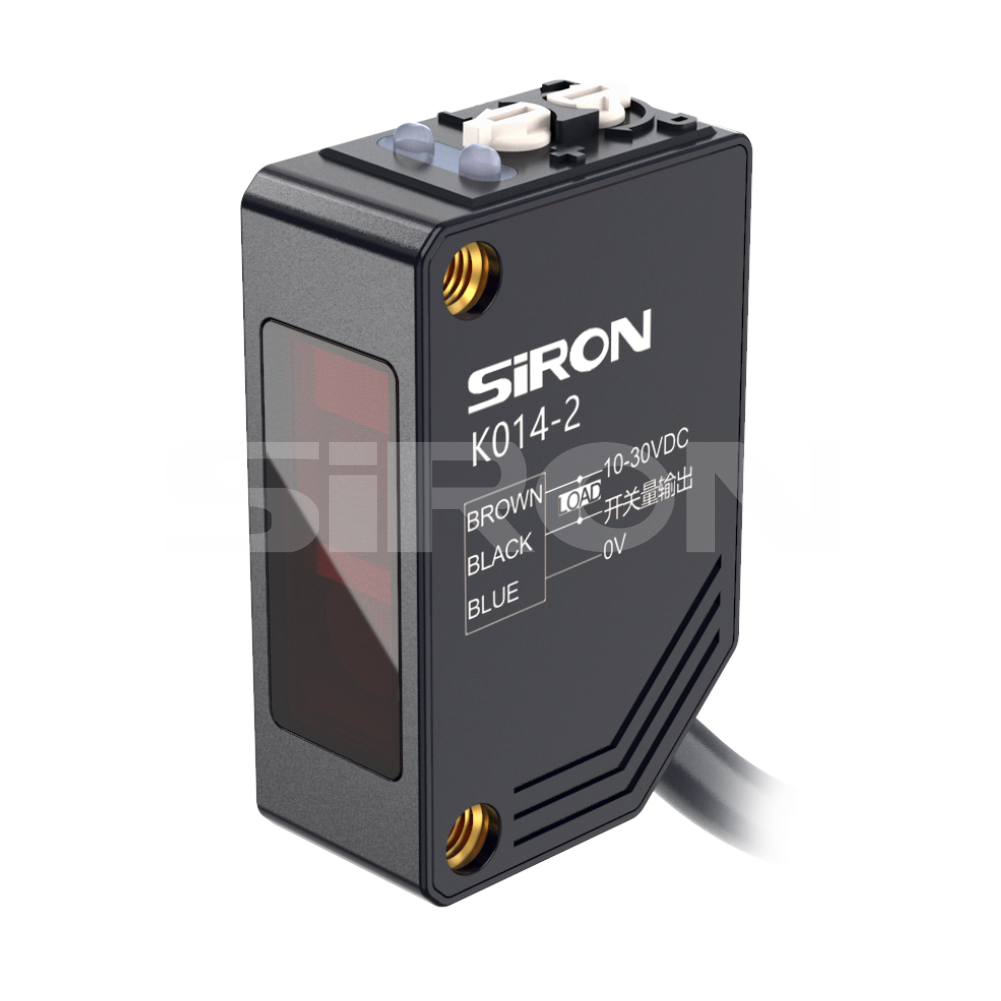

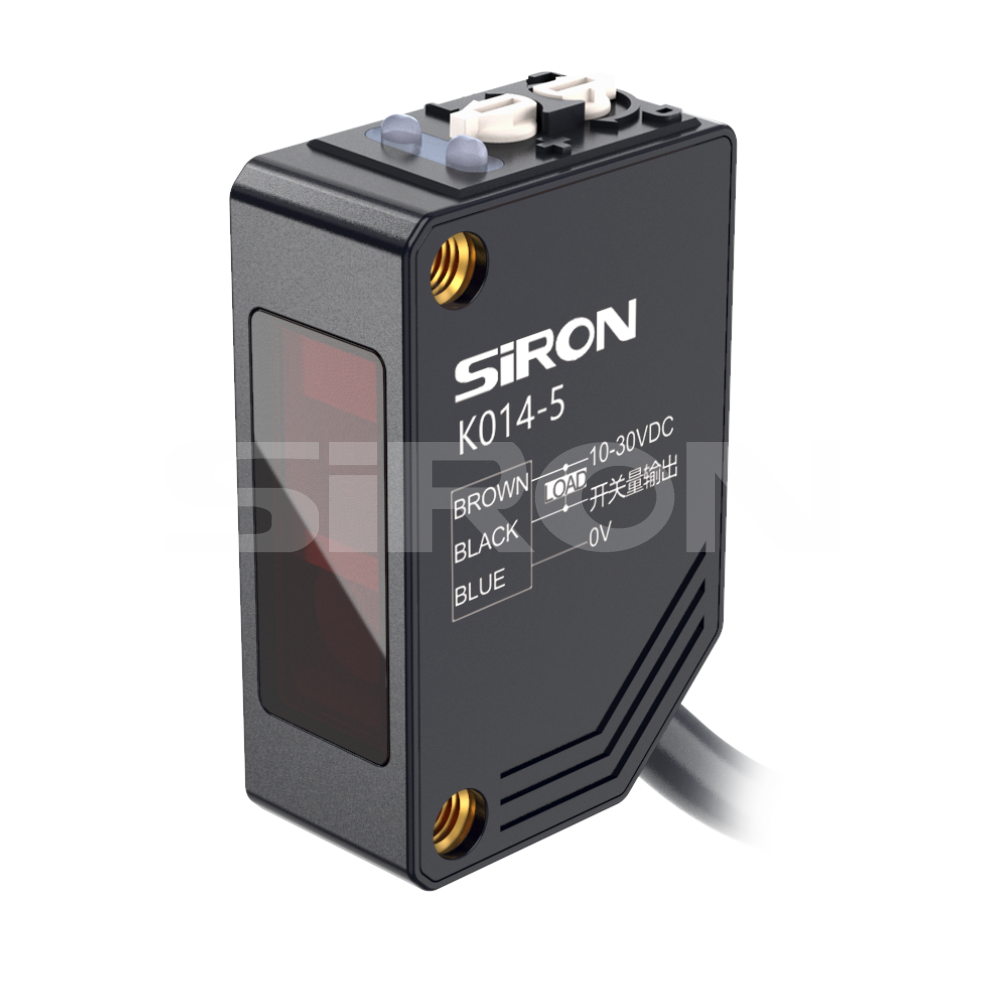

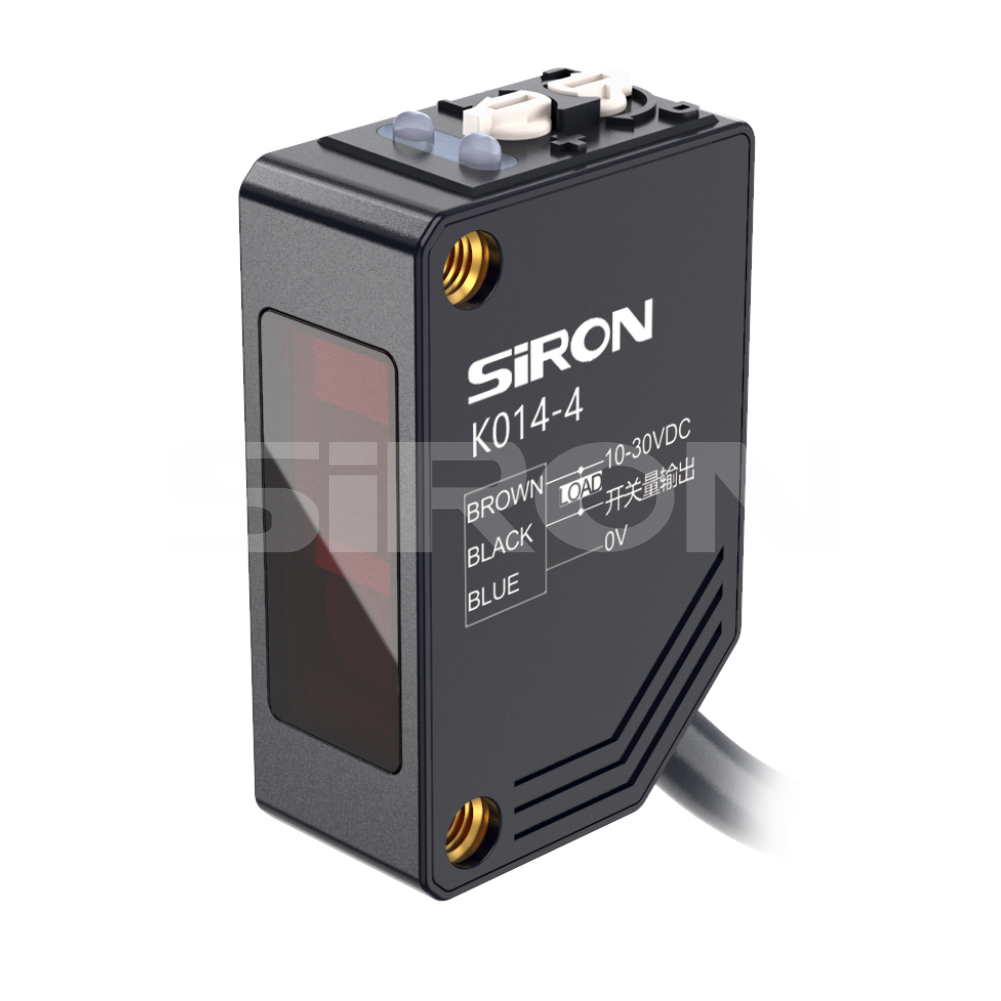

SiRON K014-2~K014-6 Series Photoelectric Sensor Infrared Light IP65

About selection

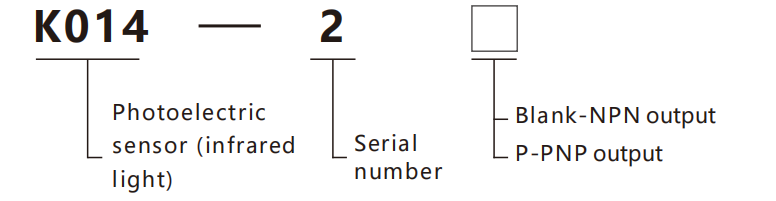

 Selection example: K014-2  indicates the K014 series, Serial number 2,with NPN output;

                                         K014-2P  indicates the K014 series, Serial number 2,with PNP output.

Specifications

Name		Photoelectric sensor (infrared light)
Model	NPN	K014-2	K014-3	K014-4	K014-5	K014-6
	PNP	K014-2P	K014-3P	K014-4P	K014-5P	K014-6P
Type		Diffuse reflection	correlation	Diffuse reflection	Reflection limit	correlation
Appearance
Distance of detecion		10-300mm	5m	5-1000mm	5-140mm	20m
Light source		Infrared LED(940nm modulation)
Operating voltage		10～30V DC
Curent of consumption		<25mA	Transmitting/ Receiving end<20mA	<25mA	<25mA	Transmitting/ Receiving end<20mA
Curent of load		<100mA

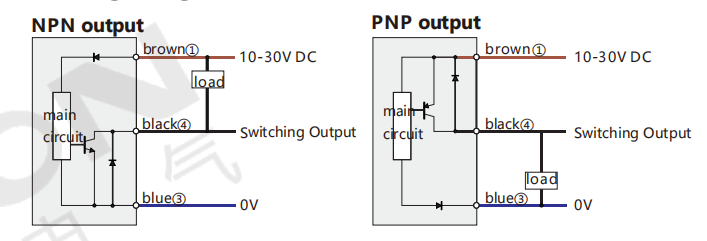

Ouput mode		Open collector of NPN/PNP
On off mode		L.on(light-entering action)/D.on(light-blocking action) can be switched
Responsetime		<1ms	<5ms	<1ms	<1ms	<5ms
Ambient temperature		-25℃~+55℃,No freezing
Ambient humidity		35%～+85%,No condensation
Protecion drcuit		Power reverse polarity protection, output reverse polarity protection (except for K014-3/K014-6), surge protection, short-circuit protection
Class of protection		IP65
Material		PBT+ glass fiber (housing),PMMA(lens)
Accessones		Screwdriver
Weight  ofthe		≈50g
Cable		3-core cable
Cablelength		2M
