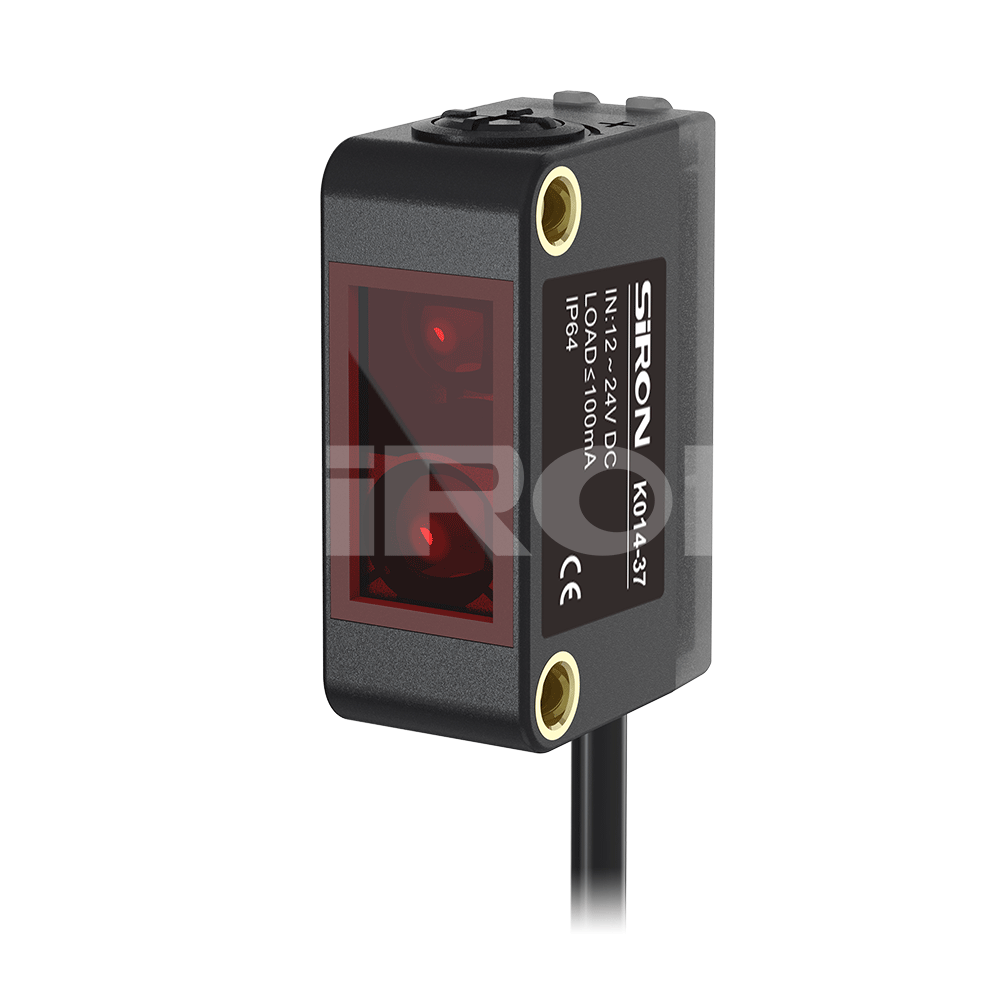

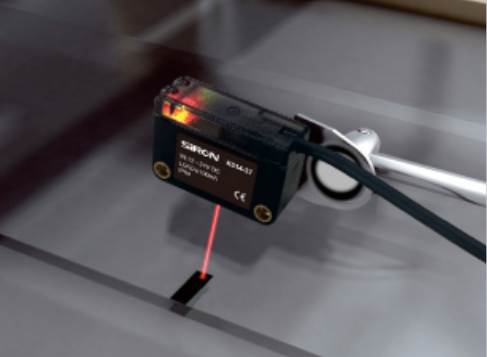

SiRON K014-37 Series Photoelectric Sensor Background Suppression Type

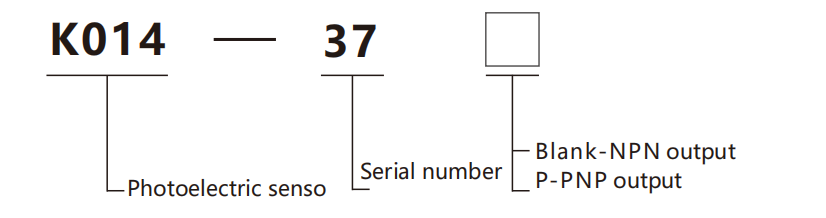

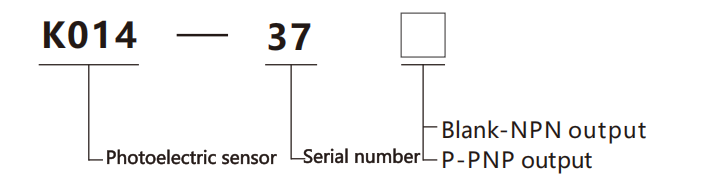

About selection

 Selection example: K014-37 indicates the K014 series, serial number 37, with NPN output;

                                         K014-37P indicates the K014 series, serial number 37, with PNP outpute.

Specifications

Name	Photoelectric sensor
Model	K014-37	K014-37P
Output mode	NPN	PNP
Appearance
Typesof	Background suppression type
Set distance	3-400mm
Detection distance	10-200mm(Background suppression function) 5m(Ordinary diffuse reflection photoelectric function)
Black and white gap	Within 150mm: Black and white equal distance within 150-300mm <10%
Dead zone	White paper: Black paper without blind spots (within 150mm):2mm, black paper: (150mm- 300mm):3mm
ACCept an assignment	Less than 1% of the action distance within 200mm (using white matte paper), and less than 2% of the action distance between 200-300mm (using white matte paper)
Repeatabiity	Along the detection axis: less than 1mm, perpendicular to the detection axis: less than 0.2mm (using white matte paper)
Supply woltage	12-24V DC±10% pulsating P-P below 10%
Current consumption	≤25mA

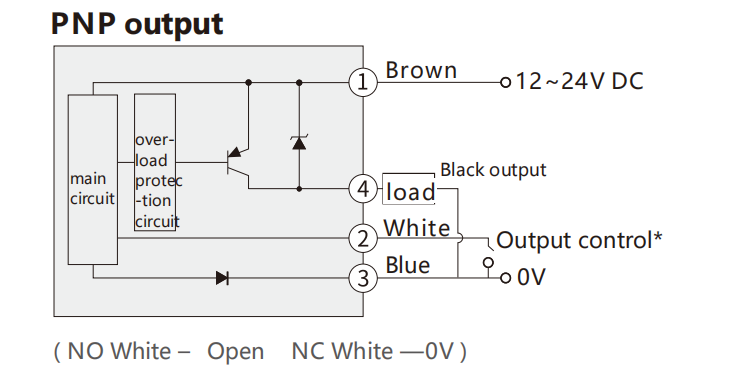

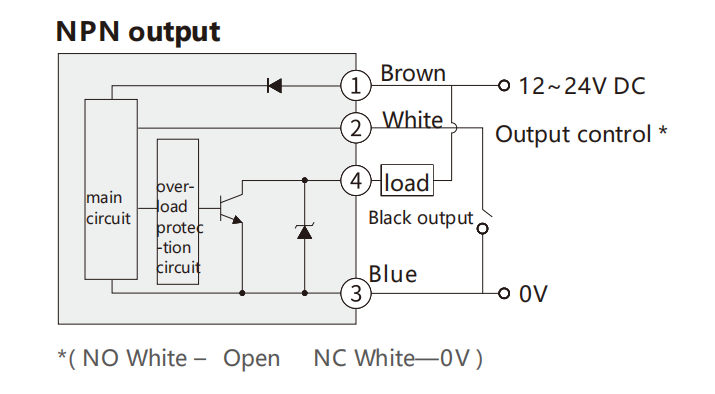

Exportation	NPN open-collector transistor, maximum inflow current: 100mA, applied voltage: below 30V DC (between output and 0V), residual voltage: below 2V (when inflow current is 100mA), below 1V (when inflow current is 16mA) PNP open-collector transistor, maximum inflow current: 100mA, applied voltage: below 30V DC (between output and +V), residual voltage: below 2V (when inflow current is 100mA), below 1V (when inflow current is 16mA)
Output action	There are two types of outputs for ON and ON during detection and non-detection
Short circuit protection	Equip
Reaction time	≤1ms
Operating status light	Red LED(lights up when the output is ON)
Power indcator light	Green LED(lights up when powered ON)
Range-setting regulator	Equipped with a mechanical 5-turn regulator
Detection mode	Available detection mode BGS function
Anti-nterterence function	Resist co-frequency interference/inter-frequency interference
Class of protection	Ip64
Amblent temperature	-25° C to +55 ° C (Note: Do not condense or freeze), storage temperature: -30° C to +70 ° C
Amblent humidity	35℃ to +85%RH, storage temperature: -30℃ to +70℃
Amblent ilumination	Incandescent lamp: The illuminance of the light-receiving surface is less than 3000LX
Withstand woltage	All power connection terminals of the AC1000V should be connected to the housing for 1 minute
Insulation nesistance	Between all power connection terminals and the housing, a high-resistance meter with a resistance of 20MΩ or more, based on DC250V
Vibration resistance	Frequency: 10-500Hz, dual amplitude: 3mm(MAX: 50G), 2 hours each in the X, Y and Z directions
Impactresistance	Acceleration: 500m/s⊃2;(approximately 50G), 2 hours each in the X, Y, and Z directions
Beam element	Red LED(Projected peak wavelength: 650nm, modulated)
Spot diameter	Approximately Φ20mm(when the distance is 300mm)
Material	Shell：PC
Cable	Φ3.8 cable, 4 cores, 2m in length
