SiRON K014-1 Series Photoelectric Sensor Correlation Type IP64

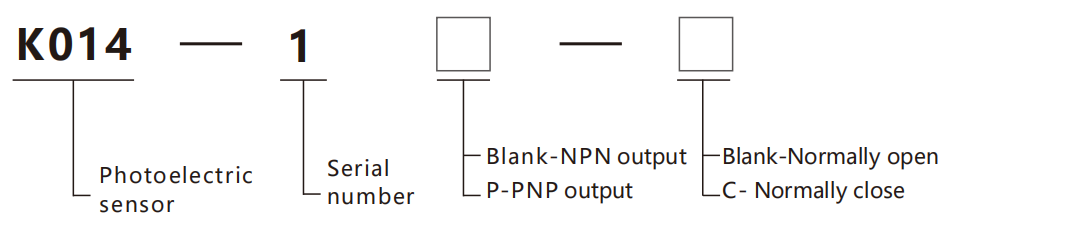

About selection

 Selection example: K014-1  indicates the K014 series, Serial number 1,with NPN output, normally open;

                                         K014-1P-C  indicates the K014 series, Serial number 1,with PNP output, normally close.

Specifications

Name	Photoelectric sensor
Model	K014-1	K014-1C	K014-1P	K014-1P-C
Outputway	NPN   N.O	NPN   N.C	PNPN.O	PNPN.C

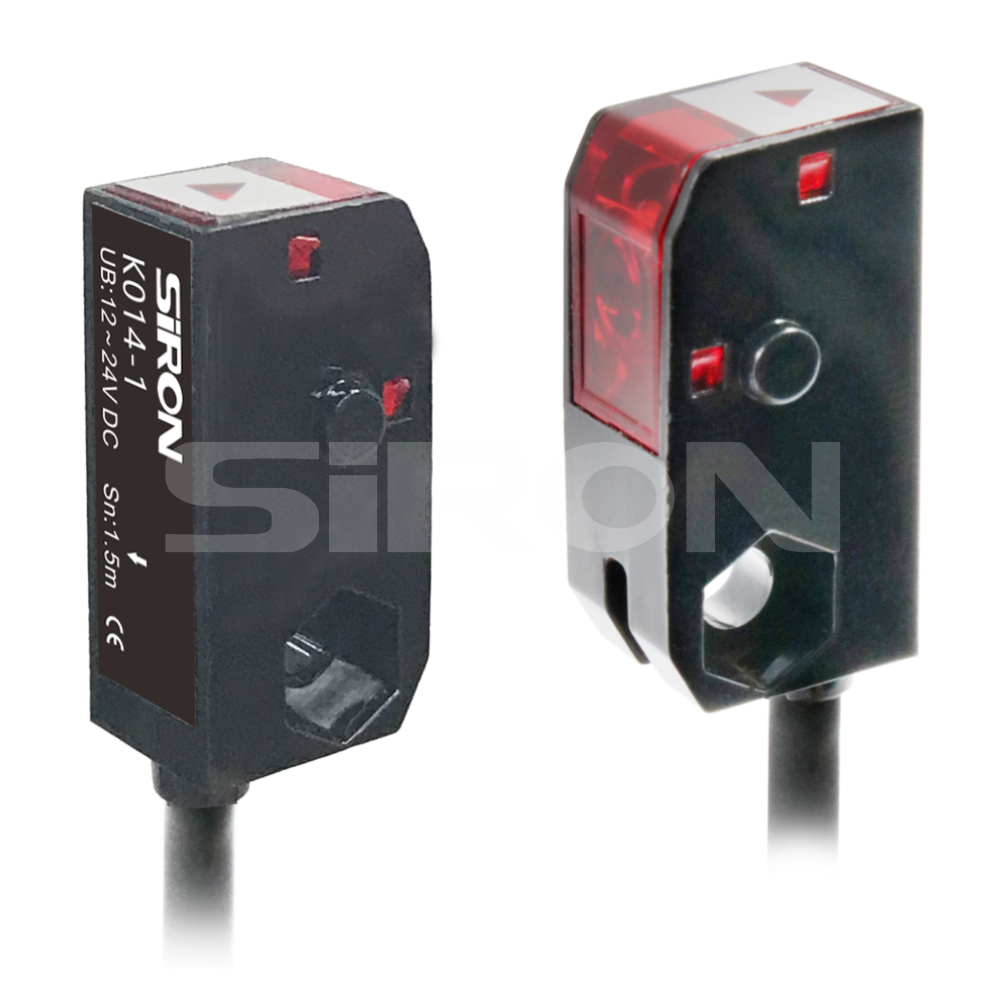

Appearance
Detection method	correlation
Detection distance	150cm (Non-adjustable）
Standard detection objec	Opaque objects with a diameter of φ6mm or more
Output mode	Open collector of NPN/PNP
Switch mode	Lon(light-entering action)/(light-blocking action) can be switched to D.on
Response time	33ms
indicator light	Transmitter: Power indicator light: green; Receiving end: Action indicator light: Yellow
light source	Infrared LED 850nm(modulated)
Operating Voltage	12～24V DC
Residualvoltage	Below 2V (when the current is 50mA)
Current consumption	Transmitting end <20mA, Receiving end <20mA
LoadcIent	<50mA
Ambient temperature	-20℃~+50℃,No freezing
environment humidity	35% to 90%RH, when stored: 35% to 90%RH
Ambient luminosity	Sunlight exposure ≤ 10,000 lux, incandescent lamp exposure ≤ 3,000 lux
protect the circuit	Reverse polarity protection, short-circuit protection
Protection level	IP64
Compressive strength	AC1000V(50/60Hz)for 1 minute
Vibration resistant	Reciprocating amplitude of 1.5mm at 10-55Hz in each of the X, Y and Z directions for 2 hours
Impact resistant	Perform three times in each direction of X, Y, and Z at 500m/s⊃2;
Storage temperature	-30℃～+70℃，No freezing
Dielectric strength	≥20MΩ/500V DC
Material	PC/ABS
Cable	3-core cable
Cable length	2M

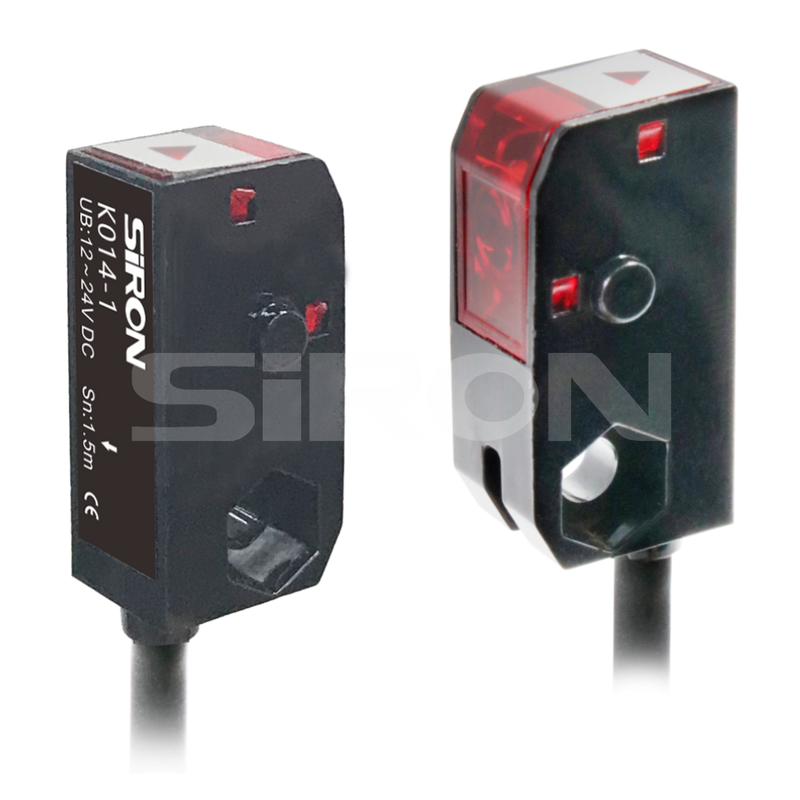

Example

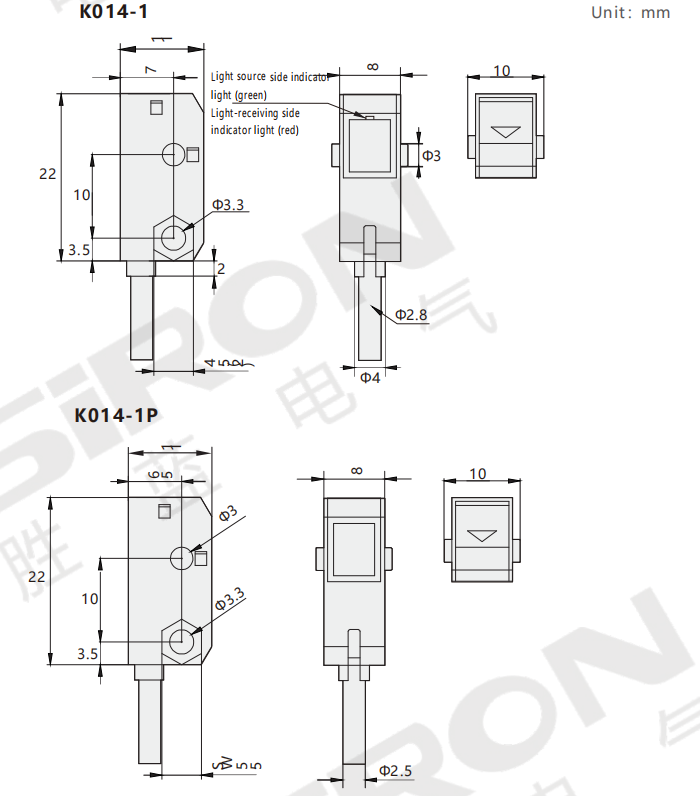

Dimension

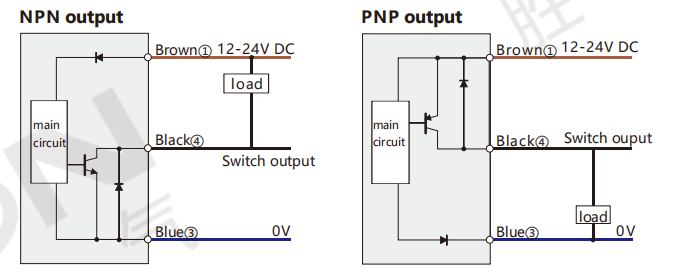

Wiring diagram
