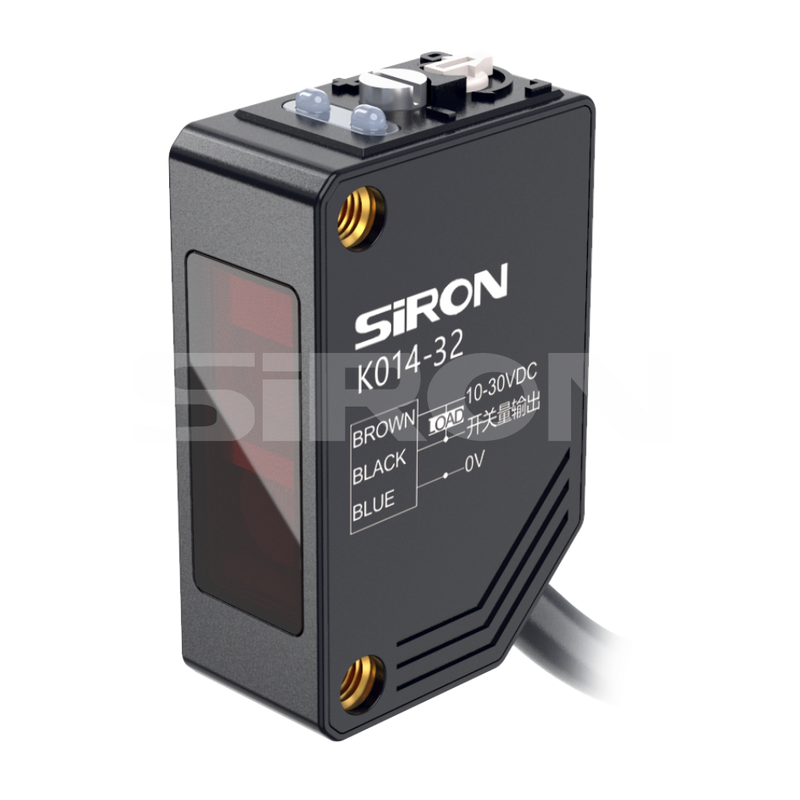

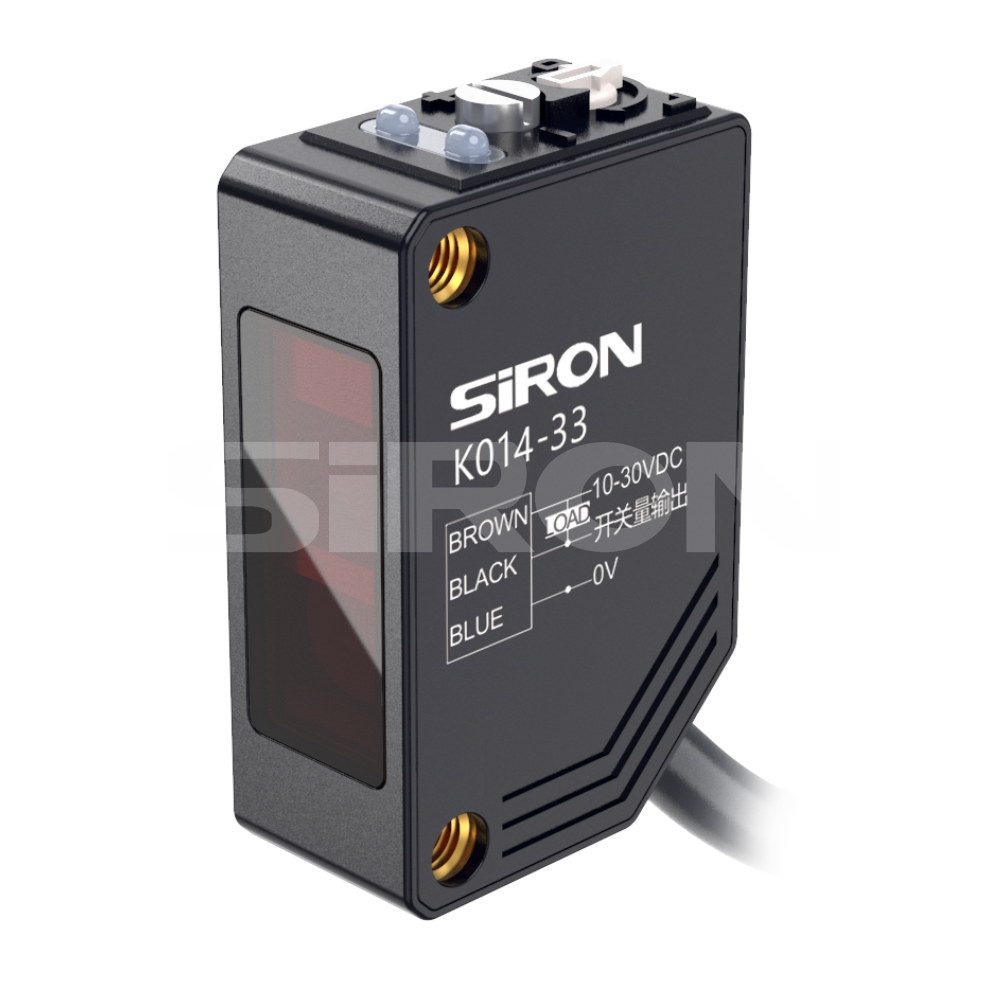

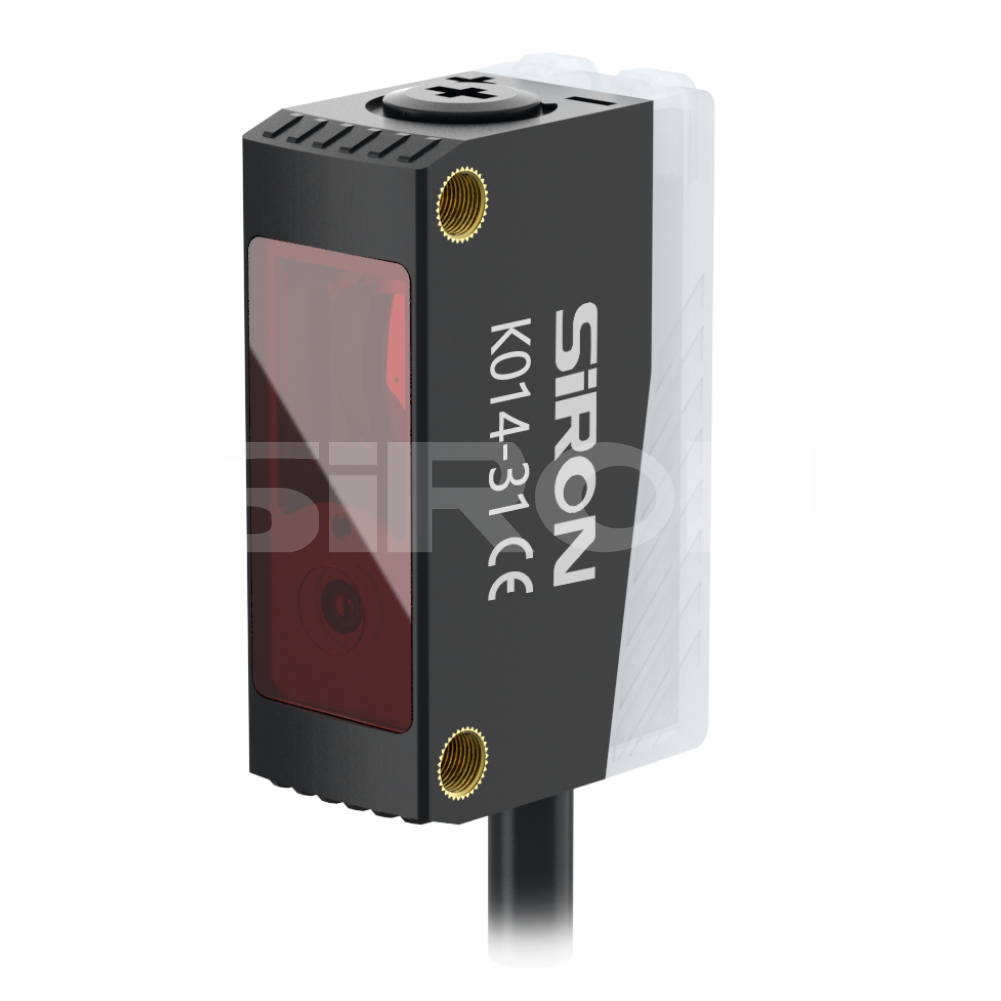

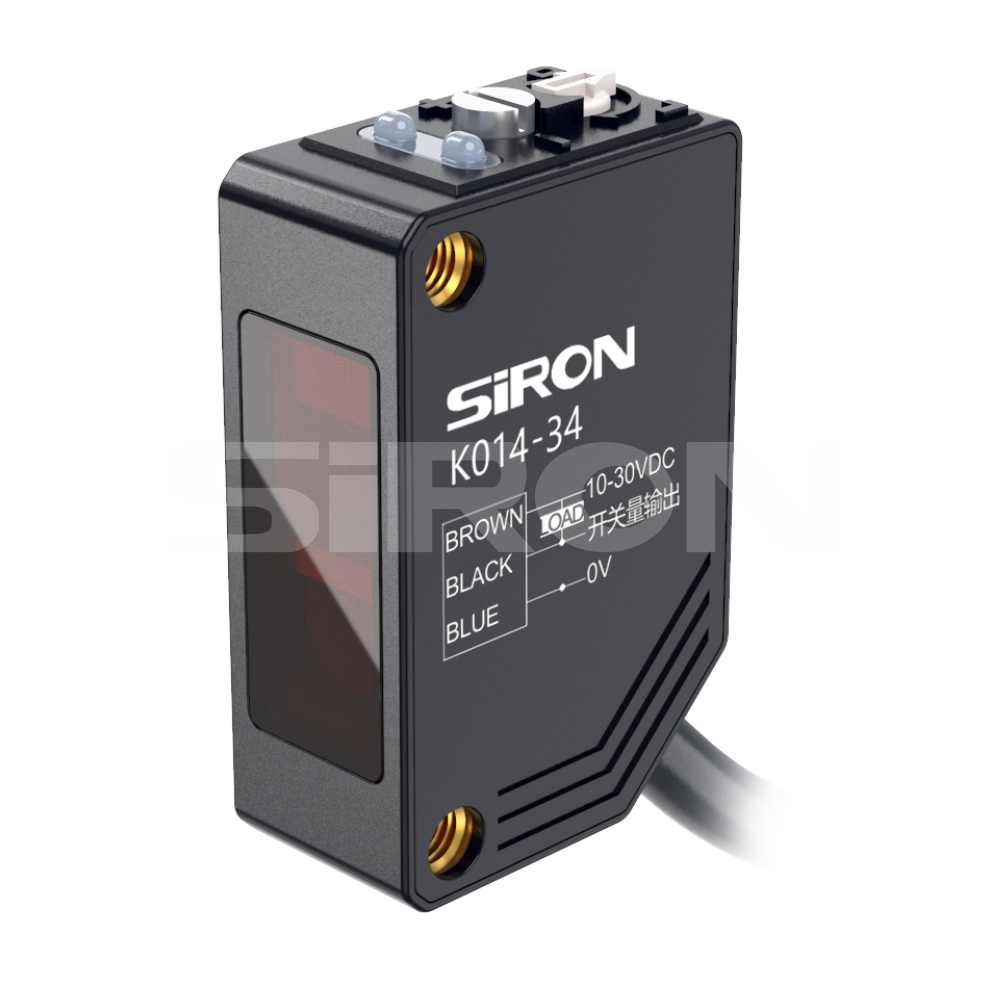

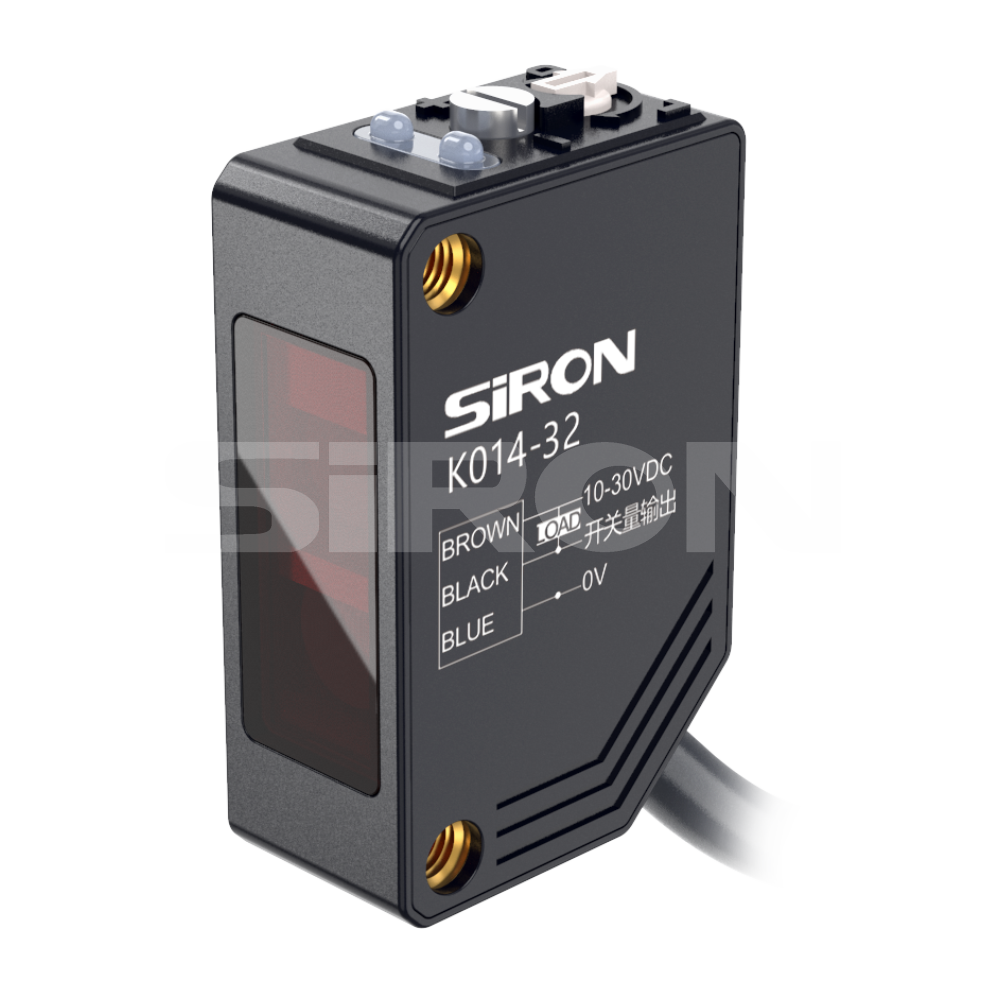

SiRON K014-31～K014-34 Series Photoelectric Sensor Background Suppressed Type

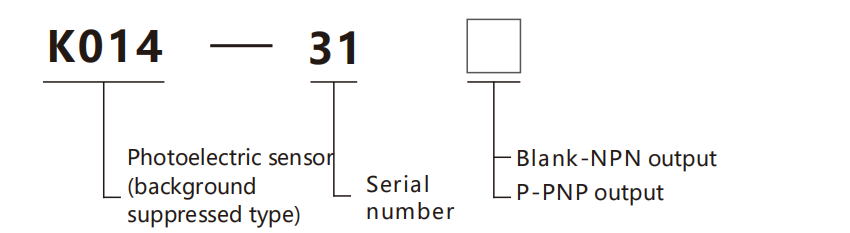

About selection

 Selection example: K014-31  indicates the K014 series, Serial number 31,with NPN output;

                                         K014-31P  indicates the K014 series, Serial number 31,with PNP output.

Specifications

Name		Photoelectric sensor(background suppressed type)
Model	NPN	K014-31		K014-32	K014-33	K014-34
	PNP	K014-31P		K014-32P	K014-33P	K014-34P
Type		Diffuse reflection
Appearance
Distance of detecion		2 to 150mm(white matte paper)		0~300mm(white matte paper)	10~300mm	10～200mm
Setthe distance		20~150mm		40～300mm	40～300mm	40～200mm
Light spot size		Aboutφ 2 m m / 1 5 c m		About φ 1 6 m m / 3 0 c m	/	About φ 1 2 m m / 2 0 0 m m
Range of retumerror		≤5%
Adjustment of sensiftvity		6-turn potentiometer
Operating voltage		10～30V   DC		10～30V     DC±10%
Residual voltage		<1.5V		/	<1.5V
Curent of consumplion		≤25mA		<25mA	≤25mA
Curren of load		100mA		<100mA	≤100mA
Light source		Red LED 627nm(modulated)		Red LED 623nm(modulated)	Red LED 940nm(modulated)	Red LED 623nm(modulated)
indicator light		Work indicator light: Green; Action indicator light: Red

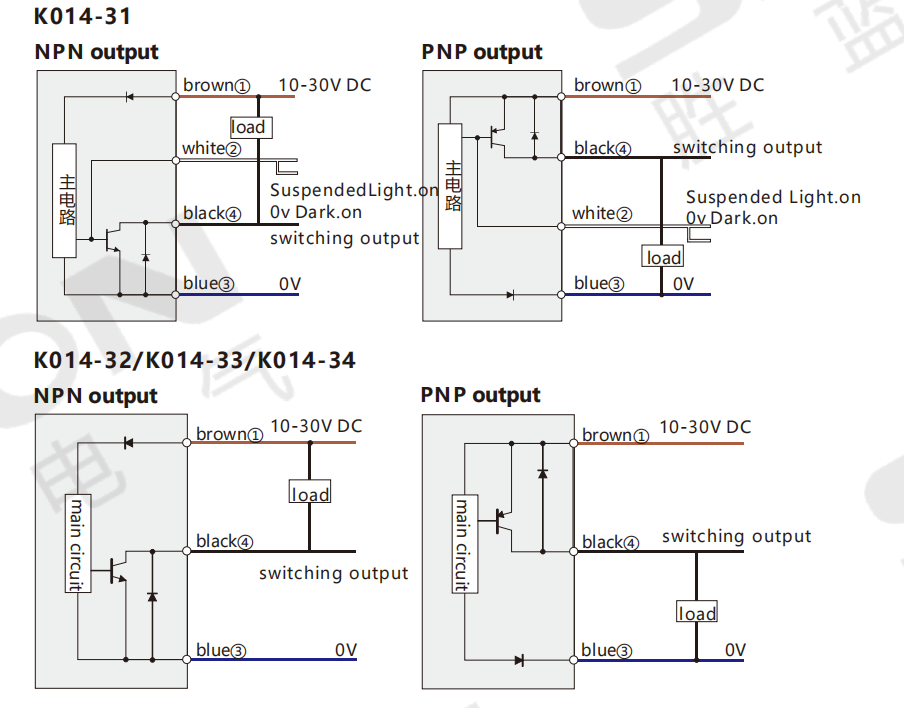

Output mode		NPN/PNP open collector ，≤100mA/30VDC		NP N/PNP open collector
on off mode		L.on(light-entering action)/D.on(light-blocking action) can be switched
ReSponse ime		≤1ms		≤2ms
Ambient luminosity		Sunlight: below 10,000 lux/Incandescent lamp: below 3,000 lux		Incandescent lamp: below 3000Lux/Sunlight: below 5000Lux
Ambient temperature		- 25℃~+55℃,No freezing			Incandescent lamp: below 3000Lux/Sunlight: below 5000Lux
Ambient humidity		3 5 % ～ 8 5 % R H , No coagulation			When in operation: 35% - 85%RH, no condensation; Storage: 35% to 95%RH
Protection cicuit		Power reverse polarity protection/surge protection/short circuit protection
Class of protection		IP65
Insulation		20MΩ
Pressure		/			±1000V   50/60Hz  60s
Electrostatic		/			±8000V(air discharge)
Group pulse		/			±2000V(5kHz/50kHz)
Resistance to vibration		/			10 to 50Hz, 0.5mm amplitude, 2 hours each in the X, Y, and Z directions
Material		Shell: PBT+ glass fiber; Lens: PMMA
Cable		4-core cable		3-core cable
Accessories		screwdriver

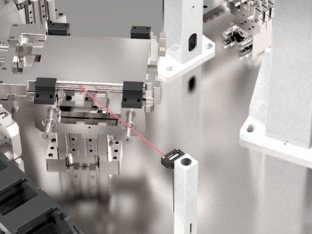

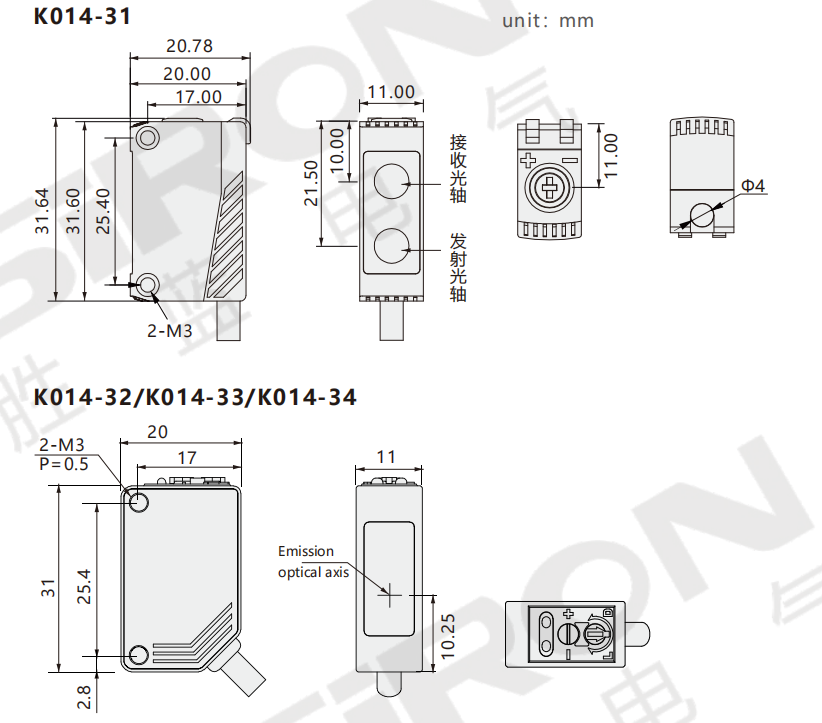

Example
