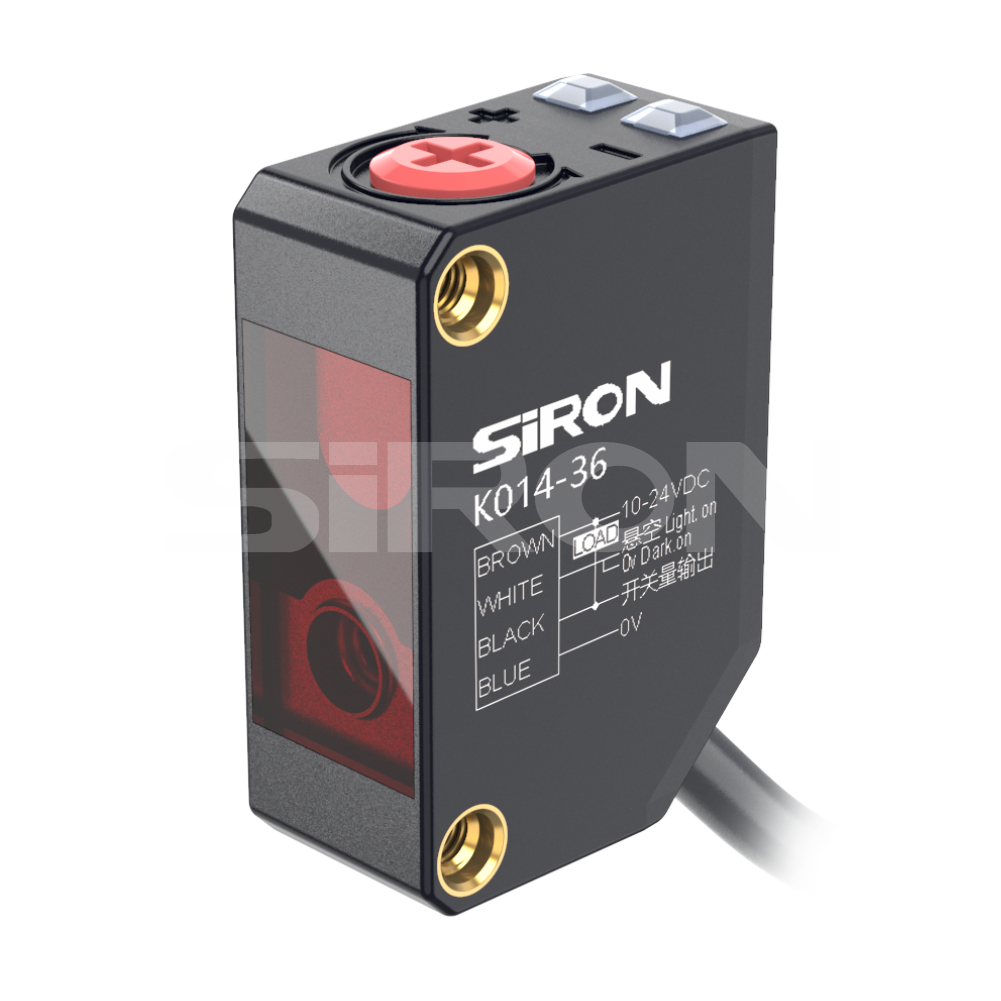

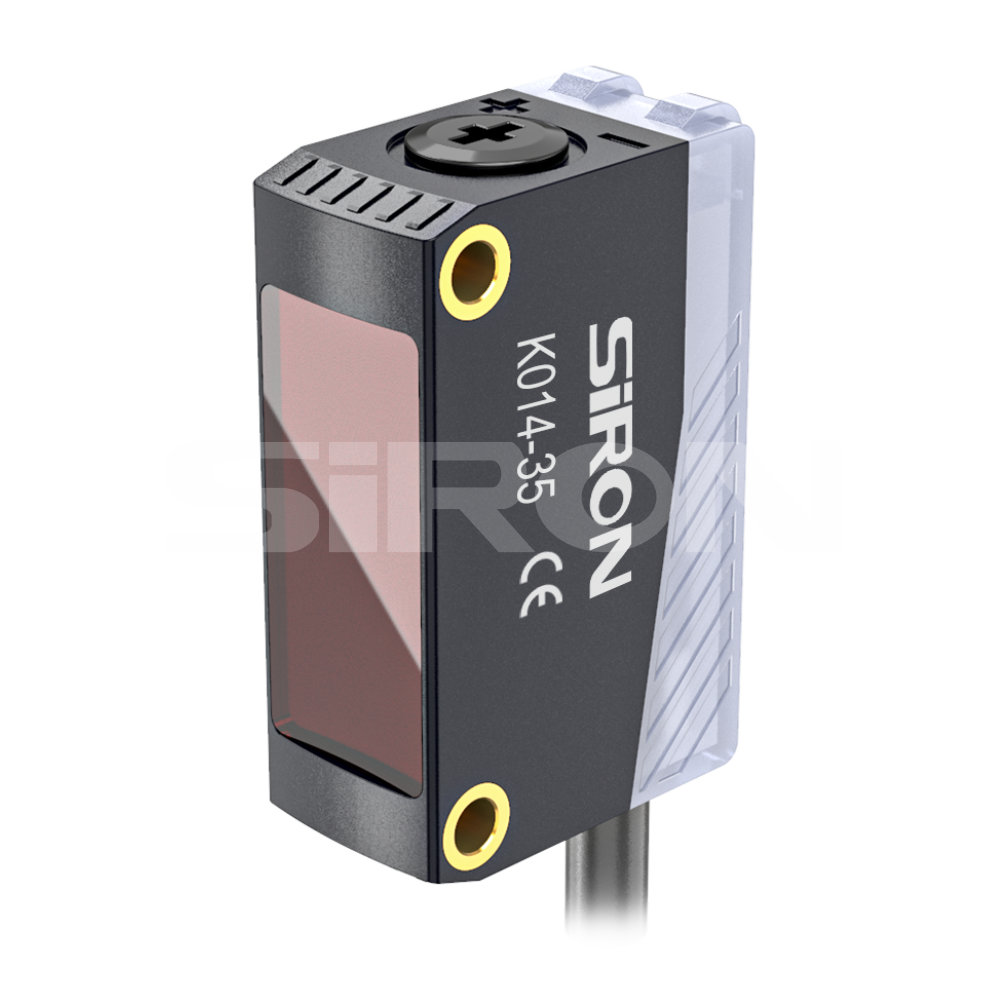

SiRON K014-35～K014-36 Series Photoelectric Sensor Background Suppressed Type

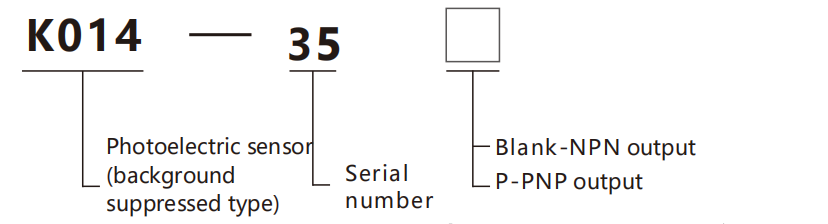

About selection

 Selection example: K014-35  indicates the K014 series, Serial number 35,with NPN output;

                                         K014-35P  indicates the K014 series, Serial number 35,with PNP output.

Specifications

Name		Photoelectric sensor(background suppressed type)
Model	NPN	K014-35	K014-36
	PNP	K014-35P	K014-36P
Type		diffuse reflection
Appearance
Detection distance		2～300mm(white matte paper)	1～100mm
Set distance		30~300mm	20~100mm
Spot size		About φ 1 6 m m / 3 0 0 m m	65×0.5mm/100m
Minimum detector		/	φ 5 m m ( 5 0 m m  )
Return range		≤5%
Senstivity regulation		6-turn potentiometer	4-pin regulator
Operating voltage		10～30V    DC	10~24V     DC
Residual voltage		<1.5V	<1V
Consumption current		≤25mA	≤20mA
Load current		≤100mA
Light source		Red light LED 623nm (modulated)	Red light LED
indicator light		Work indicator light: Green; Action indicator light: Red	Output indicator light: Orange; Light source indicator light: Green
Optical interference		/	Fluorescent lamp: ≤ 5000 Lux; Natural light: ≤ 20000 Lux; LED:≤2000Lux

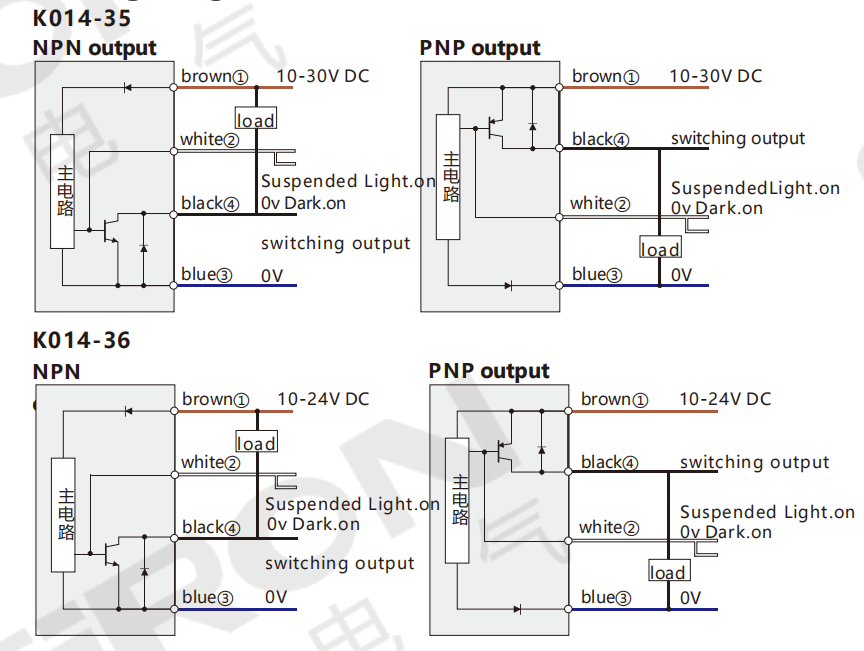

Output mode		NP N/PNP open collector
Switching mode		L.on (lighting on action / D.on (shading action) can be switched)
Response time		≤1ms	≤0.3ms
Ambient luminosity		Incandescent lamp: Below 3000 Lux / Sunlight: Below 10000 Lux	/
Ambient temperature		Operating temperature: -25℃ to +55℃, no freezing; Storage temperature: -30℃ to +70℃	- 10℃~+70℃,No freezing
Ambient humidity		During operation: 35% - 85% RH, no condensation; During storage: 35% - 95% RH	3 5 % ～ 8 5 % R H ,  no condensation
Protection circuit		Power polarity reverse protection / surge protection / short circuit protection	Reverse connection protection / Output overcurrent protection / Interference light protection
Protection cass		IP67	IP66
Insulation		20MΩ	Between all power connection terminals and the casing, more than 20 MΩ (based on DC 250V)
Withstand voltage		±1000V 50/60Hz 60s	/
Static electricity		±8000V (air discharge)	/
Group pulse		±2000V(5kHz/50kHz)	/
Vibration resistance		10 - 50 Hz, 0.5 mm amplitude, 2 hours in each of the X, Y, and Z directions	10 - 50 Hz, 1.5 mm amplitude, 2 hours in each of the X, Y, and Z directions
Impact resistance		/	50G(500m/s)⊃2;
Material		Shell: PBT + glass fiber; Lens: PMMA	Shell: Made of glass fiber ABS; Lens: PMMA
Cable		4-core cable	4-core cable
AcCessones		Screwdriver	Supports, screws
Cable length		2M

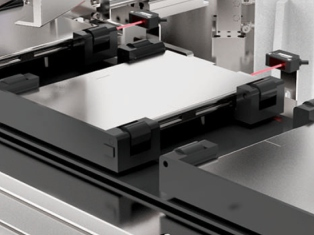

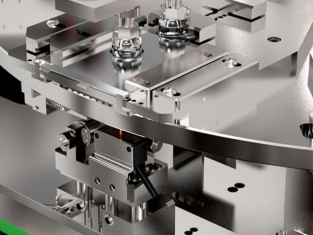

Example
