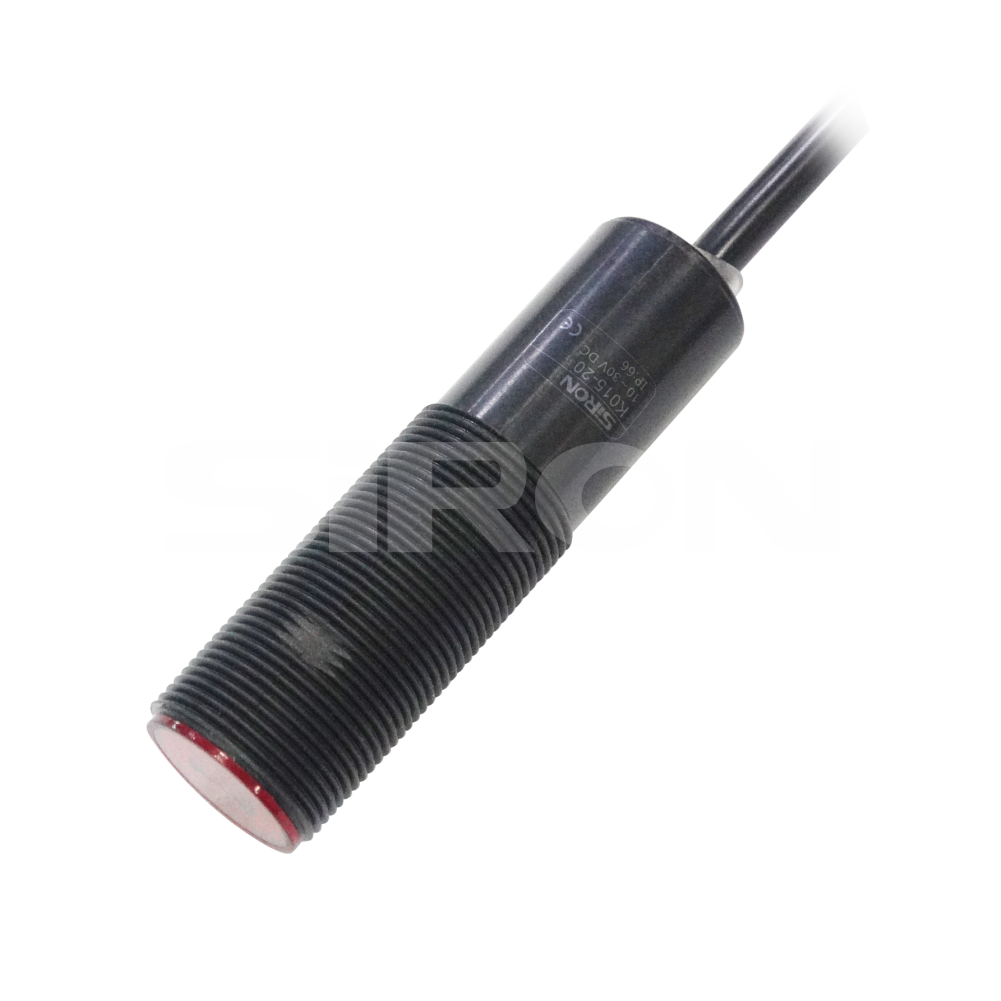

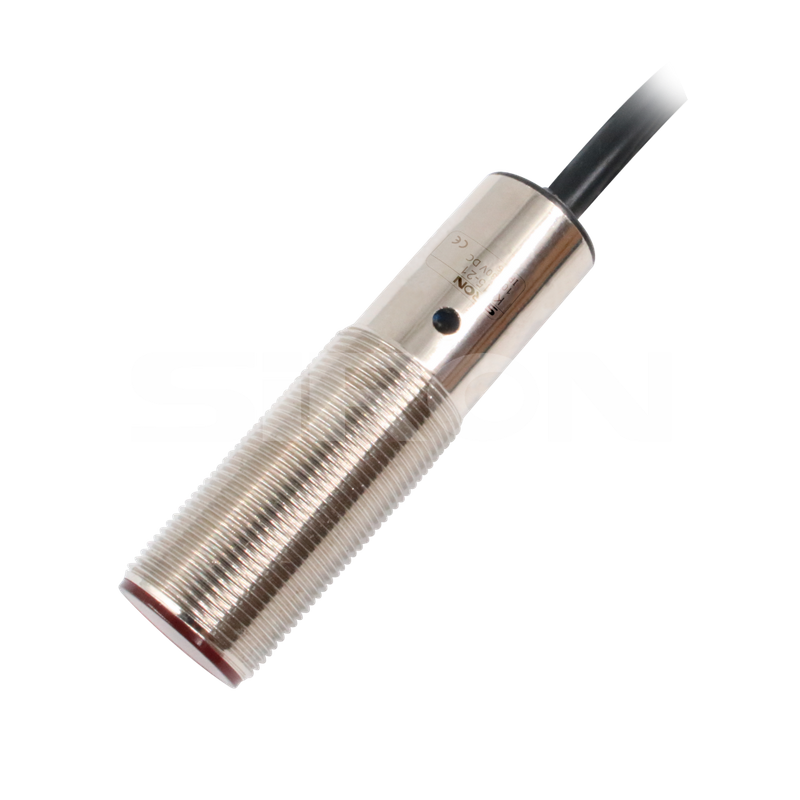

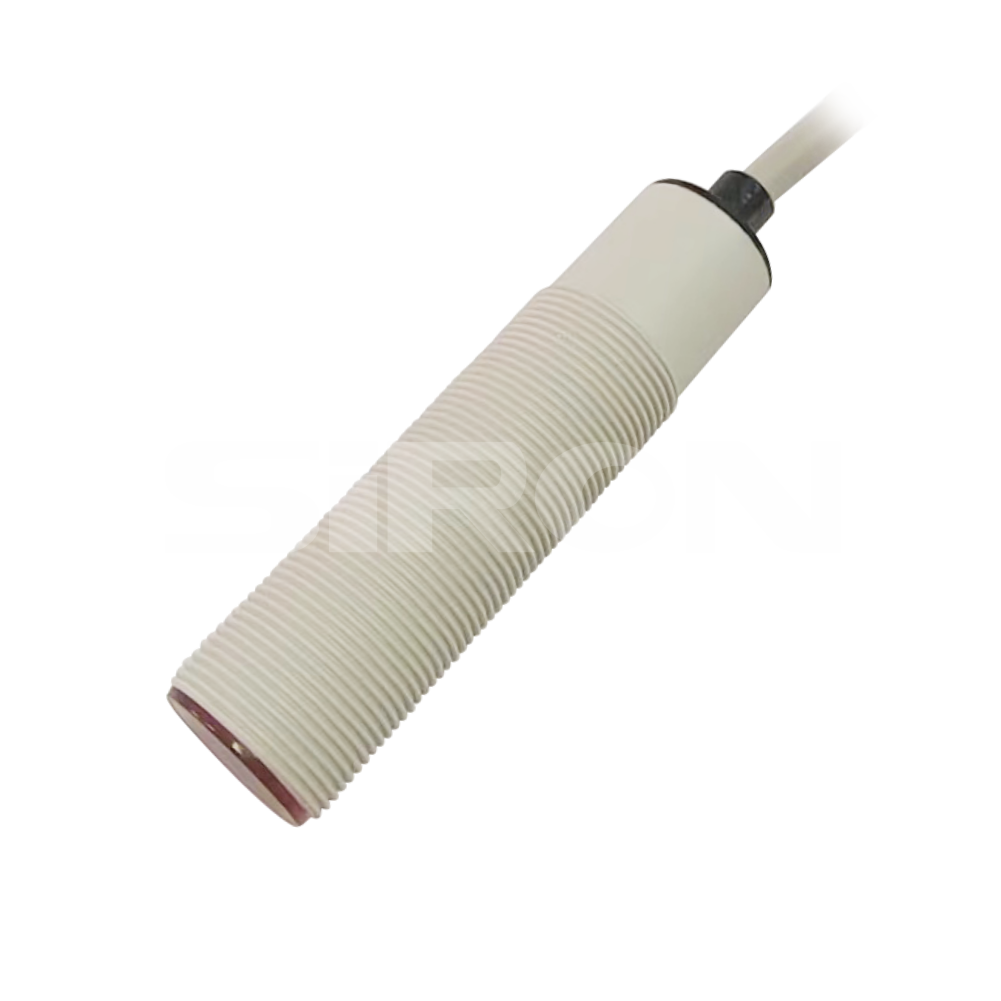

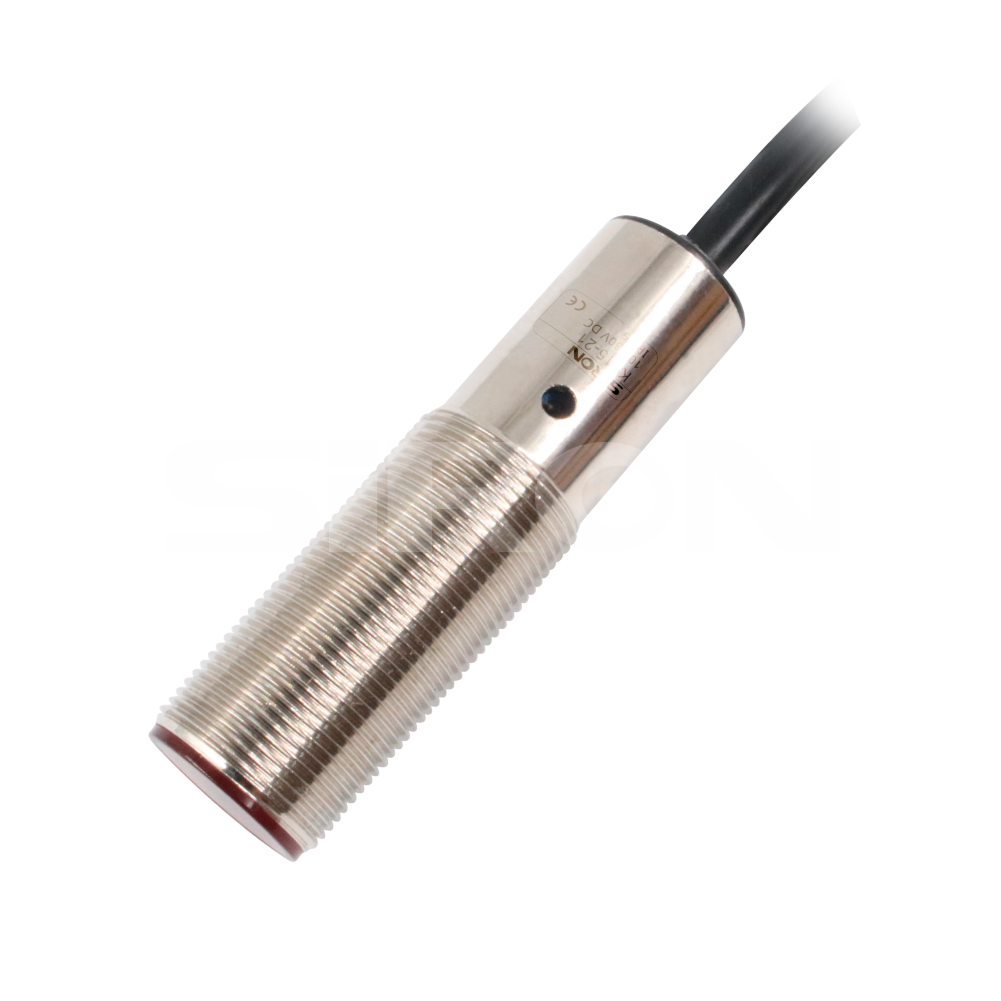

SiRON K015-20～K015-31 Series M18 Photoelectric Sensor IP66

About selection

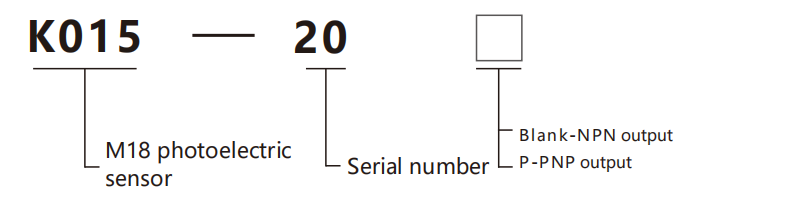

 Selection example: K015-20  indicates the K015 series, serial number 20, with NPN output;

                                      K015-20P indicates the K015 series, serial number 20 with PNP output.

Specifications

Name

M18 photoelectric sensor

Model

NPN

K015-20

K015-21

K015-22

K015-23

K015-24

K015-25

K015-26

K015-27

K015-28

K015-29

K015-30

K015-31

PNP

K015-20P

K015-21P

K015-22P

K015-23P

K015-24P

K015-25P

K015-26P

K015-27P

K015-28P

K015-29P

K015-30P

K015-31P

Shell material

PBT

Nickel-plated copper

PBT

Nickel-plated copper

PBT

Nickel-plated copper

PBT

Nickel-plated copper

PBT

Nickel-plated copper

PBT

Nickel-plated copper

Types of

Diffuse reflection

Retroreflection

Through-beam

Background suppression type

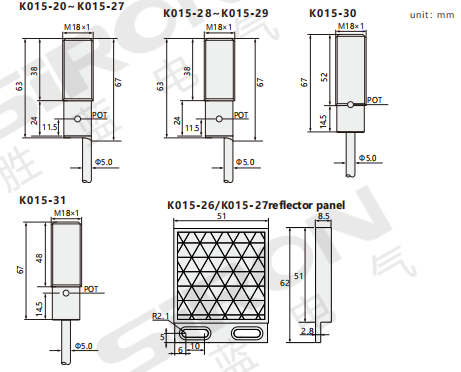

Appearance

Detection distance

100mm

150mm

500mm

0.1～3m

15m

10～100mm

Operating Voltage

10～30V DC

On-offlevel

500Hz

1000Hz

Type oflight

Infrared ray with a wavelength of 880 nm

Red light 624nm

Reaction time

<2ms

Load current

≤200mA

Power-on delay

<300ms

Sensitive regulation

Single-turn potentiometer

Blind spot distance

/

<10cm

/

<1cm

Anti-light interference

<5000Lux

Ambient temperature

-25～55℃

Environment humidity

35～85%

Lens material

PMMA

LED indication

Yellow

Cablelength

2M

Cable

PVC cable；4×0.25mm²

PVC cable；2×0.5mm², 4×025mm²

PVC cable； 4×0.25mm²

Example

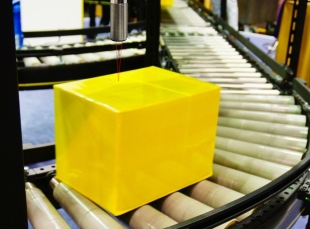

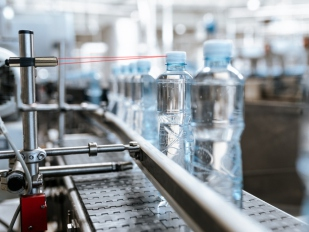

The inspection of packaging boxes on                                       Detect the presence or absence of caps

the production line                                                                           on the packaging in the production line
