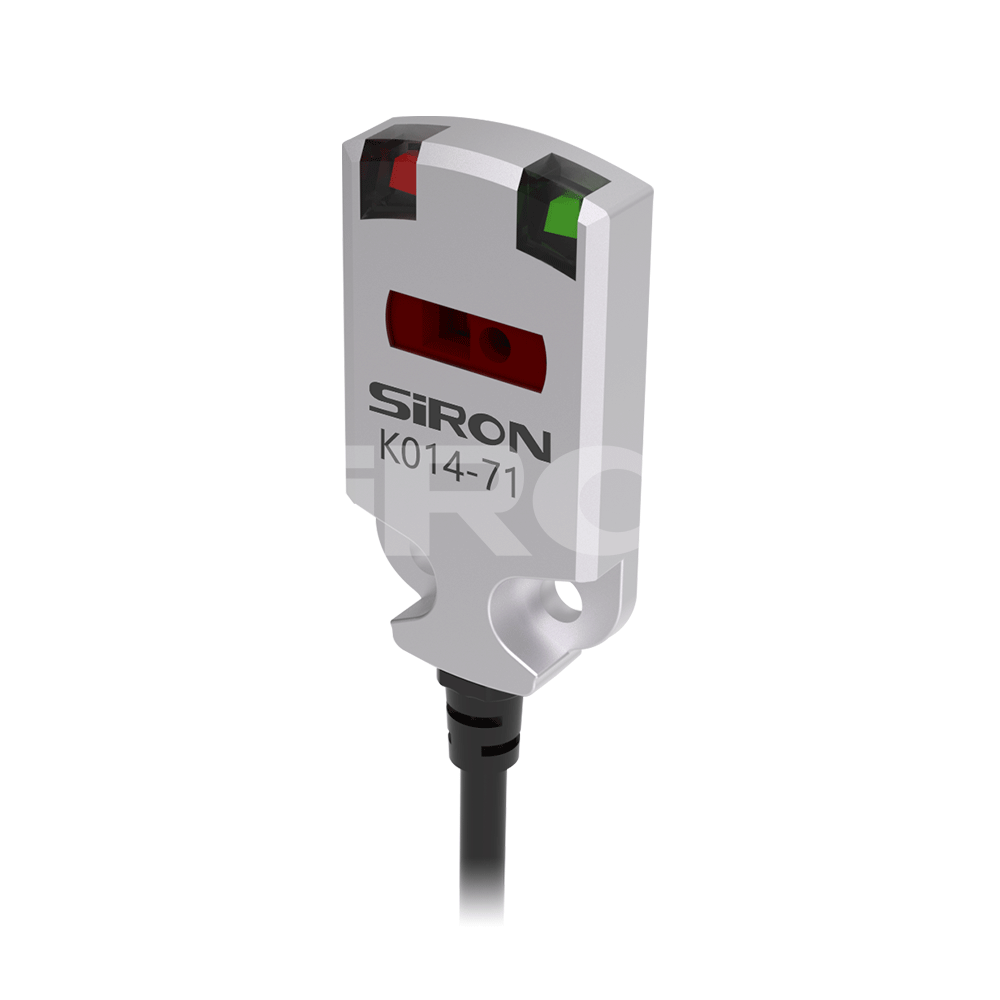

SiRON K014-71 Series Photoelectric Sensor Ultra-thin

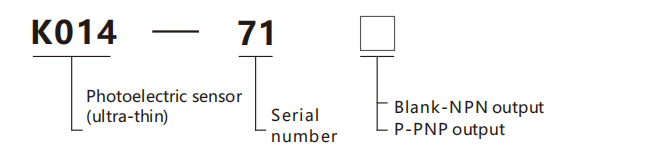

About selection

 Selection example: K014-71 indicates the K014 series, serial number 71, with NPN output;

                                         K014-71P indicates the K014 series, serial number 71, with PNP outpute.

Specifications

Name		Photoelectric sens or(ultra-thin type)
Model	NPN	K014-71
	PNP	K014-71P
fypes of		Reflection-type
Appearance
Shape		flat
Detection distance		Background suppression distance: 30±5mm
voltage		1 2 ~ 3 0 V D C  including ripple current ( P - P ) 1 0 %
Curren consumption		19mA
Normallyopen normallychosed mode		ON when light is incident / ON when light is blocked (selectable)
Operation mode(output)		LIGHT-ON/NC
Light spot diameter		Less than Φ5mm (when 30mm)
light source		RED L E D ( 6 5 0 n m )
Response time		≤1ms
Cable length		2M
Indicator		Output indicator light (red); stable operation indicator light (green)
IPlevel		IP67

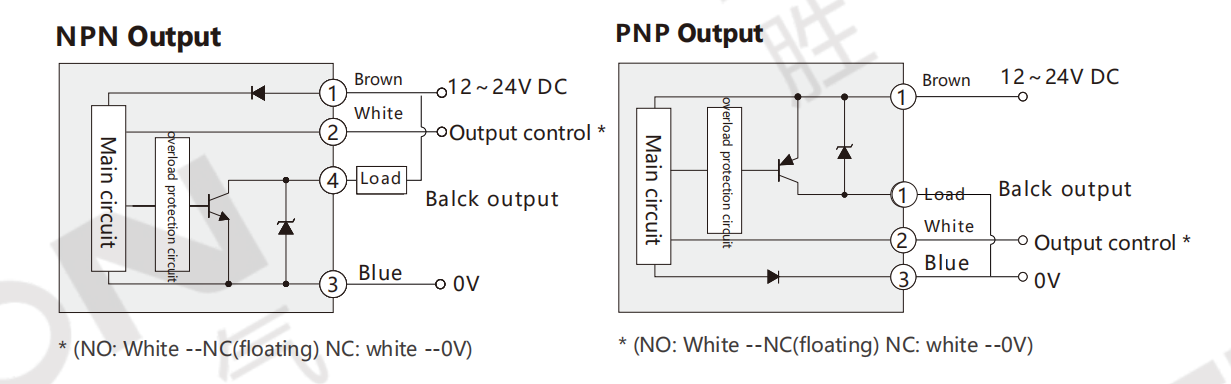

Controloutput		NP N open collector, P NP open collector: below 30VDC, below 50mA;
		Residual voltage: below 1.5V when below 30mA, and below 2.0V when between 30mA and 50mA;
		Leakage current: When the load resistance is 3kΩ, it is below 0.3mA; when the load resistance is 1kΩ, it is below 0.5mA; when the load resistance is 0.2kΩ, it is below 1.5mA
