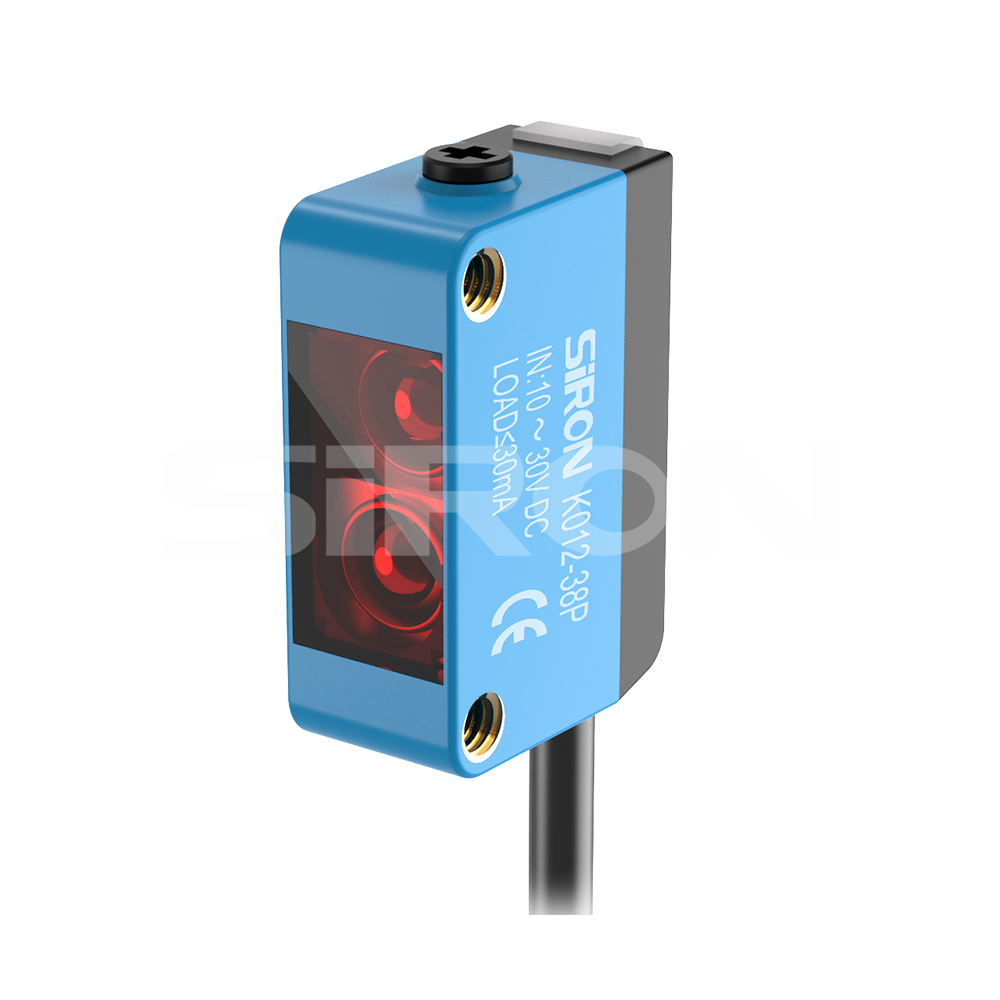

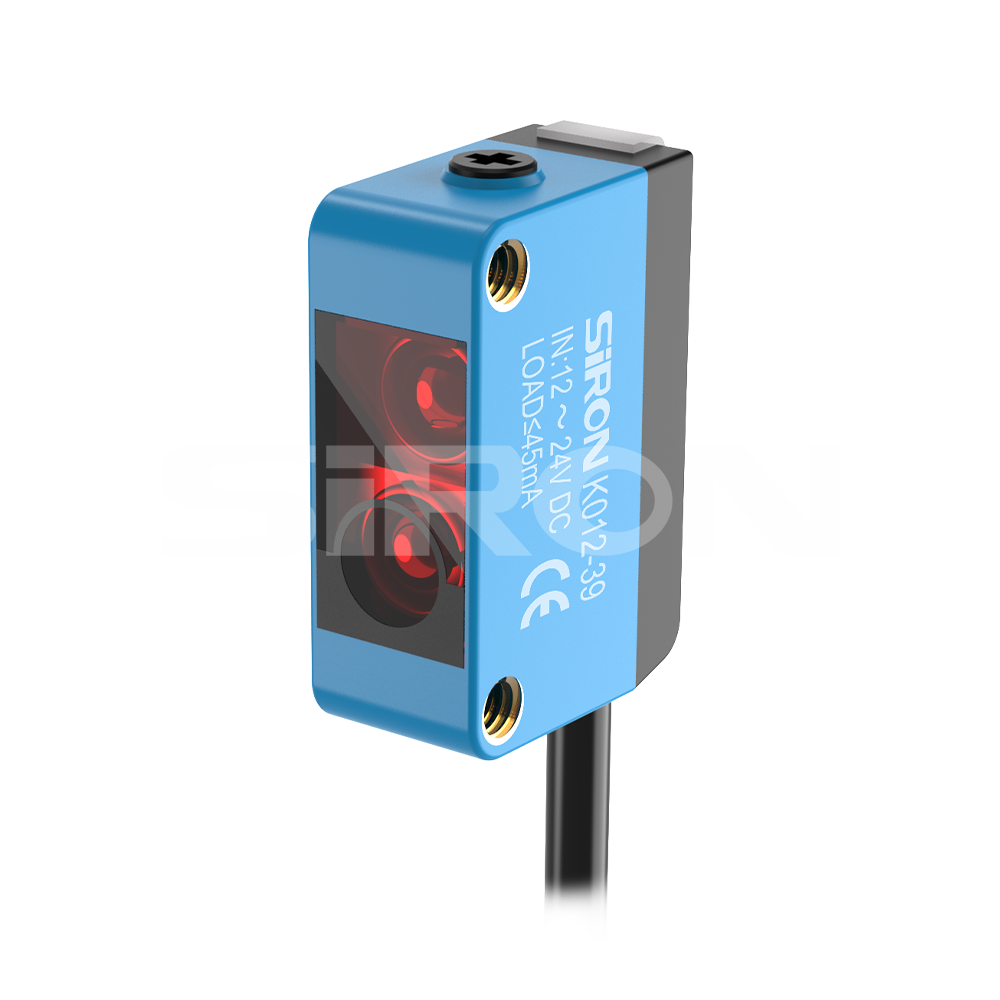

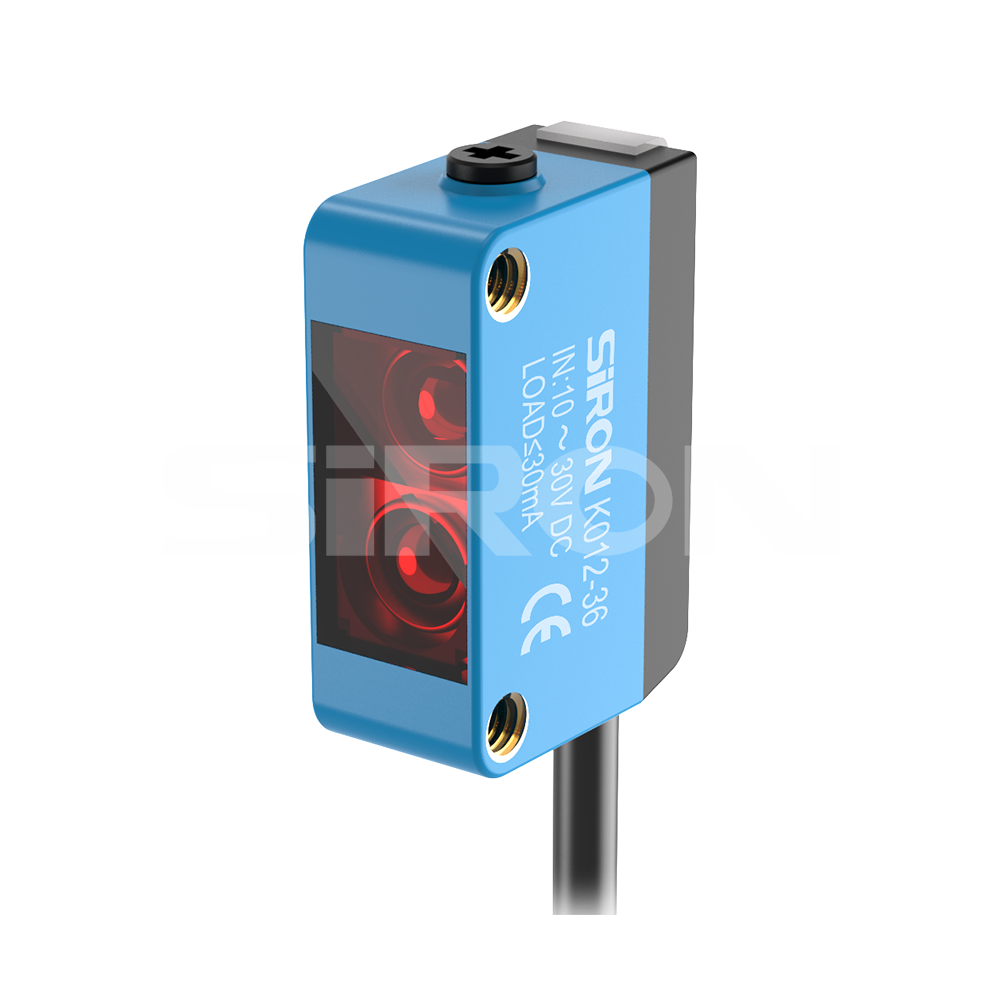

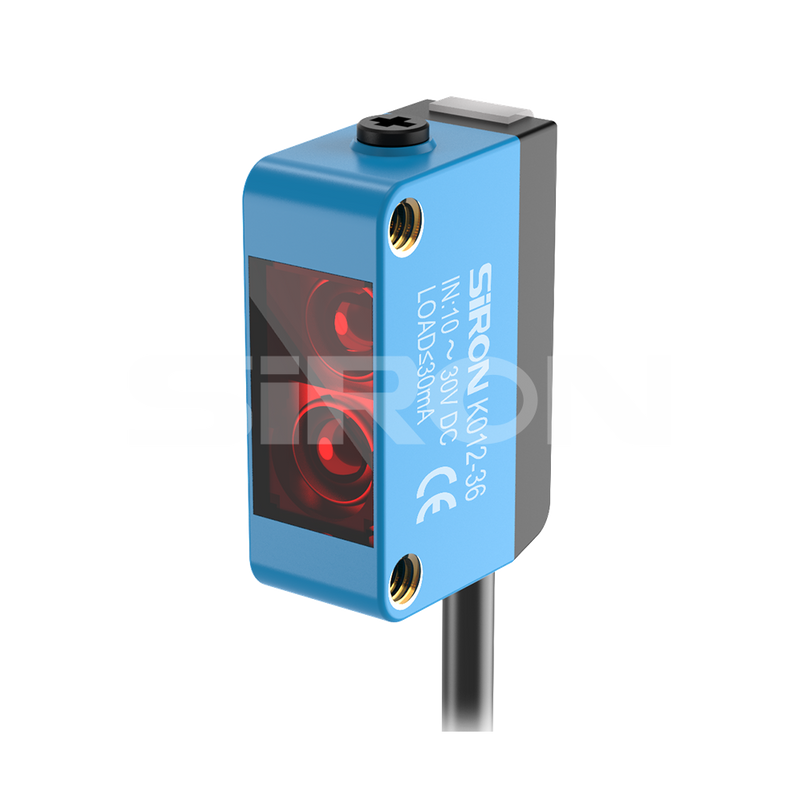

SiRON K012-35~K012-39 Series Photoelectric Sensor Background Suppression Type

About selection

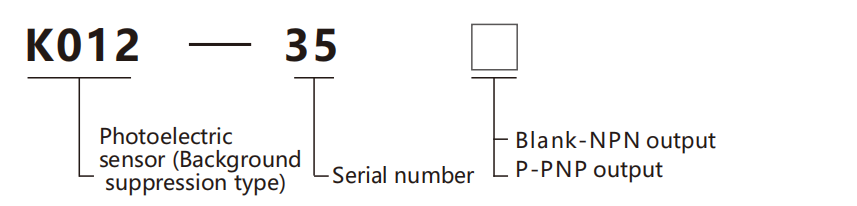

 Selection example: K012-35 indicates the K012 series, serial number 35, with NPN output;

                                         K012-35P indicates the K012 series, serial number 35, with PNP outpute.

Specifications

Name		Photoelectric sensor (Background suppression type)
Model	NPN	K012-35	K012-36	K012-37	K012-38	K012-39
	PNP	K012-35P	K012-36P	K012-37P	K012-38P	K012-39P
Spot size		Minimum light spot 1mm	Light spot8 - 12mm	Directly accurate  light spot 8mm	Laser spot 2mm	Laser spot 2mm

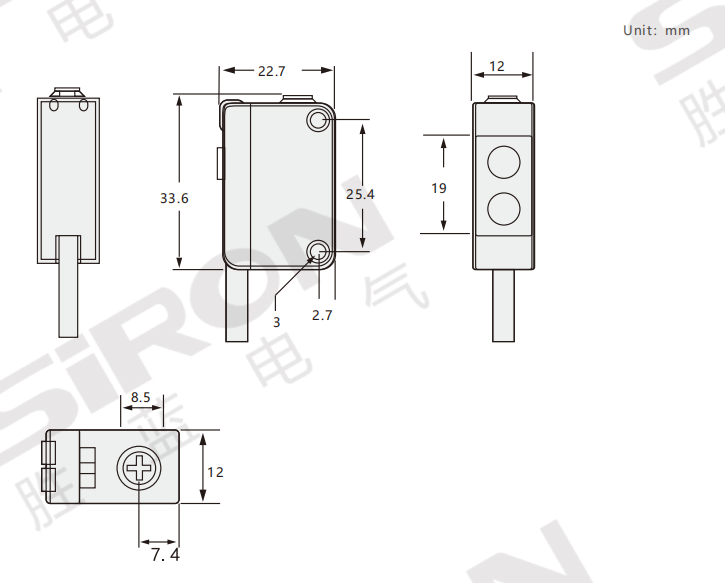

Appearance
Distance of detection		5-100mm	10-600mm (BG function within 250MM)	10-1500mm (Bg function within 500MM )	10-120mm	30-300mm
Detection range		100mm	300mm	500mm	120mm	300mm

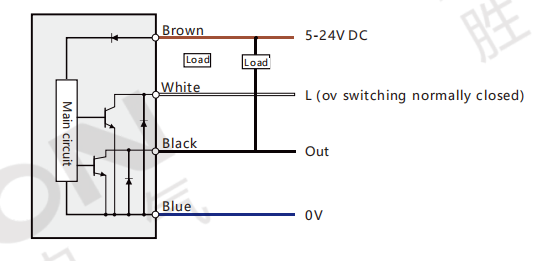

Output mode		NPN/PNP integrated electrode open circuit, ≤100mA/30V DC
Switching mode		Lon (light-on action)/D.on (light-blocking action) can be switched
Pilot lamp		Work indicator light: Green, output indicator light: orange
Response time		<2ms
Sensitivity regulation		Multi-loop potential diagram
illuminant		Red LED(660nm)
Operating voltage		10~30V Dc±10%
Current consumption		≤30mA
Ambient luminosity		Daylight: below 10,000 Lx, incandescent lamp: below 3,000 Lx
Ambient temperature		-25℃~+55℃
Ambient humidity		- 35%~85% No freezing
Protection class		IP50
Material		ABS(housing), PC(lens)
