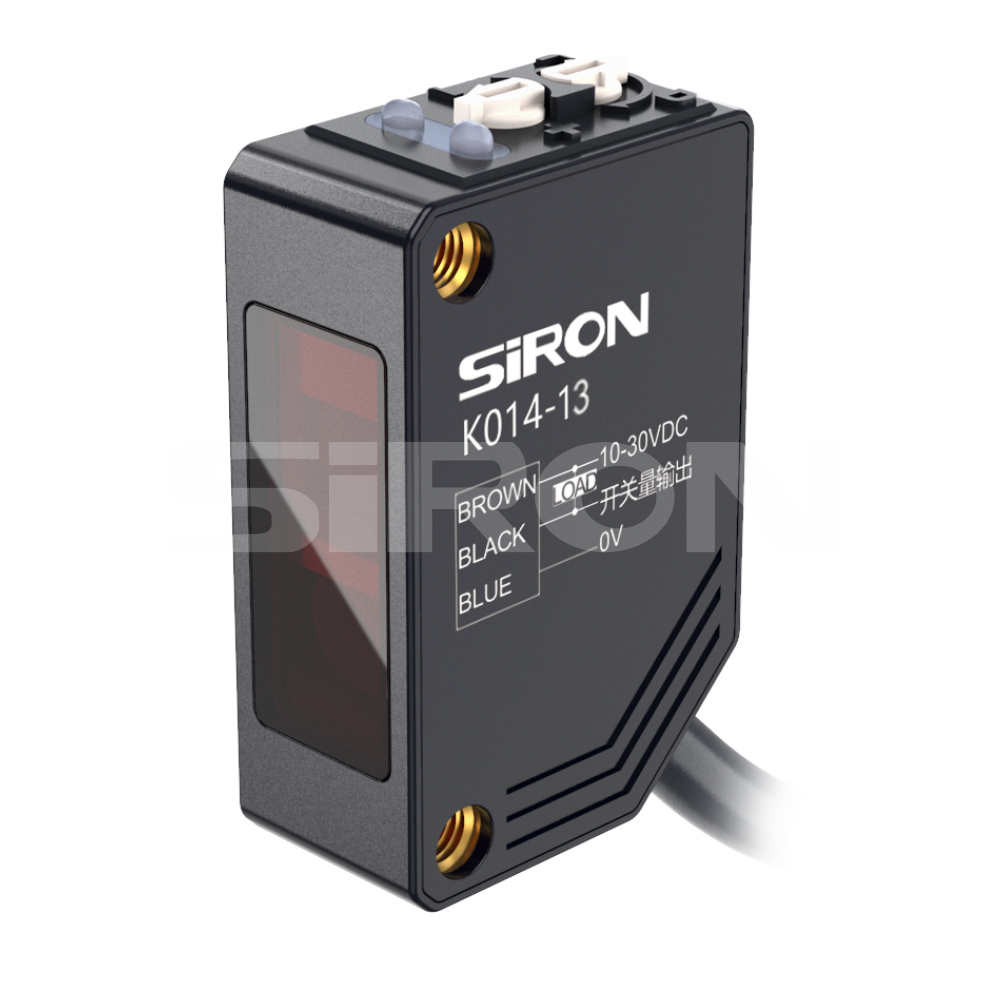

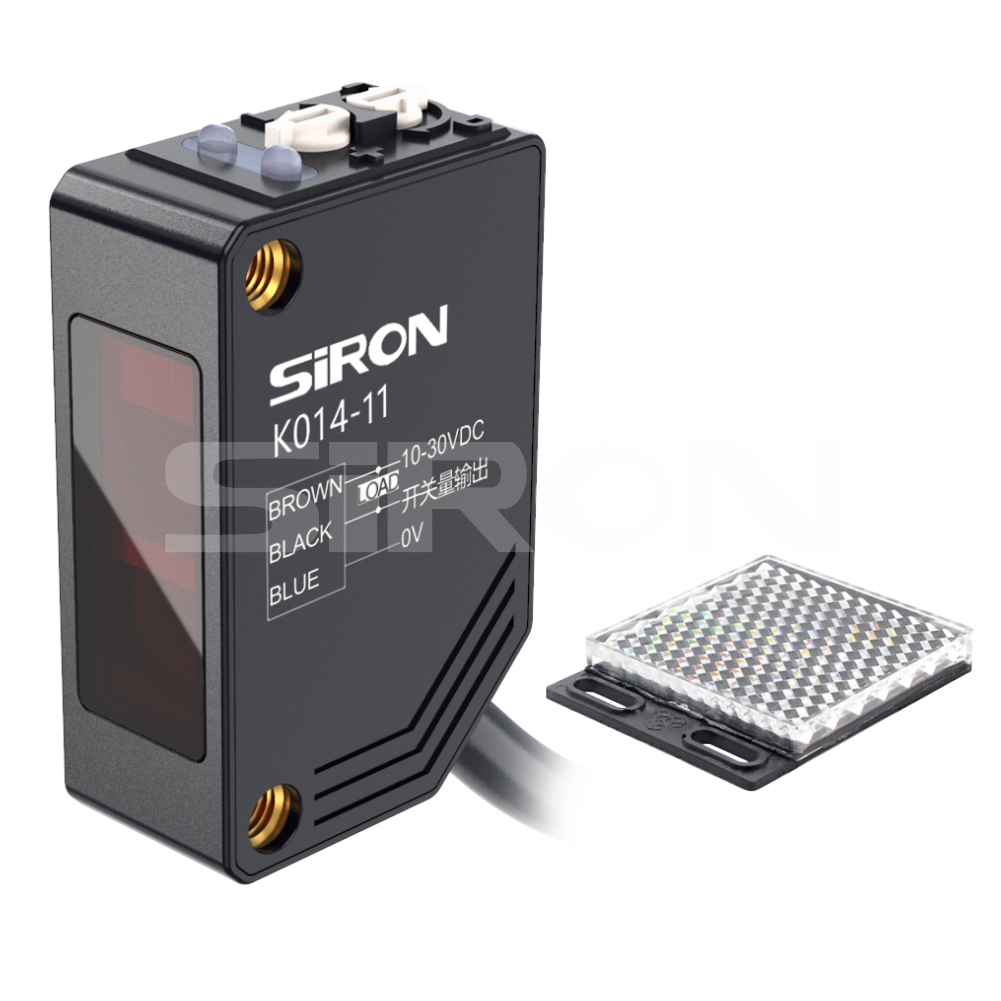

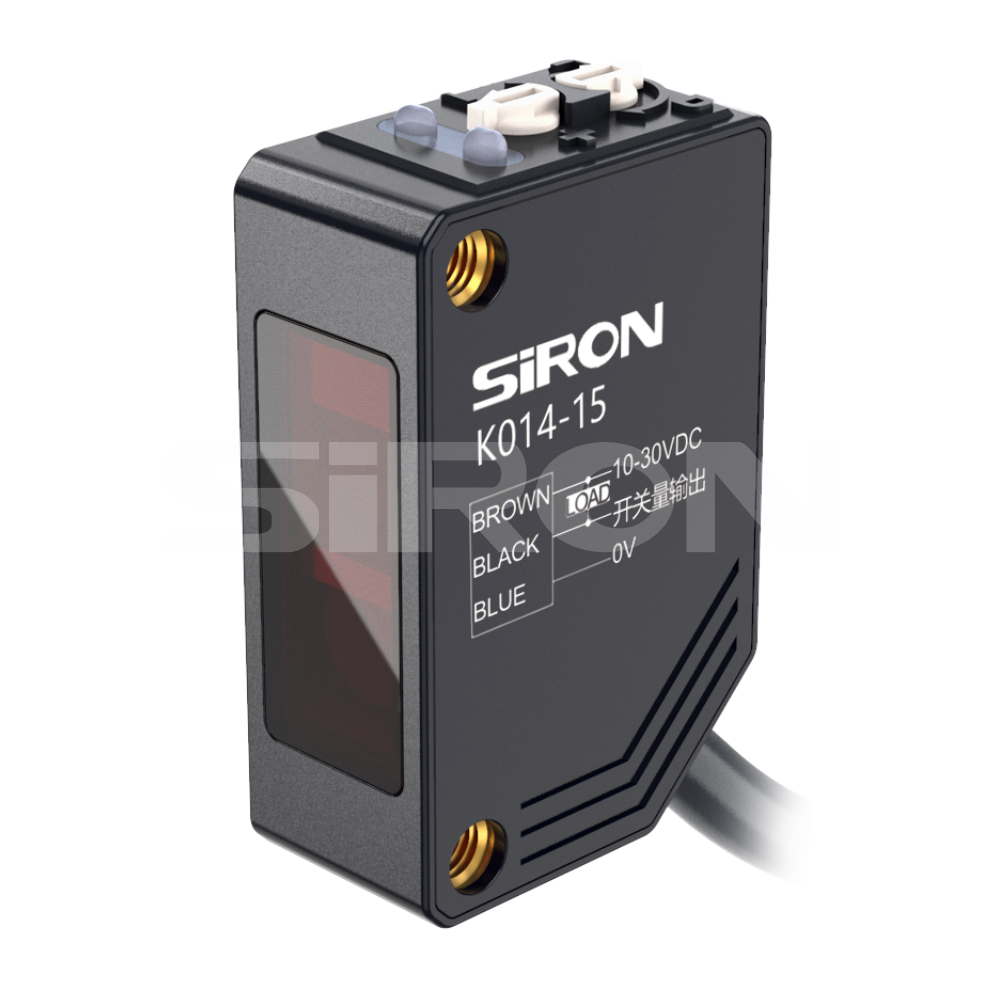

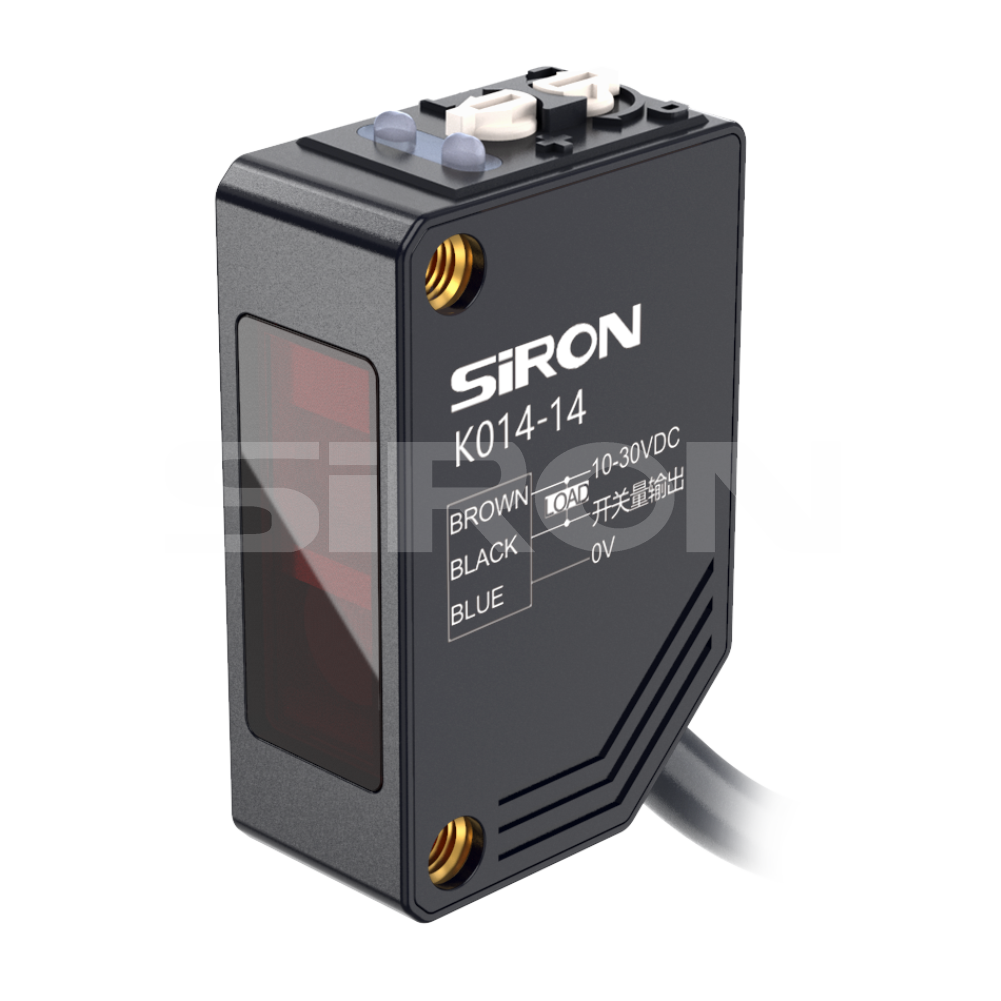

SiRON C K014-11～K014-15 Series Photoelectric Sensor Red Light IP65

About selection

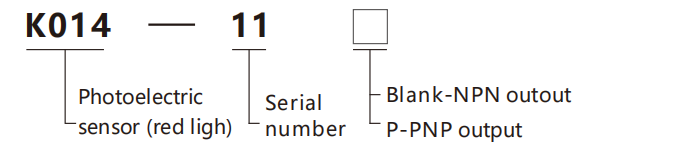

 Selection example: K014-11  indicates the K014 series, Serial number 11,with NPN output;

                                         K014-11P  indicates the K014 series, Serial number 11,with PNP output.

Specifications

Name		Photoelectric sensor (red light)
Model	NPN	K014-11	K014-12	K014-13	K014-14	K014-15
	PNP	K014-11P	K014-12P	K014-13P	K014-14P	K014-15P
Type		Regression reflection		Diffuse reflection		Reflection limit
Appearance
Distance ofdeteclion		2m	3m	10-300mm	5-1000mm	5-140mm
Light spot size		φ 5 0 m m / 2 m	φ90mm/3m	About φ 1 6 m m / 3 0 0 m m	Aboutφ50mm/1000mm	About φ9 m m / 1 4 0 m m
Light source		Red LED 623nm(modulated)
indicatorlight		Action indicator light: Red; Work indicator light: Green
Adjustment of sensitivity		single-turn potentiometer
Operating woltage		10～30V DC
Current of consumption		<20mA		<25mA
Cument of load		<100mA

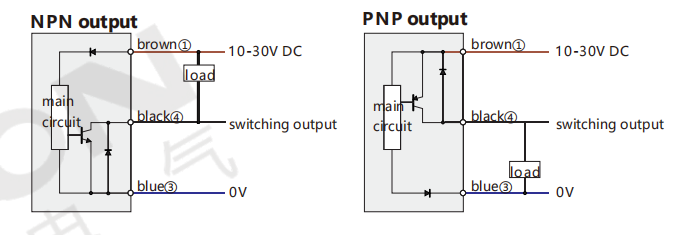

Output mode		Open collector of NPN/PNP，≤100mA(30V DC)
On offmode		L.on(light-entering action)/D.on(light-blocking action) can be switched
Response time		<1ms
Ambient luminosity		Sunlight exposure ≤ 10,000 lux; The illumination of incandescent lamps is ≤3000Lux
Ambient temperature		- 25℃~+55℃, No freezing
Ambient humidity		3 5 % ~ + 8 5 % ,No condensation
Resistance to vibraion		10 to 50Hz,0.5mm amplitude, 2 hours each in the X, Y, and Z directions
Protection crauit		Power reverse polarity protection, output reverse polarity protection, surge protection, short-circuit protection
Class of protedion		IP65
Material		PBT+ glass fiber (housing),PMMA(lens)

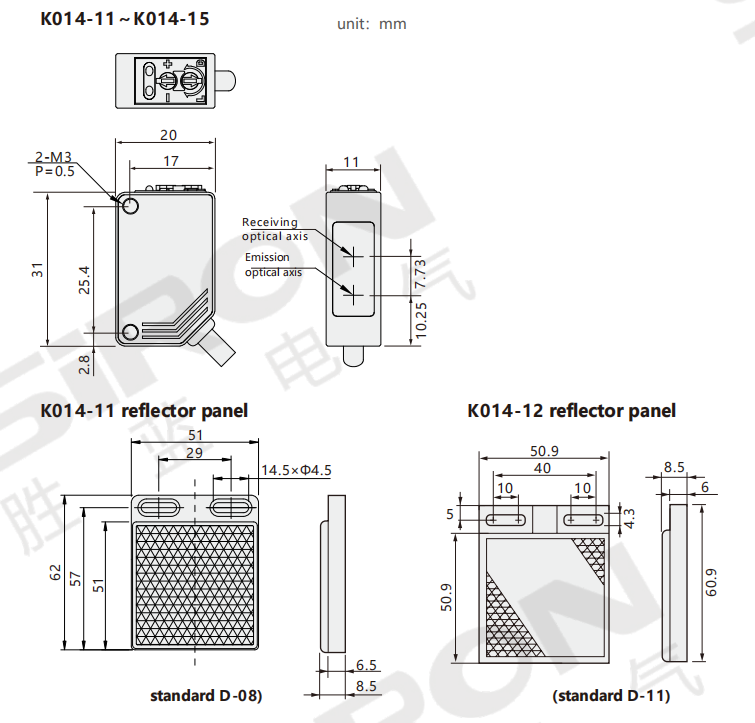

ACCessories		Screwdriver, reflector		Screwdriver
Cable		3-core cable
Cablelength		2M
