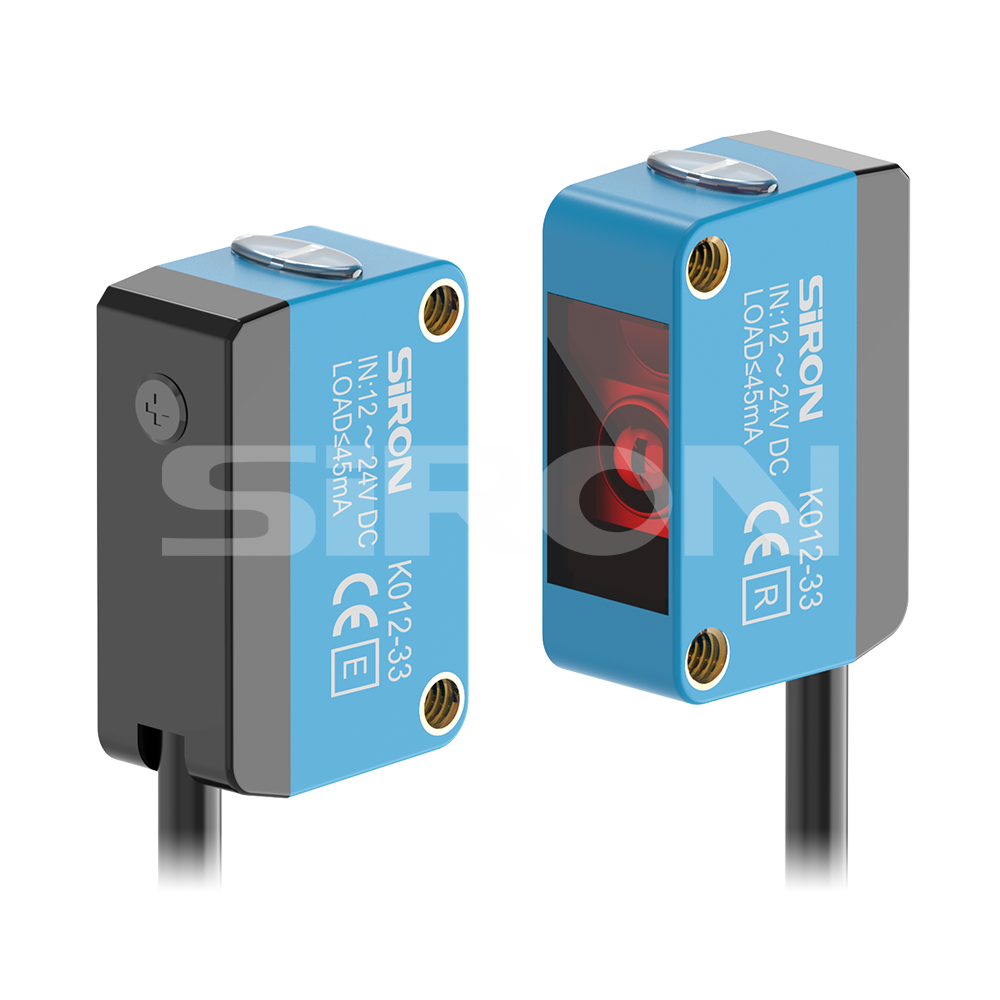

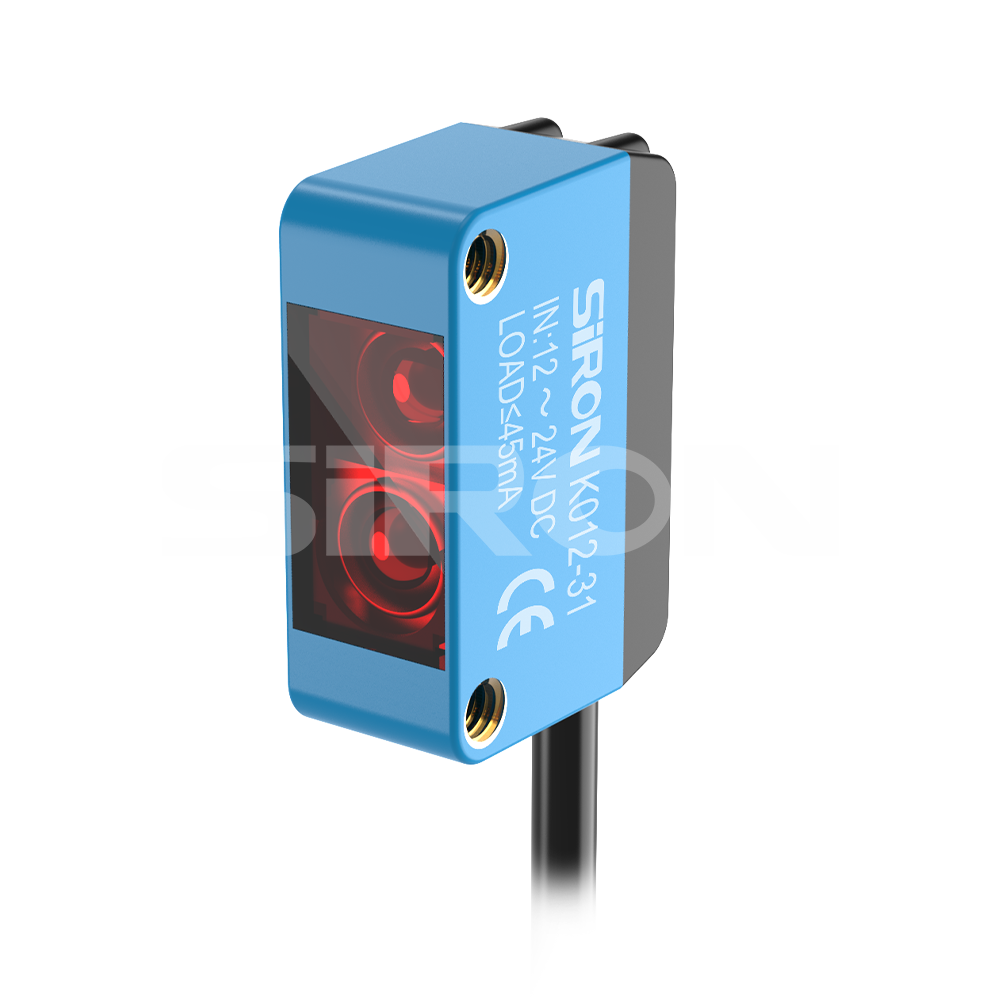

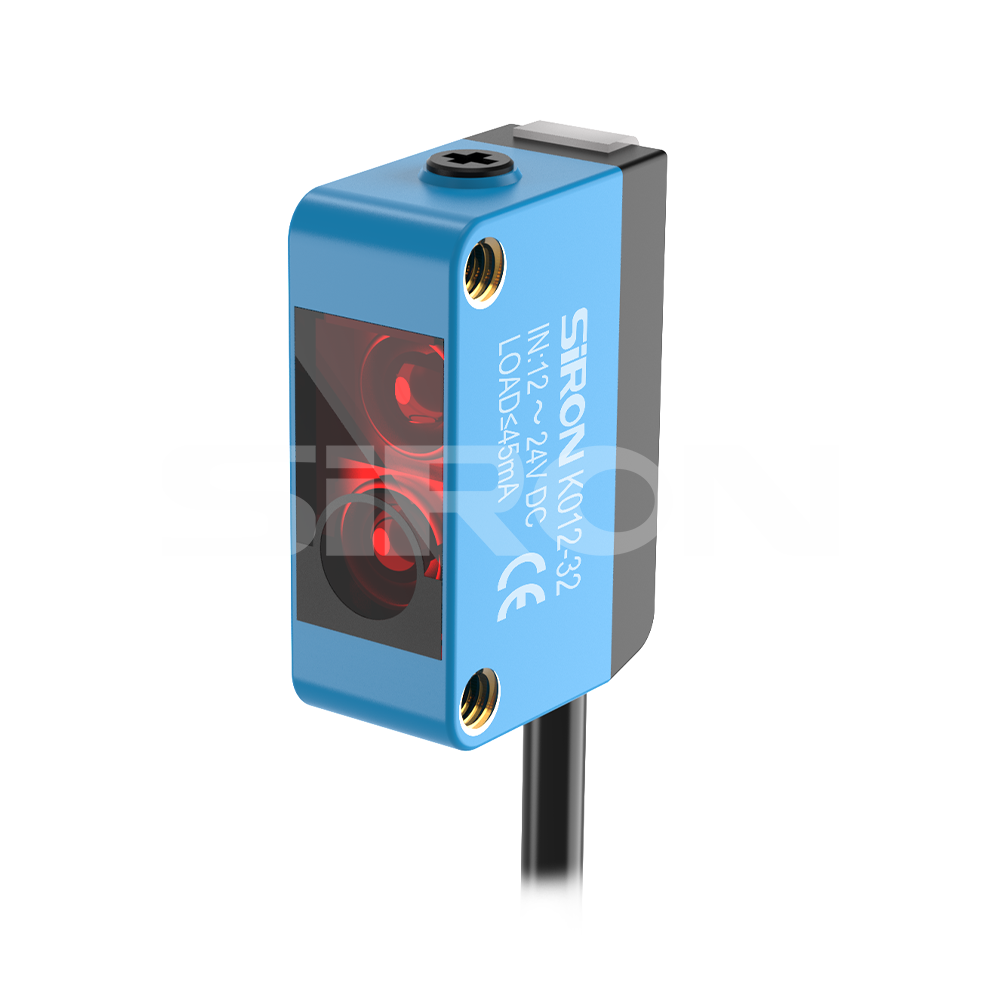

K012-31~K012-34 Series
SiRON
8479909090

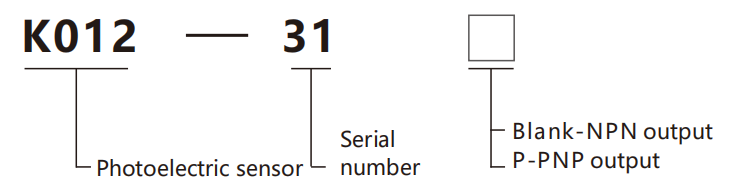

About selection
Selection example: K012-31 indicates the K012 series, serial number 31, with NPN output;
K012-31P indicates the K012 series, serial number 31, with PNP outpute.
Specifications
Name | Photoelectric sensor | ||||
Model | NPN | K012-31 | K012-32 | K012-33 | K012-34 |
| PNP | K012-31P | K012-32P | K012-33P | K012-34P | |

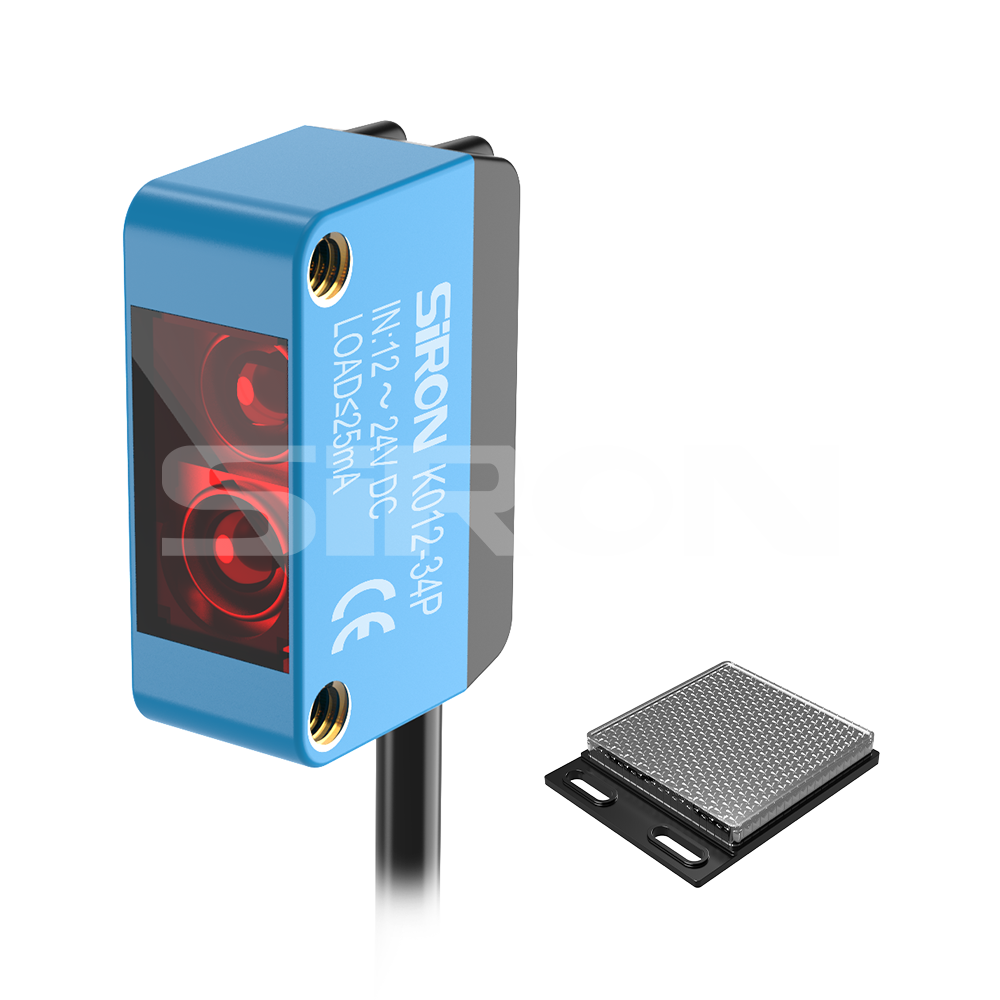

Type | Diffuse reflection | Through-beam type | Regressive reflection type | ||
| Appearance |   |  |  |  | |
Detection distance | 10cm | 30cm | 8m | 3m | |
Detecting object | regressive reflection type | 100*100 white drawing paper | Opaque objects with a diameter of ≥5mm | ||
Current consumption | ≤45mA | ≤25mA | |||
Light source (wavelength) | 650-nanometer red laser | ||||
Supply voltage | DC12-24V pulsation (p-p) below 10% (DC10-30) | ||||
Control output | The load power supply current is below 100mA (residual voltage below 1V) | ||||
Loop protection | Surge protection, short-circuit protection, reverse polarity connection protection | ||||
Response time | Action/response should be under 1.0ms each | ||||
Display lamp | Action indicator light (red | ||||
Ambient temperature | Operating temperature: -25℃ to +55℃(no freezing, no frosting) Storage temperature: -40℃ to +70℃(no freezing, no frosting) | ||||
Environmentalilumination effect | Daylight: below 10,000 Lx, incandescent lamp: below 3,000 Lx | ||||
Ambient humidity | When in operation: -45% to +85%(non-freezing)RH; when stored: 35% to +85%(non-freezing)RH | ||||
| Voltageeffect | When the rated power supply voltage fluctuates within ±15%, the detection distance changes within ±1% | ||||
| nsulationresistance | Between the charging section and the casing of a 20MΩ or above (DC500 megohmmeter) | ||||
| Dielectricstrength | AC1000V or above, between the charging unit and the casing at 50/60Hz for 1 minute | ||||
| Vibration(durability) | 10 ~ 50Hz, 1.5mm dual amplitude, reaching 1 hour in the X, Y, and Z directions | ||||
| Impact(durability) | Double amplitude of 500m/s⊃2;, three times in each of the X, Y and Z directions | ||||
| Protectivestructure | Ip65 | ||||
| Connectionmode | Lead-out type (standard 2m) | ||||
| Shellmaterial | PC | ||||
