SiRON K015-15 Series M12 Photoelectric Sensor Automatic Recognition

About selection

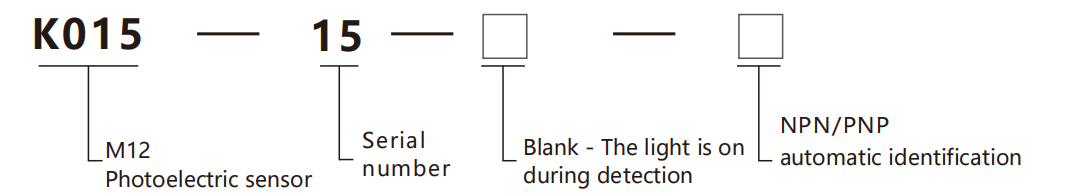

 Selection example:  K015-15 indicates the K015 series, serial number 15, the light is on during detection, and                                                         NPN/PNP is automatically identified.

Note: The original model is K014-7.

Specifications

Name		M12 photoelectric sensor(through beam)-automatic identification type
Model	NPN/PNP automatic identification	K015-15

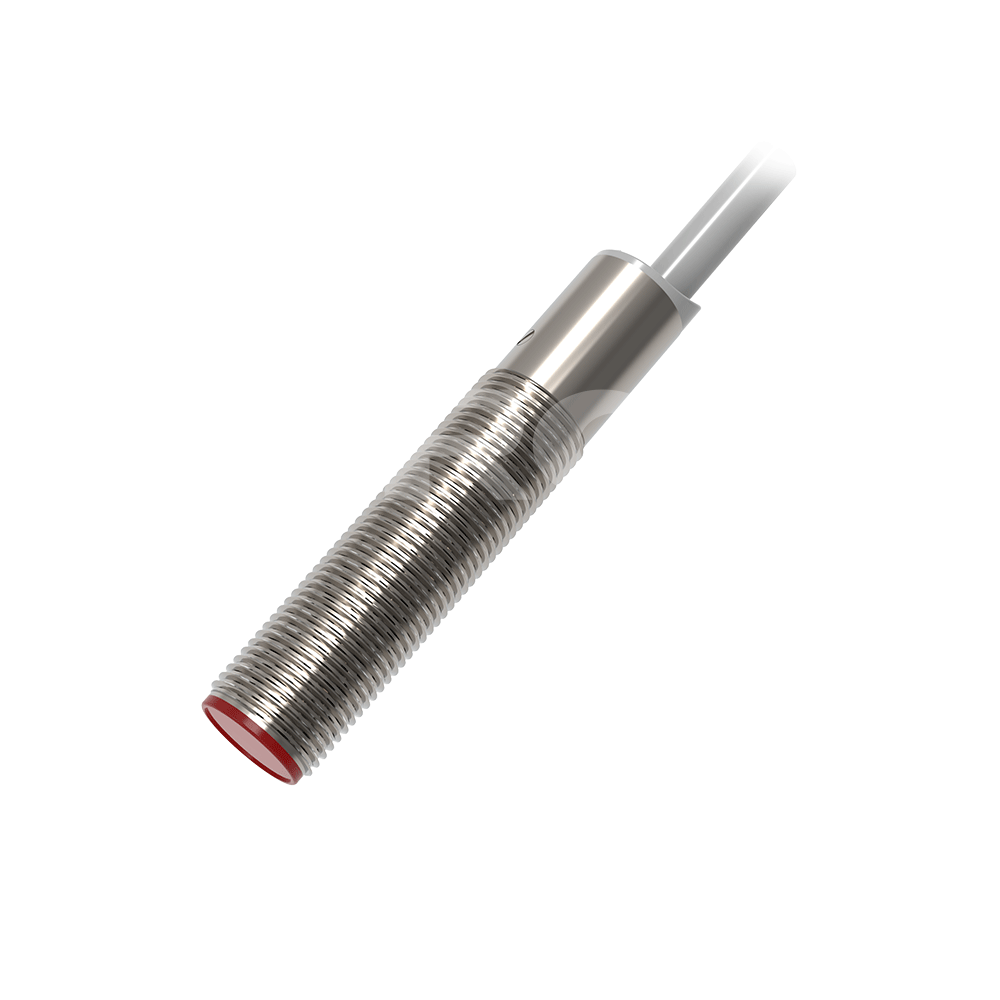

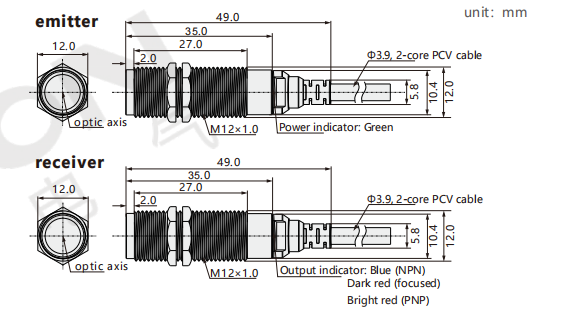

Appearance
Detection distance		0～5m
Standard detection object		10mm wide object
Outputmode		NPN or PNP automatic detection
light source		Infrared light 940nm
voltage		5~24V DC
indicator light		A dark red light indicates that the optical axis has been aligned properly. A red light indicates a PNP load. A blue light indicates an NPN load. Flashing light indicates an abnormal load
Current consumption		The standby power consumption is less than 10mA, and the load driving current reaches 100mA
Output control		The floating voltage is 21V(no-load, 24V power supply), and the on-state voltage drop is 0.7 to 1V
Circuit protection		No (lead-out type)
Response frequency		The detection response frequency is 10KHz and the load response frequency is 2KHz
Ambient lighting		There is no effect when the illuminance of the fluorescent lamp on the illuminated side is below 3000lux
Cable		2-core flexible wire
Cable length		2M
Material		304 stainless steel housing, PMMA lens, TE P cable tail sleeve

Example

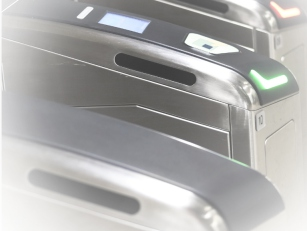

Inspection of subway turnstiles                                                 Application of underground garage sensors
