SiRON K051-11～K051-13 Triangulation Displacement Sensor

About selection

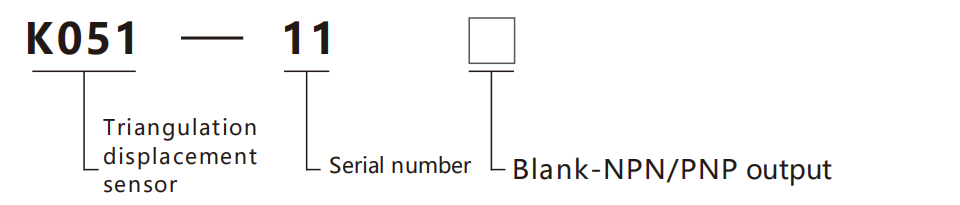

Example of model selection：K051-11 indicates K051series ,1  serial number，NPN/PNP output.

Specifications

Name	Triangulation displacement sensor
Model	K051-11	K051-12	K051-13
Types of	diffuse reflection

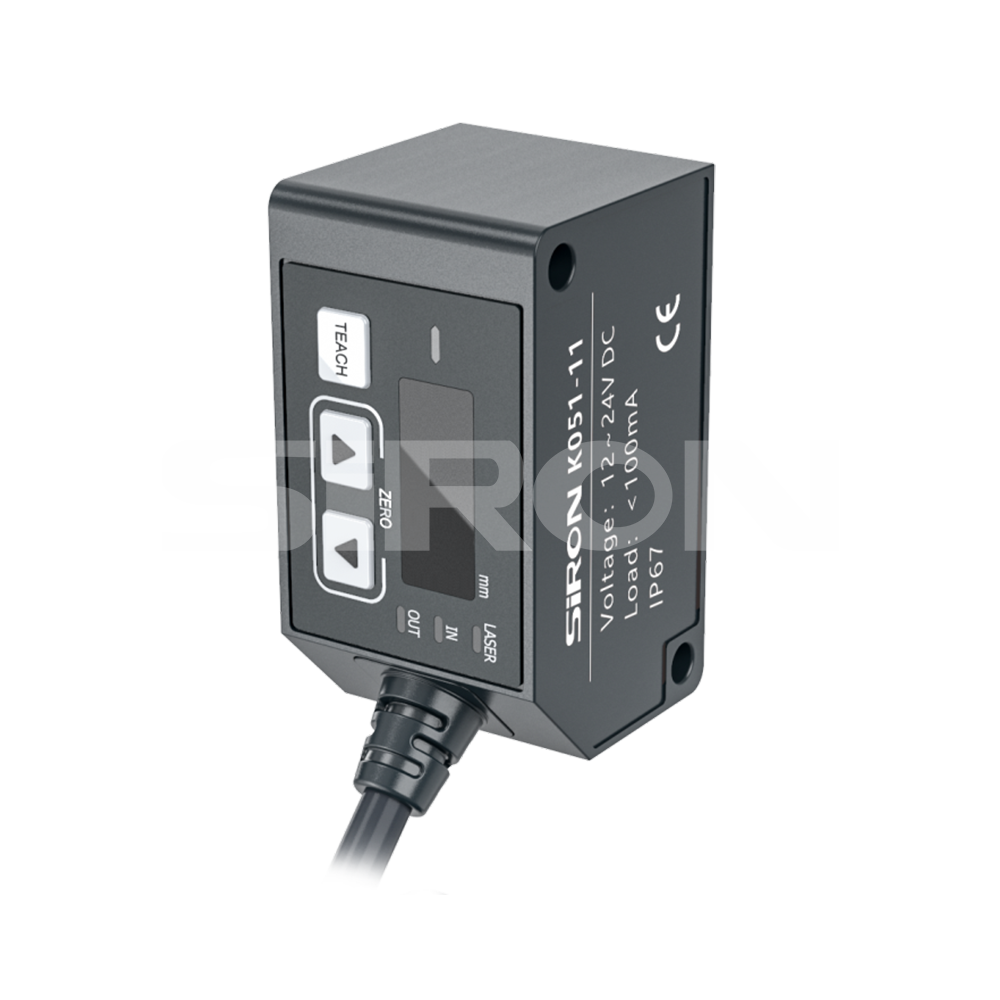

Appearance
Distance of reference	100mm	220mm	500mm
Distance of detection	65～135mm	120～320mm	300~700mm
Light spot diameter (center position)	约136×110μm	About 290×238μm	About 541×330μm
Precision oflinearity	±0.1%	±0.2%	(300～500mm)±0.2%(500～700mm)±0.3%
Accuracy of repetition	70μm	200μm	(300~500mm)300μ m(500~700mm)600μm
Input voltage	12V～24V DC±10%,1W
Light source	Laser Class2
Indicator light	Laser emission:blue light,DO:green light,DI:Yellow light
Protection mechanism	Reverse Voltage Protection,Output Overcurrent Protection,Input Power Surge Protection,Output Surge Protection
Communication interface	Digital IO/MODBUSRS-485 Communication Interface Supports 9600,14400,19200,38400,57600,115200bps。(Factory default L115200bps) Supported formats：8,N,1、 8,N,2、 8,O,1， 8,O,2、 8,E,1、 8,E,2
Period of sampling	1.5ms/3ms/5ms(Factory default:ms)
Analog output	Current range:4~20mA(normal)/22mA(abnormal),Load inpedance≤300Ω
Digital output	Optional functions:measurement range /comparison output,Push-Pull Output,<100mA
Digital input	Optional functions:zero point/teaching,High-level≥2V,Low-level ≤0.8V
Class of protection	IP67
Ambient temperature	-10℃~+50℃
Ambient humidity	35%～85%
Ambient illumination	3000Lux and below
Resistance to vibration	10～55Hz Double Amplitude 1.5mm,X、Y、Z2 hours for each direction
Resistance ofinsulation	20MΩ or more(500VD C)
Pressure	500VAC 50/60Hz 1min
Material	Optical window:PC;Case:aluminum alloy;Wire:PUR
Cable length	2M

Example

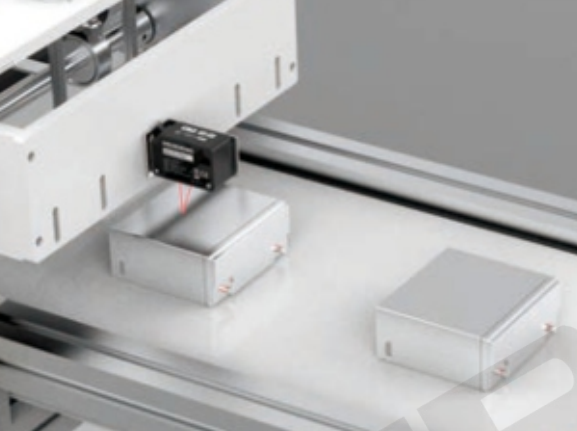

       Detection of the integrity of  products in the package                  Detection of lithium battery bulging
