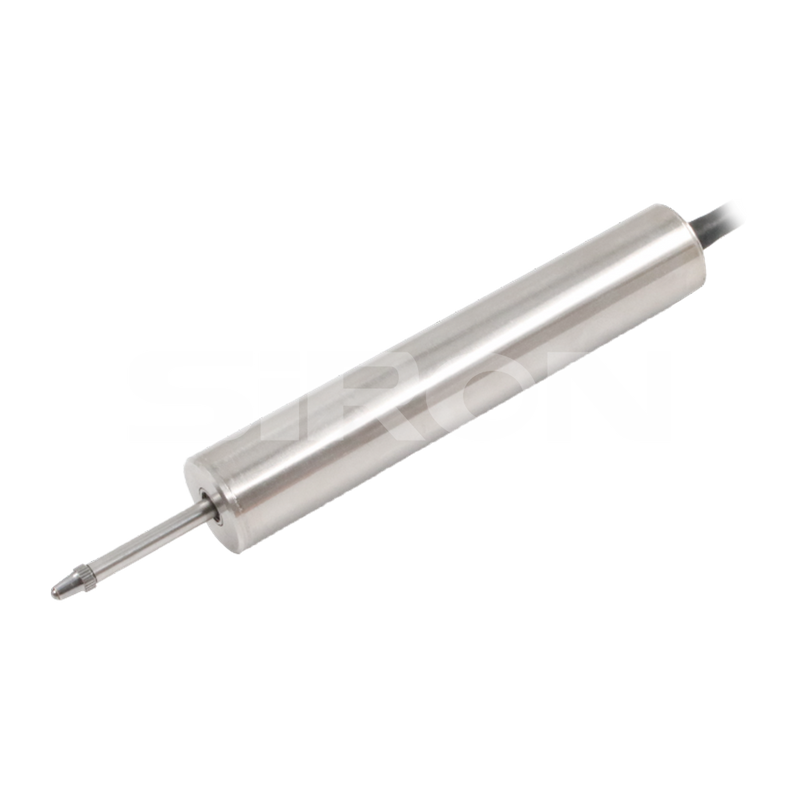

SiRON K07B Series LVDT Displacement Sensor Rebound Type

Name: SiRON K07B Series LVDT Displacement Sensor Rebound Type
Brand: SiRON
Rating: 5.0 (1 reviews)

Features:

* No sliding contacts, long service life;
* High resolution and good repeatability;
* AC signal power supply, external high-performance signal demodulator.
* The differential transformer displacement sensor (LVDT) can be widely used in aerospace,
construction, mechanical railway, textile, metallurgy, plastics, chemical industry and other
industries to measure linear displacement, elongation, vibration, object thickness, expansion, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K07B Series
Brand:
SiRON
Code:
9031809090

Measuring Sensor LVDT displacement sensor good repeatability RS-485 easy to install No sliding contacts High resolution long service life

Product Description

About selection

Selection example:K07B20-C-10A-V1-P represents the K07 series LVDT displacement sensor, which is of the spring return type, with a main body outer diameter of 20mm, an electronic compartment without a housing, a displacement range of 10mm, an accuracy of 0.25%, analog voltage output with an output range of

0～10V, a forward stroke direction, and a direct outlet cable.

Note: The outlet methods include "aviation plug and output with a digital display meter" as options. For details, please consult our sales staff.

Output method

Output range

Travel direction

A: Analog current output

1：4～20mA

Blank: Positive

N: Negative

V: Analog voltage output

1：0～10V

2：0～5V

Output method

Data Format

Baud rate

Travel direction

Transfer method

M: Digital Output (Modbus)

(Factory default baud rate: 9600)

R: RTU format

A: ASCII format

0：2400 4：38400

1：4800 5：76800

2：9600 6：115200

3：19200

Blank: Positive

N: Negative

Blank：RS485

Note: If "communication output" is required, please consult our sales staff.

Specifications

Name	LVDT displacement sensor (rebound type)
Appearance
Type	Spring-return type	The displacement range	10、15、25、50、100mm
Power supply	9～28V DC	Repetitive error	5μm、10μm
Working current	Voltage output type: supply current ≤12mA	Linearity error	Analog output: ±0.25%, ±0.5%, etc. optional; Digital output: ±0.25%, ±0.1%, etc. optional
Working current	Two-wire 4~20mA current output type LVDT, supply current 4～20mA	Resolution	≤0.1μm (maximum), 16-bit for digital output
The output signal	0～5V (9～28V DC supply voltage)	Protection level	IP64
	0～10V (15～28V DC supply voltage)	Operating temperature	-25～85℃
	4~20mA (two-wire system, 15～28V DC supply voltage)	Temperature Coeficient	Zero point ≤0.01%/℃; Sensitivity ≤0.025%/℃
	Digital RS485 Modbus output (9～28V DC supply voltage)	Cable length	1M
