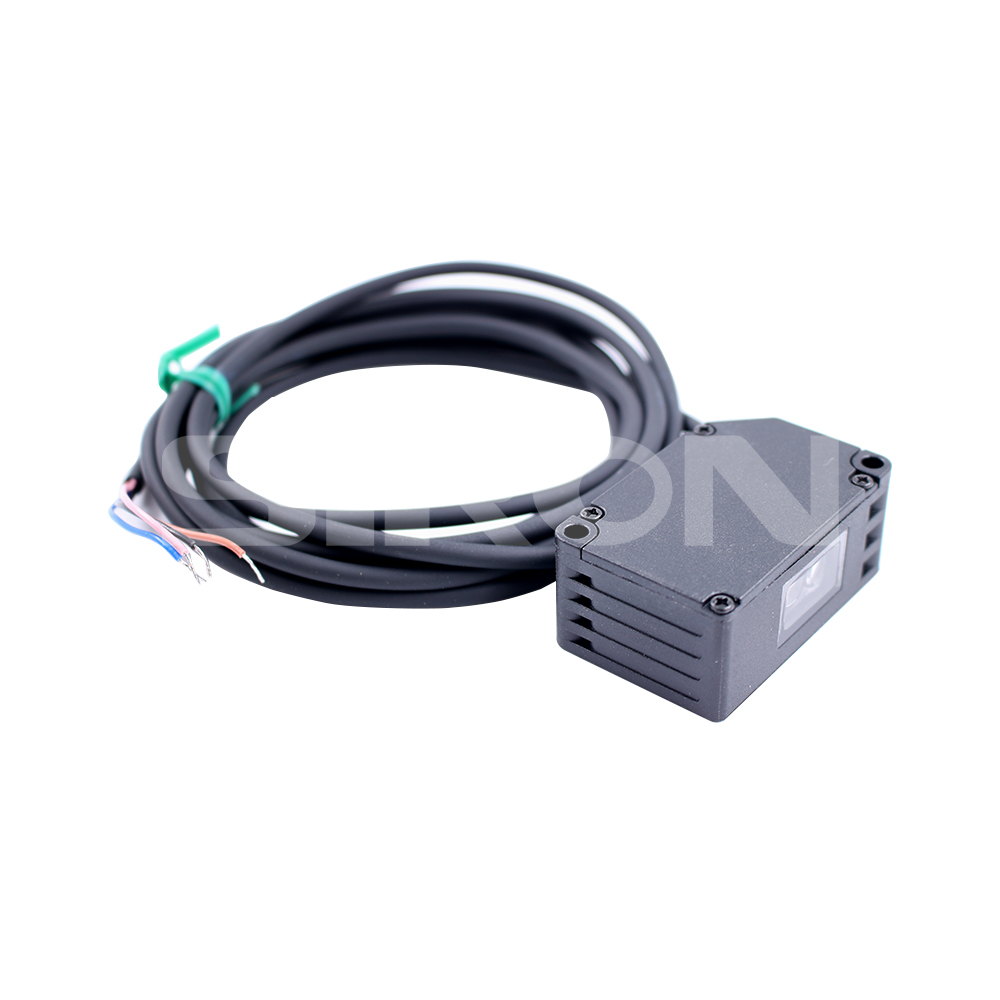

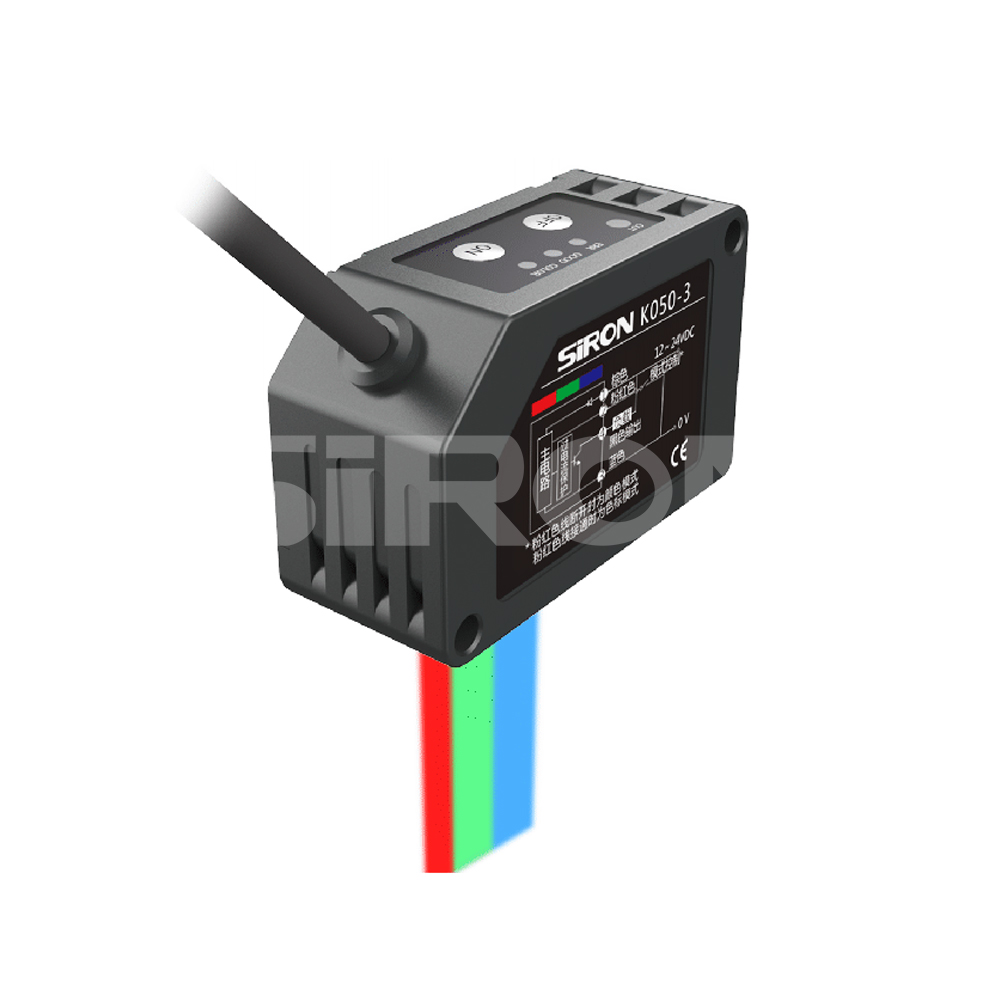

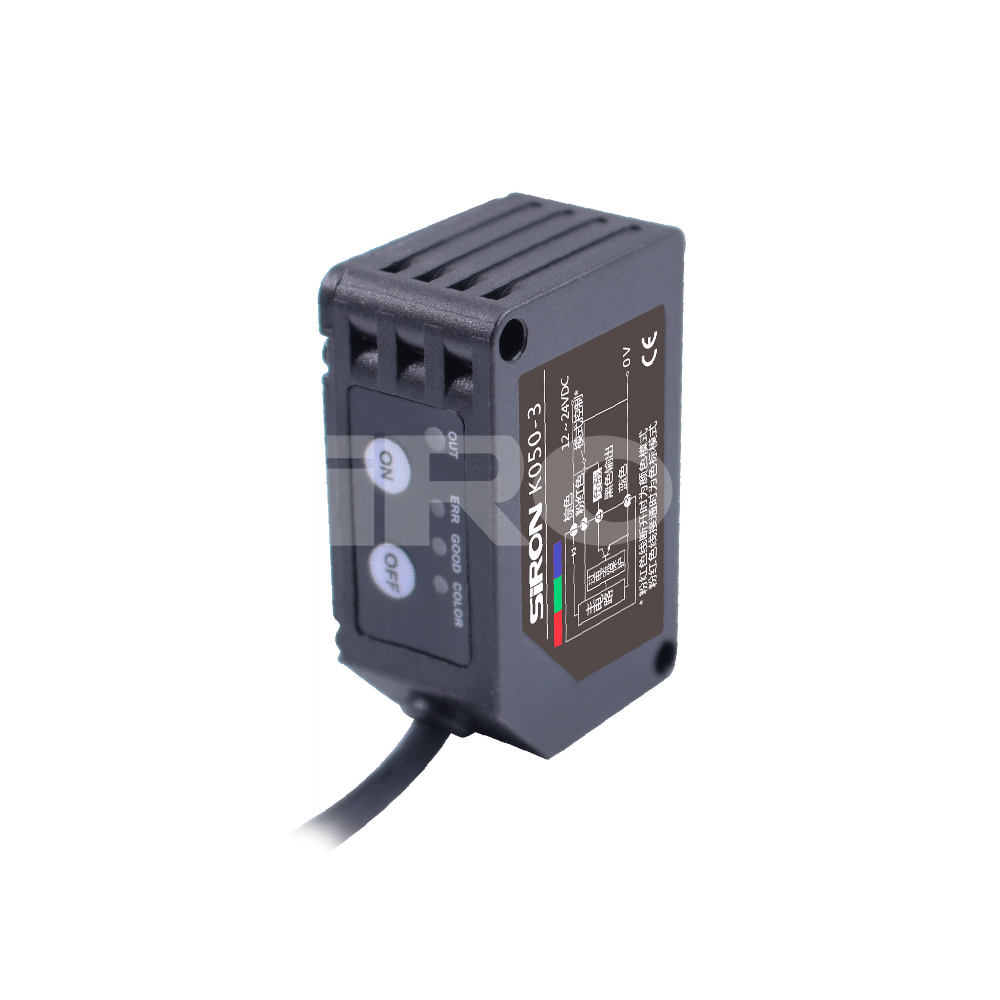

SiRON K050-3 Integrated Color Mark Sensor

Name: SiRON K050-3 Integrated Color Mark Sensor
Brand: SiRON
Rating: 5.0 (28 reviews)

Features:

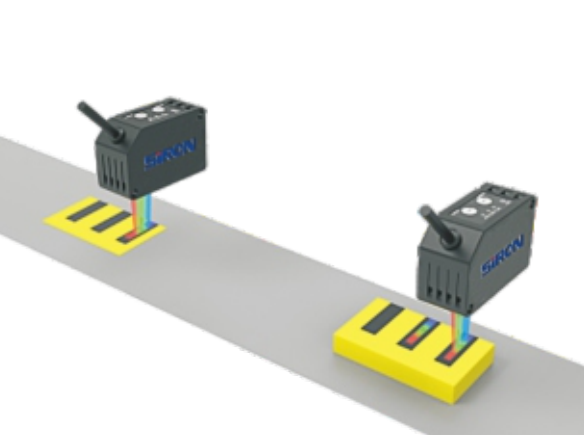

There are two detection modes of color and color mark;
* Long detection distance, the detection range is 18-28mm;
* The size is 15*7 linear spot, suitable for testing in different application environments;
* Two-point setting, simple and convenient, small size, suitable for installation in different spaces;
* Eliminate the effect of jitter on the detected object by adjusting the accuracy,
with high anti-shake performance;
* Accurate recognition when detecting the edge of the object or the critical position of two different colors,
Stable and reliable detection.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K050-3 Series
Brand:
SiRON
Code:
9031809090

Measuring Sensor Integrated color mark sensor Two-point setting detection modes of color mark Small size long detection distance

Product Description

About selection

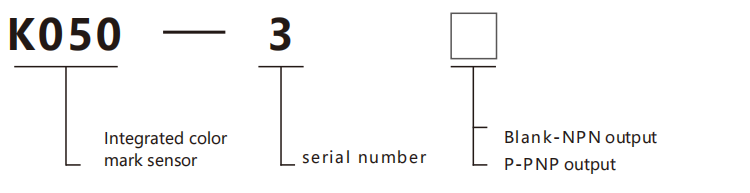

Selection example: K050-3 indicates the K050series, serial number 3, with NPN output.

Specifications

Name		ntegrated color mark sensor
Model	NPN	K050-3
	PNP	K050-3P
Types of		Cable

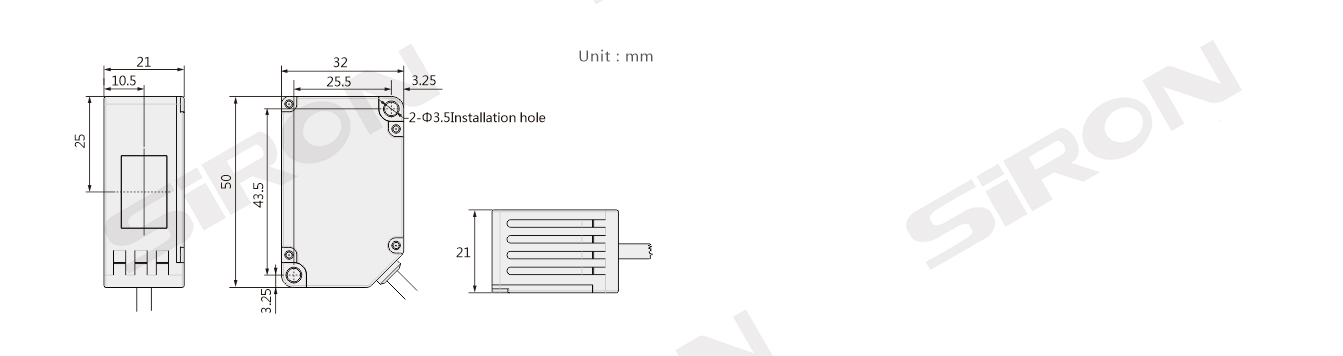

Appearance
Detection distance		18～28mm
Voltage		24V DC±10% pulsating P-P below10%
Power consumption		Power below 850mW (current consumption below 35mA when power supply voltage is 24V)
Mode switch input	Color mark mode	Low(ON)0～0.6V DC,outflow current less than 0.5mA, input impedance approximately 10kΩ	Low(OFF)0~0 . 6V DC or open
	Color mode	High(OFF)12~24V DC or open	High(ON)12～24V DC, with an output current of less than 3mA and an input impedance of approximately 10kΩ
Output		NPN Open Collector Transistor: 1.Maximum Input Current: 50mA; 2.External Voltage: 30V DC or less (between output and OV); 3.Residual Voltage: 1.5V or less (at 50mA input current)*	PNP Open Collector Transistor: 1.Maximum Output Current: 50mA 2.External Voltage: 30V DC or less (between output and +V) 3.Residual Voltage: 1.5V or less (at 50mA output current)*
Output operation	Color mark mode	Turns ON when the color mark is detected
	Color mode	Turns ON when matched
Short circuit protection		Equipped with (automatic recovery)
Reaction time		Below 200μs
Ambient temperature		- 10~+55℃,no freezing, no condensation
Environment humidity		35～85%RH,no condensation
Projection element		Composite LED: Red/Green/Blue (Peak wavelength of projected light: 640nm/525nm/470mm)
Material		Shell:PBT; Operation panel: PC Operation button: Silicone; Lens: PC

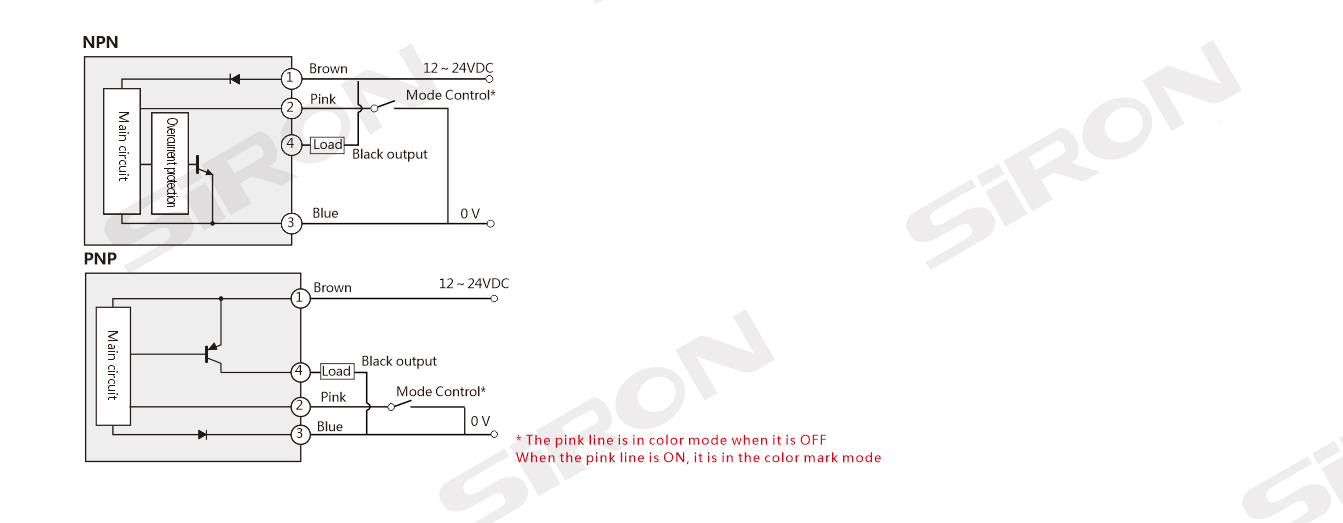

Cable		0.2mm²4-core rubber cable; Brown: +V; Black: Output; Pink: Mode conversion input; Blue: 0V
Cable length		2M
weight		About 104g
