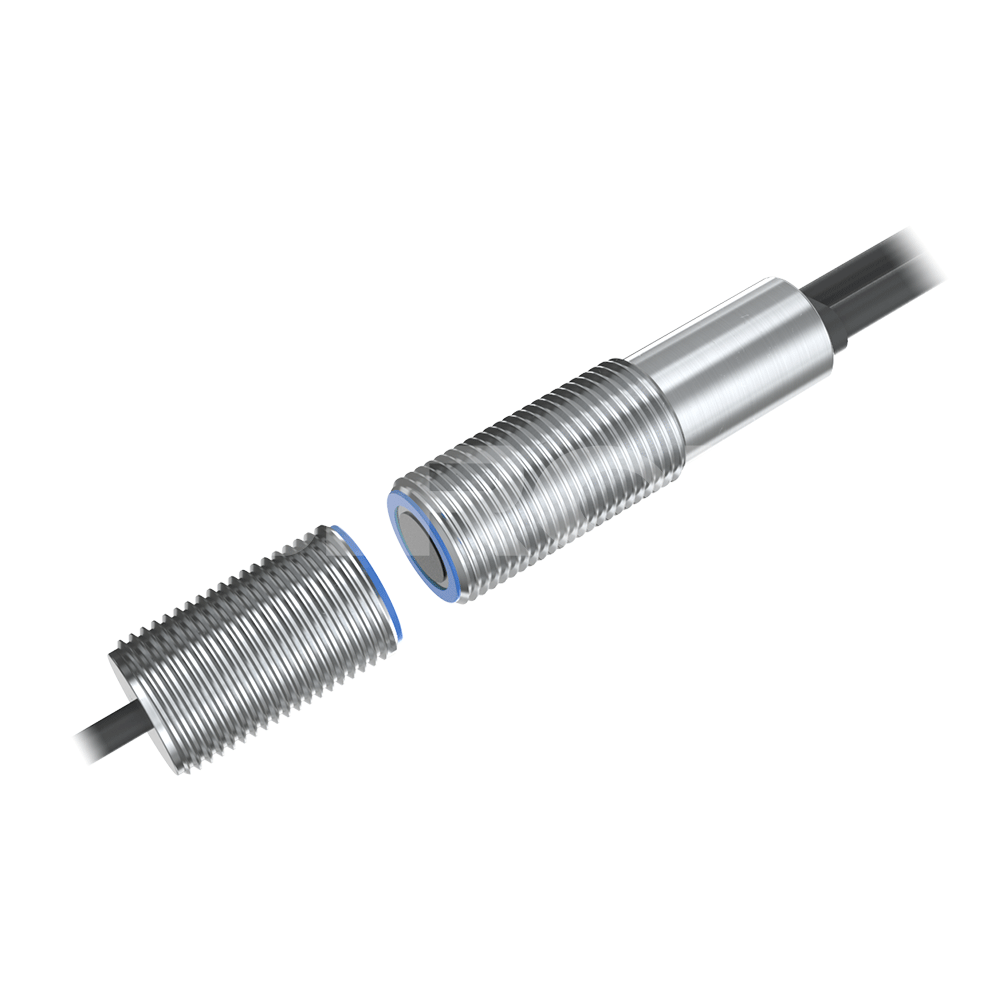

SiRON K060-1 Series M18 Ultrasonic Sensor

Name: SiRON K060-1 Series M18 Ultrasonic Sensor
Brand: SiRON
Rating: 5.0 (7 reviews)

Features:

* Reliable detection of single and double sheets of material;
* Single sheet, double/multiple sheet and paperless detection;
* No need for self-learning (plug and play);
* 3 control inputs: external sensitivity selection and self-learning according to the material under test;* Optional self-learning: for example, solar silicon wafers coated with water;
* The working distance between transmitter and receiver is: 20 ~ 60mm.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K060-1 Series
Brand:
SiRON
Code:
9031809090

Measuring Sensor Ultrasonic Sensor IP65 nickel plated brass Field Intensity Sensibility

Product Description

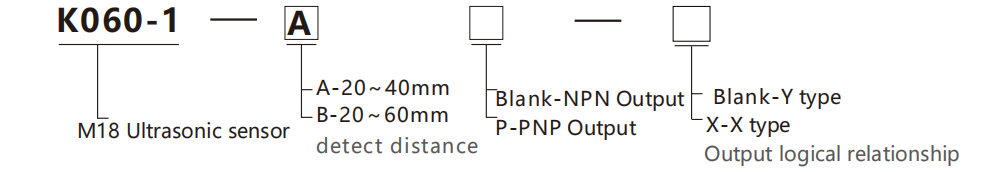

About selection

Selectionexample：K060-1-A expression K060-1 series, A detectiondistanceis20～40mm, NPN output,

Y-type out put logical relationship；

K060-1-BP-Xexpression K060-1series, Bdetection distance is 20～60mm, PNP output,

X-type output logical relationship.

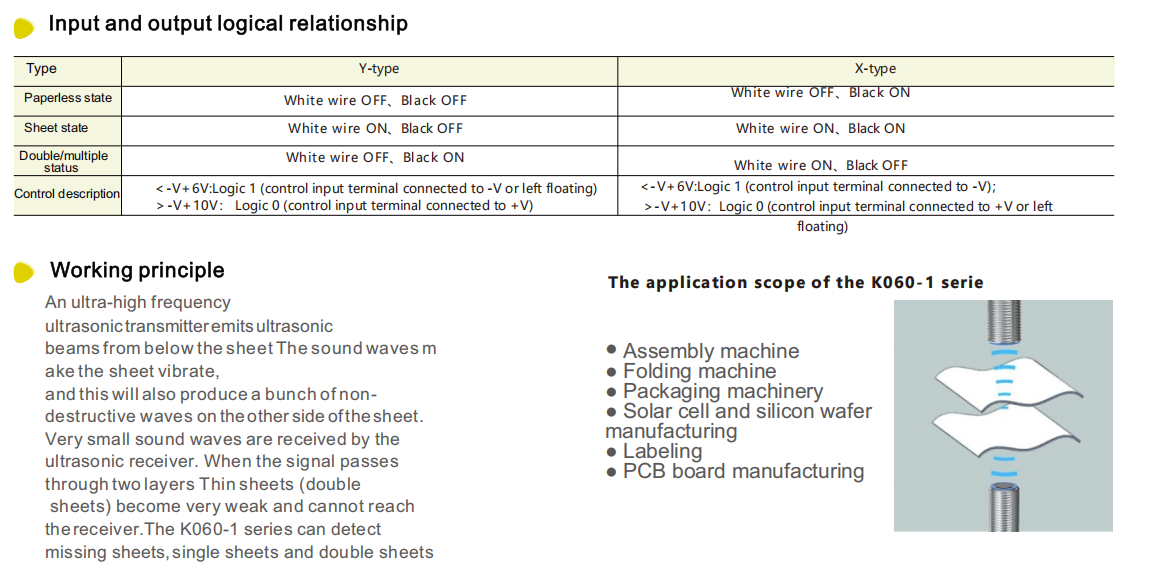

Outputlogicalrelationship

Type	Y-type	X-type
Paperlessstate	White wire OFF、Black wireOFF	Whitewire OFF、Blackwire ON
Singlesheetstate	Whitewire ON、Blackwire OFF	Whitewire ON、Blackwire ON
Dual/multiplesheet state	Whitewire OFF、Blackwire ON	Whitewire ON、Blackwire OFF

Specifications

Name		M18ultrasonic sensor
Model	NPN N.O+N.C	K060-1-A	K060-1-A-X	K060-1-B	K060-1-B-X
	PNP N.O+N.C	K060-1-AP	K060-1-AP-X	K060-1-BP	K060-1-BP-X

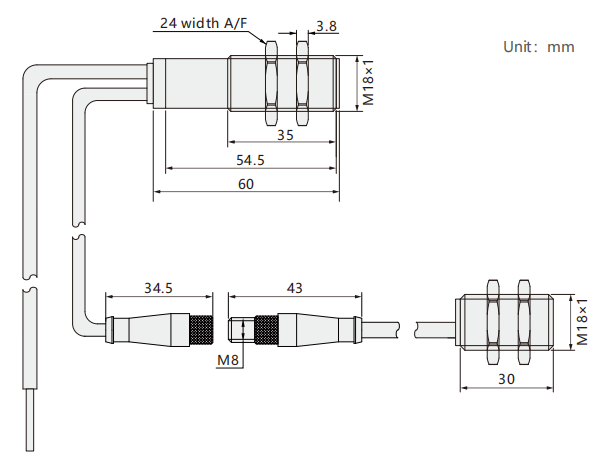

Appearance
Detection distance		20~40mm		20~60mm

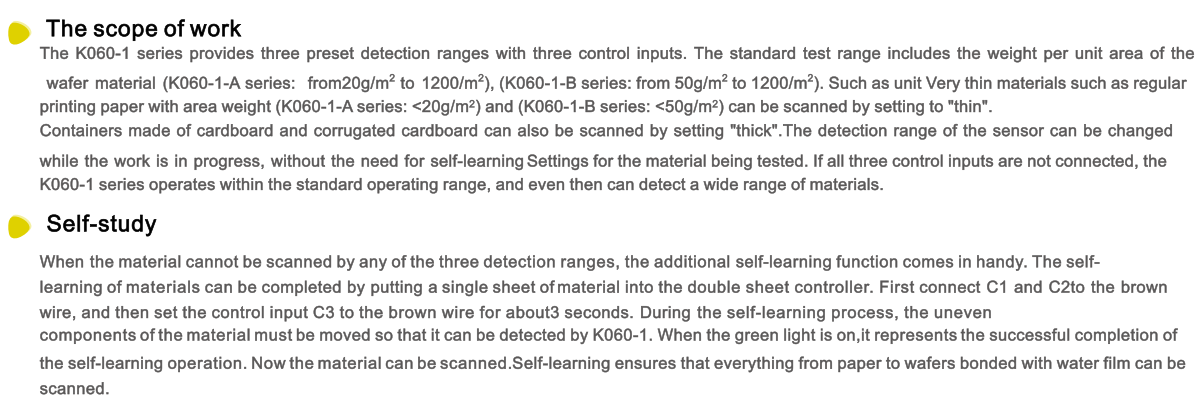

The scope of work		Papers and papers with a weight per unit area of 20-1200g/m²,alloy laminates, films up to 0.4mm thick,and self-adhesive films		Papers with a weight per unit area of50-1200g/m²,alloy laminates,and self-adhesive films
Design		cylinder M18ultrasonic transducer
Operating mode		Dual-sheet controller
Measurement methods		Pulse operation with amplitude estimation
Transducer frequency		400k Hz		200kHz
Blind spot		5mm in front of the transmitter and receiver
Operating Voltage		20~30VDC,reverse polarity protecton
Voltage ripple		±10%
No-load current loss		≤60mA
Connection Type		2M PUR cable,7×0.25mm²
Transceiver cable		Ejector:1.2M PVC cable;The cable is connected to an external ultrasonic transducer using an M8 connector.:1.2M PVC cable
Output		NPN/PNP output:Imax=200mA,Switch voltage drop of 2V,short-circuit protection
Response time		Automatic operation mode is 2.5ms		Automatic operation mode is 6.5ms
Power-on delay		<750ms		<1.9s
Transmitter-receiver spacing		20~40mm;optimum:20mm±2mm		20~60mm;optimum:40mm±5mm
Allowable angular deviation		At an angle of ±45°to the vertical plane
Material		Nickel Plated Brass
Ultrasonic transducer		Foam polyure thane,glass-flled epoxy resin
Maximum tightening torque of nut		M18:15Nm
Protection class		IP65
Operating temperature		+5℃~+60℃
Storage temperature		-40℃~+85℃

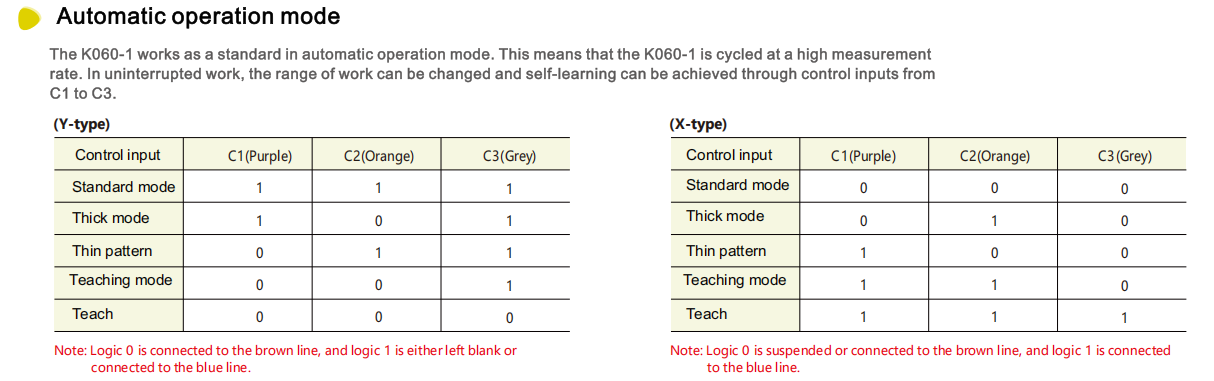

Control device		control input:C1 to C3
Predetermined area		Teaching i conducted by controlling the input
Indicator light		Green light:single sheet;Green light flashing:teaching;Red light:double/multiple sheets;Red light flashing:no paper
