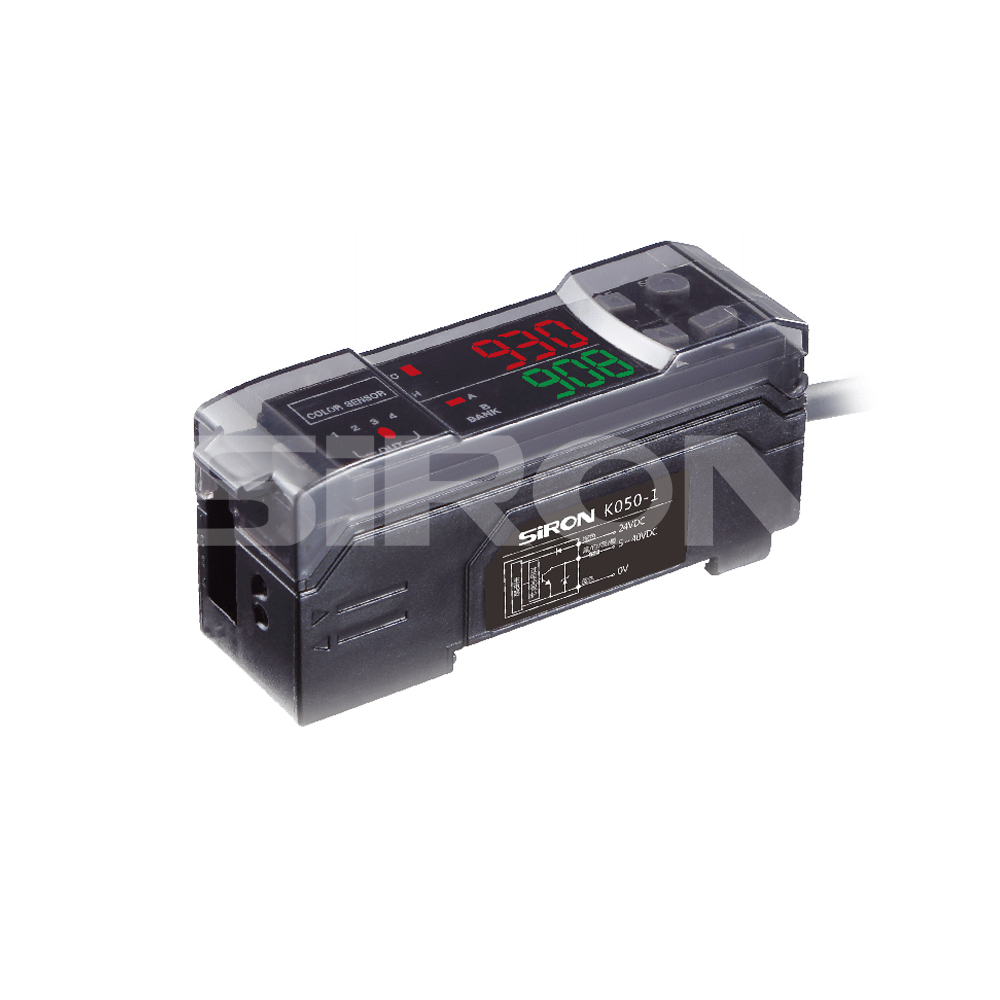

SiRON K050-1 Series High-precision Digital Smart Color Sensor

Name: SiRON K050-1 Series High-precision Digital Smart Color Sensor
Brand: SiRON
Rating: 5.0 (6 reviews)

Features:

* Simple sensitivity adjustment, intelligent and digital setting;
* 8 channels design, can detect 4 or 8 colors at the same time, saving space;

* It can be equipped with color-specific probes, and compatible with all optical fiber probes;

* A variety of detection modes, suitable for various application scenarios;
* Suitable for detecting objects that do not emit light by themselves;
* Slight color difference recognition function, capable of fine color detection.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K050-1 Series
Brand:
SiRON
Code:
9031809090

Measuring Sensor High-precision Digital Smart Color Sensor intelligent and digital setting Detect stability Precise identification Delay function easy operation

Product Description

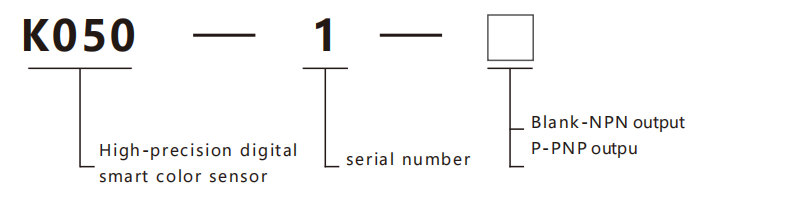

About selection

Selection example: K050-1 indicates the K050series, serial number 1, with NPN output.

Specifications

Name		High-precision digital intelligent color sensor
Model	NPN	K050-1
	PNP	K050-1P

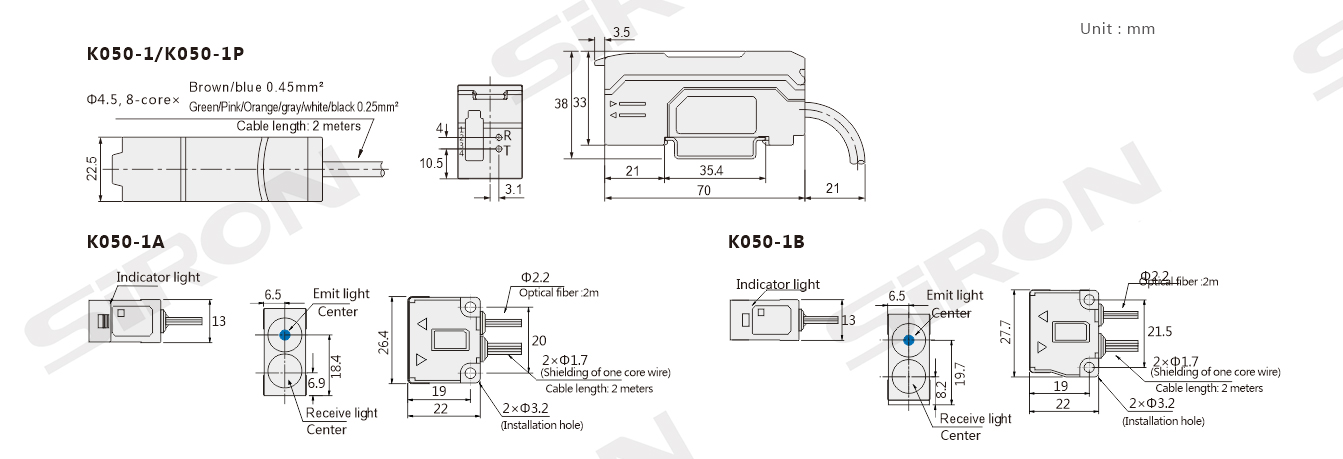

Appearance
Response time		200μS(HSP)/1ms(FINE) /4ms(TURBO)/8ms(SUPER)	Power supply	24 VDC, Fluctuation (P-P): Maximum 10%
Protect the circuit		Reverse electrode protection, overcurrent protection, overvoltage	light source	Red LED(665nm)/ Green LED(520nm) Blue LED(465nm)
External calibration input		input time: ≥20ms	Current consumption	Normal mode: 1.5W(maximum 62.5mA),Eco mode: 1W(maximum 42.0mA)
Timer function		Timer Modes: OFF/OFF-Delay/ON-Delay/One-Shot Timer Time: Adjustable from 1 to 1000ms (for each domain respectively)	Ambient temperature	- 10～+55℃,No condensation
			Vibration resistance	10 to 55Hz, 1.5mm dual amplitude, 2 hours each in the X, Y, and Z directions
Material		polycarbonate	Weight(including cable)	Approximately 150g(including 2M cable)
External switching input (C/C+I mode) External offset input(Super Imode)		Input time: Minimum 20ms	Control output	NPN (PNP) Open Collector, 4 Channels, Maximum Voltage: 40VDC (30VDC), Current Rating: 100mA per output, 200mA total for 4 outputs, Residual Voltage: Maximum 1.0V

Name	Color detection head
Model	K050-1A	K050-1B
Appearance
Types of	long distance	Eliminate luster and small beam spots
Examination range	28～52mm	11～20mm
Minimum light spot diameter	Reference distance: 40mm, diameter: 4.5mm	16mm reference distance, 1mm diameter
Minimum bending radius of fiber	25mm	15mm
Ambient luminosity	Incandescent lamp: maximum 10,000lux, sunlight: maximum 20,000lux
Ambient temperature	-10～+55℃,No freezing
Vibration resistance	10 ~ 55Hz,1.5mm dual amplitude, 2 hours each in the X, Y, and Z directions
Protection level	IP40
Material	Case: PC Lens cap: Polyaryl ester	Case: PC Lens cap: PC(Metal part: 304 stainless steel)
Weight(Including cable)	About 4 0 g	About 4 5 g
Cable length	2M
