SiRON K053-4 Series TOF Long Distance Laser Displacement Sensor

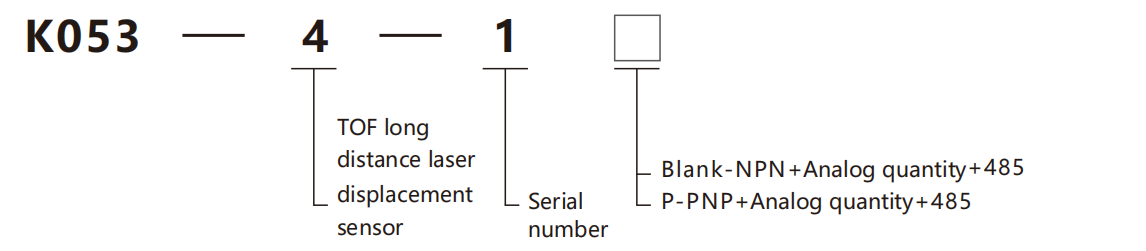

About selection

 Selection example:

K053-4-1 indicates the K053 series, 4TOF long-distance laser displacement sensor, serial number 1, NPN + analog + 485.

K053-4-1P indicates the K053 series, 4TOF long-distance laser displacement sensor, serial number 1, PNP + analog + 485.

Specifications

Name		TOF  long distance  laser displacement  sensor
Model	NPN	K053-4-1	K053-4-2	K053-4-3	K053-4-4	K053-4-5	K053-4-6
	PNP	K053-4-1P	K053-4-2P	K053-4-3P	K053-4-4P	K053-4-5P	K053-4-6P
Detection distance		0.1-1m	0.1-2m	0.1-5m	0.1-10m	0.1-20m	0.1-50m

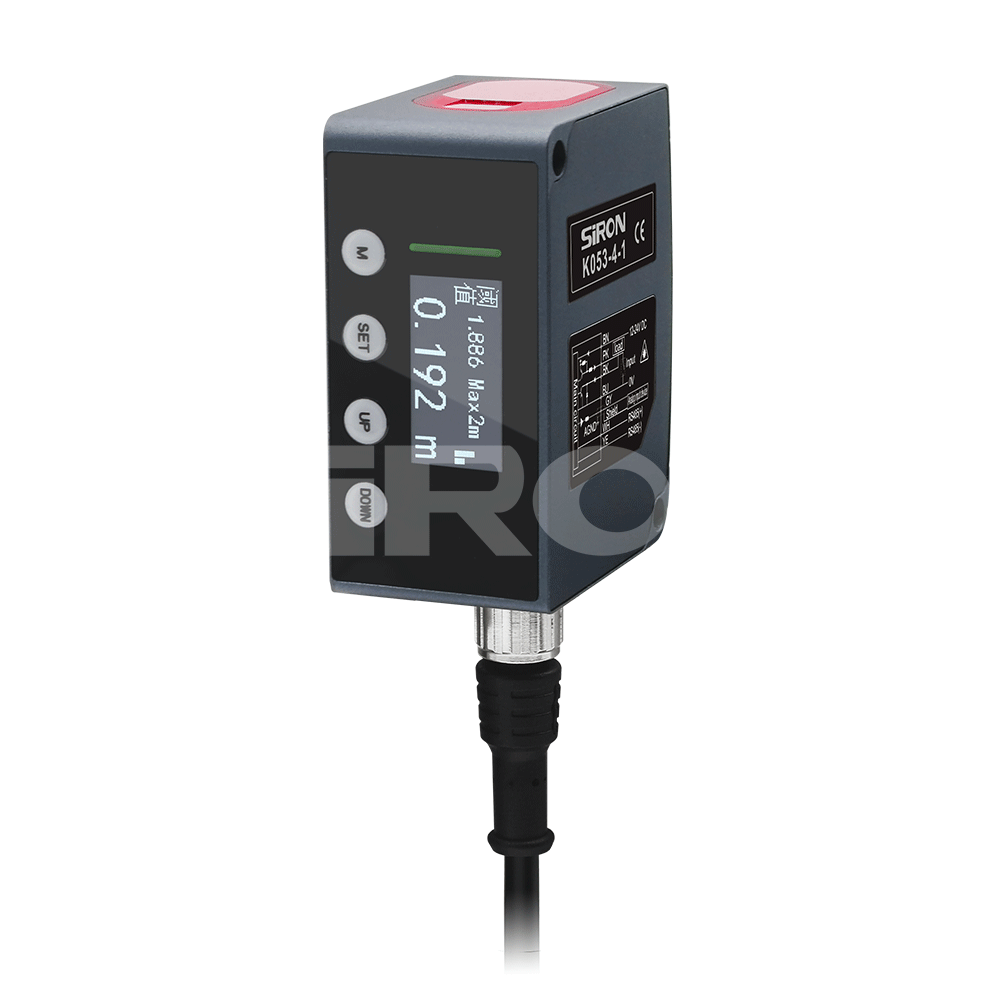

Appearance
Resolution		1mm
Measurement error		±(2mm + d * 1/10000)*
Lasertype		Red semiconductor laser 655±10nm <1mW
Laser grade		IEC Class 2
Supply voltage		12V-24V DC±10% PulseP-P10%
Curnent consumption		≤50mA@24V
Control the output		NPN or PNP open-drain output, open-collector transistor output, maximum current: 50mA, external voltage: less than 30VDC, residual voltage: less than 1.5V, leakage current: less than 0.1mA
Output actions		Normally open/normally closed can be switched
Short-circuit protection		Self-recovery type
Analog woltage output		Output range: 0-5V (5.2V when alarming), output impedance: 100 ohms
Analog current output		Output range: 4-20mA (when alarming: 0mA), output impedance: maximum 300 ohms
Reaction time		50-200ms
Externalinputs		NPN non-contact input
Degreeofprotection		Ip67
Operating temperature		-10℃~+45℃(Note: No condensation or icing allowed)
Storage temperature		-20℃~+60℃
Operating humidity		35%-85%RH
Use ambient illumination		Incandescent lamp: Illuminance on the light-receiving surface is below 3000 lux
Uselevels		Below 2000m
Cable		With 8-core composite cable, 2m
Material		Aluminum parts
Quality		About 150g
