K051 Series
SiRON
9031809090

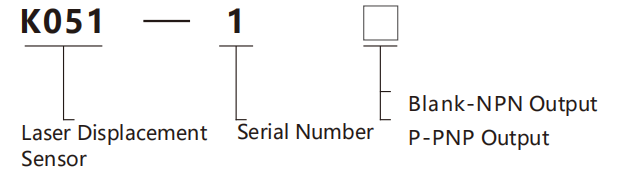

About selection
Selection Example：K051-1 express K051 series，1 serial number，NPN Output .
Specifications
| Name | Laser displacement sensor | ||||||
| Model | K051-1/K051-1P | K051-2/K051-2P | K051-3/K051-3P | K051-4 | K051-5 | K051-6/K051-6P | |
| Types of | Dual-output type | Switching output type | Switching output type Dual-output type | Dual-output type | Dual-output type | ||
| Appearance |   | ||||||
| Measuring center distance | 100mm | 400mm | 30mm | 50mm | |||
| examination range | ±35mm | ±200mm | ±5mm | ±15mm | |||
| Repeatability | 100μm | 400μm(Measure distance 200mm-400mm) 800μm(Measure distance 400mm-600mm) | 10μm | 50μm | |||
| Linearity | ±0.2%F.S. | ±0.3%F.S.(Measure distance 200mm-400mm) ±0.3%F.S.(Measure distance 400mm-600mm) | ±0.2%F.S. | ±0.2%F.S. | |||
| Beam diameter | About φ150μm | About φ500μm | About φ50μm | About φ100μm | |||
| emperature characteristics | 0.03%F.S./℃ | ||||||
| light source | Class 2 red semiconductor laser,Maximum output:1mW,Emission wavelength:655nm | ||||||
| Voltage | 12V~24V DC±10% Pulsation P-P10% | ||||||
| Current consumption | Less than 40mA(When the power supply voltage is 24V DC.),60mA以下(When the power supply voltage is 12V DC) | ||||||

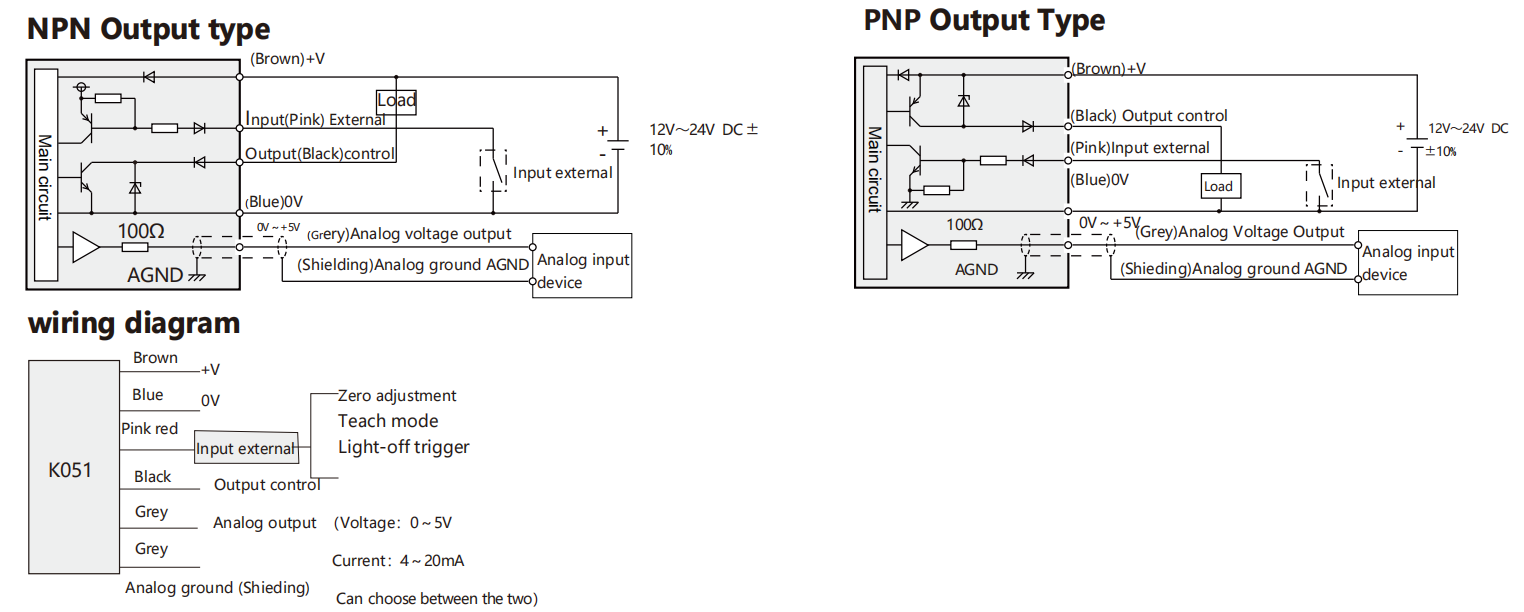

| Control output | NPN/PNP Open-collector transistors | ||||||
| Maximum inflow current | 50mA | ||||||
| Applied voltage | Less than 30V DC(Control output-beterrn OV) | ||||||
| Residual voltage | Less than 1.5V(Inflow current:less than50mA) | ||||||
| Leakage current | Less than 0.1mA | ||||||
| Output action | Light-on/Light-off ON switchable | ||||||
| Short circuit protection | Equipped with (auto-recovery type) | ||||||
| Analog output | Voltage analog output (At alarm condition:+5.2V) | Output range:OV to 5V; Output impedance:100Ω | / | / | Output range:OV-5V;Output Impedance:100Ω | ||
| Current analog output (At alarm condition:+5.2V) | Output range:4-20mA; Load impedance:300Ω or less | / | / | Output range:4-20mA; Load Impedance:300Ω or less | |||
| Reaction time | 1.5ms/5ms/10ms switchable | ||||||
| External input | NPN/PNP non-contact input,Valid:0V～1.2V DC Load input: about 10KΩ | ||||||
| Protection structure | IP67(IEC) | ||||||
| Defacement degree | 2 | ||||||
| Ambient temperature | -10～40℃(No condensation,no freezing)、Storage temperature:-20～60℃ | ||||||
| Environment humidity | 35%～85%RH,Storage temperature:35%～85% | ||||||
| Ambient luminosity | Incandescent lamp:illuminance on light-receiving surface ≤3000Lux | ||||||
Example

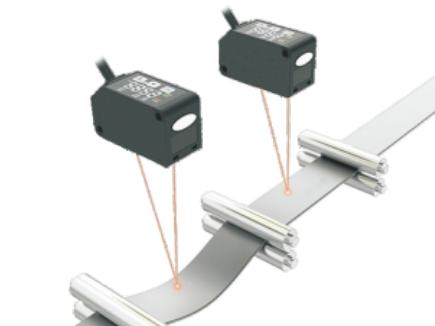

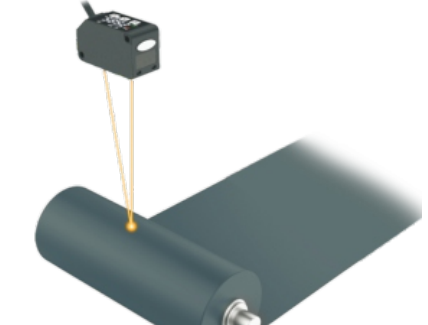

Roll Material Remaining Quantity Detection Bending Measurement of Thin Plate Material
