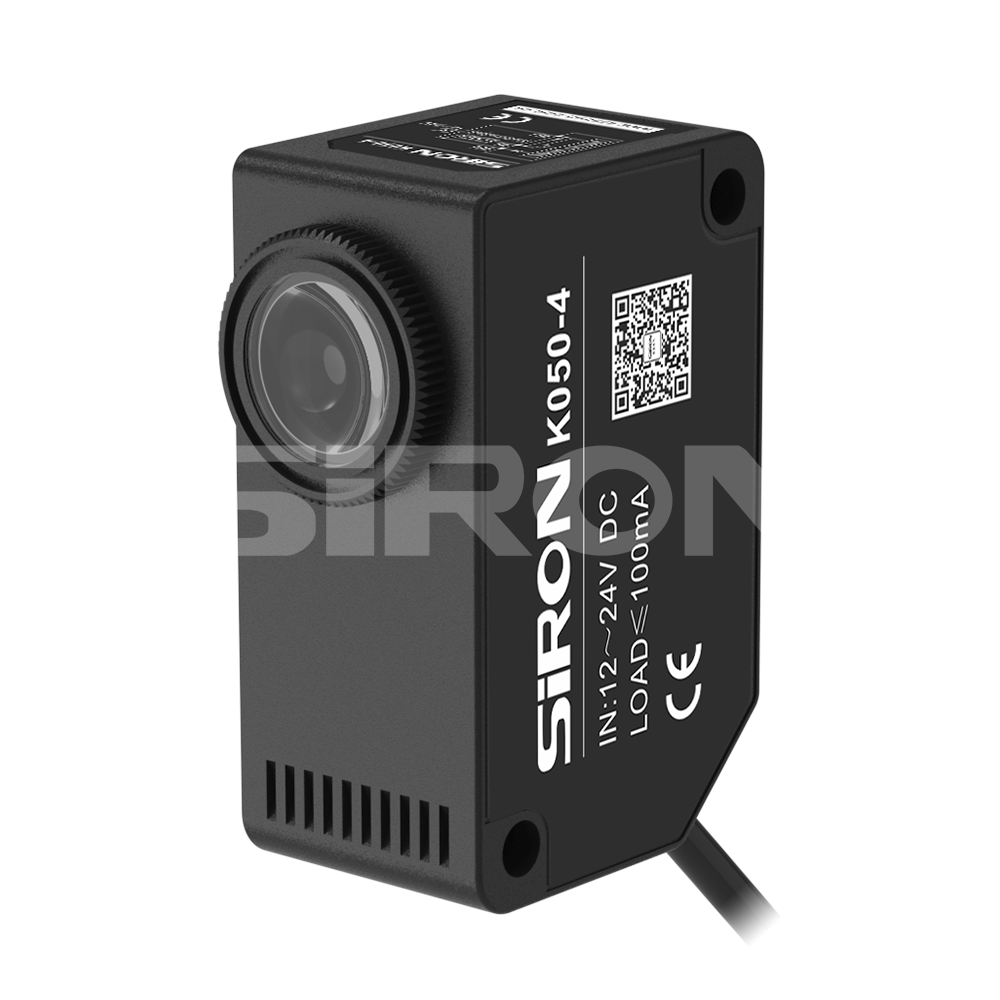

SiRON K050-4 Integrated Color Sensor

Name: SiRON K050-4 Integrated Color Sensor
Brand: SiRON
Rating: 5.0 (1 reviews)

Features:

* There are two detection modes: color and color mark;
* Linear light spot, suitable for different application environment detection;

* Easy to set, small size, suitable for different space installation.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

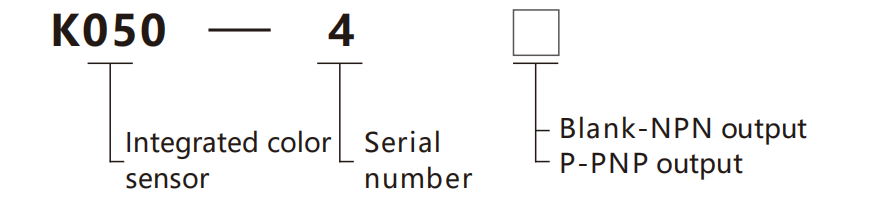

About selection

Selection example: K050-4 indicates the K050series, serial number 3, with NPN output.

K050-4P indicates the K050series, serial number 3, with PNP output

Specifications

Name	Integrated color sensor
Model	K050-4	K050-4P
Output mode	N P N output	P N P output
Appearance
Types of	One output port, wire lead-out type
Control output	One output port, equipped with short-circuit protection and automatic anti-interference function
Detection mode	C and Cl modes and MARK mode
Distance of detection	10±3mm
Power consumption	voltage：≤24V
Display indicator	Operation indicator lights: red light-emitting diode, OLED screen display
Response time	C and C mode 80 US, MARK is 35 US
Light source	Red LED, green LED, blue LED, 4-element light-emitting diode body
Power source	Between 12~24V DC±10%, fluctuation ratio (P-P): maximum 10%
Class of laser	IEC Class 2
Ambietilumination	Incandescent lamp: ≤20000lux, Daylight: ≤30,000lux
Control output	NPN/PNP open collector 24V, ≤100mA (only for main components); current consumption ≤40mA (when the expansion component is connected, residual voltage: 2V)
Vibration resistance	10~55Hz, 1.5mm double amplitude, in the X, Y, Z axis directions, 2 hours each
Ambient temperature	- 1 0 ~ + 5 5 ℃ , no freezing
Output action	LIGHT- ON/DARK- ON(Key menu selection)
Line length	2M
Delay functlon	Disconnect delay timer / Turn-on delay timer / One-shot timer / Turn-on delay one-shot timer, selectable; The duration of the meter display can be selected: 1ms to 9999ms
