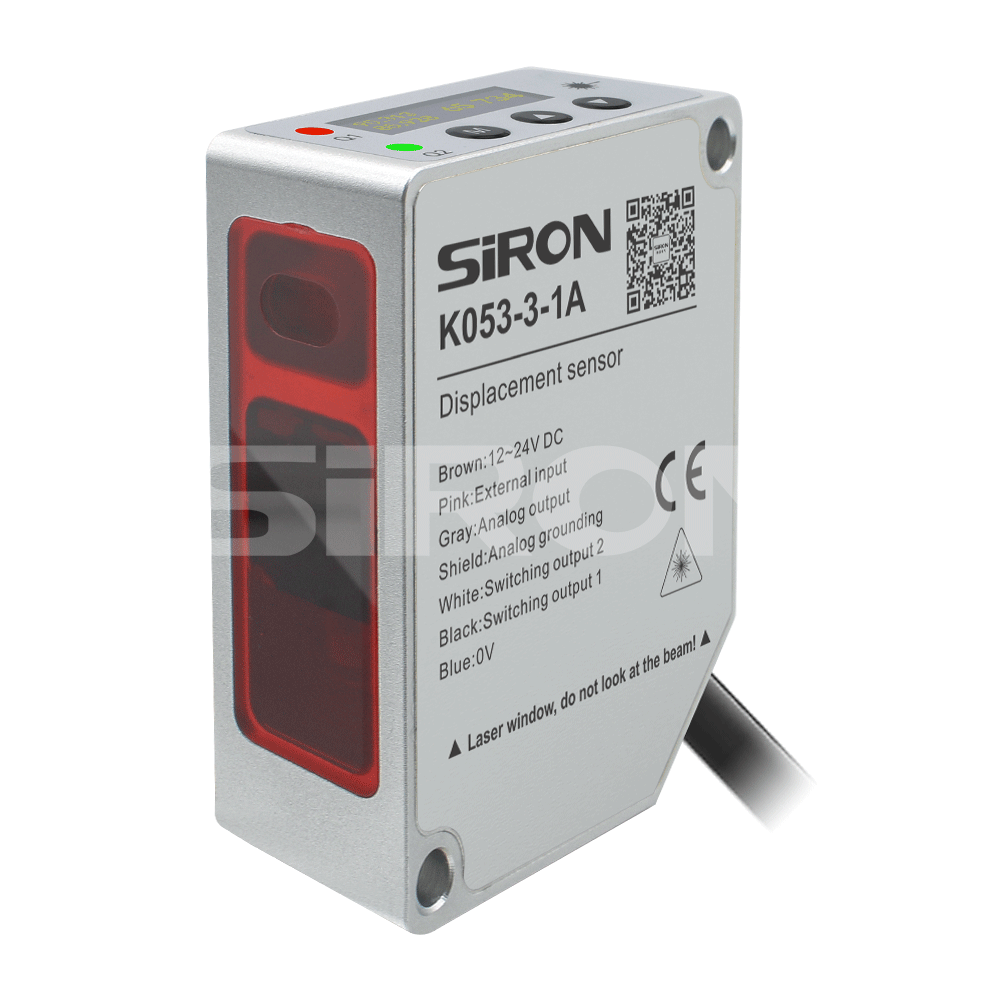

K053-3 Series
SiRON
8479909090

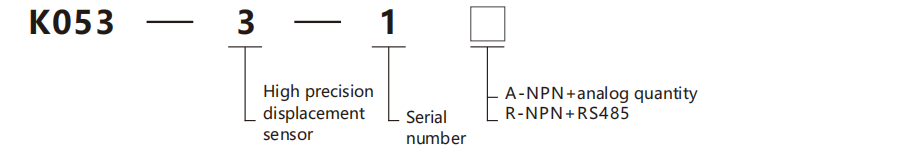

About selection
Selection example:
K053-3-1A indicates the K053 series, 3 high-precision displacement sensors, 1 serial number, NPN + analog quantity.
K053-3-1R indicates the K053 series, 3 high-precision displacement sensors, 1 serial number, NPN + RS485.
Specifications
Name | High precision displacement sensor | ||||
Model | NP N+Analog quantity | K053-3-1A | K053-3-2A | K053-3-3A | K053-3-4A |
| NPN+RS485 | K053-3-1R | K053-3-2R | K053-3-3R | K053-3-4R | |
Types of | Diffuse reflection | ||||
Appearance |   | ||||
Distance of reference | 30mm | 50mm | 85mm | 250mm | |
Distance of detection | 26~34mm | 40~60mm | 65~105mm | 100~400mm | |
Spot diameter | 0.1×0.1mm | 0.5x1.0mm | 0.75x1.25mm | 1.75x3.5mm | |
Full-scale | 8mm | 20mm | 40mm | 300mm | |
Repeatability | 2μm | 5μm | 10μm | 75μm | |
Precision of linearity | ±0.1%F.S. | ±0.3%F.S. | |||
Response time | ≤11.5ms | ≤15.5ms | |||
Operating voltage | Analog current: 12-24V DC(-5%,+10%); Analog voltage: 18-24V DC(-5%,+10%) | ||||
Consume (no-load)current | <30mA(analog current output),<60mA(analog voltage output) | ||||
Lightsource(medium,wavelength) | Red diode laser, wavelength 655nm | ||||
Output power | <1mW | ||||
Class of laser | IEC Class 2 | ||||
Temperature driftcharacteristic | ±0.08%F.S./℃ | ||||
Analog output voltage | Output range：0~10V; | ||||
Analog output curent | Output range: 4~20mA, with switchable Chinese display screen | ||||
Output action | Light-on (light-entering action)/Dark.on(Light-blocking action can be selected) | ||||
| Class of protection | IP67(IEC) | ||||
Ambient temperature | Operating temperature: -10℃ to 40 ℃ Storage time: -20℃ to 60 ℃(no freezing) | ||||
Ambient humidity | When in operation: 35% to 85%RH Storage time: 35% - 85%RH(no condensation) | ||||
Ambientillumination | Incandescent lamp ≤3000Lux; Sunlight ≤ 10,000 lux | ||||
Protection circuit | Reverse polarity protection/surge protection/short circuit protection | ||||
Vibration resistance | 10 to 55Hz, dual amplitude 1.0mm, 30 minutes in each of the X/Y/Z directions | ||||
Impact resistance | 300m/S⊃2;, three times each in the X, Y and Z directions | ||||
Material | Outer shell: Aluminum alloy; Lens: P M M A; Lead wire: P V C | ||||
Line length | 2-meter 6-core standard wire | ||||
Packing weight | About 2 5 0 g | ||||
Pilot lamp | The distance is less than the center point in orange. Distance greater than the center point: Green; Target not detected: Green | ||||
