SiRON K053-2 Series Economical Displacement Sensor

Name: SiRON K053-2 Series Economical Displacement Sensor
Brand: SiRON
Rating: 5.0 (37 reviews)

Features:

* Trigonometric distance measurement, high precision, fast speed;
* Self-developed high-precision optics, suitable for various environments and reflective surfaces;
* Comes with Chinese display, built-in menu, can be easily set without connecting to the computer;
* There are switching output, analog output (voltage, current adjustable), RS485 output, to meet various needs;
* IP67 protective metal aluminum body for outdoor and harsh environment use.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K053-2 Series
Brand:
SiRON
Code:
8479909090

Measuring Sensor Economical displacement sensor Trigonometric distance measurement high precision fast speed IP67

Product Description

About selection

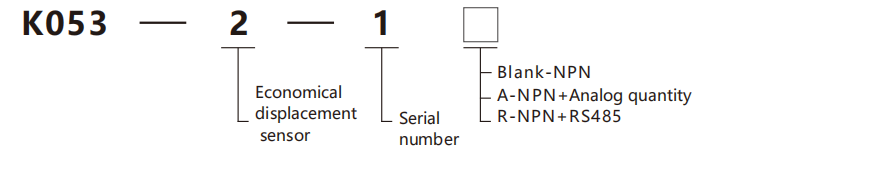

Selection example:

K053-2-1 indicates the K053 series, 2 economical displacement sensor, 1 serial number, NPN.

K053-2-1A indicates the K053 series, 2 economical displacement sensor, 1 serial number, NPN + analog quantity.

Specifications

Name		Economical displacement sensor
Model	NPN	K053-2-1	K053-2-2	K053-2-3	K053-2-4	K053-2-5
	NPN+Analog quantity	K053-2-1A	K053-2-2A	K053-2-3A	K053-2-4A	K053-2-5A
	NPN+RS485	K053-2-1R	K053-2-2R	K053-2-3R	K053-2-4R	K053-2-5R
Types of		Diffuse reflection

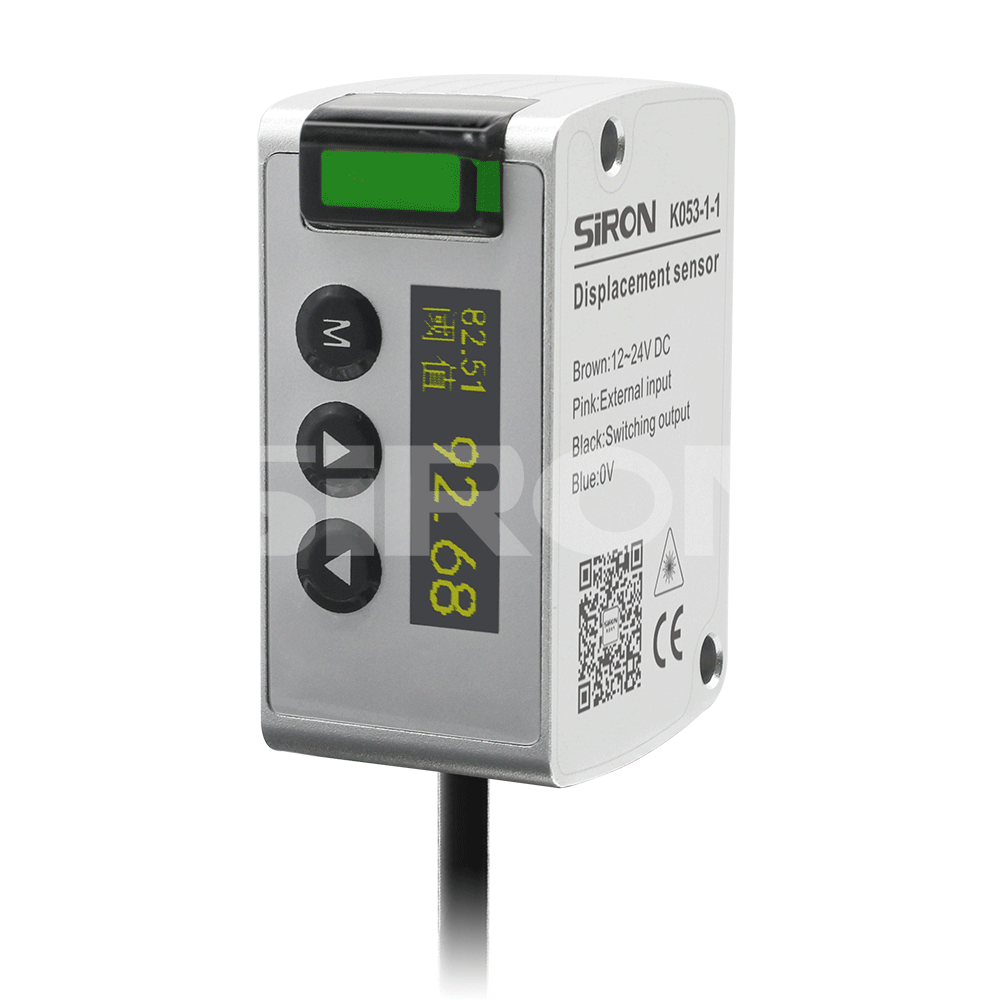

Appearance
Distance of reference		30mm	50mm	100mm	200mm	400mm
Distance of detecion		25~35mm	35~65mm	65~135mm	120~280mm	200~600mm
Spot diameter		Φ50μm	Φ70μm	Φ120μm	Φ300μm	Φ500μm
Ful-scale		10mm	30mm	70mm	160mm	400mm
Repeatability		10μm	30μm	70μm	200μm	600μm(Measurement distance 200-400mm) 1500μm(Measurement distance 400-600mm)
Precision of linearity		±0.1%F.S.			±0.2%F.S.	±0.2%FS.(Measurement distance 200-400mm) ±0.3%FS.(Measurement distance 400-600mm)
Operating voltage		DC 12~24V±10%
Consume (no-load)current		<30mA(when the supply voltage is 24V DC),<60mA(when the supply voltage is 12V DC)
Responsetime		1.5ms/5ms/10ms, switchable
Light source(medium,wavelength)		Red diode laser, wavelength 655nm
Output power		<1mW
Class of laser		IEC Class 2
Temperature drif characteristic		±0.03%F.S./℃
Analog output voltage		Output range: 0-5V(5.2V upon alarm)
Analogoutput current		Output range: 4~20mA(0mA in case of alarm), with switchable Chinese display screen
Öutput action		Light,on(light-entering action /Dark,on(light-blocking action) can be selected
Class of protection		IP67(IEC)
Ambient temperature		Operating temperature: -10℃ to 40℃ Storage time: -20℃ to 60℃(no freezing)
Ambient humidity		Operating temperature: -10℃ to 40℃ Storage time: -20℃ to 60℃(no freezing)
Ambientillumination		Incandescent lamp ≤3000Lux; Sunlight ≤ 20,000 lux
Protection circuit		Reverse polarity protection/surge protection/short circuit protection
Vibration resistance		Reverse polarity protection/surge protection/short circuit protection
impact resistance		Reverse polarity protection/surge protection/short circuit protection
Material		Outer shell: Aluminum alloy; Lens: P M M A; Lead wire: P V C
Connection mode		2-meter 5-core standard wire (wire diameter 4.0mm), customizable length
Line length		2-meter 5-core standard wire
Packing weight		About 85g
Plotlamp		Output indicator light: yellow; Power indicator light: Green
