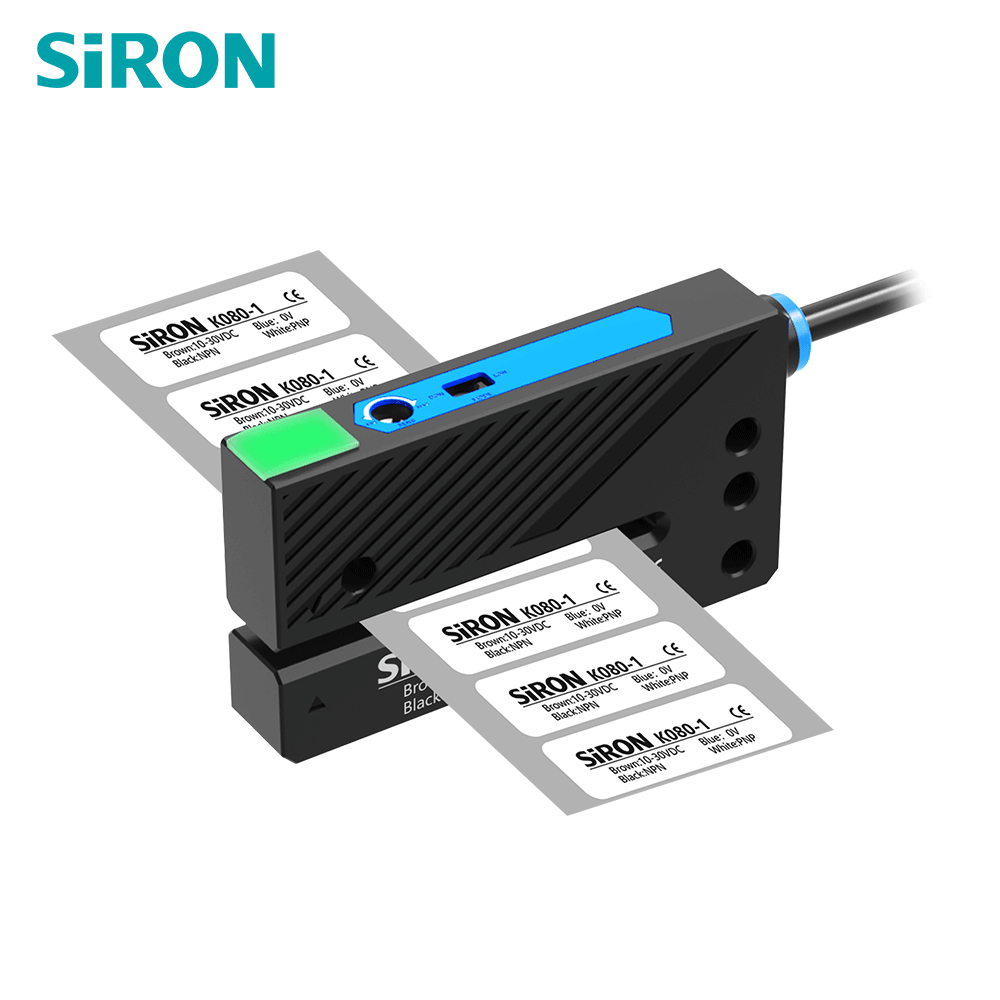

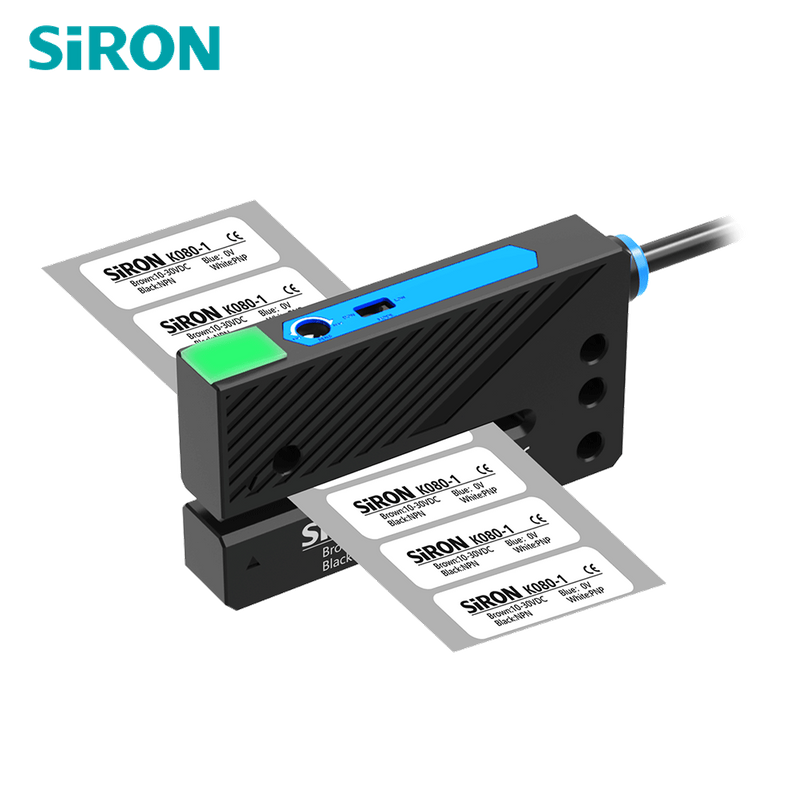

SiRON K080-1Tag Sensor Quick response, high-speed detection and IP64 protection level

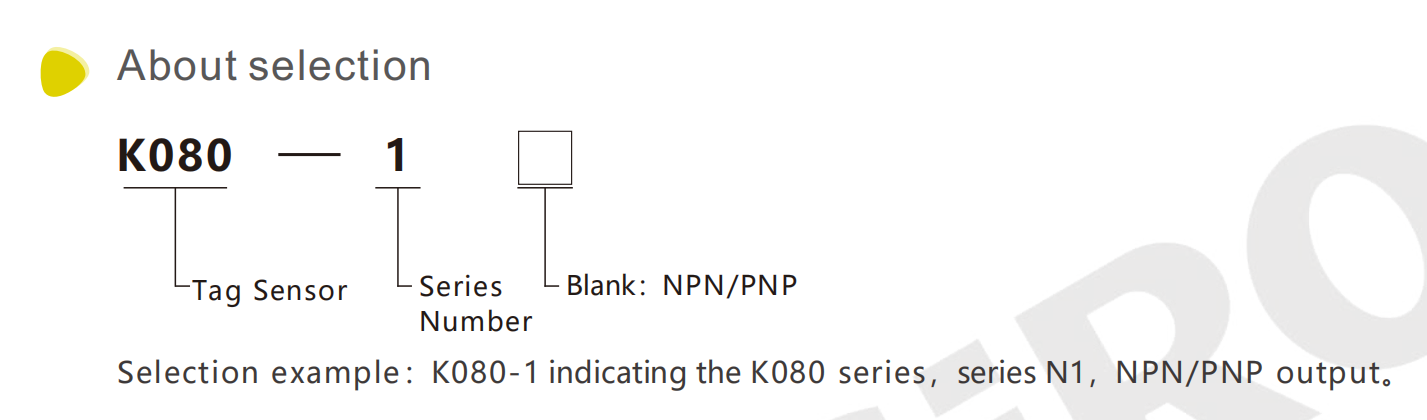

About selection

Specifications

Name		Tag sensor
Model		K080-1

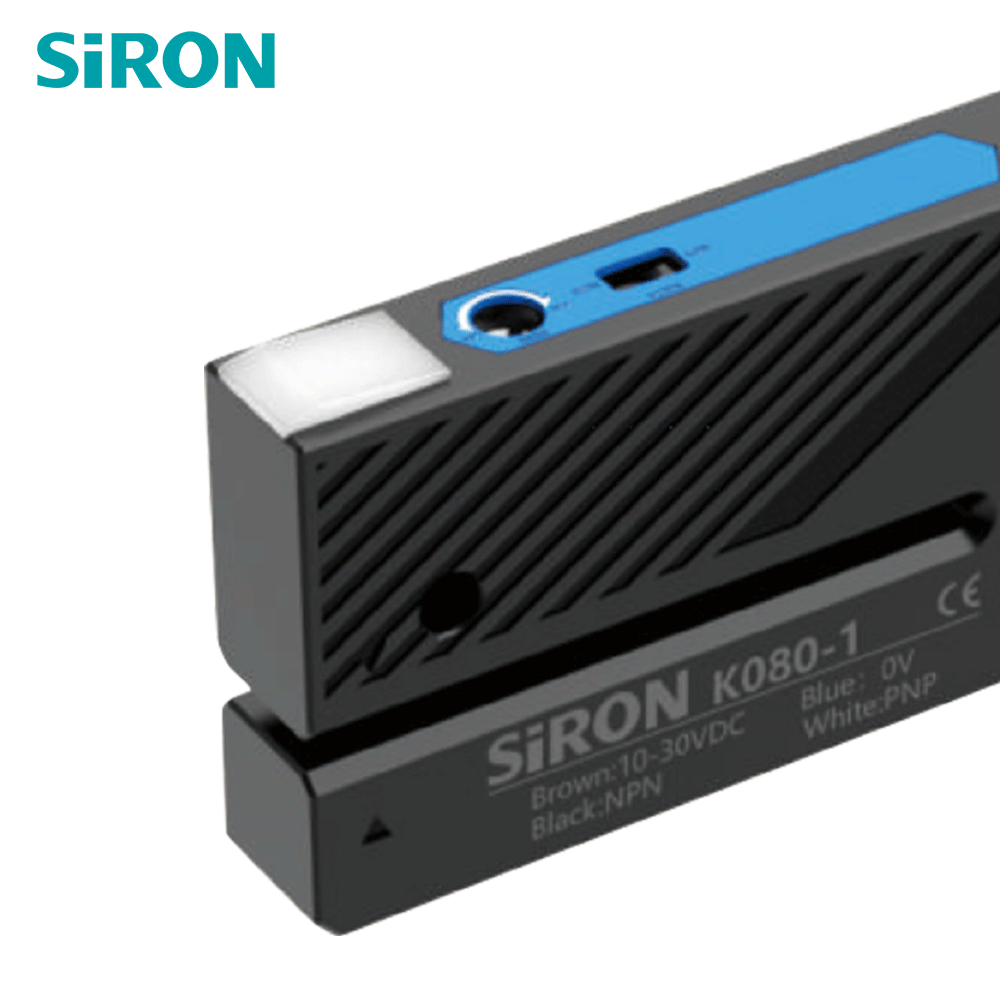

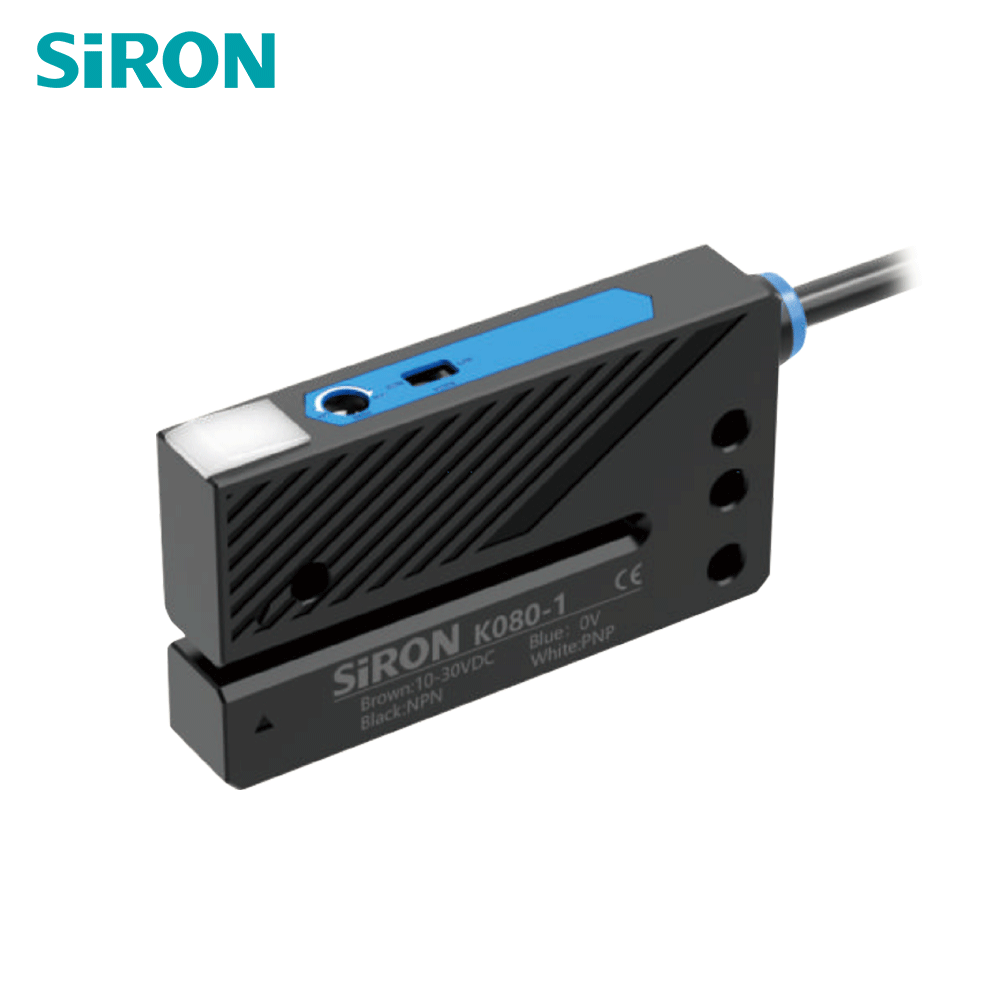

Appearance
Working voltage		10~30VDC
Testing method		Through beam type
Detection distance		2MM
Detecting objects		Tag
Switch lag		1-10  %

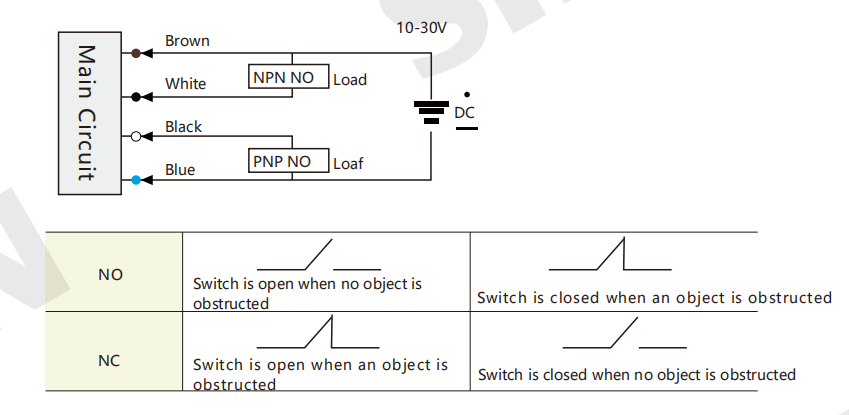

Output mode		NPN/PNP
Indicator light		Green LED
Working temperature		-25℃~+75  ℃
Response frequency		10HZ
Consumption current		≤15MA
Output current		≤200MA
Residual voltage		≤2.5V
Current protection		Polarity, surge suppression and short?circuit protection
Repeatability accuracy		≤3%（SR
Protection level		IP64
Shell materia		PBT
Wire length		2M Connection Cable

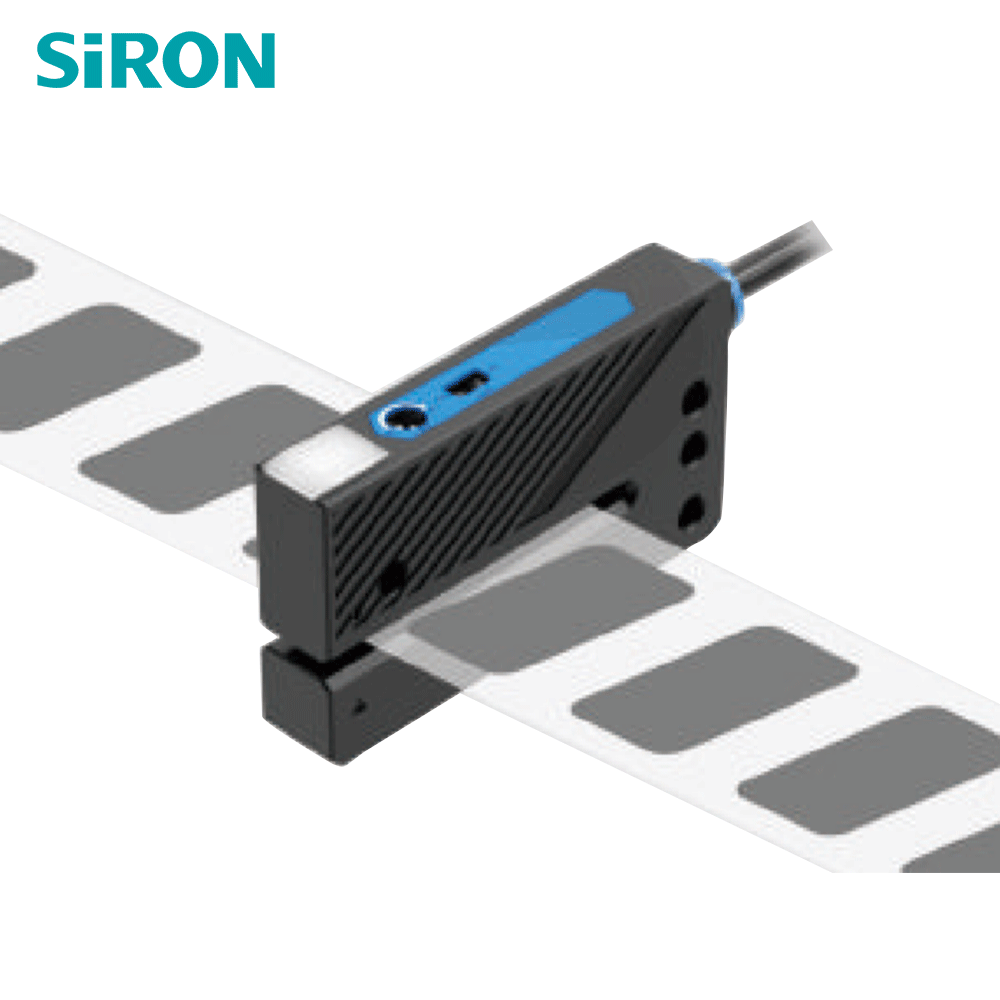

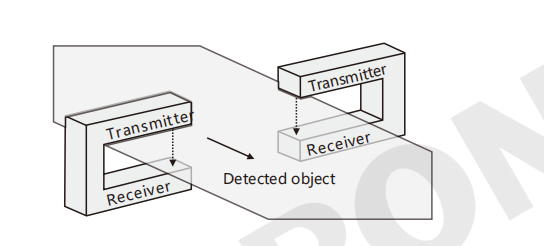

Example

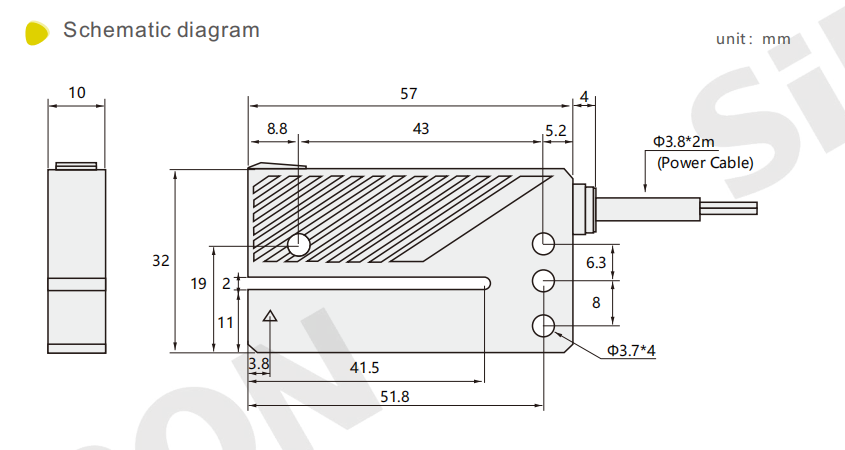

Schematic diagram
