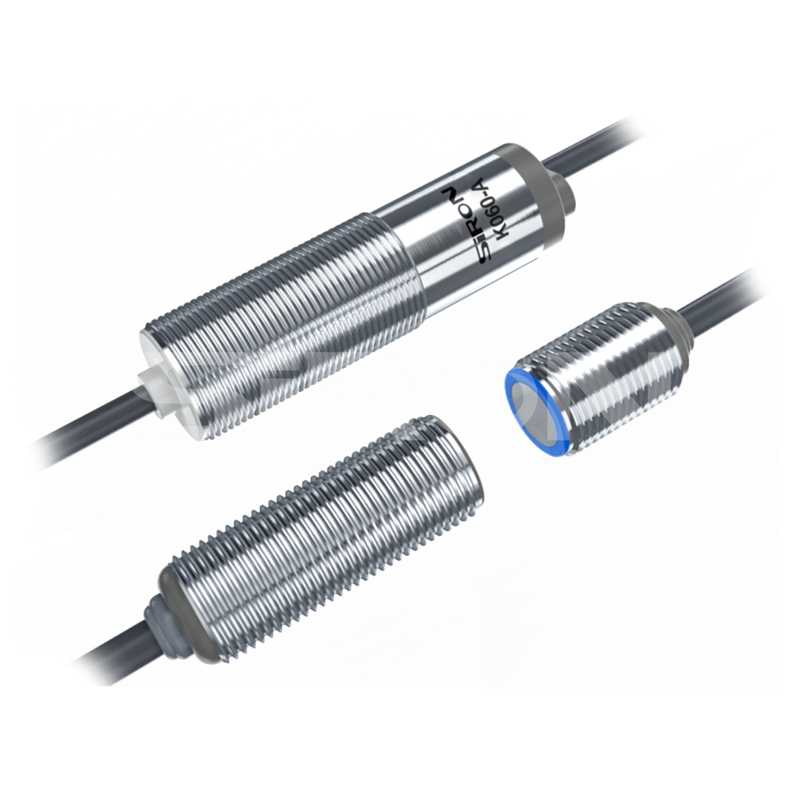

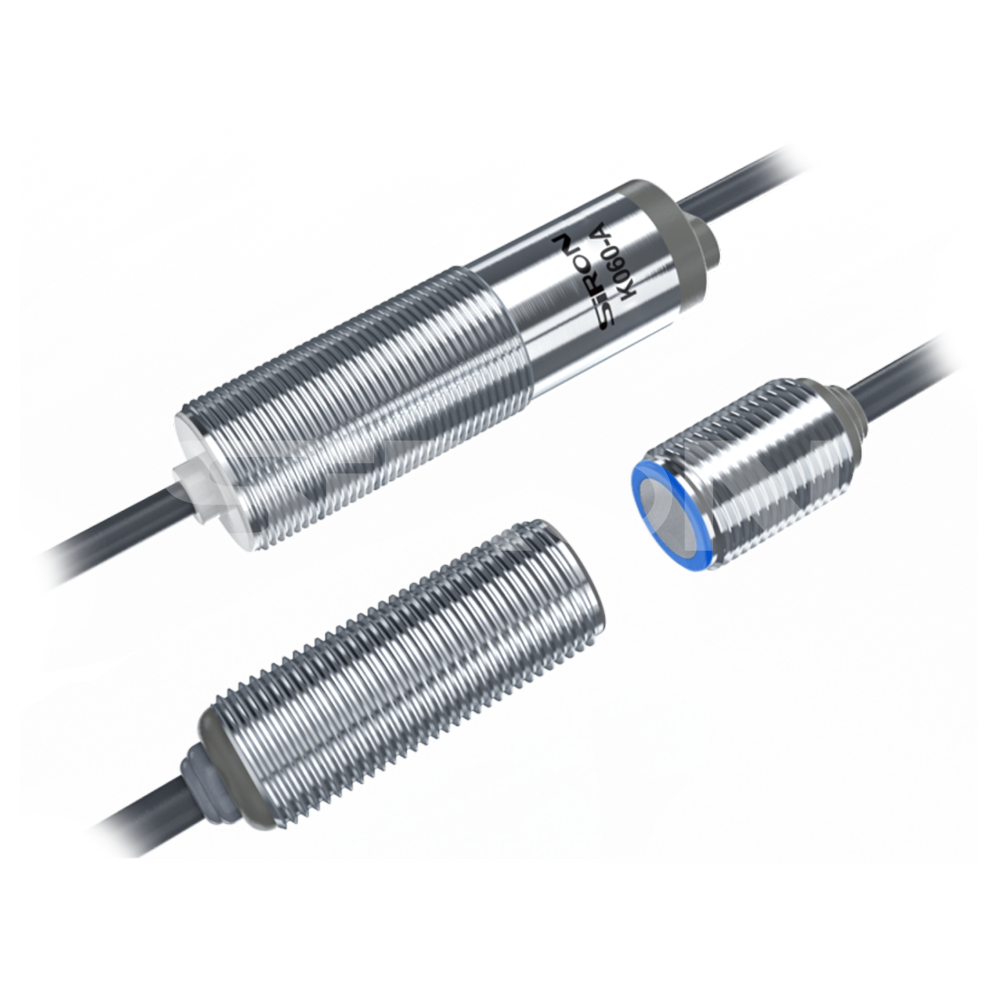

SiRON K060 Series M12 Ultrasonic Sensor

Name: SiRON K060 Series M12 Ultrasonic Sensor
Brand: SiRON
Rating: 5.0 (46 reviews)

Features:

* 3 control inputs: external sensitivity selection and self-learning can be performed according to the tested material;
* Optional self-learning: for example, solar silicon wafers that are covered with water;* Reliable detection of single, double/multiple and paperless detection of materials;
* No need for self-learning (plug and play);

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K060 Series
Brand:
SiRON
Code:
9031809090

Measuring Sensor Ultrasonic Sensor IP65 nickel plated brass Field Intensity Sensibility

Product Description

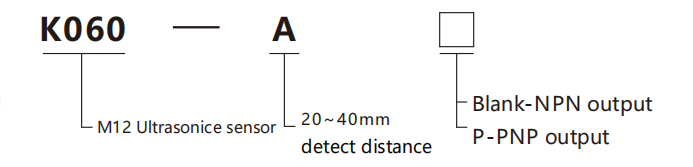

About selection

Selection example:K060-A expression K060 series,detect distance is 20～40mm,NPN output.

Specifications

Name	M12 ultrasonic sensor
Model	K060-A	K060-AP
Appearance
Detection distance	20~40mm

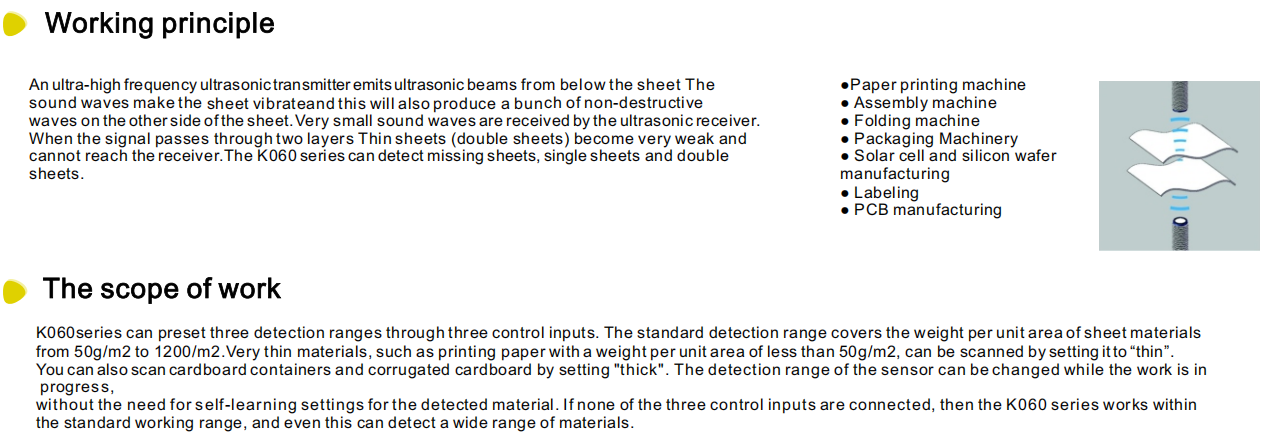

The scope of work	Paper and papermaterials(grammage 20~1200g/m),alloy laminates,fims (thickness up to 0.2mm),and sef-adhesive films
Design	cylindrical
Operating mode	Dual-sheet controller
Measurement methods	Pulse operation with amplitude estimation
Transducer frequency	500K Hz
Blind spot	5mm in front of the transmitter and receiver
Operating Voltage	20~30V DC,reverse polarity protection
Voltage ripple	±10%
No-load current loss	≤50mA
Connection Type	2mPUR cable,7×0.25mm²
Transceiver cable	Transmitter:5m PVC cable; Cables are connected via M8 connectors to external ultrasonic transducers.:1.2m PVC cable
Output	NPN/PNP output:I"=200mA,Switcher Buck Mode 2V,short-circuit protection

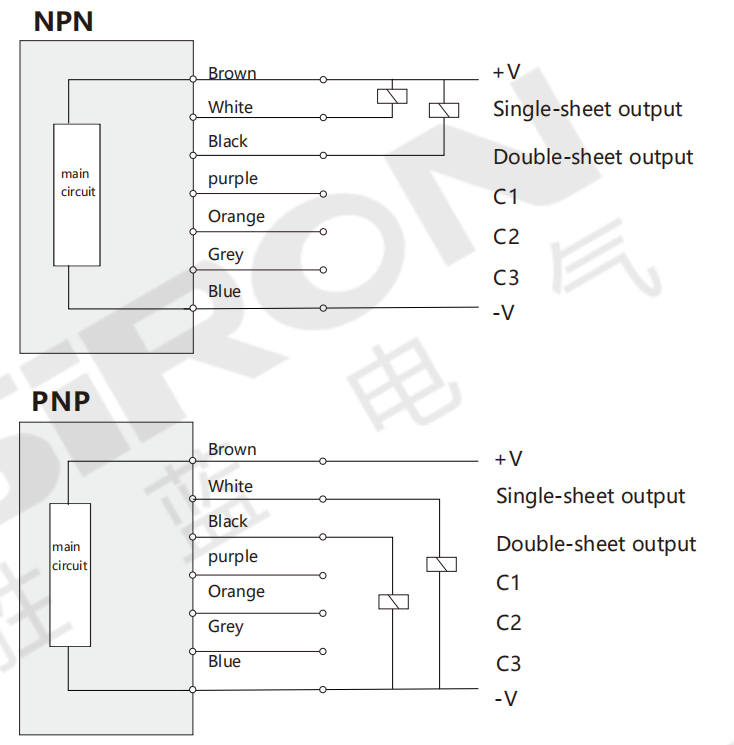

Output logical relationship	Paperless state:White cable OFF,Black cable OFF ;Single sheet state:White cable ON,Black cable OFF; Dual/multiple sheet state:White cable OFF,Blackcable ON
Response time	The automatic operation mode is 2.5ms
Power-on delay	<750ms

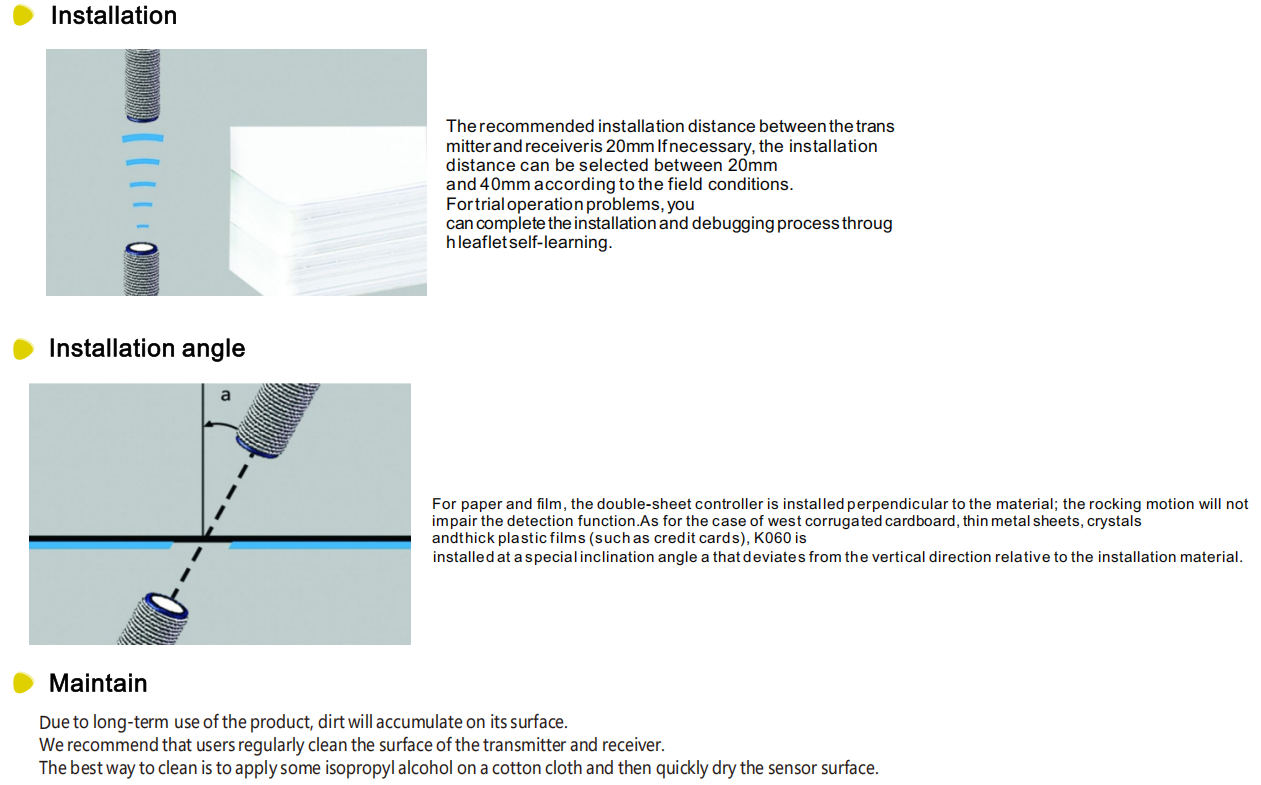

Transmitter-receiver spacing	20~40mm,optimum:20mm±2mm
Allowable angular deviation	at±45°relative to the vertical layer
Material	Nickel Plated Brass
Ultrasonic transducer	Foam polyurethane,glass-filled epoxy resin
Maximum tightening torque ofnut	3Nm
Protection dass EN60529	IP65
Operating temperature	+5~+60℃
Storage temperature	-40~+85℃

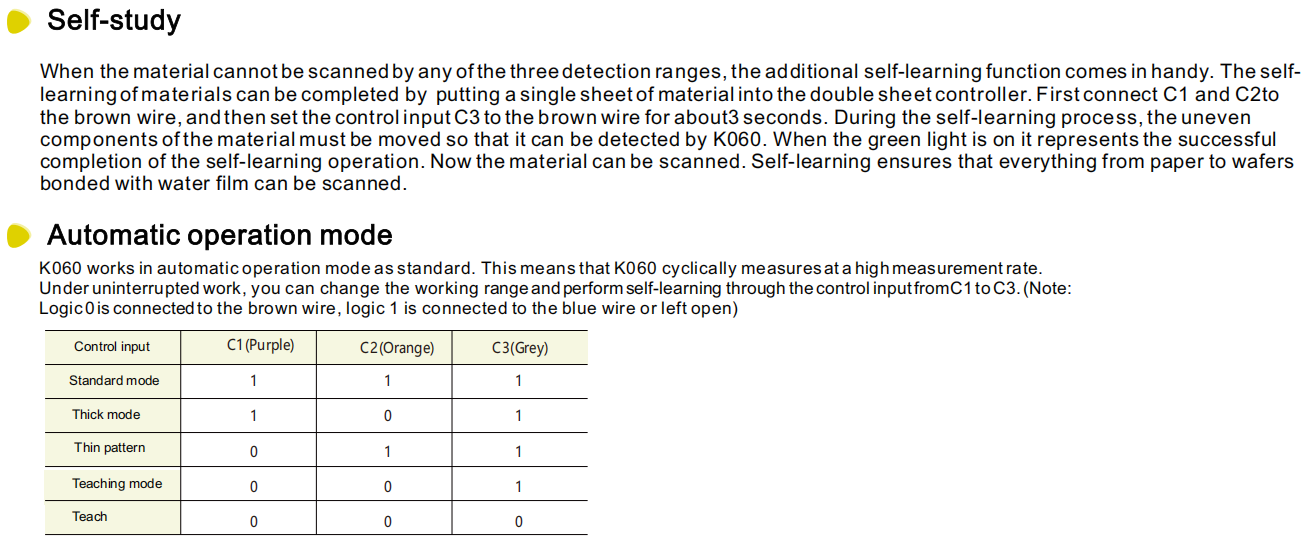

Control device	Control input:C1~C3
Control desciption	<-V+6Vlogic 1 (Connect the control input terminal to -V or leave it unconnected);>-V+10V:logic 0(The controlinput terminal is connected to+V
Predetemined area	Teaching is conducted by controlling the input
Indicator light	Green light:Single sheet;Green light flashing:Teaching;Red light:Double/multiple copies;Red flashing:No paper
