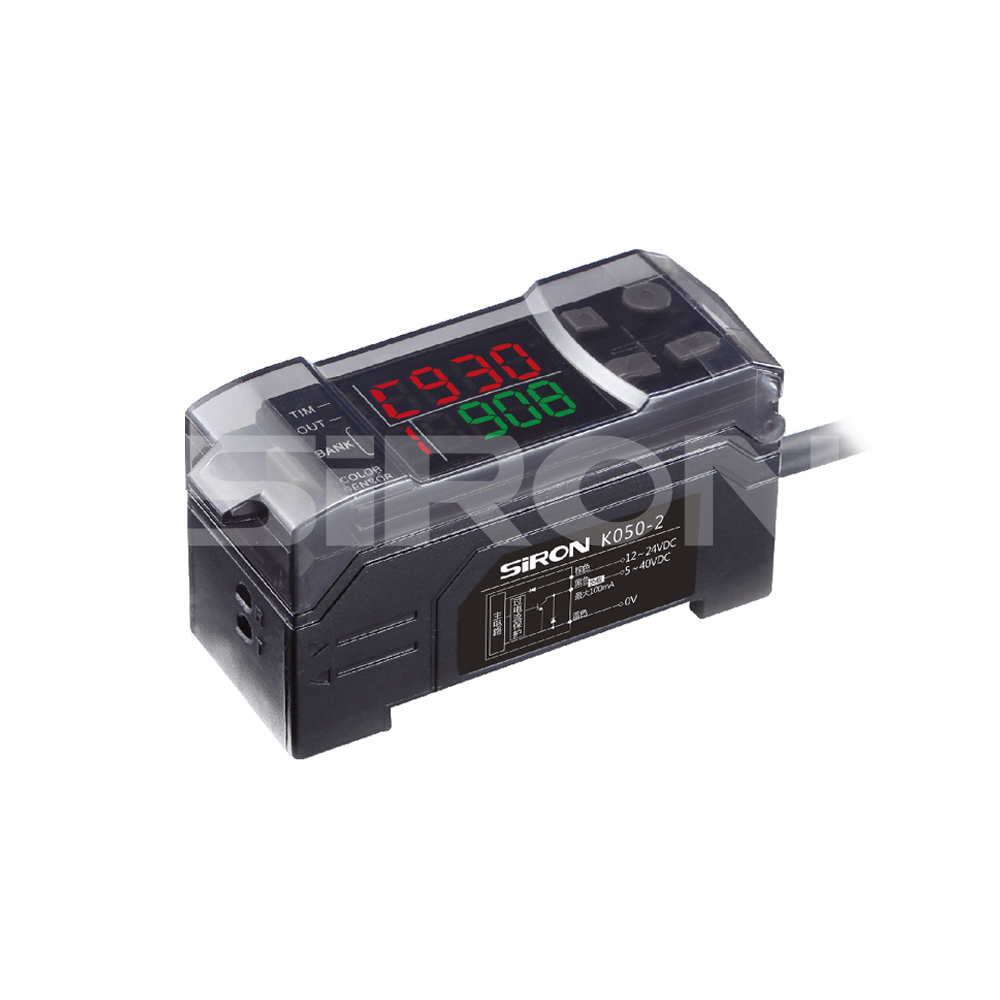

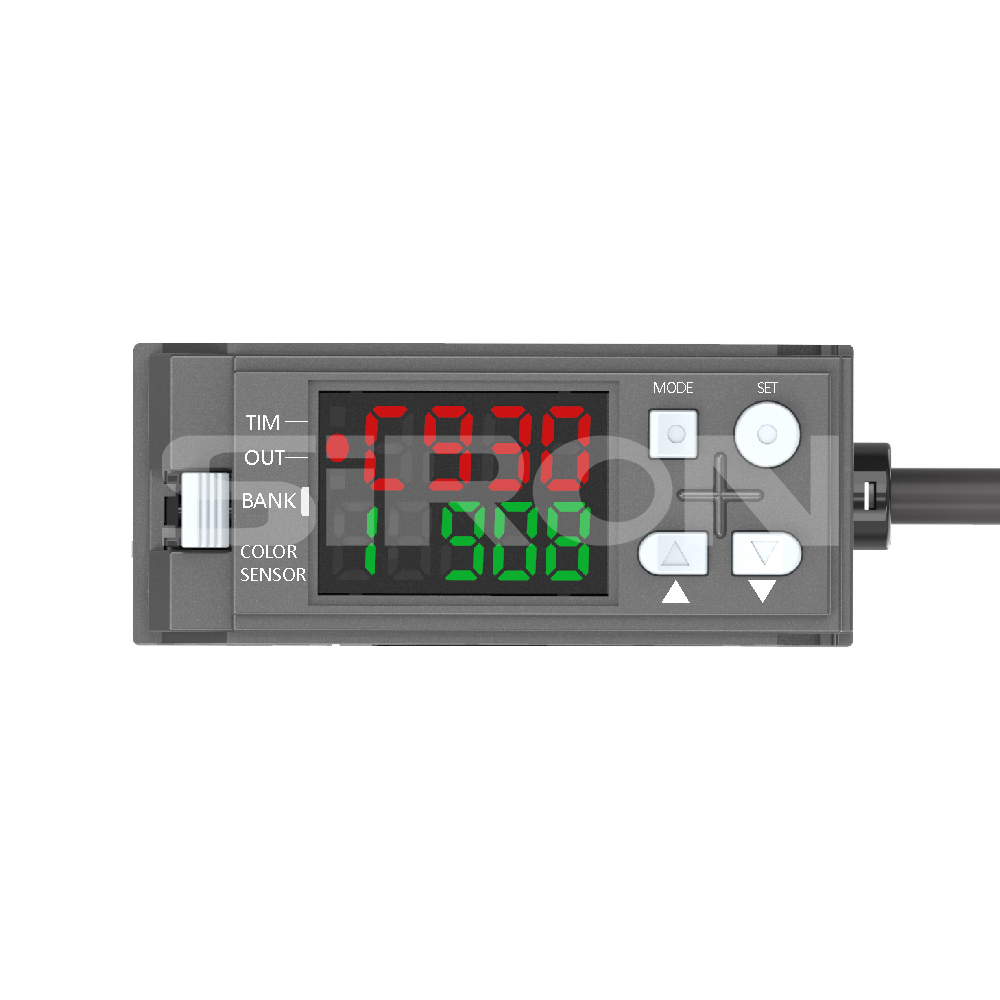

SiRON K050-2 Intelligent Digital Color Sensor

Name: SiRON K050-2 Intelligent Digital Color Sensor
Brand: SiRON
Rating: 5.0 (42 reviews)

Features:

* Accurate recognition of subtle chromatic aberrations;
* 4 channels design, saving space;
* Suitable for detecting self-luminous objects;
* Can accurately identify more than 1,000 colors;
* Multiple detection modes, suitable for various application scenarios
* It can be equipped with color-specific probes and compatible with all fiber optic probes.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K050-2 Series
Brand:
SiRON
Code:
9031809090

Measuring Sensor High-precision Digital Smart Color Sensor High-speed reaction Detect stability intelligentize Visual effect simple and convenient

Product Description

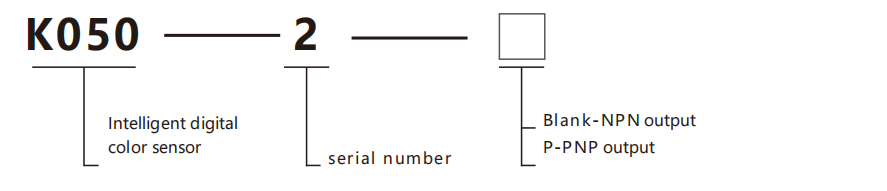

About selection

Selection example: K050-2 indicates the K050series, serial number 2, with NPN output.

Specifications

Name		Intelligent digital color sensor
Model	NPN	K050-2
	PNP	K050-2P

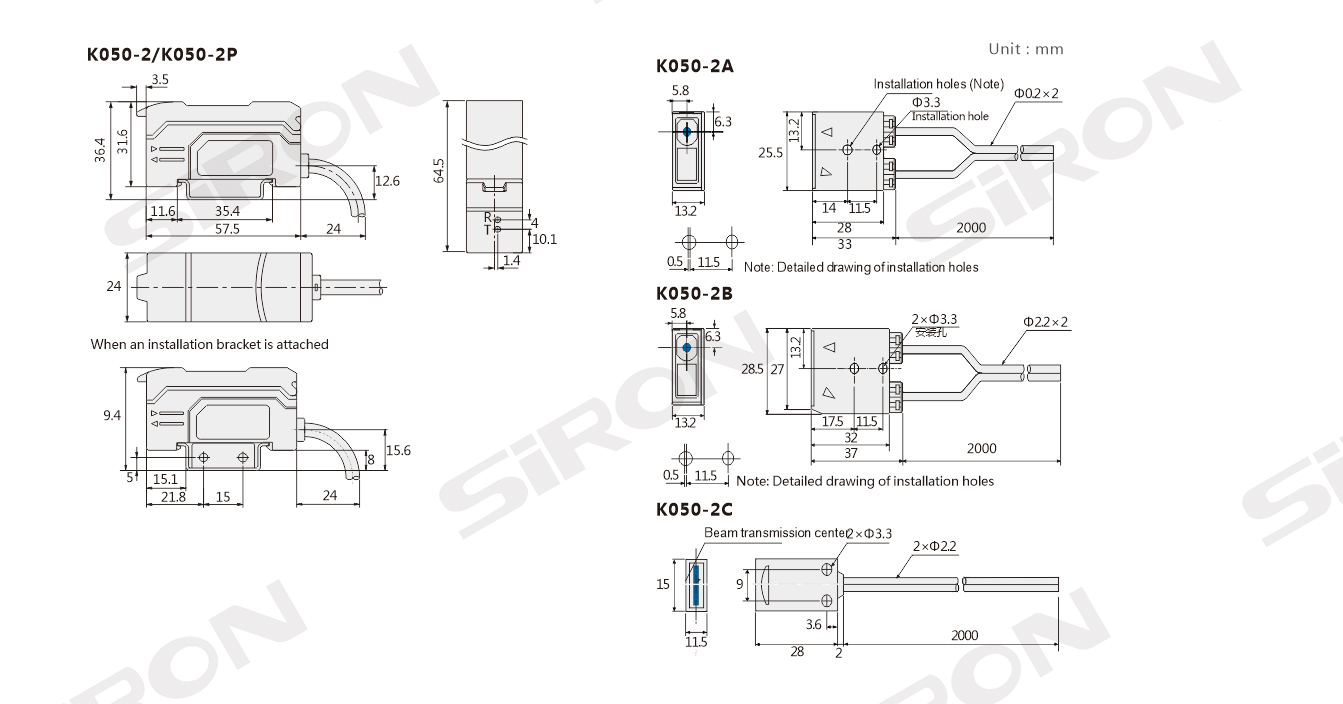

Appearance
Ligh source/responsetime		Light source: Red LED, green LED, blue LED. Response time: 200μs(HSP)/1ms(FINE)	Record color selection	Material library selection (input from the outside or key operation), input without voltage

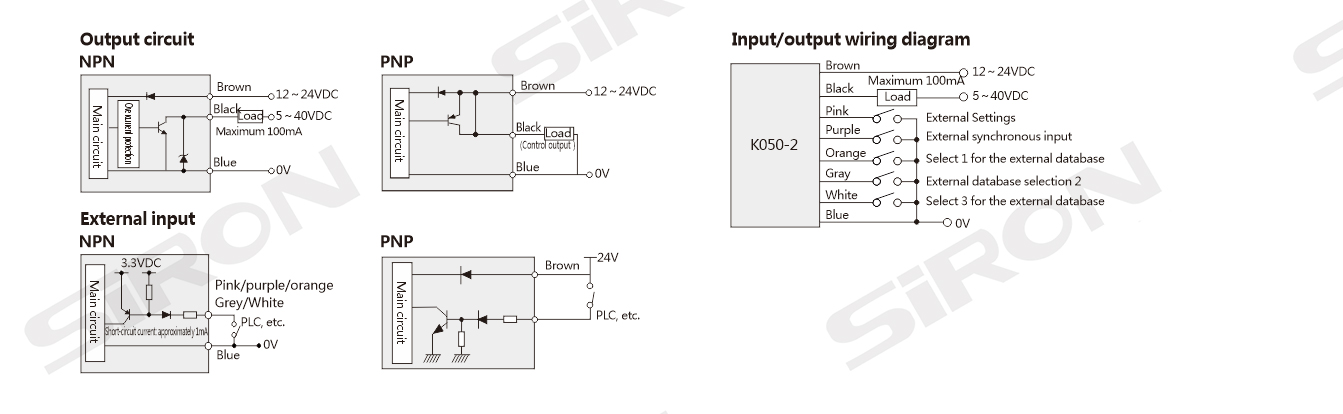

indicator light		Output: Red LED, external synchronous input: Red LED, matching rate/received light intensity: LED(red/green)	Control output	NP N(PNP):≤40V DC ≤(100mA)residual voltage: ≤1 . 0V
Error display		Excessive light intensity, insufficient light intensity, insufficient chromatic aberration	protect the circuit	Reverse electrode protection (power supply), overcurrent protection (output), overvoltage (output)
Calibration method		Single-point/two-point calibration	power supply	1 2 ~ 2 4 V D C ± 1 0 % , Pulsation ( P - P ) : ≤ 1 0 %
Error value adjustment		The digital display number value setting	Current consumption	≤75mA
Difference recognition mode		C mode /C+I mode /I mode	Ambient luminosity	Incandescent lamp: ≤5,000lux, sunlight: ≤10,000lux
Timer function		Timer OFF/ON Delay/OFF Delay/Single Trigger Shot	Ambient temperature	-10~55℃
Output selection		Matching Output: Turns on when the color of the target matches the memorized color; Mismatching Output: Turns on when the color of the target differs from the memorized color	Relative humidity	35~85%
			Vibration resistance	10~55Hz, 1.5mm, double amplitude in X, Y and Z directions, each for 2 hours
External sync input		reaction speed: ≤500μs	Impact resistance	Perform 500 m/s⊃2; in the X, Y, and Z directions, three times in each direction
External calibration input		reaction speed: ≥20ms	Shell materialweight	Material: P C Weight: Approximately 170 g (including 2 m cable)

Name	Detection head
Model	K050-2A	K050-2B	K050-2C
Appearance
Types of	Long inspection distance	Short inspection distanc	Regional beam points, reflective type
Examination range	70±20mm	16±4mm	5～20mm
Minimum light spot diameter	Diameter 6 m m	Diameter 1 m m	/
Minimumbending diameter	R15mm	R15mm	R25mm
Protection level	IP67		/
Ambient temperature	- 40～+70℃,no freezing
Relative humidity	3 5 ～ 8 5 % , No condensation
Fiber length	2M		/
Shell material	PC		PC, optical fiber: Plastic (polyethylene sheath)
Weight(Including cable)	Approximately 30g(including 2M cable)		Approximately 23g(including 2M cable)
