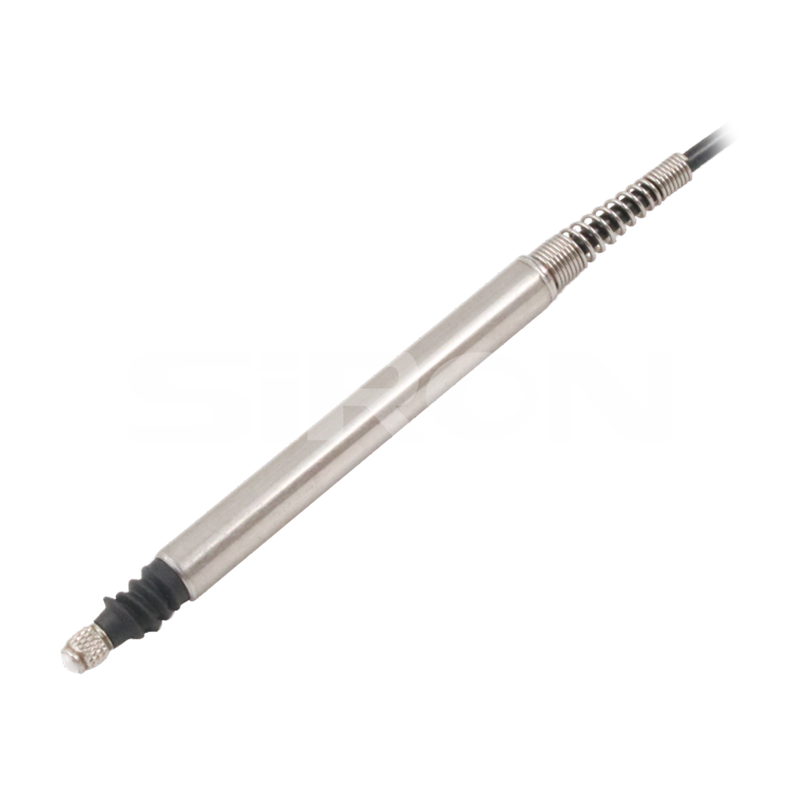

SiRON K07H Series LVDT Displacement Sensor Pen Type

About selection

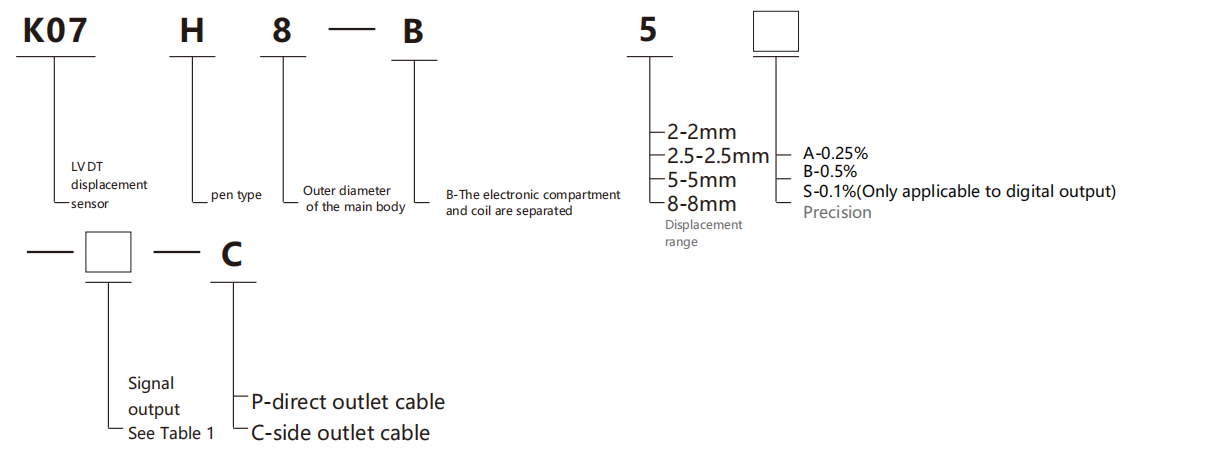

 Selection example: K07H8-B-5A-V1-C represents the K07 series LVDT displacement sensor, which is pen-type, with a                                                        main body outer diameter of 8mm, separate electronic compartment and coil, a displacement range                                              of 5mm, an accuracy of 0.25%, analog voltage output, an output range of 0-10V, a forward stroke                                                        direction, and a side outlet cable.

Specifications

Name	LVDT displacement sensor(pen type)
Appearance
Type	Pen type	Repetitive error	1μm、5μm
Power supply	Excitation voltage 3Vrms	Linearity error	Analog output: ±0.25%,±0.5%, etc. are optional; Digital output: ±0.25%,±0.1%, etc. are optional
Working current	Incentive frequency 5KHz	Resolution	≤0.1μm(maximum), digital output is 16 bits
		working pressure	IP64
The output signal	0～5V(9~28V DC supply voltage)	Operating temperature	-25～85℃
	0～10V(15～28V DC supply voltage)	Temperature Coefficient	-Zero point ≤0.01%/℃ Sensitivity ≤0.025%/℃
	4~20mA(two-wire system，15～28V DC supply voltage)	Cable length	1M
	Digital RS485 Modbus output (9 ~ 28V DC power supply voltage)	The displacement range	2、2.5、5、8mm
