SiRON K033A Series Small Light Curtain

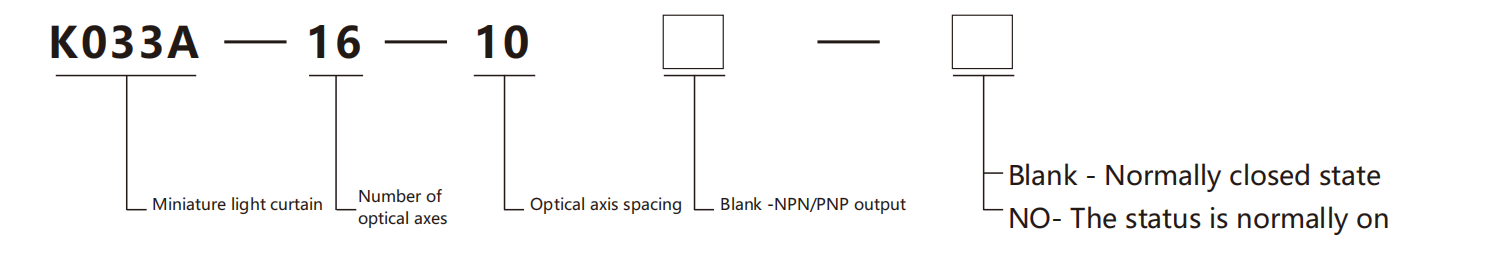

About selection

Selectionexample: K033A-16-10 indicates the K033A series,thenumber of opticalaxes is 16 axes,                              the opticalaxis                                                     spacingis 10mm, NPN/PNP output,normallyclosed state.

                                     K033a-16-10-no indicates the K033A series,thenumber of opticalaxes is 16 axes,the opticalaxis                                               spacingis 10mm, NPN/PNP output,normally open state.

Note: 1, the protection distance can be customized to 6m, model examples are as follows:

               K033A-16-10(D6) K033A series, the number of optical axes is 16 axes, the optical axis spacing is 10mm, NPN                       output, normally closed state,The protection distance is 6m.

Specifications

Name	Small light curtain

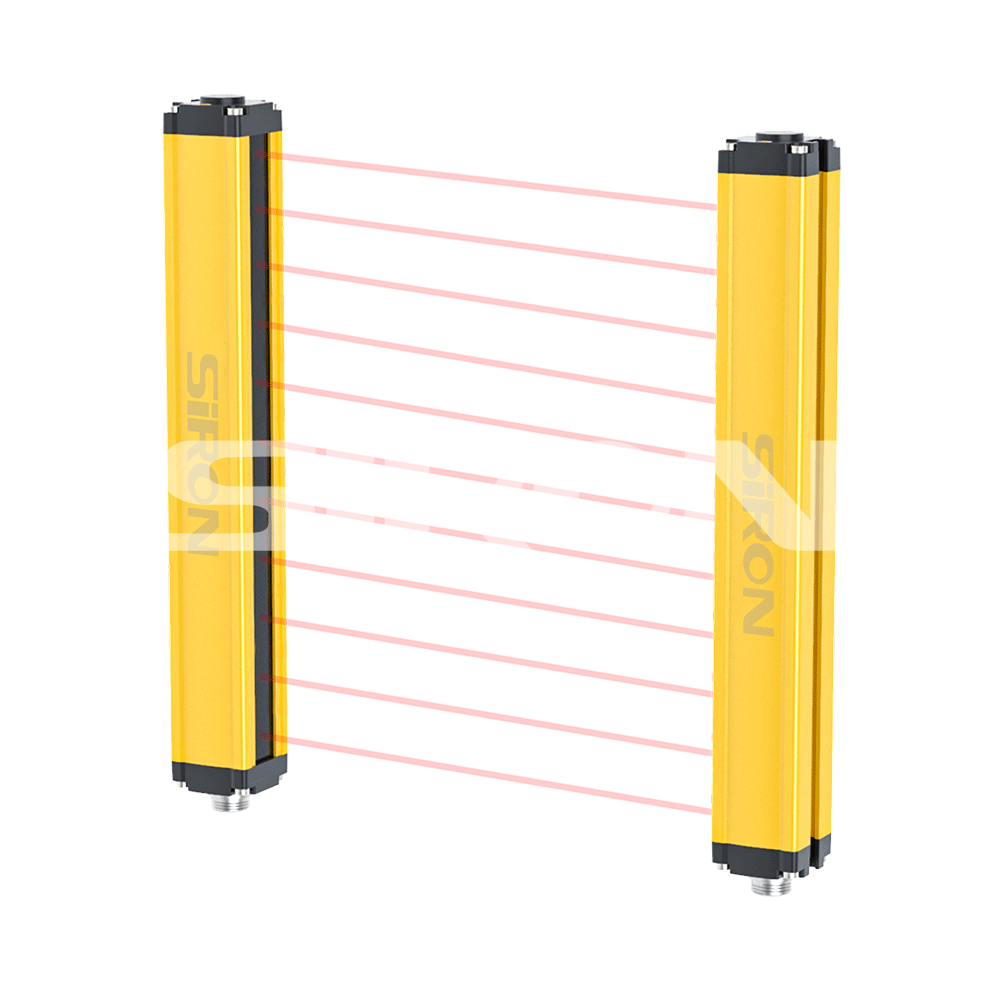

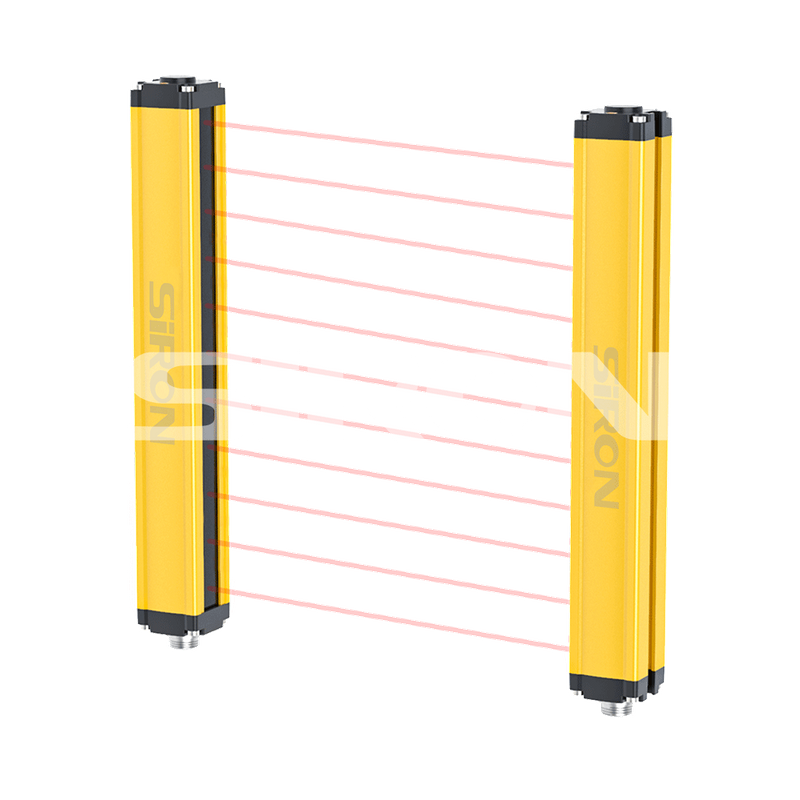

Appearance
Cross-sectional area	30×30mm	Output current	≤100mA
Number of channels	single channel	Output method	NPN/PNP
Number of optical axes	4、6、8、10……	Response time	4~18ms
Protection height	Protection height H=(n-1)*optica axis spacing,N is the number of optical axes	Scan time	<18ms
Protection distance*	0.2～2.5M (can be customized to 6M)	Synchronicity	phototiming
Optical axis spacing	10mm/20mm/40mm	Protection class	IP54
Resolution	15mm/25mm/45mm	Operating temperature	-10～+55℃-
Infrared wavelength	940nm	Ambient temperature	20~+70℃15
Power	≤15W	Relative humidity	%～85%10g/
Power supply	DC12~24V	Impact resistance	20ms
