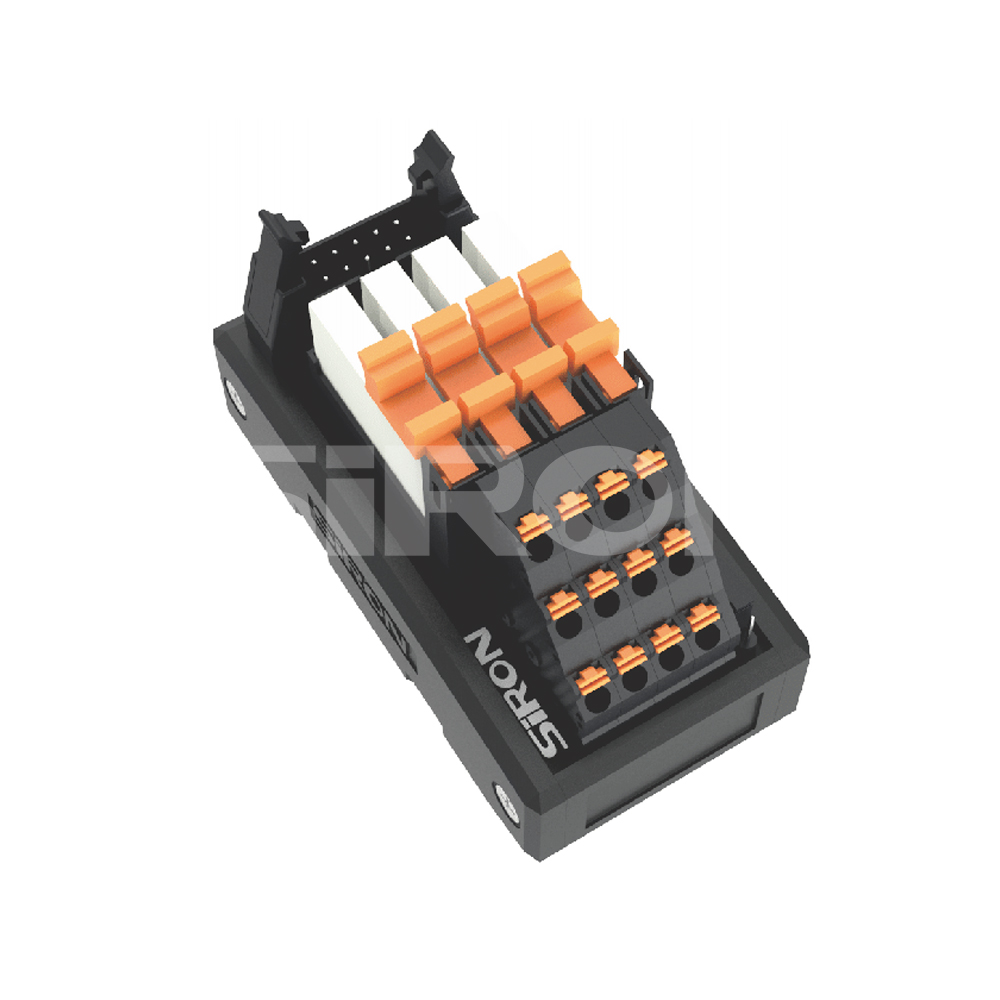

SiRON Y460 Series Ultra-thin Medium Power Relay Module

Name: SiRON Y460 Series Ultra-thin Medium Power Relay Module
Brand: SiRON
Rating: 5.0 (58 reviews)

Features

Output 1 open 1 close, 6A contact switching ability,LED indicator, action at a glance;
DlN35 quide rail installation, convenient and fast;
Shrapnel terminal wiring, saving time and effort, tight and reliable;
The relay can be pluggable, easy to replace;Input signal compatible with NPN/PNP can be switched

Quantity:
Availability:





Inquire Add to Basket

Model:
Y460
Brand:
SiRON
Code:
8536411090

Y460 Series Medium Power Relay Module Wide Base Type Relay NPN/PNP Relay Input/output Relay Module

Product Description

Type selection reference

Model	Y460-4 Y460-4-C	Y460-8 Y460-8-C	Y460-16 Y460-16-C	Y460-32 Y460-32-C

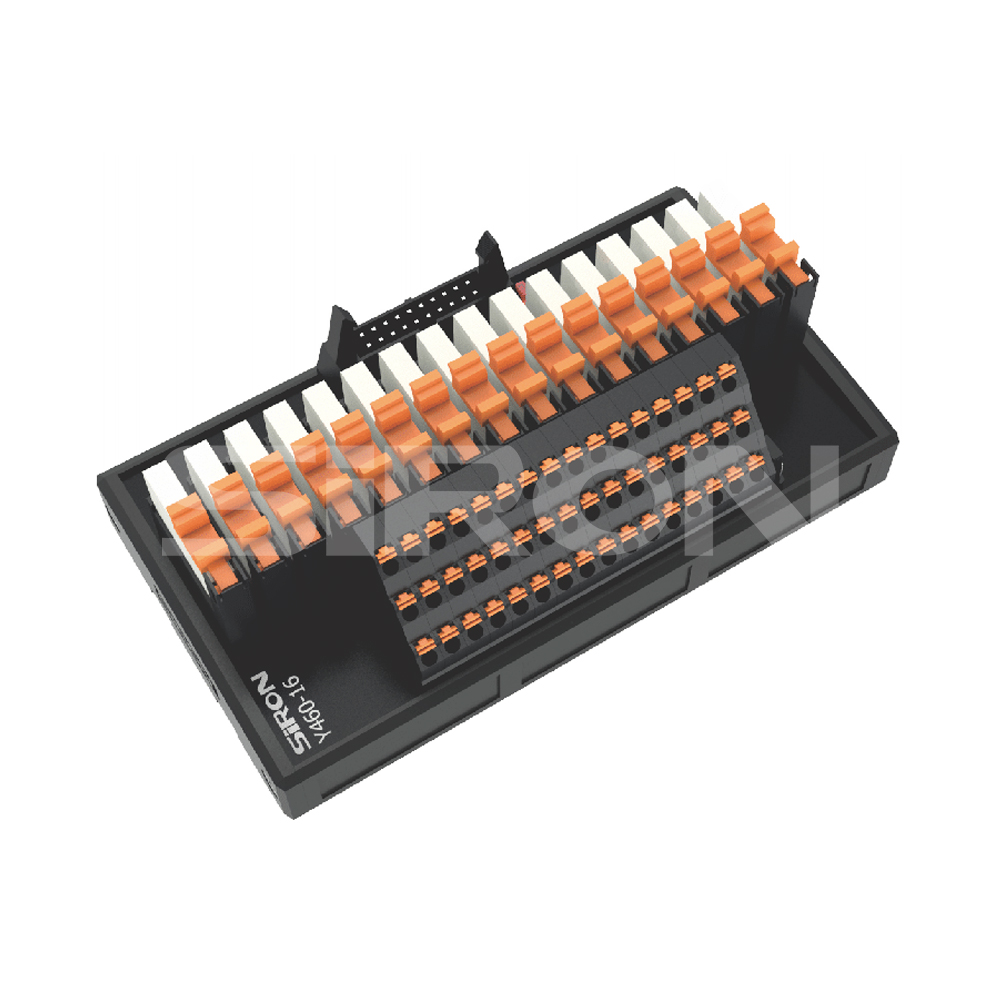

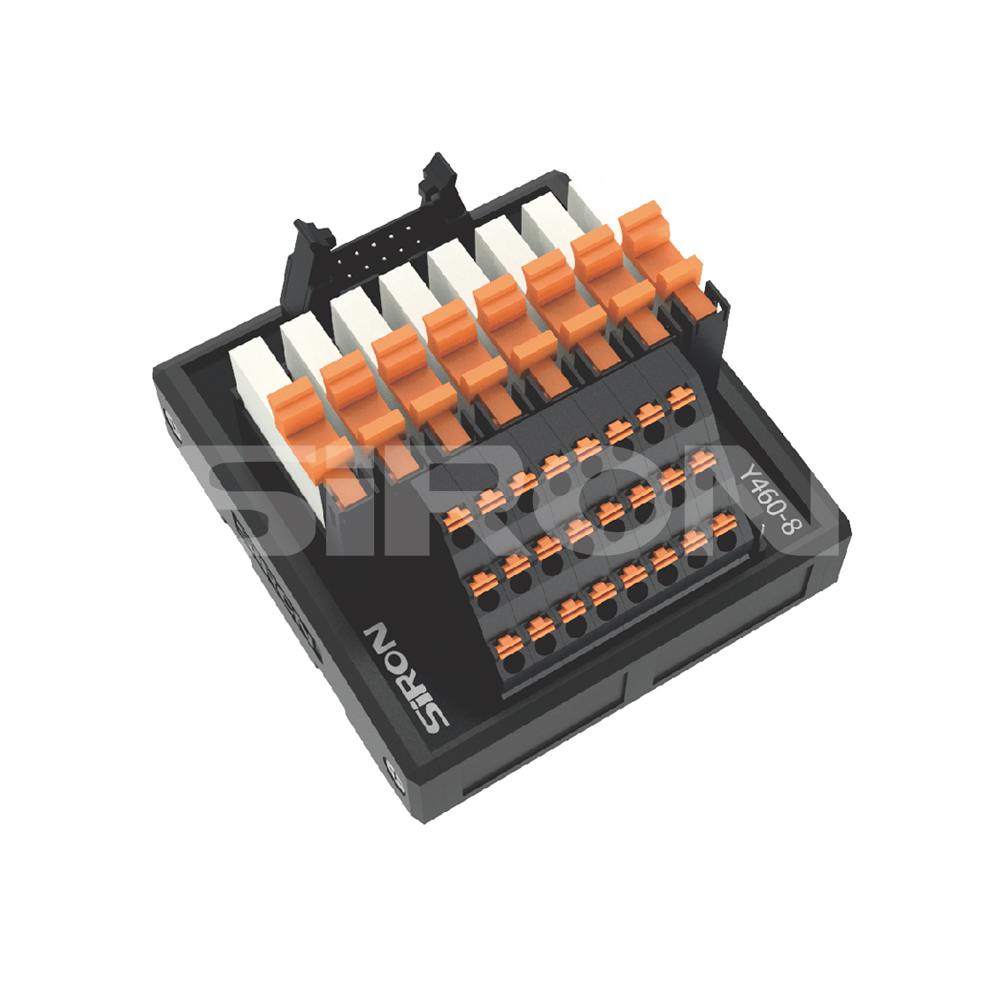

Name	4bit Ultra-thin medium power Relay module	8bit Ultra-thin medium power Relay module	16bit Ultra-thin medium power Relay module	32bit Ultra-thin medium power Relay module

Note: Add "-C" after the model for economy.

Specifications

Input	Operating cil(everypointofthe relay)
	Rated voltage	DC24V
	Rated current	7.5mA
	Coil resistance	3388Ω
	Operating voltage	Rated voltage 7 0 %
	Reset voltage	Rated voltage 5 %
	Maximum allowable voltage	Rated voltage 1 2 0 %
	Rated powerconsumption	170mW
Contact rating	Contact resistance (itial)	100mΩThe following (by the 6VDC1A voltage drop method
	Contact material	AgNitype,AgNi type/Au-plated
	Contact capacity	6A 250VAC
	Maximum allowable oontactpower	1500VA
	Maximum allowable oontactvoltage	250VAC
	Maximum allowable currentofcontact	6A(AC)
	Minimum applicable load(referencevalue)	Au-plated type;1mA1VDC、no Au-Plated;100mA 5VDC
Insulation resistance (iniftial)		1000MΩThe above (using a 500V DC insulation resistance meter, measure at the same position as the withstand voltage item)
Withstand voltage (initial)	intercontact	1000Vrms 1 minute (detection current: 10mA)
Withstand voltage (initial)	Between contact and oil	4000Vrms 1 minute (detection current: 10mA)
Contact rating	Between contact and coil	6000V
Time characteristic (initial)	Action time	Coil rated voltage below 8ms (at20℃, excluding contact bounce)
Time characteristic (initial)	Reset time	Coil rated voltage below 4ms (at20℃, no contact bounce, no diode)
Impact resistance	Misacting impact	49m/s² (Sinusoidal half-wave pulse: 11ms, detection time10μs)
Impact resistance	Durable impact	980m/s² (Sinusoidal half-wave pulse：11ms)
Vibration resistance	Misoperating vibration	10~55Hz(Sinusoidal half-wave pulse：10μs)
Vibration resistance	Durable vibration	10~55Hzomplex amplitude ：1.5mm)
On-oif life	Mechanical life	More than 5 million times (On-off frequency: 180 times per minute)
use	Conditions of use,transportation and storage	Temperature: -40 ℃ to 85℃ Humidity: 5% to 85%RH(No condensation or icing)
