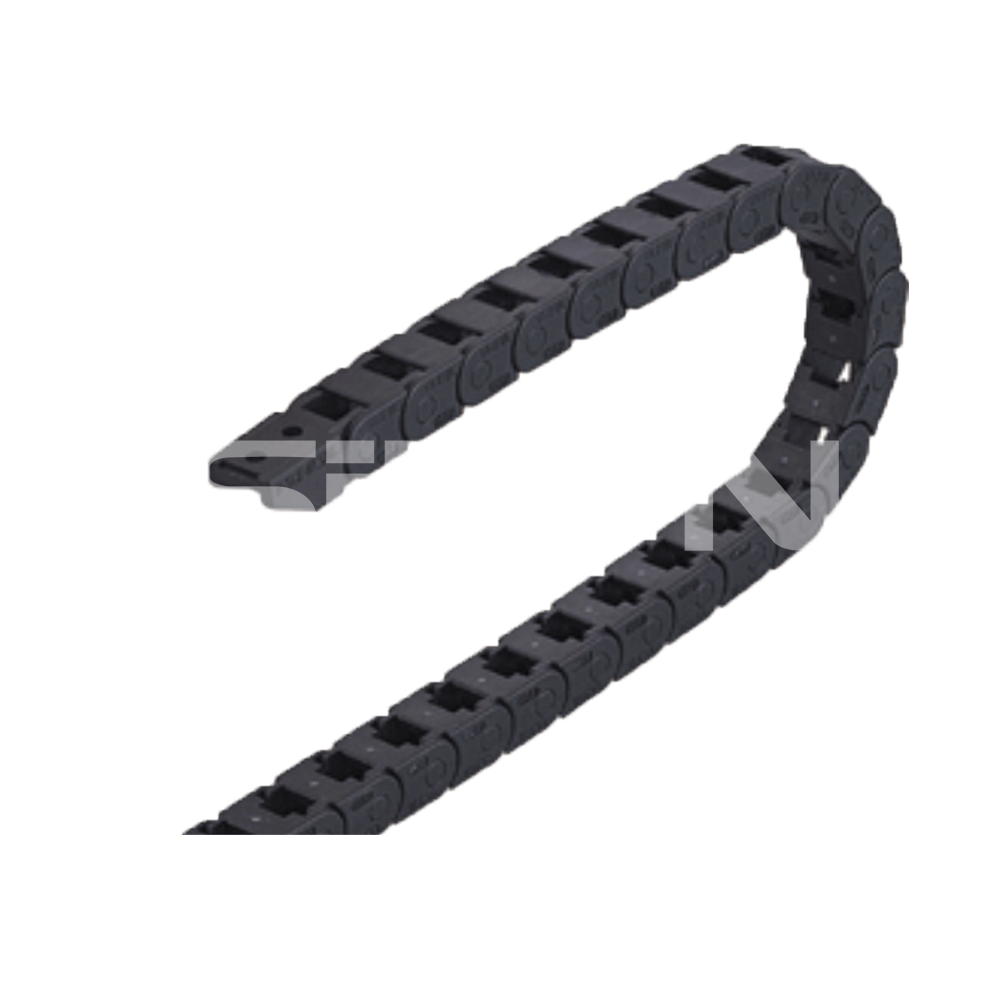

SiRON X72 Series (Miniature) Inner height: 7/10- Bridge type cannot be opened Drag Chain

Features
  • High tensile load and wear resistance, oil and saltresistance;
  • High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
  • Mainly used in industrial automation field and machine tool machinery and other industries
  • Material: New PA plus Pa66;
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • X72

  • SiRON

  • 8544421100

X72 Series New PA plus Pa66 Drag Chain X72 Series Bridge type cannot be opened Drag Chain X72 Series Inner height: 7/10 Drag Chain
Product Description

Order

14e9414a-ebb1-419c-90c3-6e103e3f27c8

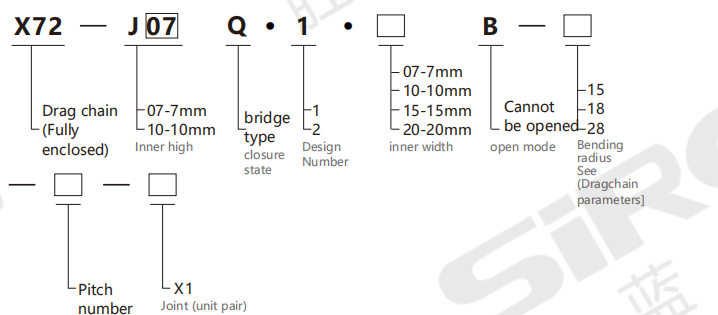

Selection example: X72-J07Q.1.07B-15-17-X1 represents the X72 series drag chain, with an inner height of 7mm and a bridge type.

Inner width: 7mm, non-openable, bending radius: 15mm, 17 sections, 1 joint (1 pair).

Order the connector model separately: X72-J07Q.1.07B-X1 1 pair


Towing chain size table

Model Bending radius
R		 Inner high Inner width
 Outside High outer width J J1 P pitch Per meter
Number of sections

 Actual safety
Installation height
H.		 Maximum line
Cable diameter
Q(mm)		 load
(kg/m)		 Installation dimensions of drag chains
H D K
X72-J07Q.1.07B 15 7 7 10 12 10 10 29 16.7 59 H+10 5 0.1/0.5 40 37 86
28 66 50 136
