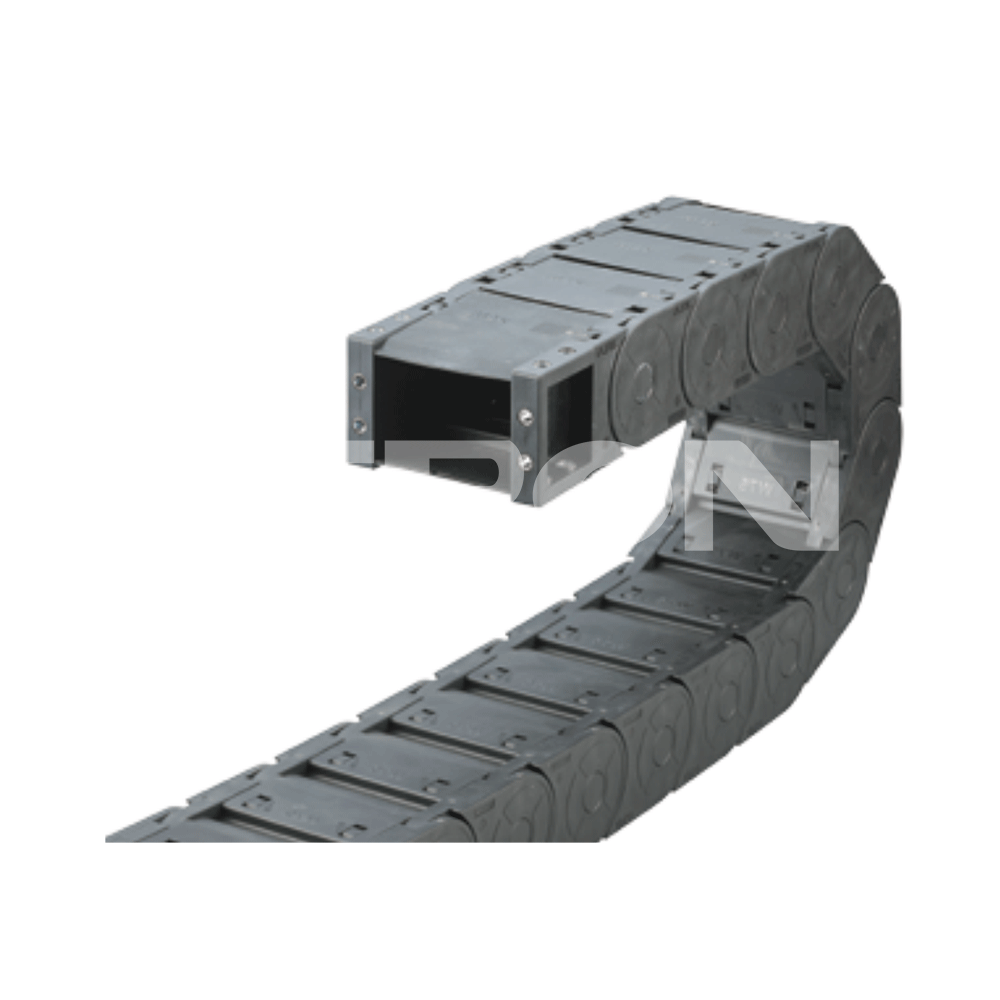

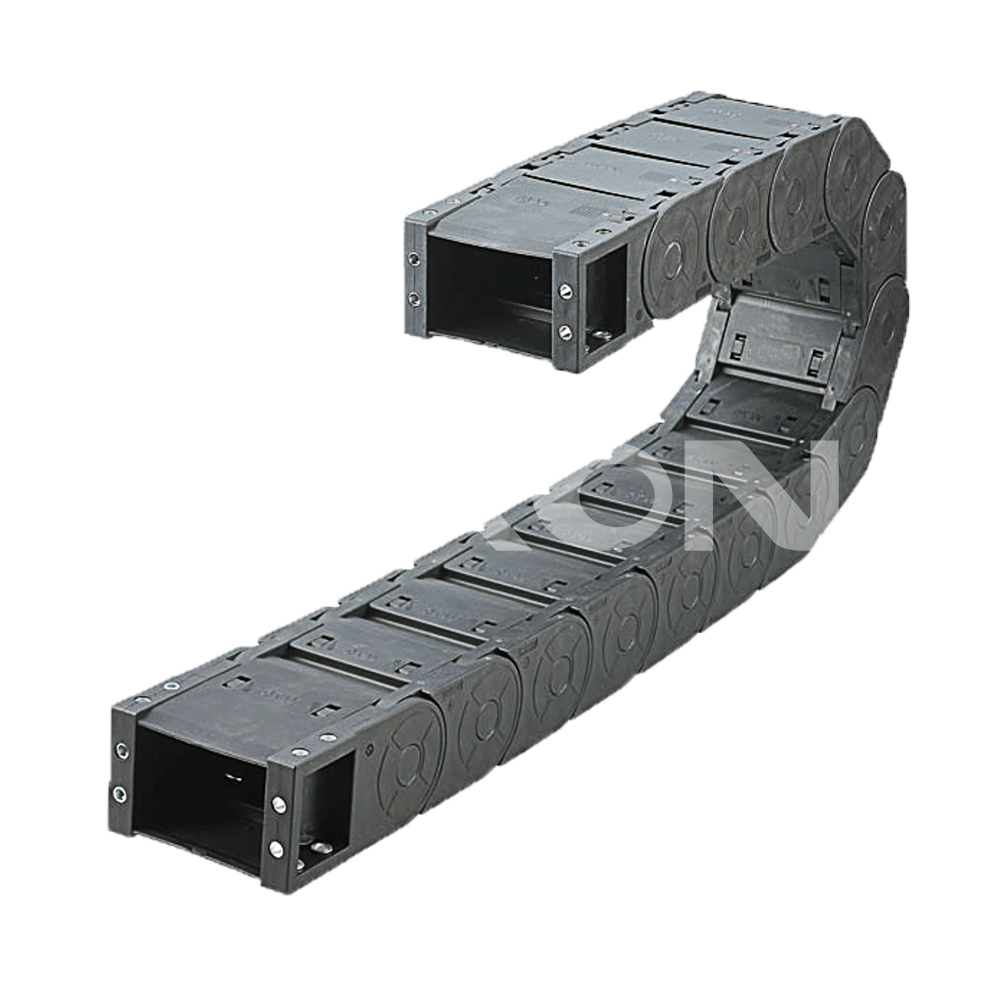

SiRON X71 Series Inner Height 45/55/65 - Fully Enclosed outside Open Drag Chain

Name: SiRON X71 Series Inner Height 45/55/65 - Fully Enclosed outside Open Drag Chain
Brand: SiRON
Rating: 5.0 (30 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

add0f081a0ce4c0b52bbe224ed7c4f64

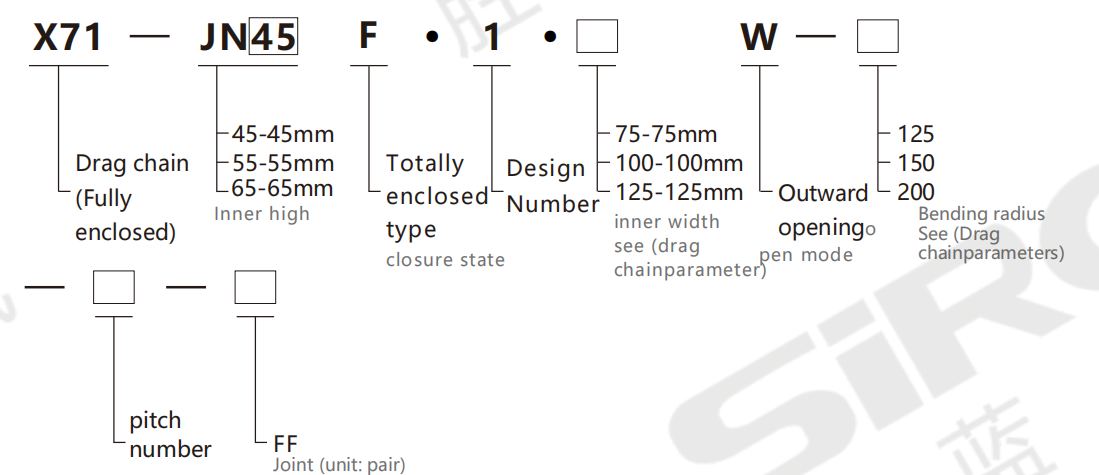

Selection example: X71-JN45F.1.75W-125-14-FF indicates the X71 series drag chain, with an inner height of 45mm and a fully enclosed design.

Inner width 75mm, outer opening, bending radius 125mm, 14 sections, joint FF(1 pair).
Order the connector model separately: X71-JN45F.1.75W-FF 1 pair

Towing chain size table

model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H	Maximum wire Cable diameter Q(mm)	Load (kg/m)	Installation dimensions of drag chains
model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H	Maximum wire Cable diameter Q(mm)	Load (kg/m)	H	D	K
X71-JN45F.1.75W	125	45	75	65	105	65	45	71.5	14	H+45	40	30	315	229	572
	150												365	254	643
	200												465	304	786
	250												580	374	1008
	300												680	424	1176
X71-JN45F.1.100W	125		100		130								315	229	572
	150												365	254	643
	200												465	304	786
	250												580	374	1008
	300												680	424	1176
X71-JN45F.1.125W	125		125		155								315	229	572
	150												365	254	643
	200												465	304	786
	250												580	374	1008
	300												680	424	1176
X71-JN45F.1.150W	125		150		180								315	229	572
	150												365	254	643
	200												465	304	786
	250												580	374	1008
	300												680	424	1176
X71-JN45F.1.175W	125		175		205								315	229	572
	150												365	254	643
	200												465	304	786
	250												580	374	1008
	300												680	424	1176
X71-JN45F.1.200W	125		200		230								315	229	572
	150												365	254	643
	200												465	304	786
	250												580	374	1008
	300												680	424	1176
