SiRON X71 Series Inner Height 25/35/45 - Fully Enclosed inside Open Drag Chain

Name: SiRON X71 Series Inner Height 25/35/45 - Fully Enclosed inside Open Drag Chain
Brand: SiRON
Rating: 5.0 (45 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket

Model:
X71
Brand:
SiRON
Code:
8544421100

X71 Series New PA plus Pa66 X71 Series Fully Enclosed outside Open X71 Series Inner Height 25/35/45 Drag

Product Description

Order

d8127687f6fdda2391be9619706fe349

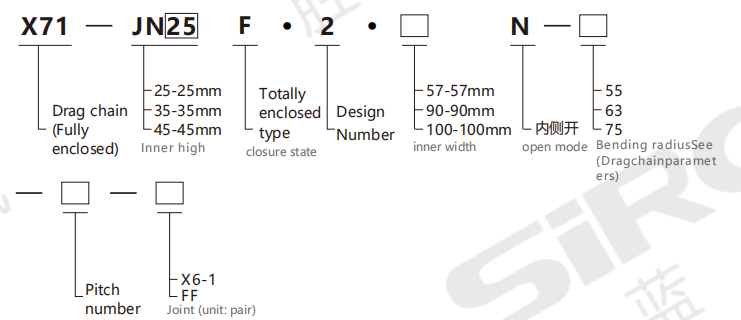

Selection example: X71-JN25F.2.57N-55-22-X6-1 indicates the X71 series drag chain, with an inner height of 25mm and a fully enclosed design.

Inner width 57mm, inner side opening, bending radius 55mm, 22 sections, joint X6-1(1 pair).
Order the connector model separately: X71-JN25F.2.57N-X6-1 1 pair

Towing chain size table

model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H	Maximum wire Cable diameter Q(mm)	Load (kg/m)	Installation dimensions of drag chains
													H	D	K
X71-JN25F.2.57N	55	25	57	40	77	40	40	46	22	H+40	22	2	150	121	276
	63												166	129	322
	75												190	141	368
	100												240	166	414
	125												290	191	506
