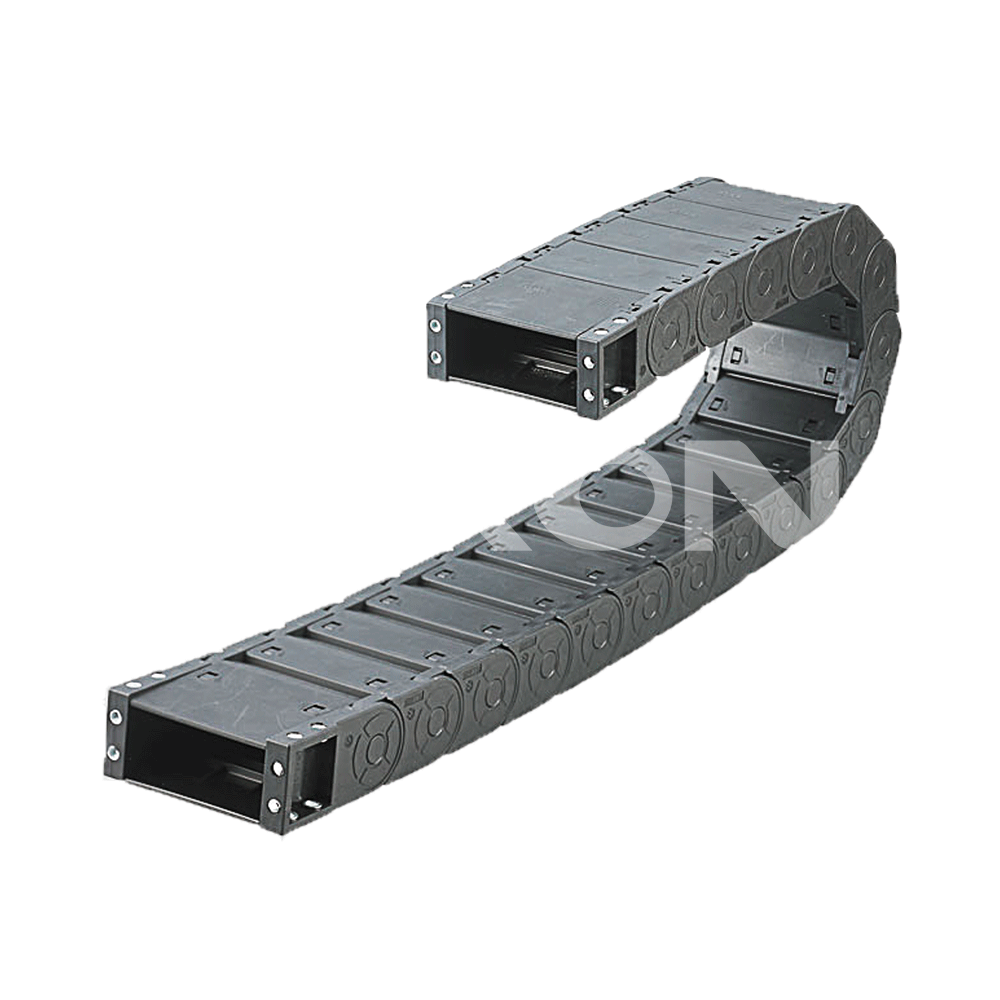

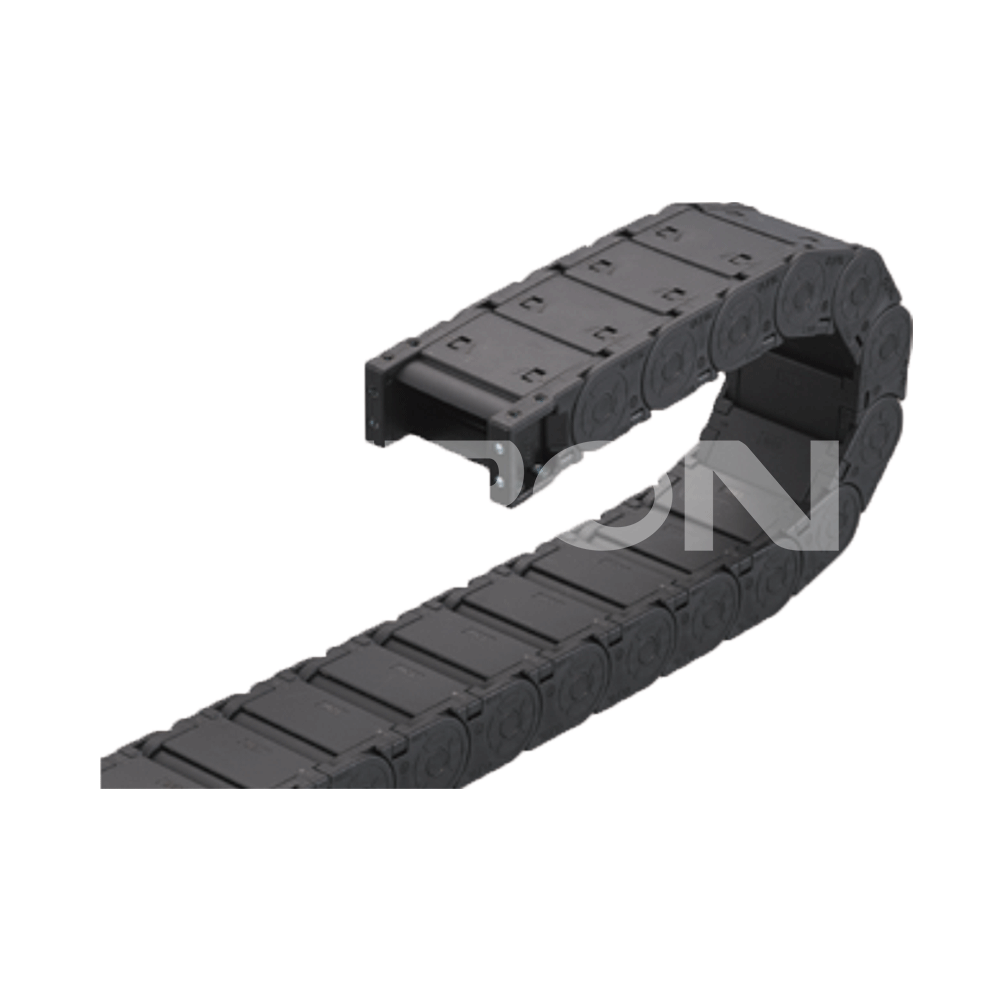

SiRON X71 Series Inner Height 25/30/35 Drag Chain - Fully Enclosed outside Open

Name: SiRON X71 Series Inner Height 25/30/35 Drag Chain - Fully Enclosed outside Open
Brand: SiRON
Rating: 5.0 (83 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

9e5d64c0b1d4e2a50111ff230e26e52f

Selection example: X71-JN25F.1.38W-75-22-FF indicates the X71 series drag chain, with an inner height of 25mm and a fully enclosed design.

Inner width 38mm, outer opening, bending radius 75mm, 22 sections, joint FF(1 pair).

Order the connector model separately: X71-JN25F.1.38W-FF 1 pair

Towing chain size table

model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H	Maximum wire Cable diameter Q(mm)	Load 、 (kg/m)	Installation dimensions of drag chains
model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H	Maximum wire Cable diameter Q(mm)	Load 、 (kg/m)	H	D	K
X71-JN25F.1.38W	75	25	38	40	58	40	40	45.5	22	H+40	22	2	190	141	368
	100												240	166	414
	125												290	191	506
	150												340	216	598
	175												390	241	644
	200												440	266	736
	225												490	291	828
X71-JN25F.1.57W	75		57		77								190	141	368
	100												240	166	414
	125												290	191	506
	150												340	216	598
	175												390	241	644
	200												440	266	736
	225												490	291	828
X71-JN25F.1.77W	75		77		97								190	141	368
	100												240	166	414
	125												290	191	506
	150												340	216	598
	175												390	241	644
	200												440	266	736
	225												490	291	828
X71-JN25F.1.103W	75		103		123								190	141	368
	100												240	166	414
	125												290	191	506
	150												340	216	598
	175												390	241	644
	200												440	266	736
	225												490	291	828
