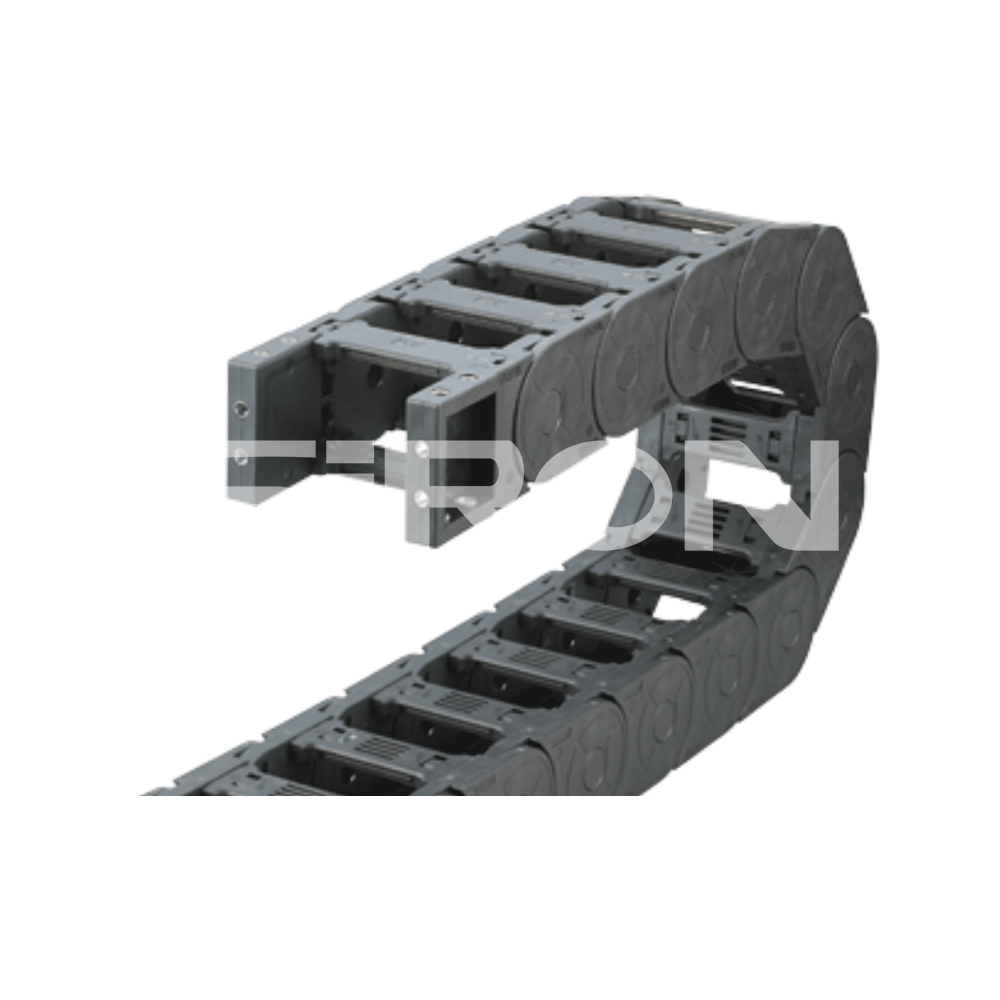

SiRON X70 Series Inner Hight 55/65 Chain-bridge Open outside Drag

Name: SiRON X70 Series Inner Hight 55/65 Chain-bridge Open outside Drag
Brand: SiRON
Rating: 5.0 (38 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Product Description

Order

dbb3a5e3-225f-4b76-86e4-424a51004d20

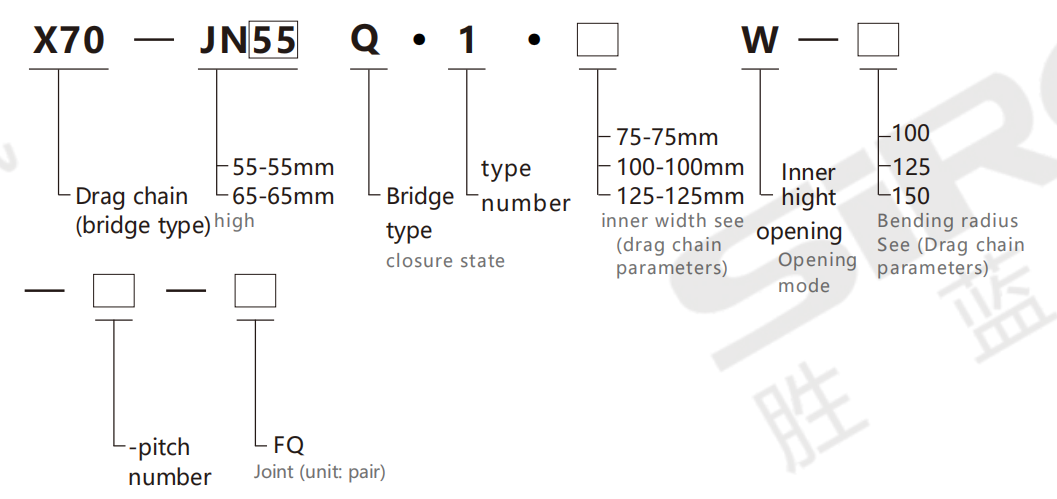

Selection example: X70-JN55Q.1.75W-100-12-FQ indicates the X70 series drag chain, with an inner height of 55mm and a bridge type.

Inner width 75mm, outer opening, bending radius 100mm, 12 sections, FQ joint (1 pair).

Order the connector model separately: X70-JN55Q.1.75W-FQ 1 pair

Towing chain size table

model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H₆	Maximum wire Cable diameter Q(mm)	Load 、 (kg/m)	Installation dimensions of drag chains
model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H₆	Maximum wire Cable diameter Q(mm)	Load 、 (kg/m)	H	D	K
X70-JN55Q.1.75W	100	55	75	80	113	80	45	84	12	H+45	50	35	280	224	504
	125												330	249	588
	150												380	274	672
	200												480	324	840
	250												580	374	1008
	300												680	424	1176
	350												780	474	1344
X70-JN55Q1.100W	100		100		138								280	224	504
	125												330	249	588
	150												380	274	672
	200												480	324	840
	250												580	374	1008
	300												680	424	1176
	350												780	474	1344
X70-JN55Q.1.125W	100		125		163								280	224	504
	125												330	249	588
	150												380	274	672
	200												480	324	840
	250												580	374	1008
	300												680	424	1176
	350												780	474	1344
X70-JN55Q.1.150W	100		150		188								280	224	504
	125												330	249	588
	150												380	274	672
	200												480	324	840
	250												580	374	1008
	300												680	424	1176
	350												780	474	1344
