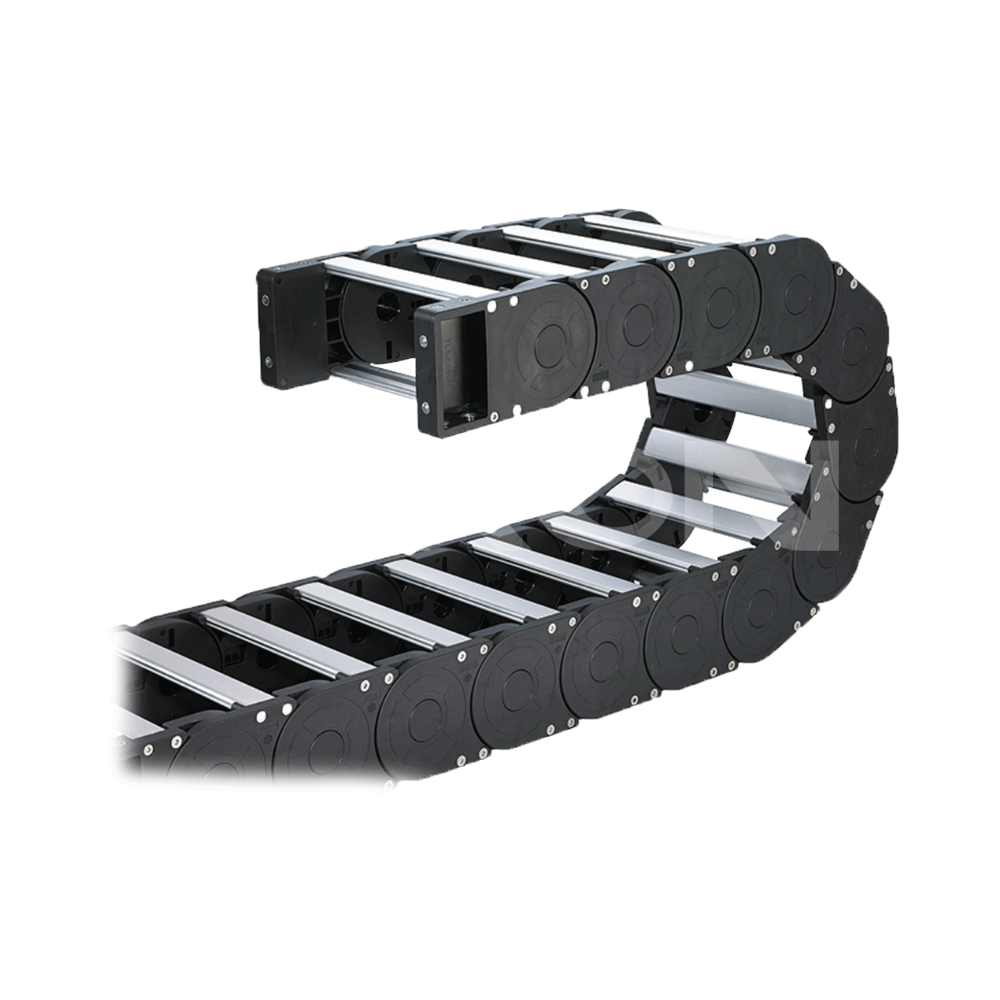

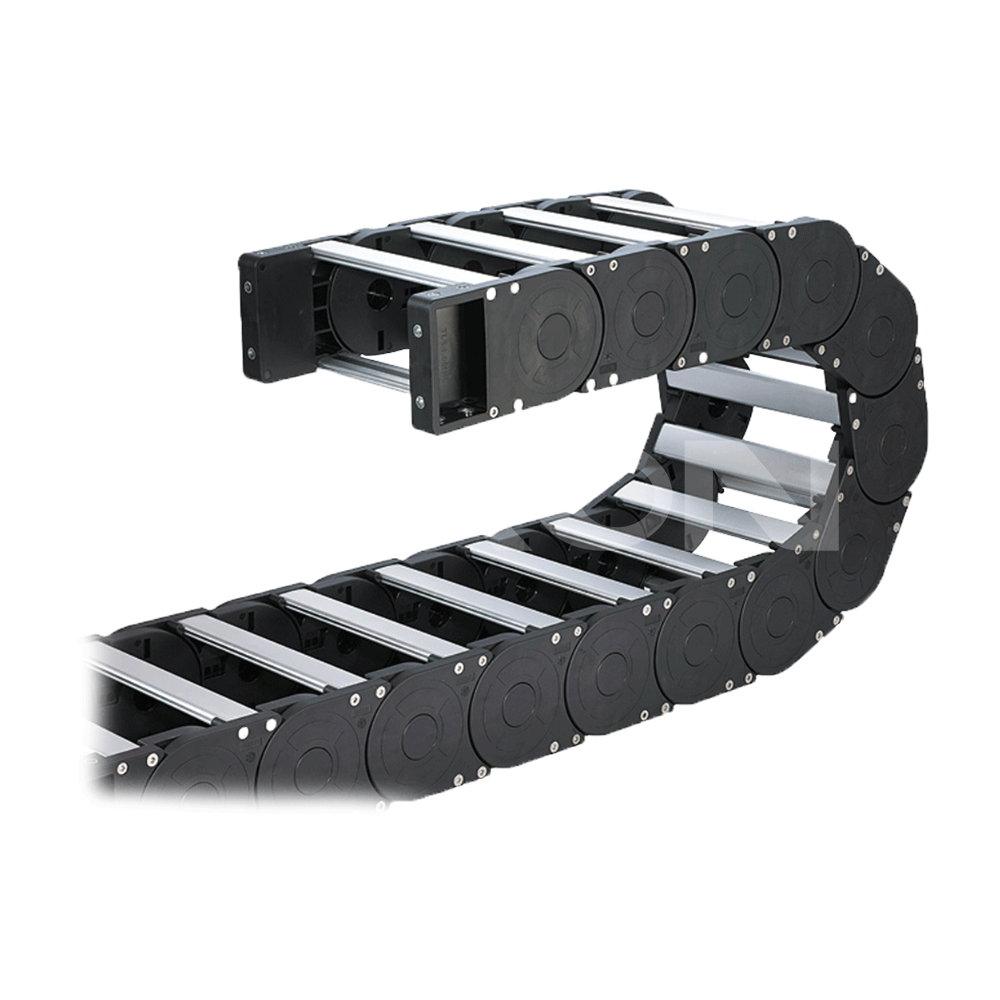

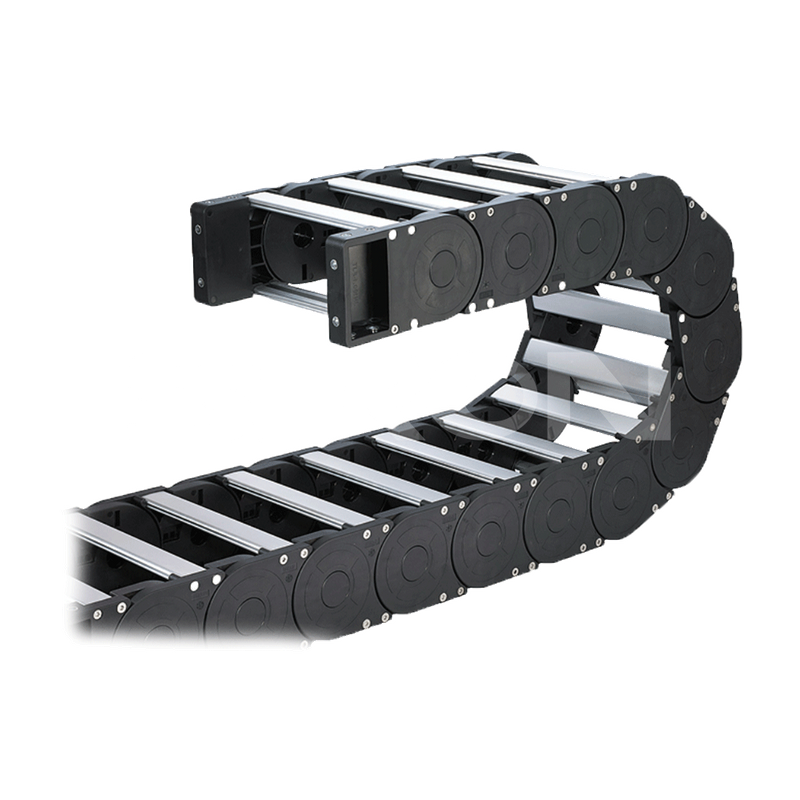

SiRON X70 Series Inner Height 80/100 Drag Chain - Fully Enclosed outside Open

Name: SiRON X70 Series Inner Height 80/100 Drag Chain - Fully Enclosed outside Open
Brand: SiRON
Rating: 5.0 (50 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket

Model:
X70
Brand:
SiRON
Code:
8544421100

X70 Series bridge type Drag X70 Series Fully Enclosed outside Open X70 Series Inner Height 80/100 Drag

Product Description

Order

46c5af88-e9b6-4a36-a97f-a99c0c55ebdb

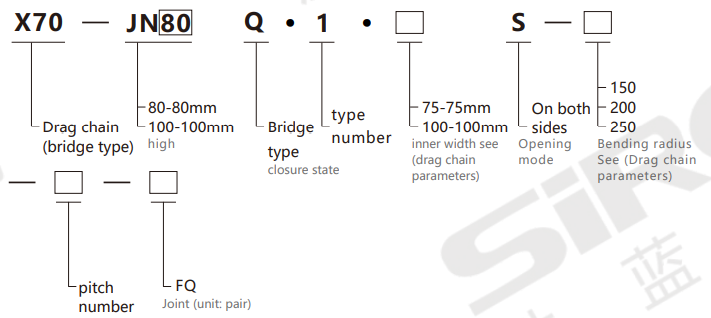

Selection example: X70-JN80Q.1.75S-150-9-FQ indicates the X70 series drag chain, with an inner height of 80mm and a bridge type.Inner width 75mm, double-sided opening, bending radius 150mm, 9 sections, FQ joint (1 pair).

Order the connector model separately: X70-JN80Q.1.75S-FQ 1 pair

Towing chain size table

model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H₆	Maximum wire Cable diameter Q(mm)	Load 、 (kg/m)	Installation dimensions of drag chains
model	bending radius R	Inner height	Interior width	Outer High	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H₆	Maximum wire Cable diameter Q(mm)	Load 、 (kg/m)	H	D	K
X70-JN80Q1.75S	150	80	75	108	127	108	45	111	9	H+45	75	70	408	315	777
	200												508	365	888
	250												608	415	1110
	300												708	465	1221
	350												808	515	1332
	400												908	565	1554
	500												1108	665	1887
X70-JN80Q1.100S	150		100		152								408	315	777
	200												508	365	888
	250												608	415	1110
	300												708	465	1221
	350												808	515	1332
	400												908	565	1554
	500												1108	665	1887
X70-JN80Q1.125S	150		125		177								408	315	777
	200												508	365	888
	250												608	415	1110
	300												708	465	1221
	350												808	515	1332
	400												908	565	1554
	500												1108	665	1887
X70-JN80Q1.150S	150		150		202								408	315	777
	200												508	365	888
	250												608	415	1110
	300												708	465	1221
	350												808	515	1332
	400												908	565	1554
	500												1108	665	1887
X70-JN80Q.1.200S	150		200		252								408	315	777
	200												508	365	888
	250												608	415	1110
	300												708	465	1221
	350												808	515	1332
	400												908	565	1554
	500												1108	665	1887
