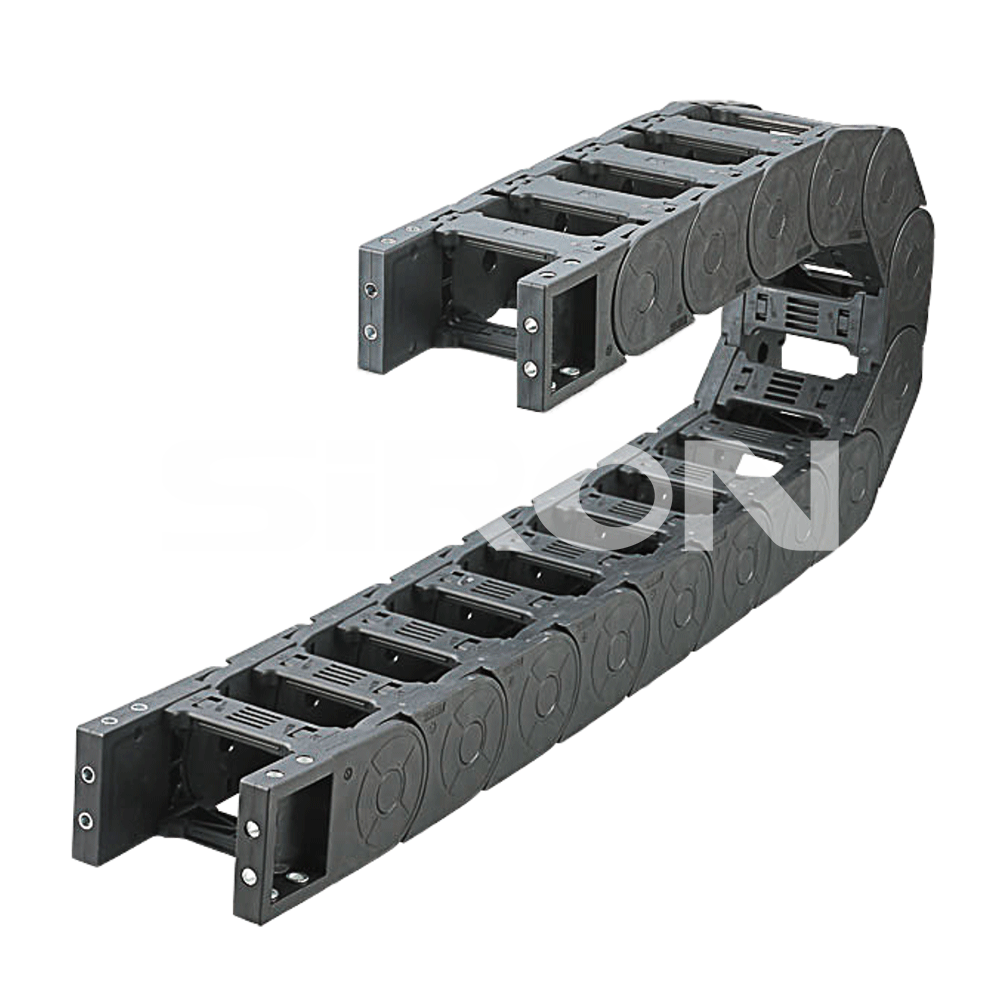

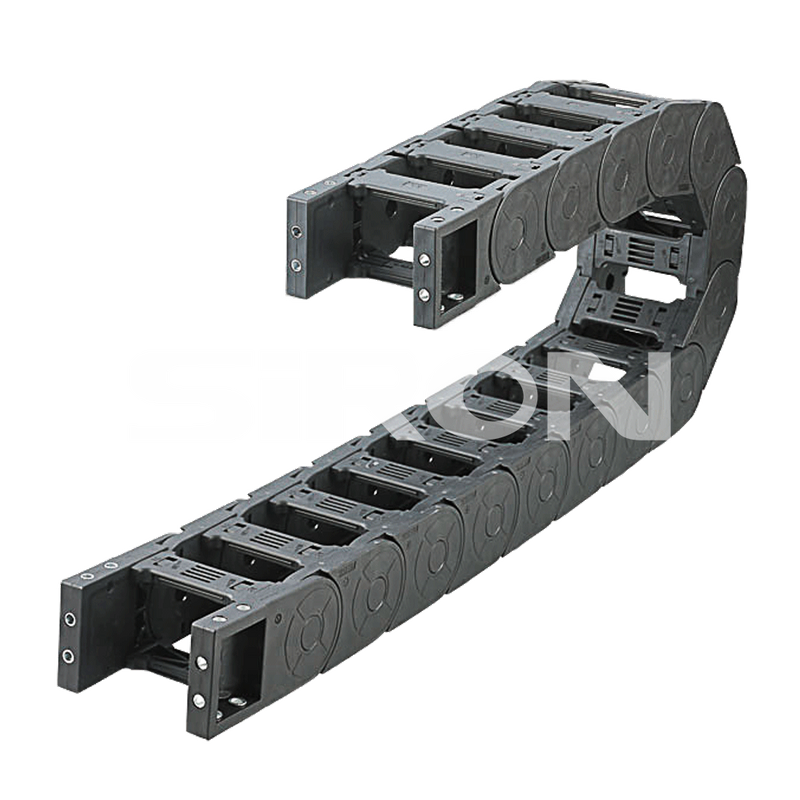

SiRON X70 Series Inner Height 35/45 Chain-bridge Open outside Drag

Name: SiRON X70 Series Inner Height 35/45 Chain-bridge Open outside Drag
Brand: SiRON
Rating: 5.0 (7 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X70
Brand:
SiRON
Code:
8544421100

X70 Series bridge type Drag X70 Series Open outside Drag X70 Series Inner Height 35/45 Drag

Product Description

Order

fb05bec6-3e27-4569-be6d-ea78a9ecaa0b

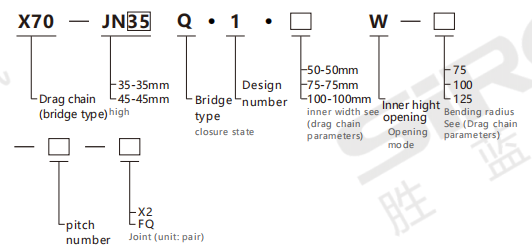

Selection example: X70-JN35Q.1.50W-75-17-X2 represents the X70 series drag chain, with an inner height of 35mm and a bridge type.Inner width 50mm, outer opening, bending radius 75mm, 17 sections, 2 joints (1 pair).

Individual

order of connector model: X70-JN35Q.1.50W-X1 pair

Towing chain size table

model	bending radius R	Inner height	inner width	Outer height	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H;	Maximum line Cable diameter Q(mm)	load 、 (kg/m)	Installation dimensions of drag chains拖链安装尺寸
model	bending radius R	Inner height	inner width	Outer height	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H;	Maximum line Cable diameter Q(mm)	load 、 (kg/m)	H	D	K
X70-JN35Q.1.50W	75	35	50	54	76	54	40	59	17	H+40	30	12	204	161	354
	100												254	186	472
	125												304	211	531
	150												354	236	590
	175												404	261	708
	200												454	286	767
	250												554	336	944
X70-JN35Q.1.75W	75		75		101								204	161	354
	100												254	186	472
	125												304	211	531
	150												354	236	590
	175												404	261	708
	200												454	286	767
	250												554	336	944
X70-JN35Q.1.100W	75		100		126								204	161	354
	100												254	186	472
	125												304	211	531
	150												354	236	590
	175												404	261	708
	200												454	286	767
	250												554	336	944
X70-JN35Q.1.125W	75		125		151								204	161	354
	100												254	186	472
	125												304	211	531
	150												354	236	590
	175												404	261	708
	200												454	286	767
	250												554	336	944
