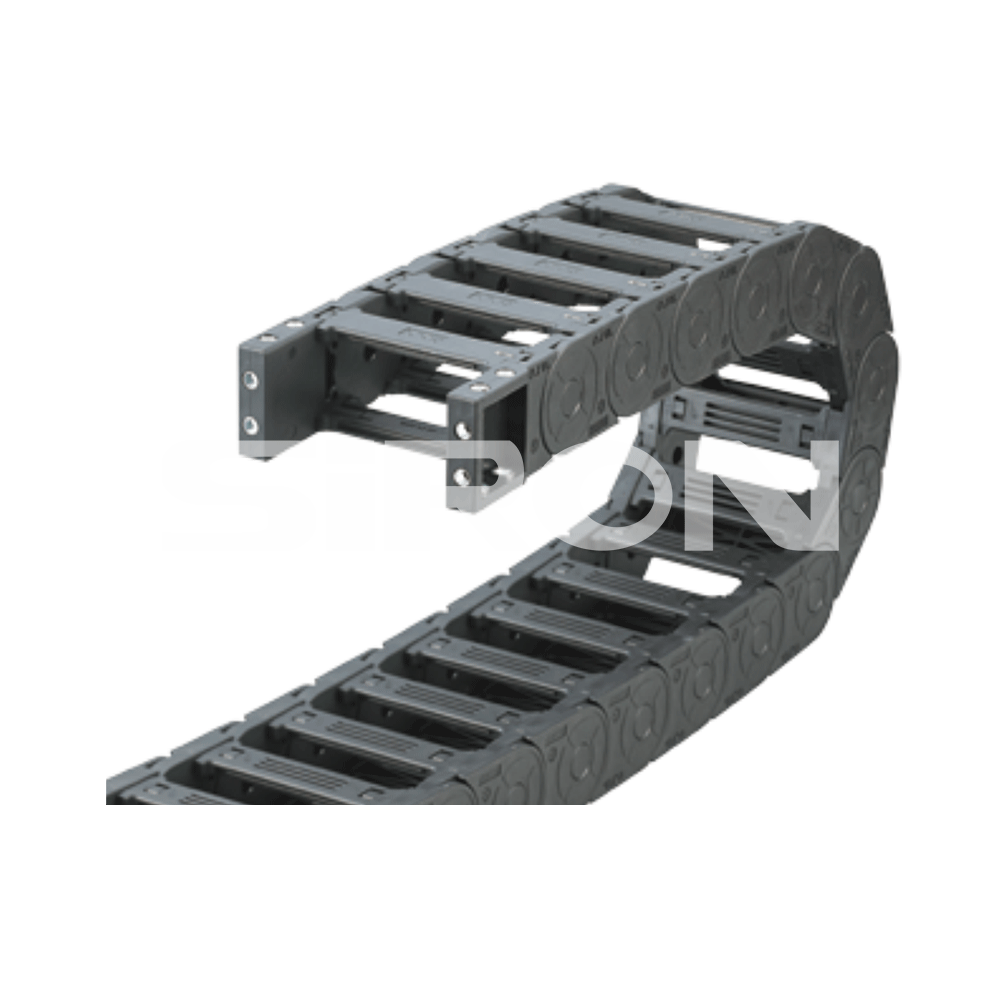

SiRON X70 Series Inner Height: 25/30 Drag Chain-bridge Open outside

Name: SiRON X70 Series Inner Height: 25/30 Drag Chain-bridge Open outside
Brand: SiRON
Rating: 5.0 (81 reviews)

Features

High tensile load and wear resistance, oil and saltresistance;
High and low temperature stable performance, indoor and outdoor can be used;Good product quality, stable performance, long service life;
Mainly used in industrial automation field and machine tool machinery and other industries
Material: New PA plus Pa66;

Quantity:
Availability:





Inquire Add to Basket

Model:
X70
Brand:
SiRON
Code:
8544421100

X70 Series bridge type Drag X70 Series Open outside Drag X70 Series Inner height: 25/30 Drag

Product Description

Order

49579b42-3c4d-440e-b1fd-f9849f73433f

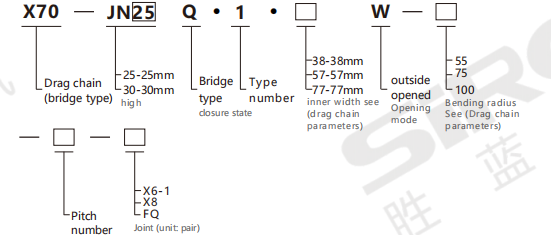

Selection example: X70-JN25Q.1.38W-55-22-X6-1 indicates the X70 series drag chain, with an inner height of 25mm and a bridge type.Inner width 38mm, outer opening, bending radius 55mm, 22 sections, joint X6-1(1 pair).

Order the connector model separately: X70-JN25Q.1.38W-X6-1 1 pair

Towing chain size table

Model	bending radius R	Inner height	inner width	Outer height	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H;	Maximum line Cable diameter Q(mm)	load 、 (kg/m)	Installation dimensions of drag chains拖链安装尺寸
Model	bending radius R	Inner height	inner width	Outer height	outer width	J	J1	pitch	Per meter Number of sections	Actual safety Installation height H;	Maximum line Cable diameter Q(mm)	load 、 (kg/m)	H	D	K
X70-JN25Q.1.38W	55	25	38	40	58	40	40	46	22	H+40	22	2	150	121	276
	75												190	141	368
	100												240	166	414
	125												290	191	506
	150												340	216	598
	175												390	241	644
	200												440	266	736
	225												490	291	828
X70-JN25Q.1.57W	55		57		77								150	121	276
	75												190	141	368
	100												240	166	414
	125												290	191	506
	150												340	216	598
	175												390	241	644
	200												440	266	736
	225												490	291	828
X70-JN25Q.1.77W	55		77		97								150	121	276
	75												190	141	368
	100												240	166	414
	125												290	191	506
	150												340	216	598
	175												390	241	644
	200												440	266	736
	225												490	291	828
X70-JN25Q.1.103W-	55		103		123								150	121	276
	75												190	141	368
	100												240	166	414
	125												290	191	506
	150												340	216	598
	175												390	241	644
	200												440	266	736
	225												490	291	828
